The carbon fiber vinyl can be used exceptionally well on a motorcycle, as the pattern can be seen in smaller areas on the bike, such as the tank, fairings, fenders and side panels. However, those smaller panels also make installation errors more noticeable. Don't assume that a pattern that is straight on the roll would be straight on the vehicle. It might not be, and don't assume that two adjacent fairings would have the same pattern direction, if they are not planned beforehand.
What Carbon Fiber Vinyl Looks Like on a Motorcycle
Carbon fiber vinyl is an appearance film designed to reproduce a woven, forged or other carbon-inspired surface. On a motorcycle, you normally see that texture from a much shorter distance than you would see a wrapped car door or hood, so the size of the pattern and the amount of reflection matter more than you might expect.
Generally, the texture of a wrapped car door or hood will be viewed at a much greater distance than what you see on a motorcycle and so the size of the pattern and the amount of reflection becomes a factor.
For a more traditional carbon look with a consistent weave direction, use a traditional woven pattern. There are also versions of the structure based on irregular fragments, while honeycomb and geometric versions make the surface pattern more visible. RAXTiFY's current offering of carbon fiber includes 3D matte, 5D and 6D style, forged carbon and geometric/honeycomb carbon.
Even carbon-look vinyl is PVC wrap film and should be treated as such. It can resist light scratches and minor abrasion, UV exposure and everyday contaminants, but is not designed to resist denting or to offer the impact protection of a dedicated paint protection film.
Which Carbon Fiber Style Works Better on Motorcycle Panels?
When a matte woven carbon is used, reflections are reduced and the weave becomes more important than the gloss level. This works well if you want the carbon effect without making it too strong.
The 5D or 6D gloss carbon will create deeper reflections and visual depth. This usually makes the weave more visible under direct light on a small fender or fairing, but surface imperfections or differences in the pattern direction can also become easier to notice.
A forged carbon pattern uses irregular fragments rather than a continuous ordered weave. This can make it easier to use as an accent since you don't have to keep a single continuous diagonal weave throughout all panels.
A mini forged pattern is made with smaller pieces. The smaller the pattern scale, the more of the design will be visible on smaller motorcycle fairings and trim pieces, as opposed to having just one or two large forged shapes on the entire panel.
Whatever finish you choose, check an actual sample when possible. Screen images can change the way gloss, texture and carbon depth appear. If you want to compare carbon patterns and finishes in more detail, see our Carbon Fiber Vinyl Wrap Buying Guide.

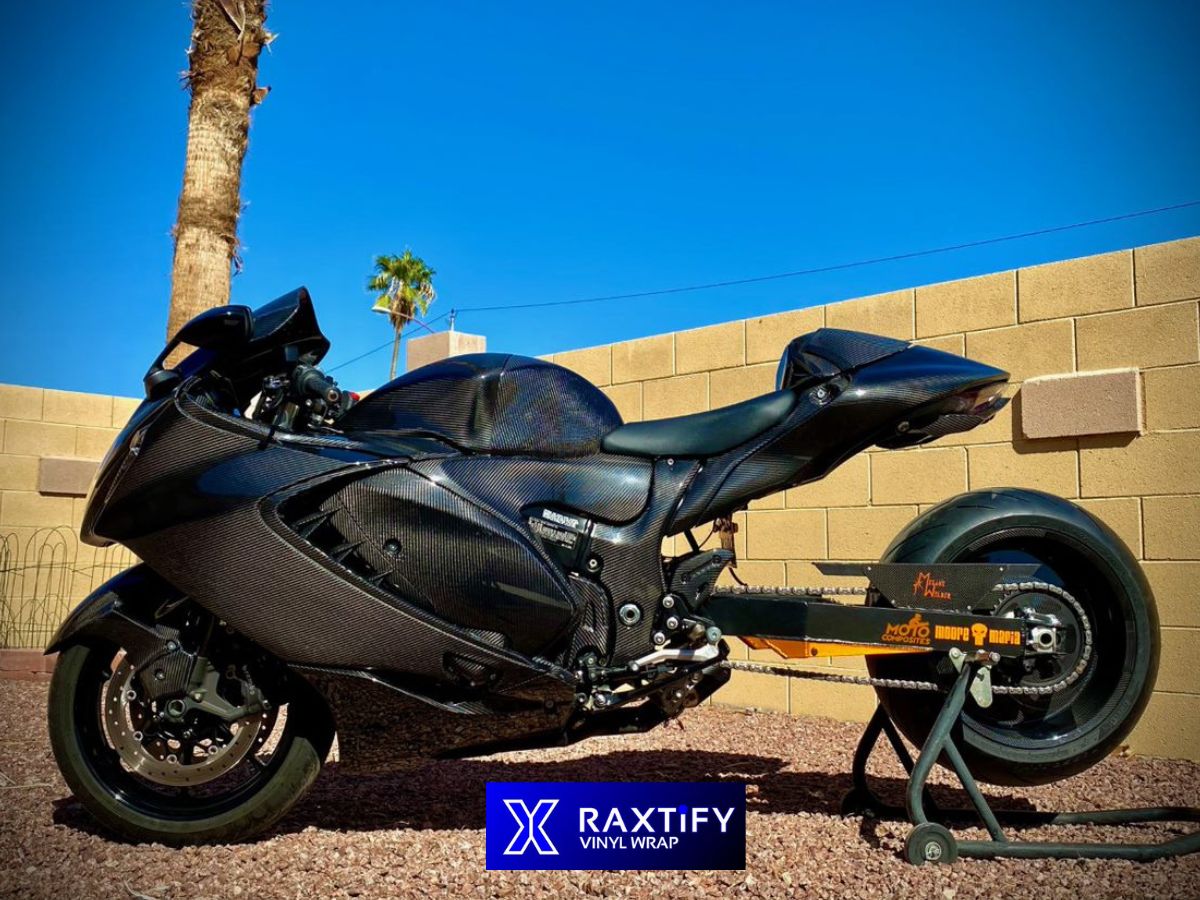

Carbon Fiber Wrap For Motorcycle
Use of carbon fibre vinyl may be either over the majority of the bodywork or in specific visible areas. On the actual vehicle, the texture is most noticeable on the fuel tank, fenders, side covers and fairings.
If you want to create a full carbon-style motorcycle, pattern alignment becomes more important across the entire build. Two panels side by side will usually look different if the weave is running forward on one and backward on the other.
Partial coverage is an alternative. The factory paint can be left as is and the tank sides, front fender, fairing inserts or other desired panels can be covered with carbon vinyl. This is because on many bikes it results in a more dramatic difference between the texture of the carbon and the original colour than from the carbon pattern alone.
Carbon Fiber on a Motorcycle Tank
A fuel tank provides a large visible area for a carbon fiber vinyl, but can offer more opportunity to see pattern distortion due to compound curves. The regular carbon weave may spread out or turn when stretched around the shoulders of the tank, as opposed to the flatter parts.
Based on our installation experience, adding more stretch can make the pattern harder to control around the shoulders of the tank. Avoid unnecessary stretching and design the direction of the pattern before placing the film. For more information on all aspects of surface preparation, fuel-cap edges, seams and tank installation, please refer to our Motorcycle Tank Wrap Guide.
Carbon Vinyl Versus Repainting
Vinyl is a reversible option to change the look of the panel, when the original paint is in good condition.
It can also help make experimentation easier. It's possible to wrap just a fender and tank first, and then decide if you will wrap the same pattern across the fairings or not.
However, this doesn't necessarily make wrapping more affordable in all instances. Labor will vary greatly depending on the motorcycle, disassembly and complexity of panels. What really is advantageous is that the finish can be changed again at a later time without having to settle on a permanent custom paint design.
What Makes Carbon Fiber Vinyl Harder to Install on a Motorcycle?
Much like other vehicle wrap films, carbon fiber vinyl is applied to the vehicle, but the visual pattern allows these stretching mistakes to be more easily noticed. Typically on a motorcycle, there are four areas that require the most attention: compound curves, pattern distortion, edge tension and seam planning.
Compound curves: The shape of fuel tanks and fairings can vary rapidly over a short distance. However, it is not always best to pull harder as it can cause issues at other edges or recesses.
Distortion of pattern: The carbon weave or forged pattern is stretched with the film. The pattern may become broader, unbalanced, and/or may change direction if one area is stretched more than the other. When wrapping neighboring fairings, consider the direction of the pattern prior to installation so that they appear consistent.
Edge tension: Fairings, fenders and tank edges are relatively exposed. Too much stretch may lead to lifting though the film may look fine on the first inspection.
There is no one rule to follow when planning a seamless installation. If you have a more complex tank or fairing, a good seam placement will make the panel look cleaner than forcing it to go through a deep curve and get a more distorted carbon pattern.
If you want to prepare, measure, trim and post heat the entire motorcycle, follow our How to Wrap a Motorcycle guide.
Cost Of Wrapping A Motorcycle With Carbon Fiber Vinyl
Cost is based on the type of motorcycle, amount of bike to be wrapped, panel complexity, and labor involved. Carbon fiber patterns may also need more attention to pattern direction and alignment between adjacent panels.
| Motorcycle Wrap Project | Typical Professional Cost |
|---|---|
| Single tank, fender, or fairing | $150–$450 |
| Cruiser motorcycle | $1,000–$1,800 |
| Sport bike | $1,200–$2,000 |
| Full motorcycle wrap | $900–$2,000+ |
These are approximate planning ranges. The level of complexity of the bike, such as a fully faired bike, complicated tank curves, panel removal, or even difficulty aligning a carbon pattern can add to the labor cost. For a more detailed breakdown, see our Motorcycle Wrap Cost Guide.
How Much Carbon Fiber Vinyl Do You Need for a Motorcycle?
When measuring the length of motorcycles, measure the length of the tank, the fairings, the fenders and the side panels separately, not the total length of the motorcycle. If you have a fully faired sport bike, it will require more film than a motorcycle with just a tank, fenders and small side covers. Newbies should also leave extra room for repositioning, trimming, and panels which might need to be redone. Our starting material estimates are:
| Project | Suggested Starting Amount |
|---|---|
| Small tank accent | 5 ft × 1–2 ft |
| Full motorcycle fuel tank | 5 ft × 3–5 ft |
| Tank + small side panels | 5 ft × 5–6 ft |
| Full motorcycle wrap | 5 ft × 10–16 ft+ |
How To Take Care Of The Carbon Fiber Vinyl Wrap
To ensure your motorcycle's carbon fiber wrap stays in prime condition for the long haul, it's crucial to adopt a few key maintenance practices:
Keep Fuel Away From Exposed Edges
Wipe fuel spills promptly, especially around the filler opening. Pay extra attention if fuel reaches an exposed vinyl edge or seam.
Wash Gently
Use clean water, a mild automotive soap and a soft microfiber cloth or wash mitt. Clean the bike according to use and contamination rather than following a fixed weekly schedule.
Be Careful Around Edges
Avoid directing high-pressure water or concentrated air closely at seams, corners or lifted edges.
Check High-Tension Areas
Tank shoulders, recessed fairings, tight corners and lower edges deserve occasional inspection because overstretched areas are more likely to show lifting or shrinkage first.
Frequently Asked Questions
Q1. Does carbon fiber vinyl look fake on a motorcycle?
A: The appearance will depend on the pattern, the amount of shine and the installation. If the film is overstretched, the carbon pattern may become distorted and look unnatural.
Q2. Will the carbon pattern distort around a motorcycle tank?
A: It can. Tension control is important around tank curves because excessive stretching can widen the pattern or change its direction.
Q3. Can you wrap a motorcycle tank in one piece?
A: Some easier tank shapes can be wrapped in one piece, while deeper curves or difficult lower edges may need a planned seam.
Q4. Which motorcycle surfaces are easiest to wrap?
A: The smooth painted tanks, fairings and fenders are easier in general. More challenging areas include textured plastic, damaged or peeling paint, and deep recesses.
Q5. How much carbon fiber vinyl should a beginner buy?
A: Order more film than the exact size of the panel. A full tank size is typically about 5 ft × 3–5 ft, and for a tank with small side panels, a 5 ft × 5–6 ft piece may be more practical.
Q6. Can gasoline damage vinyl around the fuel cap?
A: Exposed edges and the wrap can be impacted by repeated fuel exposure. Clean up spills immediately.
Q7. How long does carbon fiber vinyl last on a motorcycle?
A: Typically, RAXTiFY carbon fiber vinyl is expected to last around 2–3 years. Its life can vary due to UV exposure, climate, installation and maintenance
Is Carbon Fiber Vinyl a Good Fit for Your Motorcycle?
Carbon fiber vinyl makes the most sense when you want the visual texture of carbon on a tank, fairing, fender or selected accent panel without permanently repainting the motorcycle. The main limitation is installation: small panels make weave direction and overstretching easier to see, while tanks and aggressive fairings create more tension than their size suggests. If you plan the pattern before cutting, leave enough film for compound curves and avoid forcing one-piece installs where the shape does not support them, the finished result will usually look much more consistent.
