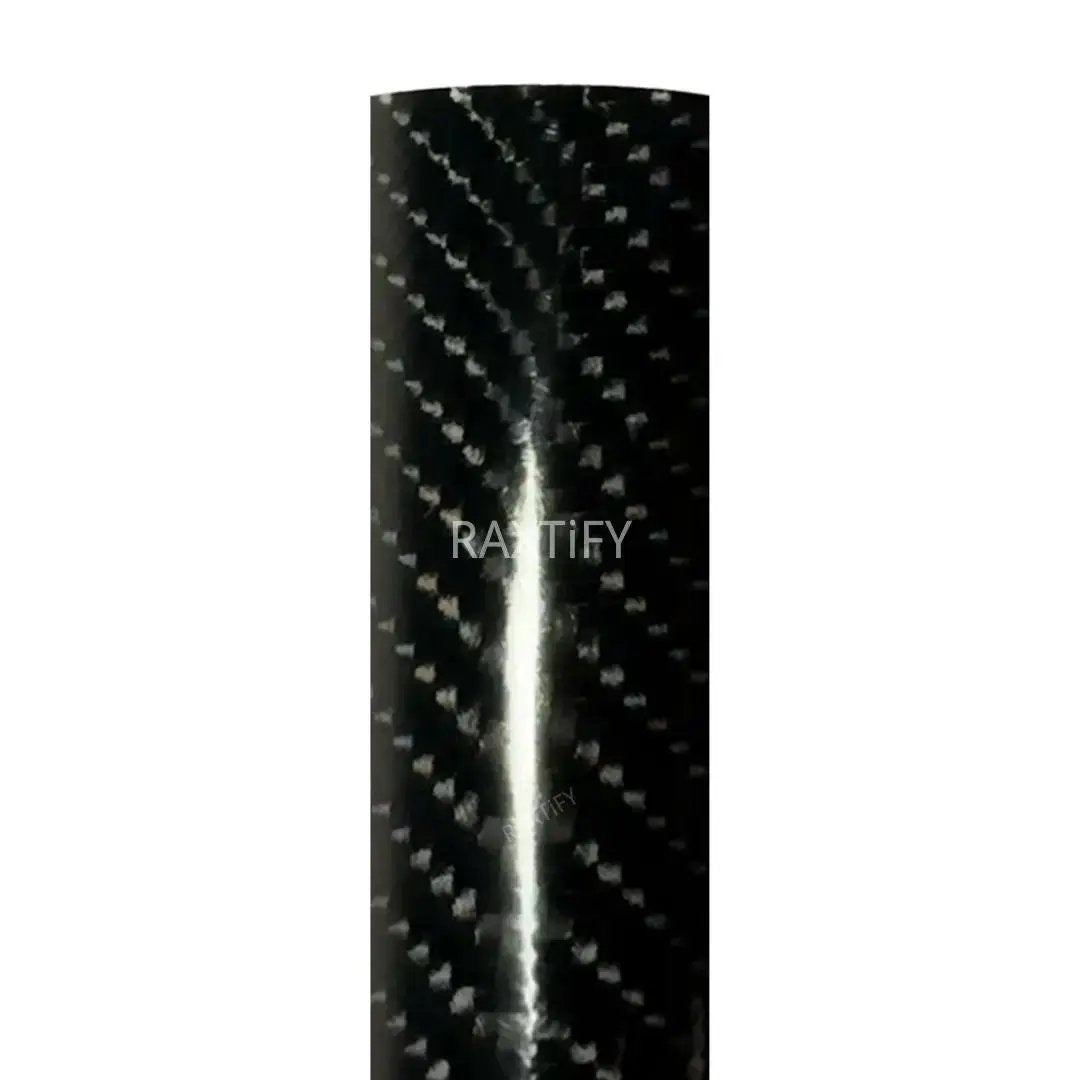

6D Carbon Fiber Black Interior Vinyl Wrap
- Sku: CF09
Air-Release Channel
PET Backing Liner
Low Initial Tack
Quality Warranty
1. Top Protective film: Included only on full rolls (59ft) of gloss vinyls.
2. Shipping Time: 7-10 days (Free) | 3-5 days (Express).
For smaller, pre-cut pieces of glossy vinyl, the protective film is removed before shipping to ensure a smooth surface without air bubbles or creases. This does not affect the quality of the vinyl.
All matte/ Satin vinyl wraps do not have a protective film, as their surface is naturally resistant to minor scratches and does not require additional protection.
59ft = full roll
69ft = full roll + 10ft pre-cut
75ft = full roll + 16ft pre-cut
4. Products ordered separately may have slight color variations due to different color lots.
5. CAUTION! The images, colors, and finishes on the screen are approximate. For accuracy, refer to the color book or samples.
6. We prioritize sending films with PET backing liners. If unavailable, paper backing liners will be provided. Use a bubble remover/defoamer on the surface before applying for best results.
Film Material & Construction
- Film Type: Premium-grade polymeric calendered vinyl wrap
- Material Structure: Polymeric hybrid vinyl with integrated air-release channels
- Designed Use: Full vehicle wraps and smooth to moderately curved surfaces
- Directional Film: Yes (installation direction must be observed)
- Backing Liner: PET
Thickness
- Vinyl Film Thickness: 3.7–4.1 mil
Adhesive System
Adhesive Type: Solvent-based acrylic adhesive
Adhesive Features:
- Pressure-sensitive
- Transparent appearance
- Designed for automotive exterior use
- Balanced initial tack and repositionability
Adhesive Layer Thickness: approx. 12 μm (dry)
Application & Installation Guidelines
Certain finishes (ultra-gloss, metallic, glitter series) may be firmer than standard vinyl due to surface coating structure. Professional installation is recommended
Recommended Application Temperature
- Installation Environment: 20°C–30°C (68°F–86°F)
- Service Temperature Range: −45°C to +45°C
Recommended Tools
- Squeegee with soft buffer
- Utility knife
- Masking tape
- Heat gun
- Magnets
- Gloves
- IR thermometer (strongly recommended for accurate post-heating)
Post-Heating Requirements (Critical)
Proper post-heating is essential to release internal film stress and ensure long-term adhesion.
- Flat Surfaces: 95°C–110°C
- Curves, Recesses & Overlaps: up to 120°C
Note: Failure to post-heat correctly may result in edge lifting or shrinkage over time.
Mechanical & Physical Properties (Typical Values)
Elongation at Break:
- MD: ~200%
- CD: ~190%
Tensile Strength: 22.7 N/10mm
Dimensional Stability: ≤ 2% (70°C / 10 min oven test)
Surface Tension: ~34 dynes/cm
Maintenance & Care
- Clean only with pH-neutral automotive shampoo
- Use soft microfiber cloth or touchless wash
- Pressure washing below 2000 PSI only
- Avoid brush-style car washes, abrasive tools, and solvent-based cleaners
- Remove bird droppings, sap, fuel residue, and contaminants promptly
- Vinyl-safe spray wax or sealant only
- Abrasive polish, cutting compounds, ceramic coatings, and overlamination are not recommended
Durability & Warranty
Service life varies by film series, installation quality, environment, and maintenance
Warranty (if applicable) covers material defects only
The following are not covered:
- Improper installation or insufficient post-heating
- Overstretching, overheating, or misuse
- Incompatible overlaminates, coatings, or surface treatments
- Environmental damage, road debris, or accidents
- Surface imperfections originating from the vehicle’s original paint
Storage & Shelf Life
Indoor or shaded parking is strongly recommended
Shelf Life: Up to 3 years
Storage Conditions:
- Temperature: +10°C to +20°C
- Relative Humidity: approx. 50%
- Store in original packaging
- Keep away from direct sunlight, heat, dust, and moisture
Packaging Information
- Roll Width: 152 cm (60 inches)
- Roll Length: 18 m
- Approximate Roll Weight: 13 kg
Size Chart
Motorcycles: 5ft * 16ft
Mini/ Small Cars: 5ft * 49 ft
Convertible: 5ft * 59 ft
Coupe: 5ft * 59 ft
Sedan: 5ft * 59 ft
Hatchback: 5ft * 59 ft
Sports Car: 5ft * 59 ft
Station Wagon: 5ft * 69 ft
Sport-utility Vehicle (SUV) : 5ft * 69 ft
Minivan: 5ft * 80 ft
Pickup Truck: 5ft * 92 ft
6D Carbon Fiber Black Interior Vinyl Wrap
Why 6D Carbon Fiber Black Interior Vinyl Wrap?
If you want to give your car a sleek, modern upgrade without the hassle of permanent change, then our 6D Carbon Fiber Black Vinyl Wrap is the ultimate solution. It's designed to imitate the luxurious texture of real carbon fiber and provides an unparalleled finish that exudes sophistication and style. Whether you're into forged carbon wraps or just looking to elevate your car aesthetically, this is the perfect product for you.
1. Striking Visual Effects
The 6D Carbon Fiber Black Vinyl Wrap will surely be an eye-catcher on the road. A deep black color with a high-gloss finish gives it an amazing reflective surface that accentuates the overall look of your car. The realistic forged carbon fiber vinyl wrap design boasts intricate patterns that closely resemble authentic carbon fiber, delivering a premium look without the hefty cost. It's a style statement that makes heads turn wherever you go.
2. Durable Protection for Your Vehicle
This wrap isn’t just about looks—it’s about safeguarding your investment. The 6D Carbon Vinyl Wrap Car acts as a protective barrier, shielding your car’s original paint from scratches, chips, and UV damage. By applying this wrap, you’re not only enhancing the appearance of your vehicle but also preserving its resale value against wear and tear.
3. Versatile and Customizable
From full-body transformation to a partial accent, our vinyl wrapping adapts easily. Accentuate the hood, roof, trunk, or mirrors with it for that nice two-toned look. Its flexibility also made this material a popular choice for carbon wrapping in car interiors, from dashboards to gear levers and door trims for elegance and protection in your cabin.
4. Premium Material Features
This high-grade polymeric vinyl used in the manufacture is very durable yet lightweight and flexible. The advanced air-release technology makes sure that a bubble-free application gives your car just a perfect finish. Being of medium stretch, this vinyl will cover curves and corners with great coverage of tight spaces, professionally enough even for a DIY job.
5. Easy Installation and Removal
Whether you're a newbie at wrapping or a seasoned expert, you'll surely love this wrap for convenience. The high-quality acrylic adhesive provides an excellent bond with the surface, yet it is repositionable at the time of application for less risk of errors. And if ever it comes to removal, rest assured that it would come off clean, leaving no residue; hence, it is good in not making permanent changes.
6. Cost-Effective and Efficient
We have this carbon vinyl wrap car available in sizes of 5ft x 1ft up to 59ft. That will make it easier to purchase as little or as much material as you need without overbuying and, ultimately, without waste, which allows better value. Whether you're doing a sports car, sedan, or even just some interior pieces, this is great coverage at a fraction of the price of actual carbon fiber.
6D Carbon Fiber Black Interior Vinyl Wrap Specifications:
- High-quality and durable carbon fiber
- Seamless application across the entire vehicle.
- Long-lasting, durable, and high-performance.
- Water and weatherproof.
- Heat and UV resistant.
- Pressure-sensitive, robust acrylic adhesive.
- Equipped with air-release channels for bubble-free application
- Easy to use: peel and stick
- UV resistant, ensuring years of fade-free use
- Durable, waterproof, and resistant to fading and wrinkling
- Leaves no marks when removed
- Eco-friendly and non-toxic
- Suitable for cars, motorcycles, boats, bikes, and more.
- Customizable for Interior and Exterior
- The depth and weave pattern of authentic carbon fiber
- Lightweight Yet Visually Impactful
- Color: 6D Black
- Finish: Carbon Fiber
- Lifespan: 2-3 years with proper installation and maintenance
- Shipping Time: Standard shipping: 7-12 business days; Faster shipping: 3-5 business days
Structure
Our wrap films consist of 4 layers designed to ensure exceptional performance:
The first layer serves as a protective barrier for the underlying vinyl.
Directly beneath, you'll find high-grade polymeric vinyl fortified with pressure-sensitive acrylic adhesive.
Finally, a layer of top-tier 130um plastic liner adds an extra level of quality to our wrap films. This plastic liner ensures a smoother, super glossy, and lustrous finish.
Item Specifications
| RAXTiFY VINYL | Specifications |
|---|---|
| Technology | High-grade polymeric calendered vinyl film with air-release channels |
| Top Protective Liner | PET |
| Thickness (Face only) | 3.7–4.1 mil, face film only |
| Thickness (Adhesive) | 1.6 mil removable pressure-sensitive adhesive with air-release channels |
| Glue | Solvent-based adhesive, low-to-medium tack for easier repositioning |
| Release Liner | PET/Plastic |
| Width (Standard) | 5ft / 60in 1.52m |
| Length (Standard) | 19.7yd / 59ft / 18m |
| Indoor Lifespan | 3 years depending on use and maintenance |
| Outdoor Lifespan | 2 years depending on climate, installation, and maintenance (Except Chrome Wraps) |
Wrap Testing
| RAXTiFY VINYL | Testing Result |
|---|---|
| Dimensional Stability | Shrinkage less than 4% |
| Tensile Strength | 22.7 N/10mm |
| Release Force (N/25mm) | 0.13 N/25mm, tested at 25°C and 50% RH |
| Initial Tack (g/25mm) | 1360 g/25mm, tested at 26°C and 64% RH, GB31125-2014 |
| Peel Strength (N/25mm) | 7.02 N/25mm, tested at 25°C and 42% RH, GB/T2792-1998 |
| Holding Power (h) | 75.09 (25℃ and 50%, GB/T4851-1998) |
| Chemical Resistance | Resistant to mild acids, mild alkalis, and salt. Avoid strong solvents and harsh cleaners. |
| Aging Testing | No adhesive residue after 7 days of heat exposure under 65°C |
| Aging Test 2 | No adhesive residue after 10 days under standard aging conditions |
| Storing Period | Up to 3 years when stored in the original packaging at +10°C to +20°C, 50% RH, away from direct sunlight, in a clean and dry environment |
Application
| RAXTiFY VINYL | Application Advices |
|---|---|
| Recommended Tools | Squeegee with felt edge, microfiber buffer, sharp knife, masking tape, magnets, gloves, heat gun, infrared thermometer |
| Application | Apply using standard dry-wrap techniques for calendered vinyl films. Avoid overstretching and overheating. Post-heating is required on edges, curves, recessed areas, and overlaps |
| Post-heating Temperature | 95°C–110°C for most areas and up to 120°C for curves and overlaps (Except Chrome Wraps） |
| Recommended Installation Area Temperature | 20°C–30°C (68°F–86°F) |
| Directional | All vinyl wraps are recommended to be installed directionally |
| Application Method | Dry Application （Except PPF) |
| Aftercare | Clean with pH-neutral car wash soap and a soft microfiber cloth. Avoid strong solvents, abrasive cleaners, and harsh chemicals |
Frequently Asked Questions
RAXTiFY vinyl wrap is designed with air release channels to help reduce bubbles during installation, making it suitable for both professional installers and experienced DIY users.
However, installation difficulty may vary depending on the vehicle shape, surface condition, film finish, and installer experience. Full vehicle wraps, deep curves, bumpers, mirrors, chrome finishes, carbon fiber films, and other specialty finishes may require professional installation for the best result.
Yes. We recommend ordering a Small Size Sample before purchasing a full roll, especially if you are comparing colors or finishes.
Vinyl wrap color can look different under sunlight, shade, indoor lighting, camera settings, screen display, and different vehicle body lines. A sample helps you check the real color, finish, and texture before starting your wrap project.
Most RAXTiFY vinyl wraps come with a 2-year limited warranty against confirmed product-related defects.
This warranty does not cover improper installation, overheating, overstretching, scratches, accidents, harsh chemicals, normal wear and tear, environmental damage, paint damage during removal, or issues caused by poor surface condition.
Some specialty finishes, including chrome and carbon fiber vinyl wraps, may not be eligible for the standard 2-year limited warranty.
For full details, please read our RAXTiFY Warranty Policy.
RAXTiFY vinyl wrap is designed to last approximately 2–3 years with proper installation and regular care.
Actual lifespan may vary depending on the film series, finish, climate, UV exposure, parking conditions, washing habits, and overall vehicle surface condition. Vehicles parked indoors or in shaded areas may help maintain the wrap’s appearance for longer.
For best results, hand wash the wrapped vehicle with clean water, pH-neutral soap, and a soft microfiber mitt or sponge. Dry the surface with a clean microfiber towel after washing.
Avoid harsh chemicals, abrasive cleaners, automatic car washes, polishing compounds, fuel spills, and high-pressure washing directly on film edges. Long-term exposure to intense sunlight, heat, rain, snow, dust, and pollution may affect the finish over time.
Yes. RAXTiFY vinyl wrap can be removed later when it is properly heated and removed with care.
Our vinyl wrap is designed to be removable without damaging factory OEM paint that is in good condition. For the safest result, we recommend professional removal, especially for full vehicle wraps, older installations, or vehicles with unknown paint history.
Please note that paint condition matters. Repainted surfaces, peeling clear coat, rust, dents, scratches, weak paint, or improper removal may increase the risk of paint damage.
