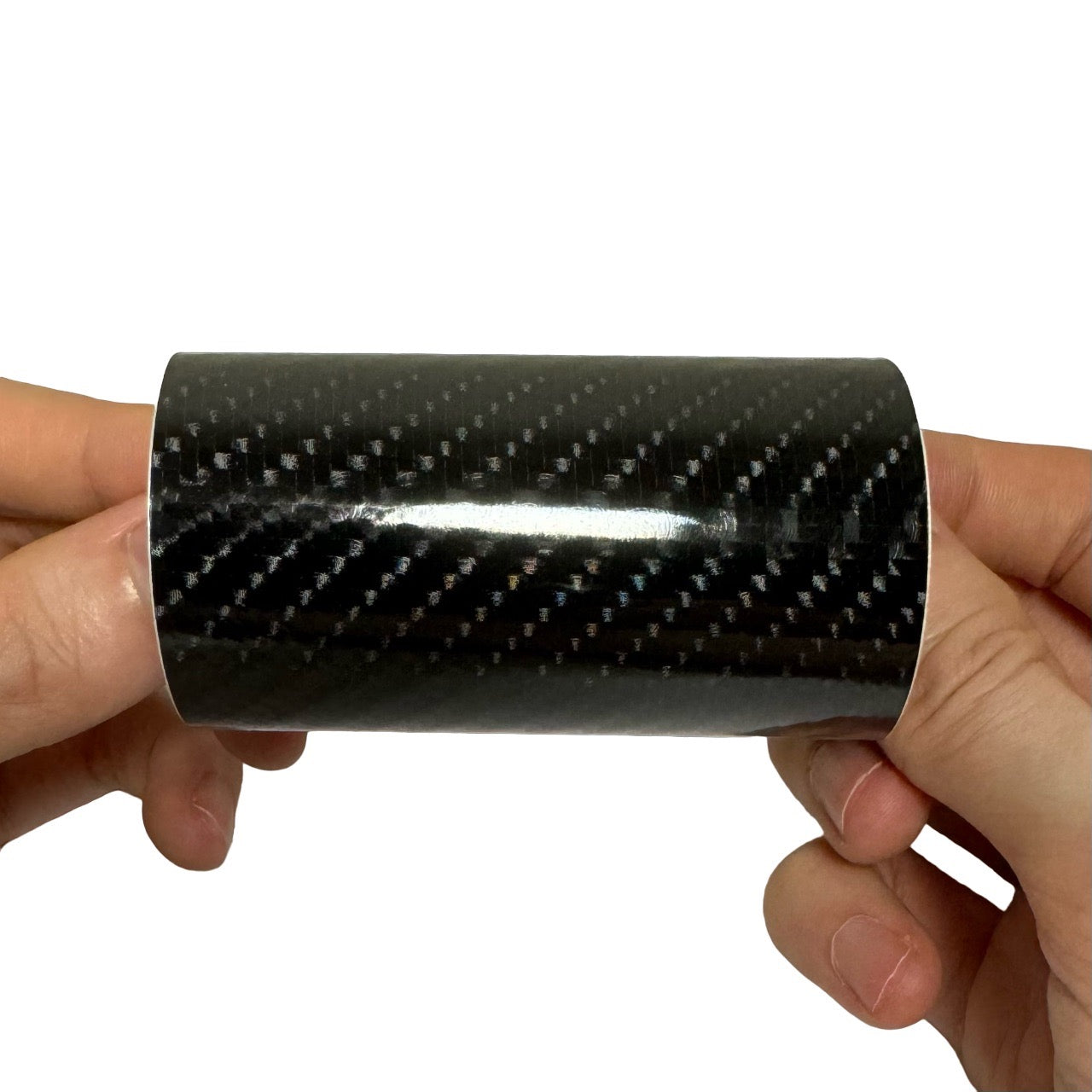

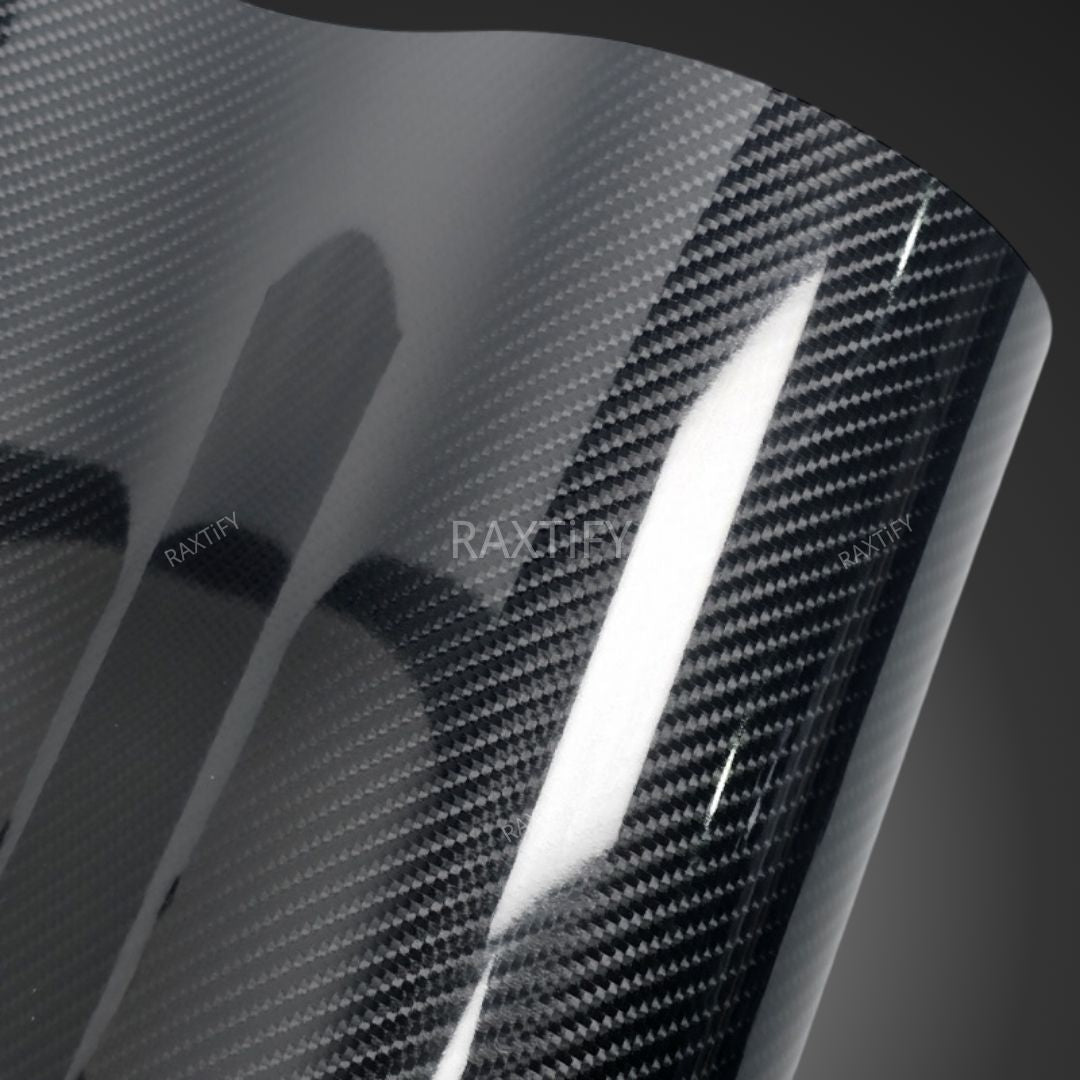

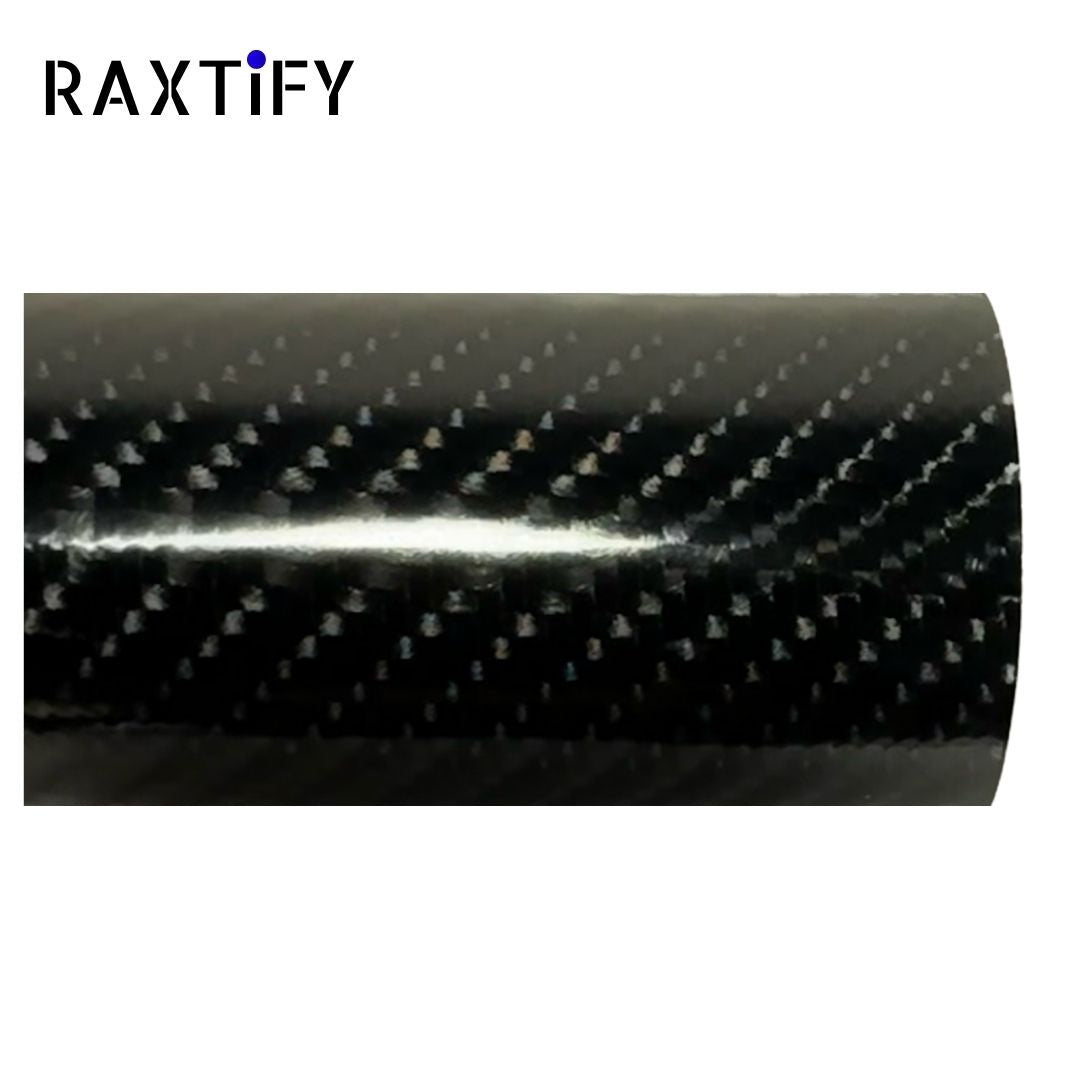

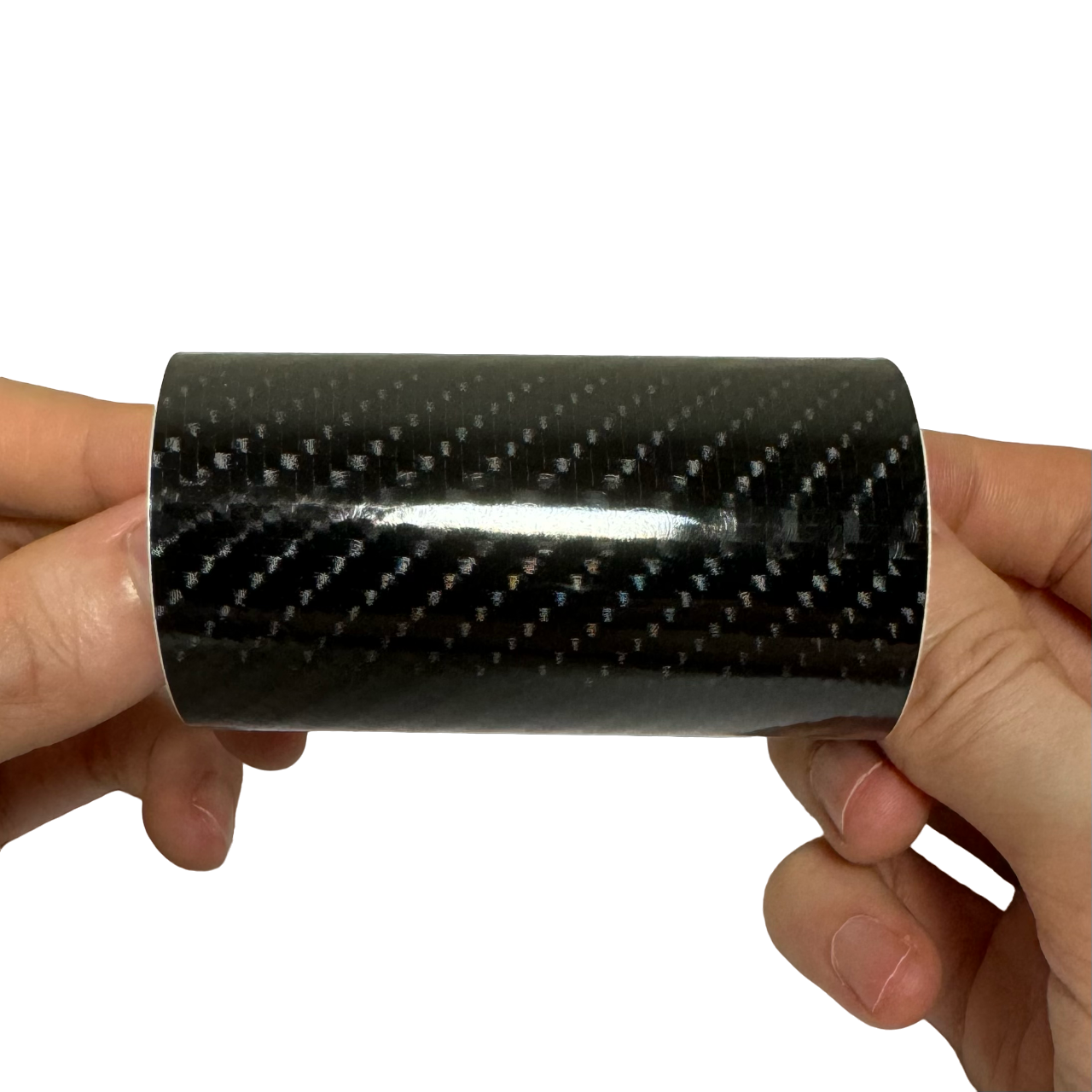

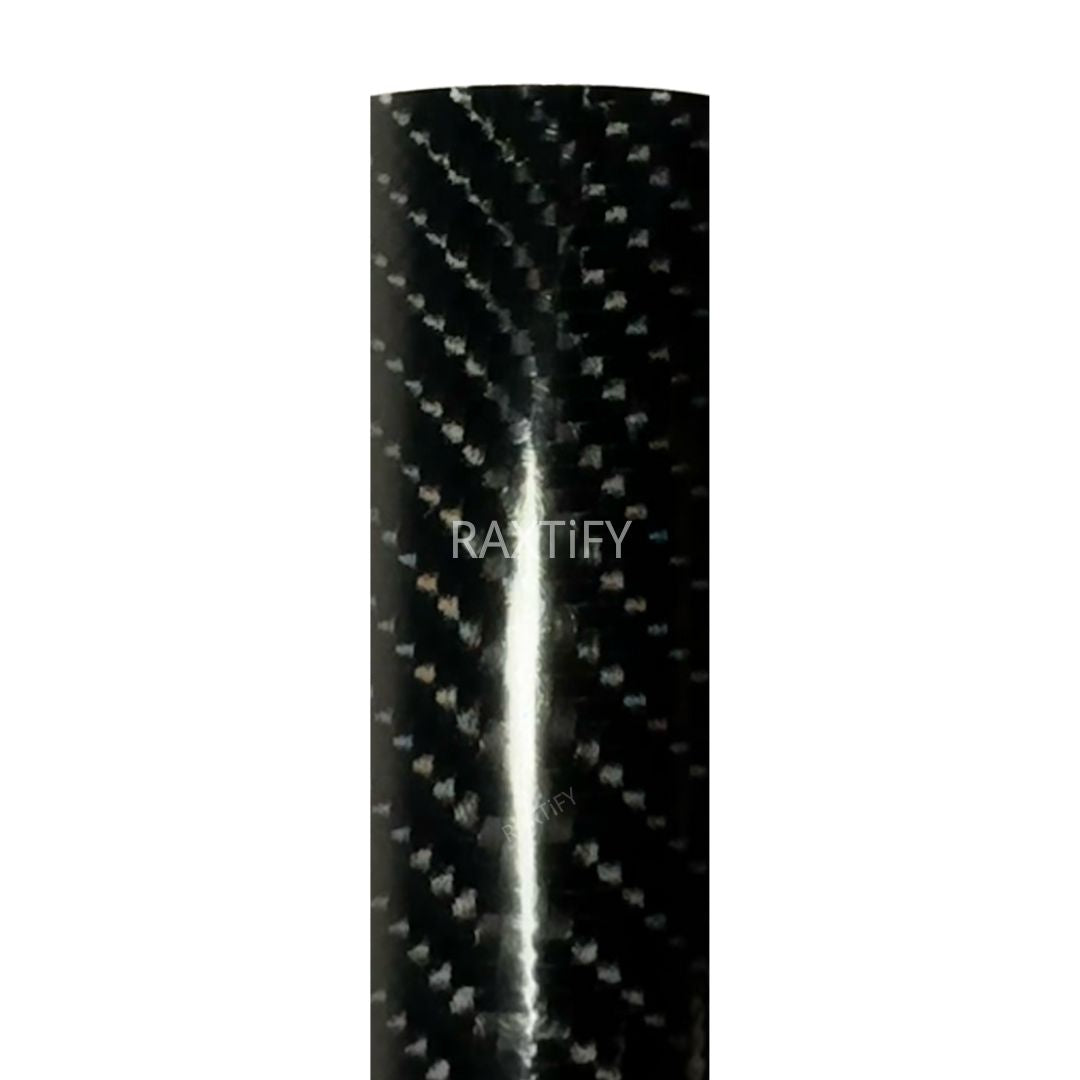

6D Carbon Fiber Black Vinyl Wrap
- Sku: CF09
Air-Release Channel
PET Backing Liner
Low Initial Tack
2-Year Warranty
1. Top Protective film: Included only on full rolls (59ft) of gloss vinyls.
2. Shipping Time: 7–10 days (Free) | 5–7 days (Express).
For smaller, pre-cut pieces of glossy vinyl, the protective film is removed before shipping to ensure a smooth surface without air bubbles or creases. This does not affect the quality of the vinyl.
All matte/ Satin vinyl wraps do not have a protective film, as their surface is naturally resistant to minor scratches and does not require additional protection.
59ft = full roll
69ft = full roll + 10ft pre-cut
75ft = full roll + 16ft pre-cut
4. Products ordered separately may have slight color variations due to different color lots.
5. CAUTION! The images, colors, and finishes on the screen are approximate. For accuracy, refer to the color book or samples.
6. We prioritize sending films with PET backing liners. If unavailable, paper backing liners will be provided. Use a bubble remover/defoamer on the surface before applying for best results.
Film Material & Construction
- Film Type: Premium-grade polymeric calendered vinyl wrap
- Material Structure: Polymeric hybrid vinyl with integrated air-release channels
- Designed Use: Full vehicle wraps and smooth to moderately curved surfaces
- Directional Film: Yes (installation direction must be observed)
- Backing Liner: PET
Thickness
- Vinyl Film Thickness: approx. 0.13 mm
- Total Thickness (with release liner): approx. 0.28–0.30 mm
Adhesive System
Adhesive Type: Solvent-based acrylic adhesive
Adhesive Features:
- Pressure-sensitive
- Transparent appearance
- Designed for automotive exterior use
- Balanced initial tack and repositionability
Adhesive Layer Thickness: approx. 12 μm (dry)
Application & Installation Guidelines
Certain finishes (ultra-gloss, metallic, glitter series) may be firmer than standard vinyl due to surface coating structure. Professional installation is recommended
Recommended Application Temperature
- Installation Environment: +17°C to +25°C
- Service Temperature Range: −45°C to +45°C
Recommended Tools
- Squeegee with soft buffer
- Utility knife
- Masking tape
- Heat gun
- Magnets
- Gloves
- IR thermometer (strongly recommended for accurate post-heating)
Post-Heating Requirements (Critical)
Proper post-heating is essential to release internal film stress and ensure long-term adhesion.
- Flat Surfaces: 110°C
- Curves, Recesses & Overlaps: 130°C
Note: Failure to post-heat correctly may result in edge lifting or shrinkage over time.
Mechanical & Physical Properties (Typical Values)
Elongation at Break:
- MD: ~200%
- CD: ~190%
Tensile Strength:
- MD: ~29 N/mm²
- CD: ~25 N/mm²
Dimensional Stability: ≤ 2% (70°C / 10 min oven test)
Surface Tension: ~34 dynes/cm
Maintenance & Care
- Clean only with pH-neutral automotive shampoo
- Use soft microfiber cloth or touchless wash
- Pressure washing below 2000 PSI only
- Avoid brush-style car washes, abrasive tools, and solvent-based cleaners
- Remove bird droppings, sap, fuel residue, and contaminants promptly
- Vinyl-safe spray wax or sealant only
- Abrasive polish, cutting compounds, ceramic coatings, and overlamination are not recommended
Durability & Warranty
Service life varies by film series, installation quality, environment, and maintenance
Warranty (if applicable) covers material defects only
The following are not covered:
- Improper installation or insufficient post-heating
- Overstretching, overheating, or misuse
- Overlaminate or unapproved surface treatments
- Environmental damage, road debris, or accidents
- Surface imperfections originating from the vehicle’s original paint
Storage & Shelf Life
Indoor or shaded parking is strongly recommended
Shelf Life: Up to 3 years
Storage Conditions:
- Temperature: +10°C to +20°C
- Relative Humidity: approx. 50%
- Store in original packaging
- Keep away from direct sunlight, heat, dust, and moisture
Packaging Information

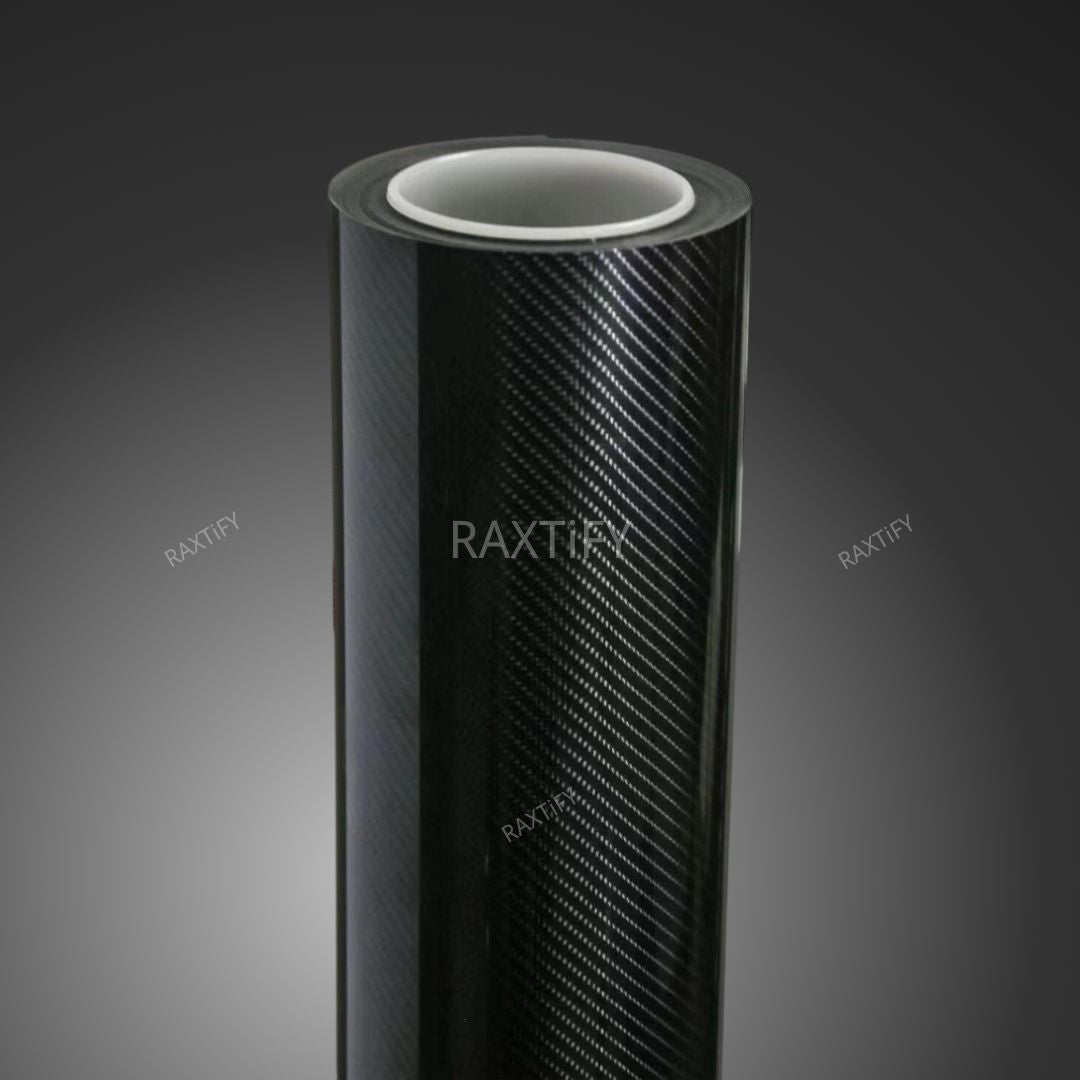

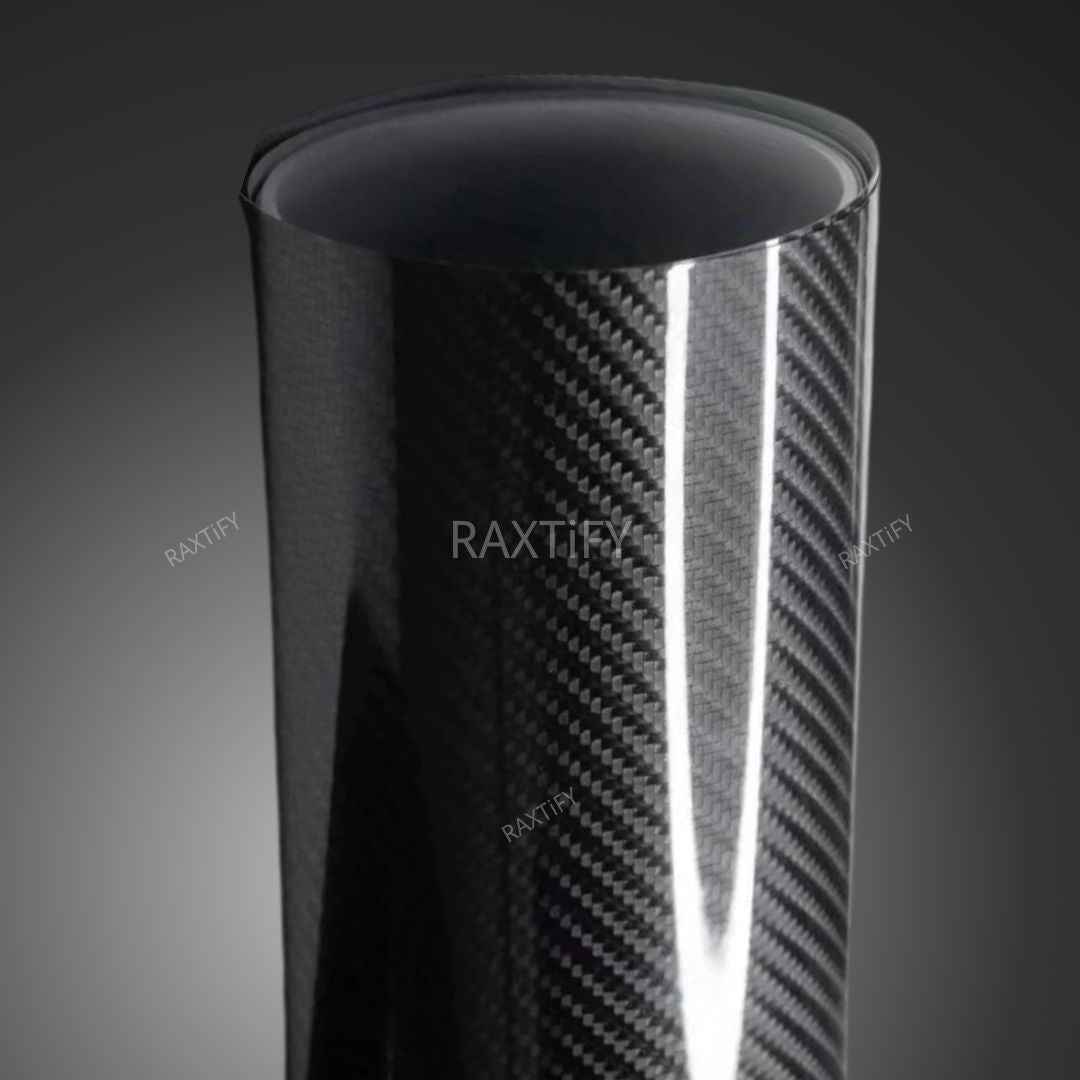

- Roll Width: 152 cm (60 inches)
- Roll Length: 18 m
- Approximate Roll Weight: 13 kg
Size Chart
Motorcycles: 5ft * 16ft
Mini/ Small Cars: 5ft * 49 ft
Convertible: 5ft * 59 ft
Coupe: 5ft * 59 ft
Sedan: 5ft * 59 ft
Hatchback: 5ft * 59 ft
Sports Car: 5ft * 59 ft
Station Wagon: 5ft * 69 ft
Sport-utility Vehicle (SUV) : 5ft * 69 ft
Minivan: 5ft * 80 ft
Pickup Truck: 5ft * 92 ft


6D Carbon Fiber Black Vinyl Wrap
Quick Product Summary
RAXTiFY 6D Carbon Fiber Black Vinyl Wrap is a glossy black carbon fiber vinyl wrap with a deep woven texture and realistic 6D visual depth. It gives hoods, roofs, mirrors, spoilers, trims, and custom accents a sporty carbon fiber look without replacing original vehicle parts.
Video
Features of 6D Carbon Fiber Black Vinyl Wrap
If you want to give your car a sleek, modern upgrade without the hassle of permanent change, then our 6D Carbon Fiber Black Vinyl Wrap is the ultimate solution. It's designed to imitate the luxurious texture of real carbon fiber and provides an unparalleled finish that exudes sophistication and style. Whether you're into forged carbon wraps or just looking to elevate your car aesthetically, this is the perfect product for you.
1. Striking Visual Effects
The 6D Carbon Fiber Black Vinyl Wrap will surely be an eye-catcher on the road. A deep black color with a high-gloss finish gives it an amazing reflective surface that accentuates the overall look of your car. The realistic forged carbon fiber vinyl wrap design boasts intricate patterns that closely resemble authentic carbon fiber, delivering a premium look without the hefty cost. It's a style statement that makes heads turn wherever you go.
2. Durable Protection for Your Vehicle
This wrap isn’t just about looks—it’s about safeguarding your investment. The 6D Carbon Vinyl Wrap Car acts as a protective barrier, shielding your car’s original paint from scratches, chips, and UV damage. By applying this wrap, you’re not only enhancing the appearance of your vehicle but also preserving its resale value against wear and tear.
3. Versatile and Customizable
From full-body transformation to a partial accent, our vinyl wrapping adapts easily. Accentuate the hood, roof, trunk, or mirrors with it for that nice two-toned look. Its flexibility also made this material a popular choice for carbon wrapping in car interiors, from dashboards to gear levers and door trims for elegance and protection in your cabin.
4. Premium Material Features
This high-grade polymeric vinyl used in the manufacture is very durable yet lightweight and flexible. The advanced air-release technology makes sure that a bubble-free application gives your car just a perfect finish. Being of medium stretch, this vinyl will cover curves and corners with great coverage of tight spaces, professionally enough even for a DIY job.
5. Easy Installation and Removal
Whether you're a newbie at wrapping or a seasoned expert, you'll surely love this wrap for convenience. The high-quality acrylic adhesive provides an excellent bond with the surface, yet it is repositionable at the time of application for less risk of errors. And if ever it comes to removal, rest assured that it would come off clean, leaving no residue; hence, it is good in not making permanent changes.
6. Cost-Effective and Efficient
We have this carbon vinyl wrap car available in sizes of 5ft x 1ft up to 59ft. That will make it easier to purchase as little or as much material as you need without overbuying and, ultimately, without waste, which allows better value. Whether you're doing a sports car, sedan, or even just some interior pieces, this is great coverage at a fraction of the price of actual carbon fiber.
6D Carbon Fiber Black Vinyl Wrap Specifications:
- High-quality and durable carbon fiber
- Seamless application across the entire vehicle.
- Long-lasting, durable, and high-performance.
- Water and weatherproof.
- Heat and UV resistant.
- Pressure-sensitive, robust acrylic adhesive.
- Equipped with air-release channels for bubble-free application
- Easy to use: peel and stick
- UV resistant, ensuring years of fade-free use
- Durable, waterproof, and resistant to fading and wrinkling
- Leaves no marks when removed
- Eco-friendly and non-toxic
- Suitable for cars, motorcycles, boats, bikes, and more.
- Customizable for Interior and Exterior
- The depth and weave pattern of authentic carbon fiber
- Lightweight Yet Visually Impactful
- Color: 6D Black
- Finish: Carbon Fiber
- Lifespan: 1-2 years with proper installation and maintenance
- Shipping Time: Standard shipping: 7-12 business days; Faster shipping: 3-5 business days
FAQs on 6D Carbon Fiber Black Vinyl Wrap
Q1: What is 6D Carbon Fiber Black Vinyl Wrap?
6D Carbon Fiber Black Vinyl Wrap is a black vinyl wrap with an enhanced visual depth and weave in carbon fiber black that is glossy. It is engineered to make car panels, trims and accents look like carbon fiber without replacing the original parts.
Q2: What does "6D carbon fiber" mean?
“6D carbon fiber” is a carbon fiber style vinyl wrap that has a high gloss surface, can be recognized with a woven pattern and has a greater depth effect compared to regular carbon fiber vinyl wraps. It's an aesthetic film that mimics carbon fibre, rather than actual carbon.
Q3: Is this real carbon fiber?
No. 6D Carbon Fiber Black Vinyl Wrap is NOT real carbon fiber material. It is an automotive vinyl wrap for cosmetics that resembles the appearance of carbon fiber. It does not impart the strength, weight saving or structural qualities of actual carbon fiber components.
Q4: Is 6D Carbon Fiber Black Vinyl Wrap easy to install?
On small or flat surfaces, carbon fiber vinyl wrap can be easy to use, even for beginners. But when it comes to the weave pattern's alignment with the eye, there are some details to note: Weave installers should not over-stretch the film. For beginners, one should begin with small trim before moving on to the big exterior panels.
Q5: Can I use this wrap on the exterior of my car?
Yes. The exterior application of 6D Carbon Fiber Black Vinyl Wrap includes Hoods, Roofs, Mirror Caps, Spoilers, Side Skirts, Door Handles and Trim Pieces. Surface preparation is vital for adhesion and to ensure a long-lasting appearance.
Q6: How much does it cost to wrap your car in carbon fiber?
The person decides the cost, it will vary depending on whether you install the wrap yourself or hire an installer. If you're doing a DIY project, the biggest expense you'll be making is the vinyl size you select. Typical pricing for carbon fiber wrap installations in the U.S. are approximately:
| Area | Typical U.S. Installation Cost |
|---|---|
| Small interior trim pieces | $100–$150 |
| Mirror caps | $100–$250 |
| Hood wrap | $350–$800 |
| Roof wrap | $300–$700 |
| Hood + roof package | $700–$1,200 |
| Roof + hood + mirrors + pillars | $1,200–$1,800 |
| Full car wrap | $3,000–$5,000+ |
The weave pattern must be aligned properly and can be distorted or run out with over-stretching, making carbon fiber wrap more expensive than standard gloss vinyl. The final price will depend on the size of your vehicle, the complexity of the panels, your installer's experience and labor prices.
Q7: What size should I buy?
The size will vary depending on what part is to be wrapped. Most people who opt for carbon fiber vinyl wrap only apply it to the accents of their vehicle and not cover the entire car. Size the panel and get extra material for pattern alignment, mistakes and edges.
| Area / Project | Suggested Size |
|---|---|
| Door handles / small badges / small trim | 5ft x 1ft to 5ft x 3ft |
| Interior trim / dashboard accents / center console | 5ft x 3ft to 5ft x 5ft |

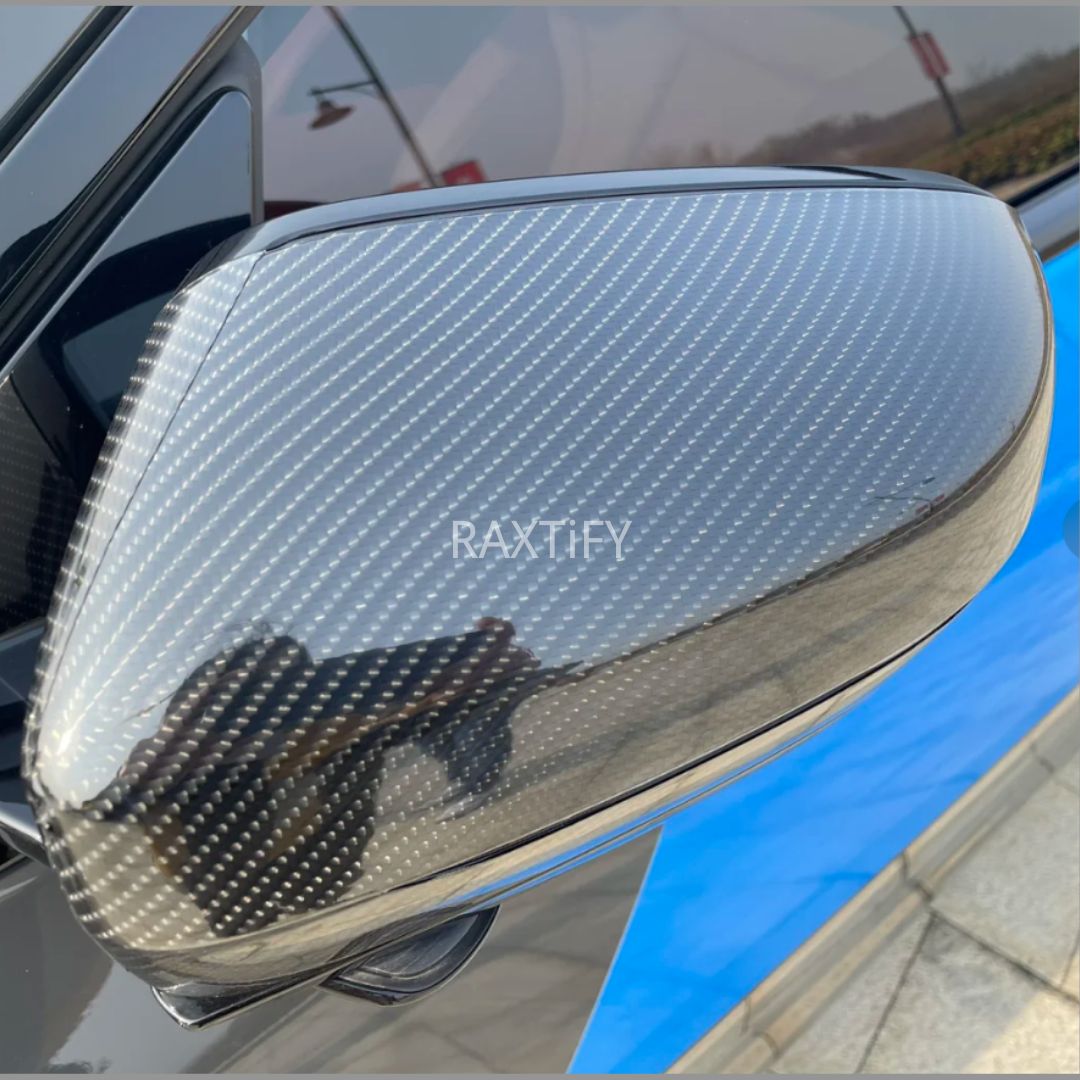

| Mirror caps | 5ft x 3ft to 5ft x 5ft |
| Spoiler / lip / diffuser accents | 5ft x 3ft to 5ft x 6ft |
| Pillars / window trim / rocker accents | 5ft x 6ft to 5ft x 10ft |
| Hood wrap | 5ft x 6ft to 5ft x 10ft |
| Roof wrap | 5ft x 6ft to 5ft x 10ft |
| Hood + mirror caps | 5ft x 10ft |
| Roof + mirror caps | 5ft x 10ft |
| Hood + roof | 5ft x 16ft |
| Hood + roof + mirrors / spoiler | 5ft x 20ft |
| Large SUV roof / large truck hood | 5ft x 10ft to 5ft x 16ft |
| Multiple exterior accents package | 5ft x 16ft to 5ft x 20ft |
If you are new to carbon fiber patterns, it's always better to get one a size too big as patterns can stretch out of shape if too large. An extra piece of material is also beneficial when redoing a panel.
Q8: How long does 6D Carbon Fiber Black Vinyl Wrap last?
The lifespan of 6D Carbon Fiber Black Vinyl Wrap is approximately 1-2 years, depending on the quality of installation, exposure to sunlight, climate, driving conditions, and maintenance. Interior trim applications can last longer, as they are not exposed to the same amount of UV, rain, road grime and heat as exterior panels are exposed to.
To get the longest life from your car seat, make sure to avoid overstretching during assembly, use a pH neutral car shampoo to clean the seat, steer clear of strong cleaning products and keep your car in the shade or in an indoor spot whenever possible.
Why Choose RAXTiFY 6D Carbon Fiber Black Vinyl Wrap
A practical option for drivers looking for a sporty carbon fiber aesthetic without the expense of factory replacement parts, 6D Carbon Fiber Black Vinyl Wrap is a viable choice. The lustrous black weave pattern adds depth to its visuals, making it an ideal choice for hoods, roofs, mirrors, spoilers, trims, interiors and more custom styling areas.
The 6D finish is superior in terms of both shine and woven detail to the basic carbon fiber look. From a small interior touch to a larger exterior styling project, the RAXTiFY 6D Carbon Fiber Black Vinyl Wrap will give your vehicle a performance-inspired appearance and customization options.
Structure
Our wrap films consist of 4 layers designed to ensure exceptional performance:
The first layer serves as a protective barrier for the underlying vinyl.
Directly beneath, you'll find high-grade polymeric vinyl fortified with pressure-sensitive acrylic adhesive.
Finally, a layer of top-tier 130um plastic liner adds an extra level of quality to our wrap films. This plastic liner ensures a smoother, super glossy, and lustrous finish.
Item Specifications
| RAXTiFY VINYL | Specifications |
|---|---|
| Technology | High-grade polymeric calendered vinyl film with air-release channels |
| Top Protective Liner | PET |
| Thickness (Face only) | 3.7–4.1 mil, face film only |
| Thickness (Adhesive) | 1.6 mil removable pressure-sensitive adhesive with air-release channels |
| Glue | Solvent-based adhesive, low-to-medium tack for easier repositioning |
| Release Liner | PET/Plastic |
| Width (Standard) | 5ft / 60in 1.52m |
| Length (Standard) | 19.7yd / 59ft / 18m |
| Indoor Lifespan | 3 years depending on use and maintenance |
| Outdoor Lifespan | 2 years depending on climate, installation, and maintenance (Except Chrome Wraps) |
Wrap Testing
| RAXTiFY VINYL | Testing Result |
|---|---|
| Dimensional Stability | Shrinkage less than 4% |
| Tensile Strength | 22.7 N/10mm |
| Release Force (N/25mm) | 0.13 N/25mm, tested at 25°C and 50% RH |
| Initial Tack (g/25mm) | 1360 g/25mm, tested at 26°C and 64% RH, GB31125-2014 |
| Peel Strength (N/25mm) | 7.02 N/25mm, tested at 25°C and 42% RH, GB/T2792-1998 |
| Holding Power (h) | 75.09 (25℃ and 50%, GB/T4851-1998) |
| Chemical Resistance | Resistant to mild acids, mild alkalis, and salt. Avoid strong solvents and harsh cleaners. |
| Aging Testing | No adhesive residue after 7 days of heat exposure under 65°C |
| Aging Test 2 | No adhesive residue after 10 days under standard aging conditions |
| Storing Period | 2 years when stored in the original packaging at +10°C to +20°C, 50% RH, away from direct sunlight, in a clean and dry environment |
Application
| RAXTiFY VINYL | Application Advices |
|---|---|
| Recommended Tools | Squeegee with felt edge, microfiber buffer, sharp knife, masking tape, magnets, gloves, heat gun, infrared thermometer |
| Application | Apply using standard dry-wrap techniques for calendered vinyl films. Avoid overstretching and overheating. Post-heating is required on edges, curves, recessed areas, and overlaps |
| Post-heating Temperature | 95°C–110°C for most areas and up to 120°C for curves and overlaps (Except Chrome Wraps) |
| Recommended Installation Area Temperature | 70°F–80°F / 21°C–27°C |
| Directional | All vinyl wraps are recommended to be installed directionally |
| Application Method | Dry Application (Except PPF) |
| Aftercare | Clean with pH-neutral car wash soap and a soft microfiber cloth. Avoid strong solvents, abrasive cleaners, and harsh chemicals |
Got your eyes on a color but not sure if it's the one? Get a FREE small sample first!
Frequently Asked Questions
Is RAXTiFY vinyl easy to install?
RAXTiFY vinyl wraps are made in line with professional uses.Others such as high-gloss, metallic, or glitter series are stiffer than the traditional wraps because of surface coating technology.Although the flat panels can be easily installed by the hands of skilled DIY users, it is highly advised that professional installation be done in complex curves and high visibility areas.
Can I apply overlaminate on RAXTiFY vinyl?
Overlamination should be avoided.Other coating layers can have an influence on surface transparency, bonding and durability.The original surface finish of RAXTiFY vinyl is developed to be the last visual coating.
How should I maintain RAXTiFY vinyl wraps?
- Wash using pH-neutral car shampoo
- Use a soft microfiber cloth or touchless wash
- Pressure washers should remain under 2000 PSI
Cleanse up the contaminants e.g. bird droppings, sap of trees or fuel residues as soon as possible to avoid staining.
Can I use wax or polish on RAXTiFY vinyl?
Vinyl specific spray waxes or sealants are only used; these are mostly used in gloss and metallic finishes.Abrasive polishes, cutting compounds or solvent based chemicals are to be avoided.Any product should always be tested on a small and inconspicuous part of the skin before it can be applied.
How long does RAXTiFY vinyl wrap last?
Wrap lifespan depends on multiple factors, including:
- Film series and finish
- Installation quality
- Environmental exposure
- Maintenance habits
Although RAXTiFY films are designed to give non-textured finishes to the vehicle, the end result could depend on the painted state of the vehicle in the first place.The scratches, dents, rust, bubbles or orange peel that may be present before installation may be left and are not regarded as film defect.
Will removing RAXTiFY vinyl damage my paint?
RAXTiFY vinyl wraps should not harm factory paint when used on OEM paint that is in fine condition and removed without causing damage to the paint.
Does storage affect wrap lifespan?
Parking in interior parts or shaded parking areas mean a lot of less exposure to UV and environmental pressure.In case of an indoor storage, a breathable car cover will be recommended, as it will be helpful to maintain the quality of the finish and increase the wrap lifespan.
