Matte Black Purple Forged Carbon Vinyl Wrap

  • Sku: CF22
$659.00 USD
 per
Shipping calculated at checkout.
In stock!
Size: 5ft* 59ft

Air-Release Channel

PET Backing Liner

Low Initial Tack

Quality Warranty

NOTE:

1. Top Protective film is included only on full rolls (59ft) of gloss vinyls.

For smaller, pre-cut pieces of glossy vinyl, the protective film is removed before shipping to ensure a smooth surface without air bubbles or creases. This does not affect the quality of the vinyl.

All matte/ satin vinyl wraps do not have a protective film, as their surface is naturally resistant to minor scratches and does not require additional protection.

59ft = full roll
69ft = full roll + 10ft pre-cut
75ft = full roll + 16ft pre-cut

2. Products ordered separately may have slight color variations due to different color lots.

3. Use a bubble remover/defoamer on the surface before applying for best results.

4. CAUTION! The images, colors, and finishes on the screen are approximate. For accuracy, refer to the color book or samples.

View full details

Matte Black Purple Forged Carbon Vinyl Wrap

Description

Matte Black Purple Forged Carbon Vinyl Wrap is a dark forged-carbon vinyl wrap around a black base and is worked in purple around the irregular carbon pattern. The wrap is more of a black or very dark charcoal color from a distance, not bright purple. The purple is more prominent in the broken sections of the forged-carbon pattern, which deepens the surface color without coating the entire panel in purple.

This is something that doesn't look like a normal woven carbon fibre option, either. The surface uses an irregular, broken-up forged-carbon pattern rather than a regular woven carbon-fiber structure. The balance of the dark base, purple detailing and broken-up carbon pattern is what creates the visual effect, not metallic flakes or a regular repeating carbon weave.

The black and purple will look different with a matte finish.

A matte surface minimises reflections and lessens the sharp highlights that are typical of gloss forged-carbon wraps. As a result, black remains the dominant color across the surface, whereas purple is more of an element within the pattern and not a layer over the pattern surface.

This finish is darker and less shiny than a Gloss Purple Forged Carbon wrap. The purple is a little more visible if the light strikes the panel from different angles, as compared to a Matte Black Forged Carbon wrap.

The outcome is not the same as color-shift wrap. To create variation, the film doesn't have to go from black to a completely different shade. The majority of the change is due to the amount of purple that can be seen and the intensity of the black and purple under various lighting conditions.

How Matte Black Purple Forged Carbon Looks in Different Lighting

Matte Black Purple Forged Carbon can appear different in direct sunlight, shade and indoor lighting.

In Direct Sunlight

The purple areas are easier to distinguish against the black base in stronger daylight. Areas under stronger direct light may appear less uniformly black as more of the purple detailing and individual forged shapes become visible.

In Shade

Put the same panel in shade and this will make it darker. Black dominates the surface more, and purple is more subtle and may seem like a dark shade, instead of being a bright hue.

Under Indoor Workshop Lighting

In between is indoor workshop lighting. The purple and carbon pattern may stand out more on the side of the panel that is lit under directional lights, and it will be quite dark on the rest of the panel. This allows it to appear different depending on where it is viewed from, but without it becoming a chameleon or color shift finish.

How the Forged Carbon Pattern Looks on Different Body Panels

Flat Panels

Large flat surfaces like a hood, roof or door allow the forged-carbon pattern the space it needs to be viewed as a field. The areas of broken black and purple are easier to follow as the surface is more uniformly lit.

Curved Bodywork

For bumpers, fenders, mirrors and other curved surfaces, the pattern can appear more varied. The purple section of one curve might appear more purple while the neighbouring region remains close to black as the two portions are receiving and reflecting light in different ways. The matte finish ensures that those changes are not quite as dramatic as they would be on a high-gloss forged-carbon wrap.

That's why the wrap might appear to be somewhat subdued on one side and black-purple on the other.

Matte Black Purple Forged Carbon Compared With Other Carbon Looks

This color remains more in the black end of the spectrum if you wish to have a forged-carbon pattern without brightening up the whole car. The purple is complementary and not a main color.

The Matte Black Forged Carbon wrap will look more monochromatic, while a Gloss Purple Forged Carbon wrap will tend to highlight bright reflections and the purple color.

It's also significantly different in appearance from traditional carbon-fiber vinyl. Traditional carbon-fiber vinyl usually uses a more regular woven pattern. The broken-up black and purple pattern of this wrap can be attributed to the more irregular, fragmented look of forged carbon.

Material, Installation and Durability

Material and Installation

The wrap is made of PVC vinyl and features air-release channels in the adhesive which can help minimize trapped air during installation. Using the correct installation method and heat, the film can be used on vehicle body panels and bent around curves and edges.

Because the forged-carbon pattern remains visible, panel positioning will be more important than if the wrap is a solid colour. It is important for installers to inspect pattern orientation and pattern appearance between adjacent panels prior to final installation, particularly in larger sections of the vehicle.

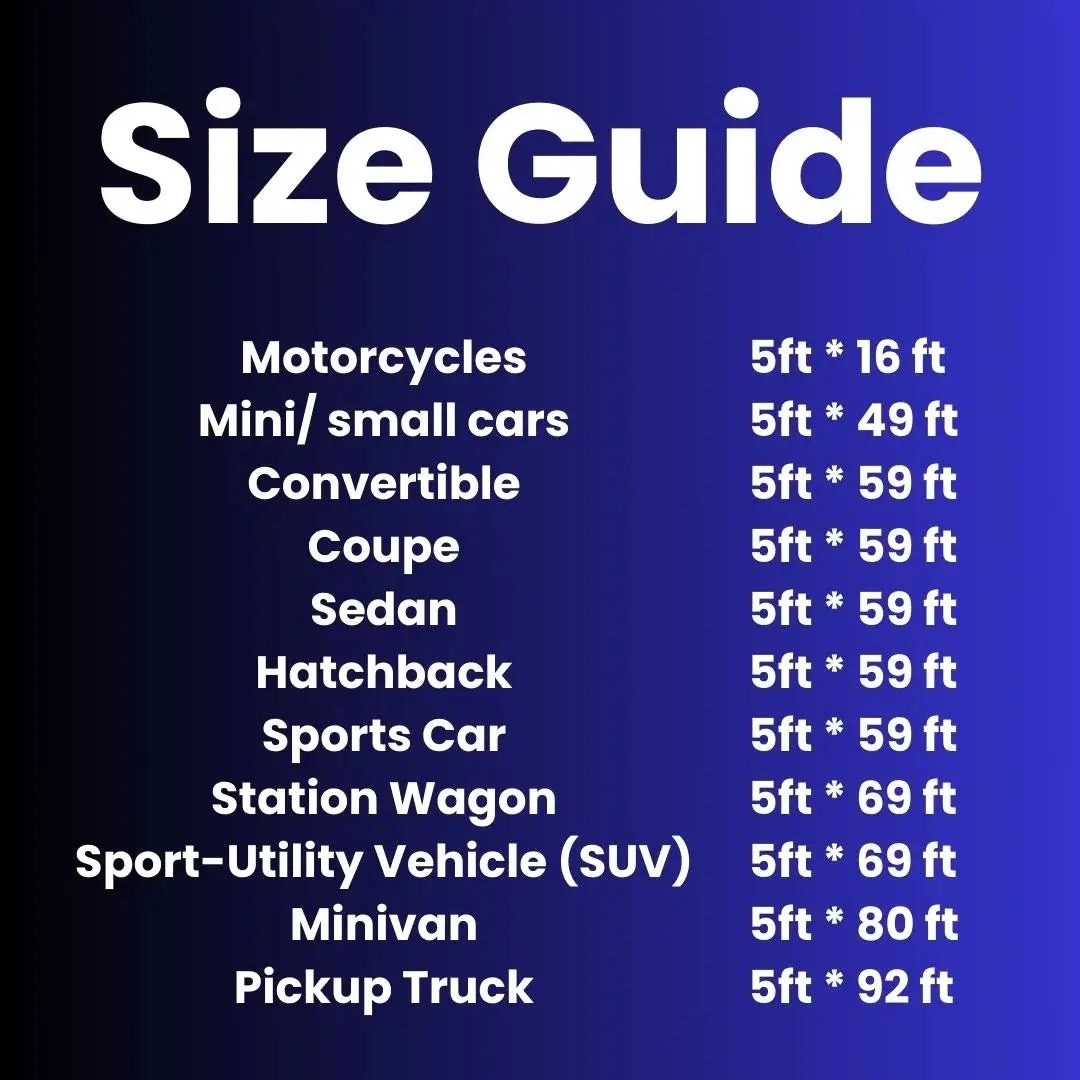

RAXTiFY PVC colour wraps are 5 ft wide in order to give sufficient width for most of the body panels without any kind of excess seams. The amount of film required depends on the size of the vehicle, the number of panels you're wrapping, and the extra material needed for positioning and cutting.

Durability and Use

The life expectancy of RAXTiFY PVC color wraps is about 2-3 years for normal use, depending on the quality of installation, climate, sun exposure, washing and vehicle storage.

If selecting the color from a photograph, make sure to view images in outdoor light, in shade, or in indoor lighting conditions, not just a close-up. The dark-forged carbon film and the purple detailing can look much more black and purple in one place and much more black in another.

Matte Black Purple Forged Carbon Vinyl Wrap Specifications:

  • Pressure-sensitive, robust acrylic adhesive.

  • Equipped with air-release channels for bubble-free application

  • Easy to use: peel and stick

  • Suitable for cars, motorcycles, boats, bikes, and more.

  • Customizable for Interior and Exterior

  • Color: Matte Black Purple

  • Finish: Forged Carbon Fiber

  • Shipping Time: Standard shipping: 7-10 business days; Faster shipping: 3-5 business days

Structure

Our wrap films consist of 4 layers designed to ensure exceptional performance:

The first layer serves as a protective barrier for the underlying vinyl.

Directly beneath, you'll find high-grade polymeric vinyl fortified with pressure-sensitive acrylic adhesive.

Finally, a layer of 130um release plastic liner adds an extra level of quality to our wrap films. This plastic liner ensures a smoother, super glossy, and lustrous finish.

Vinyl Specifications

Specification Details
Product Type Automotive Vinyl Wrap
Film Type Polymeric calendered vinyl film
Designed Use Full vehicle wraps, partial wraps, and exterior accents
Film Construction Polymeric vinyl with air-release adhesive channels
Face Film Thickness 3.7–4.1 mil (approx. 0.094–0.104 mm)
Adhesive Type Solvent-based pressure-sensitive acrylic adhesive
Adhesive Thickness 1.6 mil (approx. 0.041 mm)
Initial Tack Low Initial Tack, High Holding Power
Air-Release Channels Yes
Release Liner PET
Top Protective Film PET, where supplied with the applicable finish or roll configuration
Directional Film Yes — maintain a consistent film direction across adjacent panels
Application Method Dry application
Recommended Installation Temperature 20°C–30°C (68°F–86°F)
Service Temperature Range −45°C to +45°C (−49°F to 113°F)
Roll Width 60 in / 5 ft / 1.52 m
Full Roll Length 59 ft / 19.7 yd / 18 m
Approx. Full Roll Weight 28.7 lb / 13 kg
Expected Outdoor Service Life 2-3 years, depending on climate, UV exposure, installation, parking conditions, and maintenance
Expected Indoor / Sheltered Service Life 2-3 years, depending on use and maintenance
Installation Difficulty Easy to Intermediate; DIY-friendly

Technical Performance Data

Test Item Typical Result
Elongation at Break — MD Approx. 200%
Elongation at Break — CD Approx. 190%
Tensile Strength 22.7 N/10 mm
Dimensional Stability Shrinkage less than 4%*
Surface Tension Approx. 34 dynes/cm
Release Force 0.12 N/25 mm, tested at 25°C and 50% RH
Initial Tack 1360 g/25 mm, tested at 26°C and 64% RH, GB31125-2014
Peel Strength 7.05 N/25 mm, tested at 25°C and 42% RH, GB/T2792-1998
Holding Power 72.09 h, tested at 25°C and 50% RH, GB/T4851-1998
Aging Test 1 7 days at 65°C — no adhesive residue observed after removal with heat
Aging Test 2 10 days at 65°C — no adhesive residue observed after removal without heat

Installation & Application

Application Method Dry application
Installation Temperature 20°C–30°C (68°F–86°F)
Post-Heating 95°C–110°C (203°F–230°F)
Curves & Recesses Up to 120°C (248°F)
Directional Film Yes — maintain consistent film direction across panels
Recommended Tools Squeegee, knife, masking tape, magnets, gloves, heat gun, IR thermometer
Installation Notes Avoid overstretching and overheating. Professional installation is recommended for complex curves and recesses.

Care & Maintenance

Washing pH-neutral automotive shampoo; hand wash or touchless wash recommended
Pressure Washing Below 2000 PSI; avoid spraying directly at exposed edges
Avoid Brush car washes, abrasive cleaners, strong solvents, and harsh chemicals
Contaminants Remove bird droppings, tree sap, fuel residue, and insects promptly
Wax & Sealant Use vinyl-safe products only
Parking Indoor, garage, or shaded parking recommended

Lifespan & Warranty

Outdoor Service Life 2-3 years
Indoor / Sheltered Use 2-3 years
Warranty 2-Year Limited Warranty for eligible material defects
Warranty Exclusions Improper installation, overstretching, overheating, misuse, accidents, environmental damage, incompatible chemicals, and pre-existing paint defects

Storage & Shelf Life

Shelf Life Up to 2 years
Storage Temperature 10°C–20°C (50°F–68°F)
Relative Humidity Approx. 50%
Storage Conditions Keep in original packaging in a clean, dry place away from direct sunlight, heat, dust, and moisture

Frequently Asked Questions

Is RAXTiFY vinyl easy to install?

RAXTiFY vinyl wrap is designed with air release channels to help reduce bubbles during installation, making it suitable for both professional installers and experienced DIY users.

However, installation difficulty may vary depending on the vehicle shape, surface condition, film finish, and installer experience. Full vehicle wraps, deep curves, bumpers, mirrors, chrome finishes, carbon fiber films, and other specialty finishes may require professional installation for the best result.

Can I order a sample before buying a full roll?

Yes. We recommend ordering a Small Size Sample before purchasing a full roll, especially if you are comparing colors or finishes.

Vinyl wrap color can look different under sunlight, shade, indoor lighting, camera settings, screen display, and different vehicle body lines. A sample helps you check the real color, finish, and texture before starting your wrap project.

Does this vinyl wrap come with a warranty?

Most RAXTiFY vinyl wraps come with a 2-year limited warranty against confirmed product-related defects. For full details, please read our RAXTiFY Warranty Policy.

How long does this vinyl wrap last?

RAXTiFY vinyl wrap is designed to last 2–3 years with proper installation and regular care.

Actual lifespan may vary depending on the film series, finish, climate, UV exposure, parking conditions, washing habits, and overall vehicle surface condition. Vehicles parked indoors or in shaded areas may help maintain the wrap’s appearance for longer.

How do I care for this vinyl wrap?

For best results, hand wash the wrapped vehicle with clean water, pH-neutral soap, and a soft microfiber mitt or sponge. Dry the surface with a clean microfiber towel after washing.

Avoid harsh chemicals, abrasive cleaners, automatic car washes, polishing compounds, fuel spills, and high-pressure washing directly on film edges. Long-term exposure to intense sunlight, heat, rain, snow, dust, and pollution may affect the finish over time.

Can I remove this vinyl wrap later?

Yes. RAXTiFY vinyl wrap can be removed later when it is properly heated and removed with care.

Our vinyl wrap is designed to be removable without damaging factory OEM paint that is in good condition. For the safest result, we recommend professional removal, especially for full vehicle wraps, older installations, or vehicles with unknown paint history.

Please note that paint condition matters. Repainted surfaces, peeling clear coat, rust, dents, scratches, weak paint, or improper removal may increase the risk of paint damage.
