Color Shift Spectrum Grape Gold Vinyl Wrap
- Sku: CS81-3M
Air-Release Channel
PET Backing Liner
Low Initial Tack
Quality Warranty
1. Top Protective film: Included only on full rolls (59ft) of gloss vinyls.
2. Shipping Time: 7-10 days (Free) | 3-5 days (Express).
For smaller, pre-cut pieces of glossy vinyl, the protective film is removed before shipping to ensure a smooth surface without air bubbles or creases. This does not affect the quality of the vinyl.
All matte/ Satin vinyl wraps do not have a protective film, as their surface is naturally resistant to minor scratches and does not require additional protection.
59ft = full roll
69ft = full roll + 10ft pre-cut
75ft = full roll + 16ft pre-cut
4. Products ordered separately may have slight color variations due to different color lots.
5. CAUTION! The images, colors, and finishes on the screen are approximate. For accuracy, refer to the color book or samples.
6. We prioritize sending films with PET backing liners. If unavailable, paper backing liners will be provided. Use a bubble remover/defoamer on the surface before applying for best results.
Film Material & Construction
- Film Type: Premium-grade polymeric calendered vinyl wrap
- Material Structure: Polymeric hybrid vinyl with integrated air-release channels
- Designed Use: Full vehicle wraps and smooth to moderately curved surfaces
- Directional Film: Yes (installation direction must be observed)
- Backing Liner: PET
Thickness
- Vinyl Film Thickness: 3.7–4.1 mil
Adhesive System
Adhesive Type: Solvent-based acrylic adhesive
Adhesive Features:
- Pressure-sensitive
- Transparent appearance
- Designed for automotive exterior use
- Balanced initial tack and repositionability
Adhesive Layer Thickness: 1.6 mil
Application & Installation Guidelines
Certain finishes (ultra-gloss, metallic, glitter series) may be firmer than standard vinyl due to surface coating structure. Professional installation is recommended
Recommended Application Temperature
- Installation Environment: 20°C–30°C (68°F–86°F)
- Service Temperature Range: −45°C to +45°C
Recommended Tools
- Squeegee with soft buffer
- Utility knife
- Masking tape
- Heat gun
- Magnets
- Gloves
- IR thermometer (strongly recommended for accurate post-heating)
Post-Heating Requirements (Critical)
Proper post-heating is essential to release internal film stress and ensure long-term adhesion.
- Flat Surfaces: 95°C–110°C
- Curves, Recesses & Overlaps: up to 120°C
Note: Failure to post-heat correctly may result in edge lifting or shrinkage over time.
Mechanical & Physical Properties (Typical Values)
Elongation at Break:
- MD: ~200%
- CD: ~190%
Tensile Strength: 22.7 N/10mm
Dimensional Stability: Shrinkage less than 4%
Surface Tension: ~34 dynes/cm
Maintenance & Care
- Clean only with pH-neutral automotive shampoo
- Use soft microfiber cloth or touchless wash
- Pressure washing below 2000 PSI only
- Avoid brush-style car washes, abrasive tools, and solvent-based cleaners
- Remove bird droppings, sap, fuel residue, and contaminants promptly
- Vinyl-safe spray wax or sealant only
- Abrasive polish, cutting compounds, ceramic coatings, and overlamination are not recommended
Durability & Warranty
Service life varies by film series, installation quality, environment, and maintenance
Warranty (if applicable) covers material defects only
The following are not covered:
- Improper installation or insufficient post-heating
- Overstretching, overheating, or misuse
- Incompatible overlaminates, coatings, or surface treatments
- Environmental damage, road debris, or accidents
- Surface imperfections originating from the vehicle’s original paint
Storage & Shelf Life
Indoor or shaded parking is strongly recommended
Shelf Life: Up to 3 years
Storage Conditions:
- Temperature: +10°C to +20°C
- Relative Humidity: approx. 50%
- Store in original packaging
- Keep away from direct sunlight, heat, dust, and moisture
Packaging Information
- Roll Width: 152 cm (60 inches)
- Roll Length: 18 m
- Approximate Roll Weight: 13 kg
Size Chart
Motorcycles: 5ft * 16ft
Mini/ Small Cars: 5ft * 49 ft
Convertible: 5ft * 59 ft
Coupe: 5ft * 59 ft
Sedan: 5ft * 59 ft
Hatchback: 5ft * 59 ft
Sports Car: 5ft * 59 ft
Station Wagon: 5ft * 69 ft
Sport-utility Vehicle (SUV) : 5ft * 69 ft
Minivan: 5ft * 80 ft
Pickup Truck: 5ft * 92 ft


Color Shift Spectrum Grape Gold Vinyl Wrap
Spectrum Grape Gold Vinyl Wrap Video

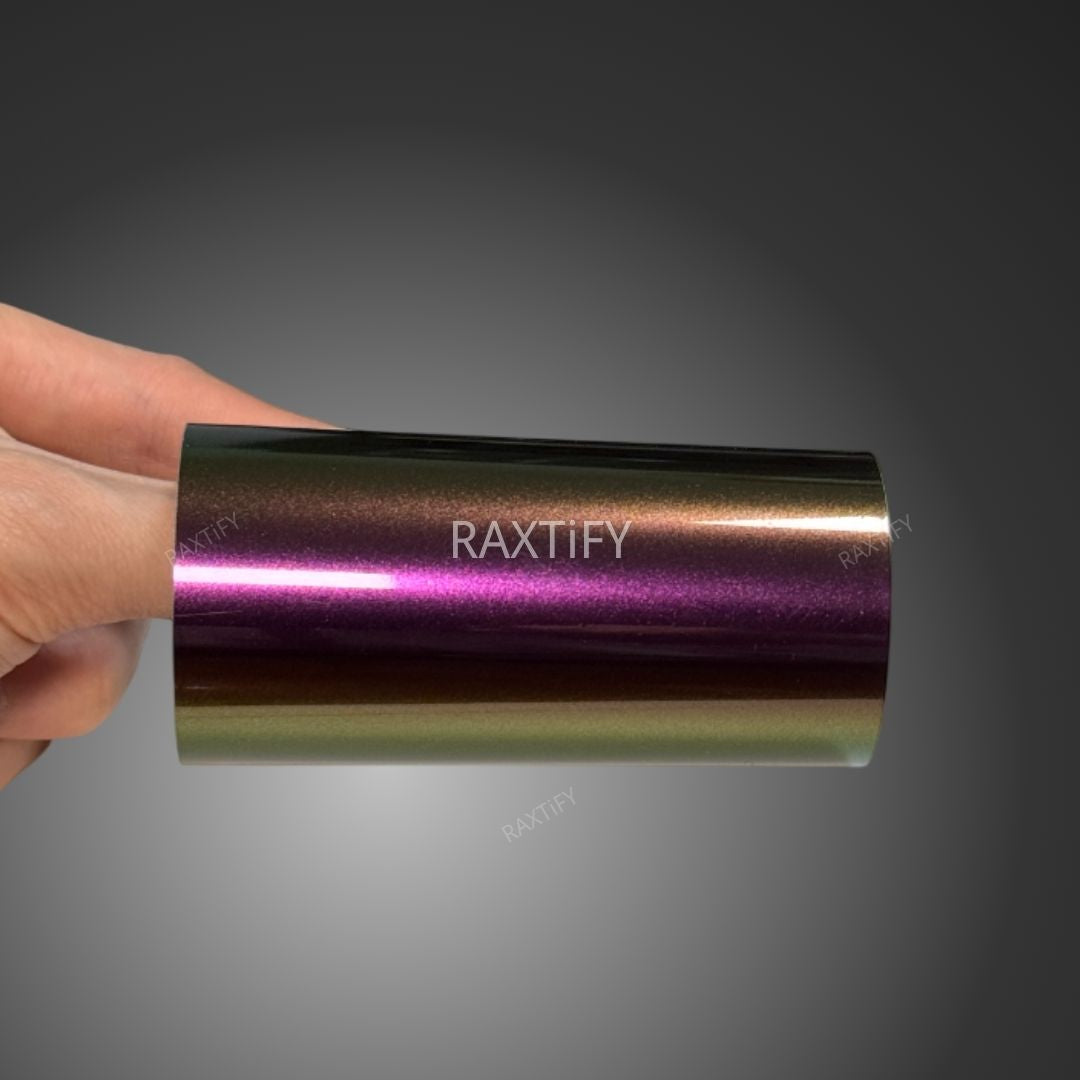

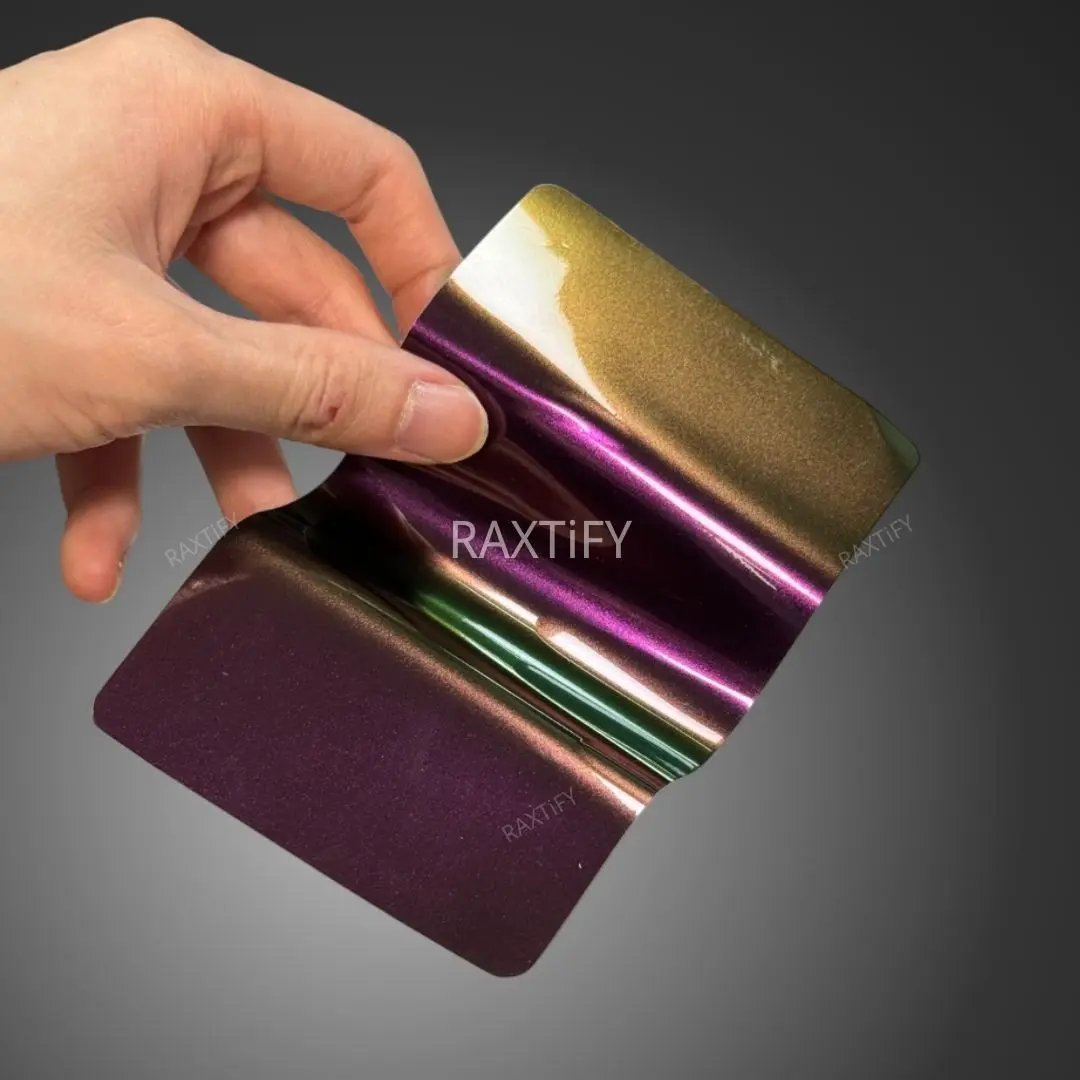

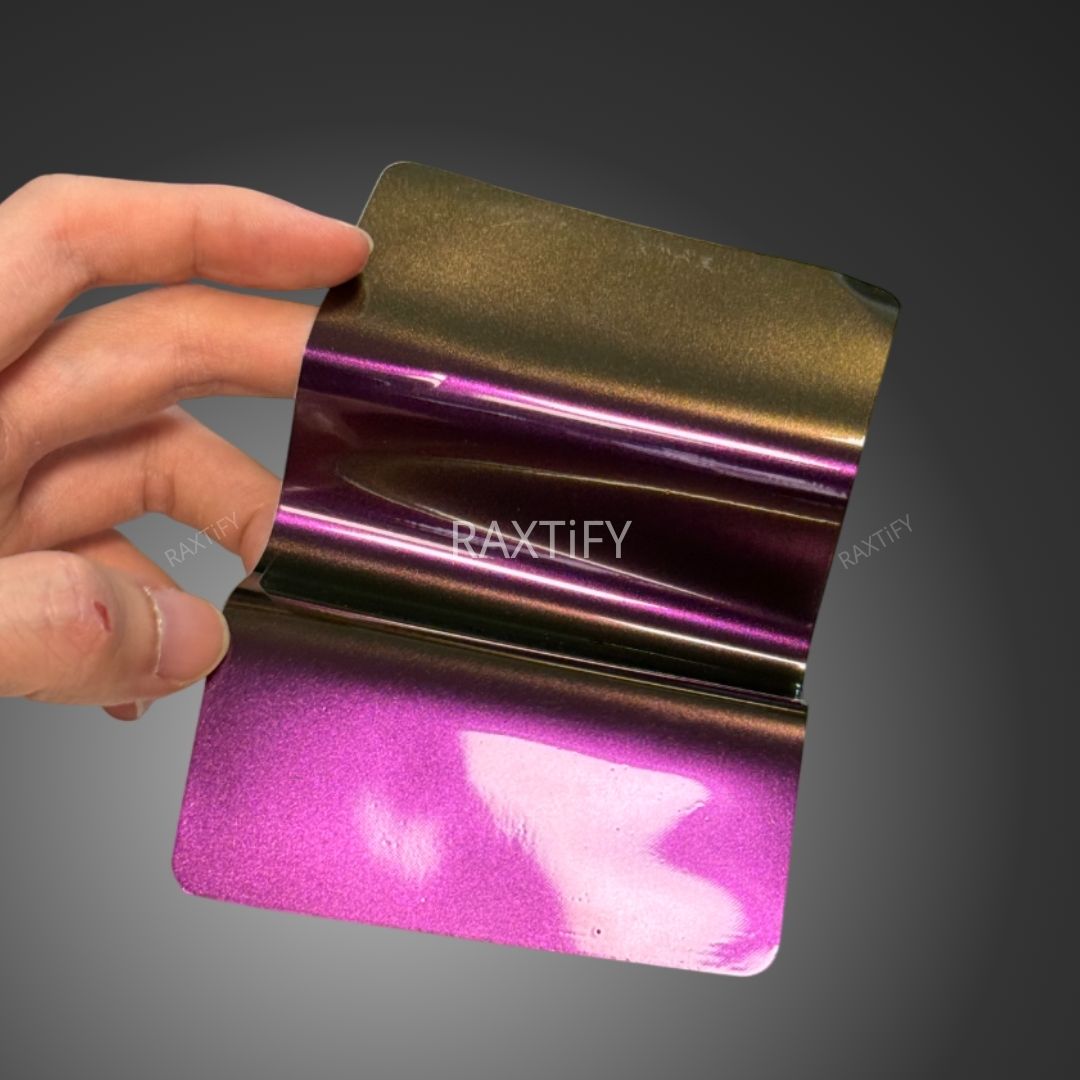

What Makes Spectrum Grape Gold Visually Unique?
Looking at Color Shift Spectrum Grape Gold in real life, the first thing, which catches your eye, is the clarity of the reaction to light. When the car is in the shadow, or the view is direct, you will see deep grape tones. When you circle the car, or when the sun is shining at an angle on the surface, warm gold strokes can be spotted. It is not a drastic or dramatic change, but a well-rounded and gradual change and this is why it does not seem overdone, but instead, elegant. Another thing you might see is that the lines on the body are made more prominent, particularly doors and fenders. The color does not depend on lots of heavy sparkle, but rather, the color varies naturally as you move around, and so, you will find the finish varies every time you approach the car.
How the Color Shift Effect Actually Works?
Seeing one of the Color Shift Vinyl Wraps, it is not a filter or a trick, but a real-life responsive reaction to light. The film is created to bounce of light in various directions, thus as you move around the automobile, what happens is that the color will always change automatically.

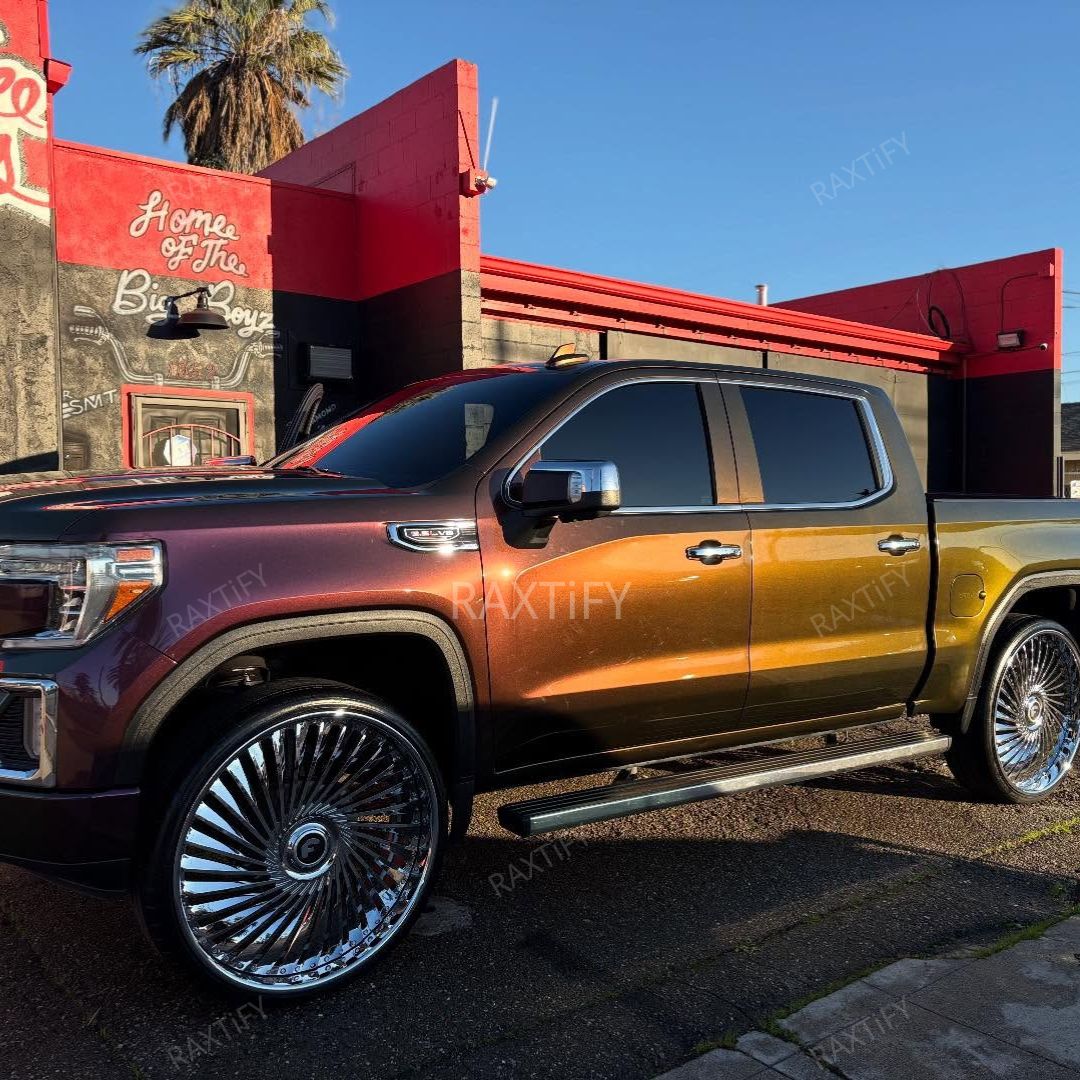

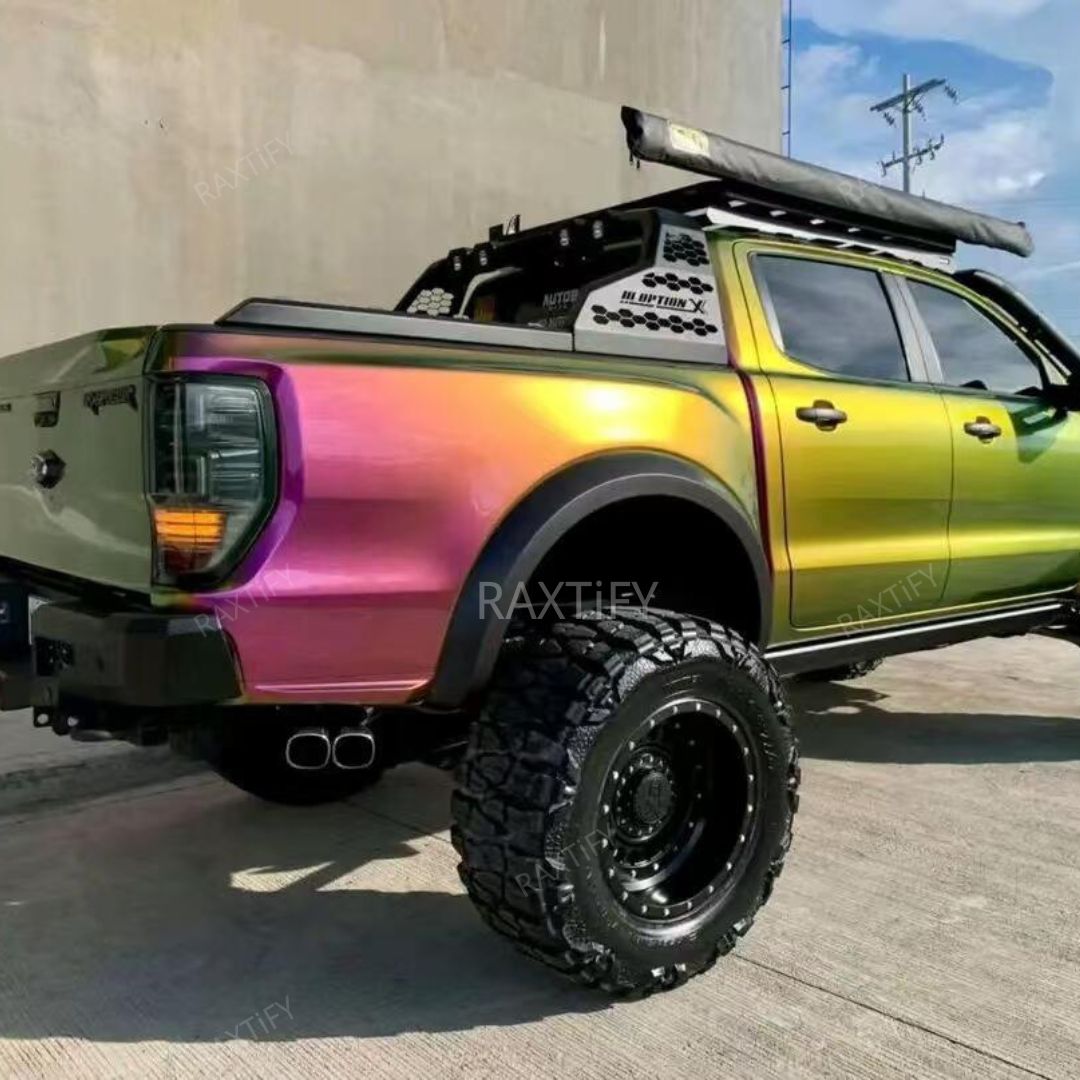

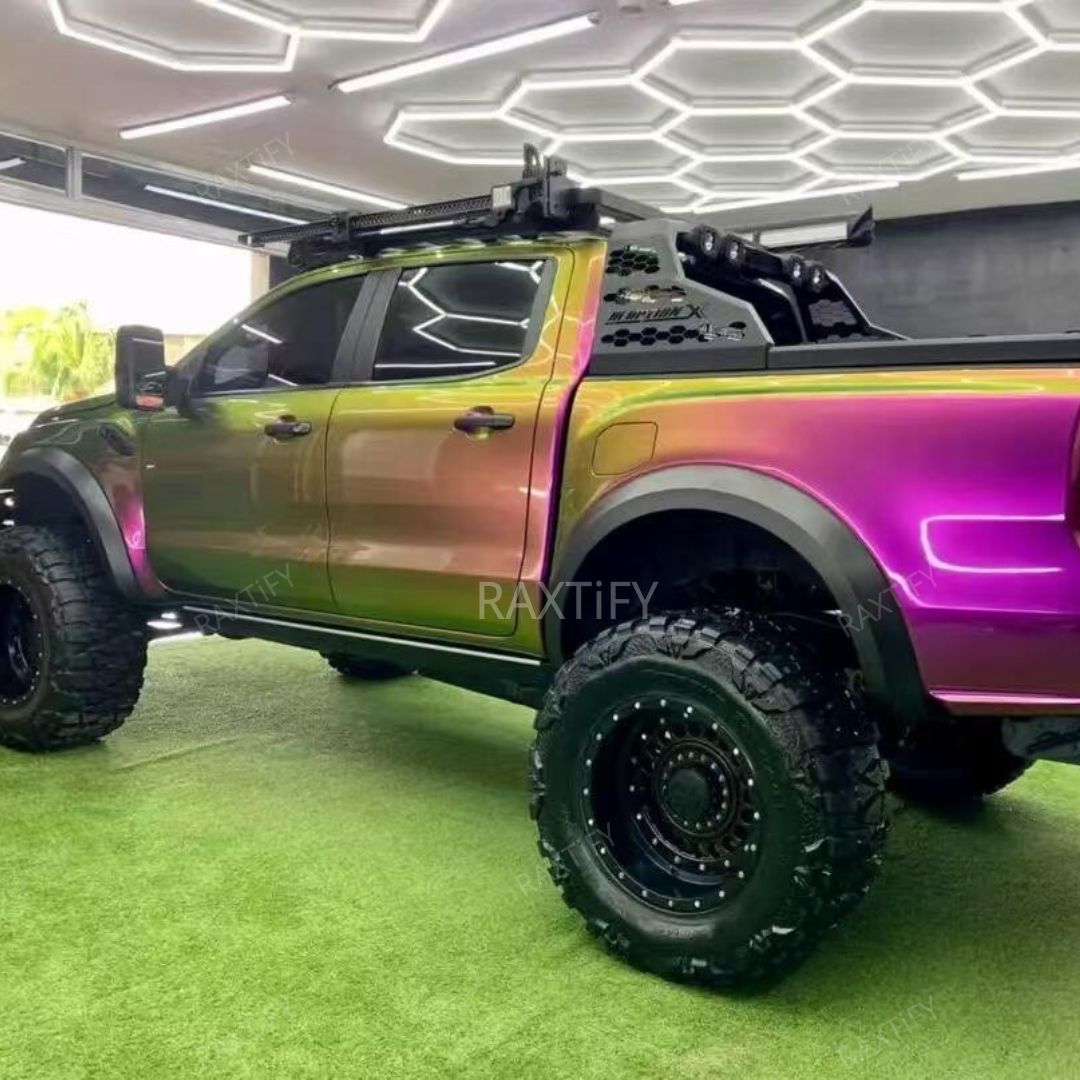

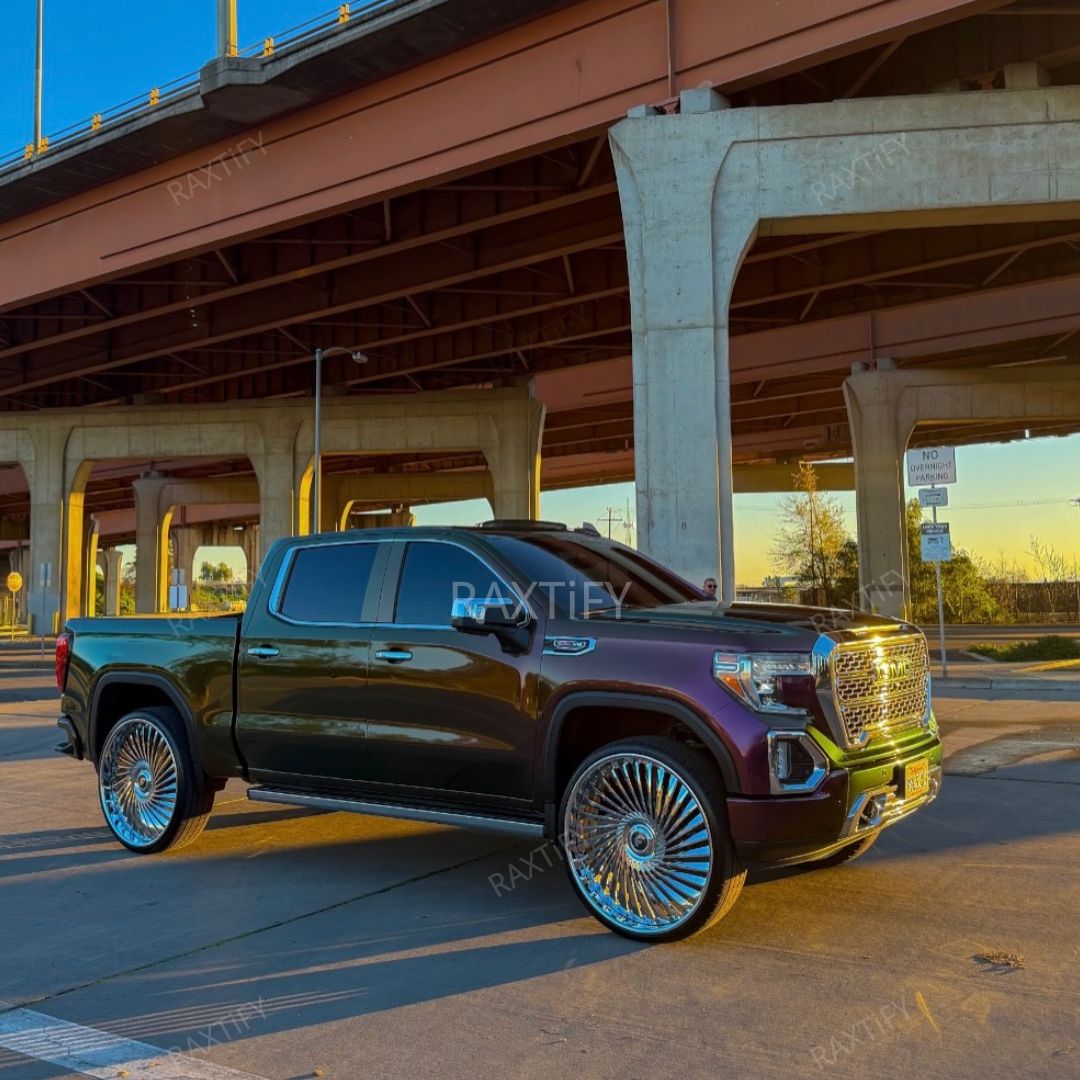

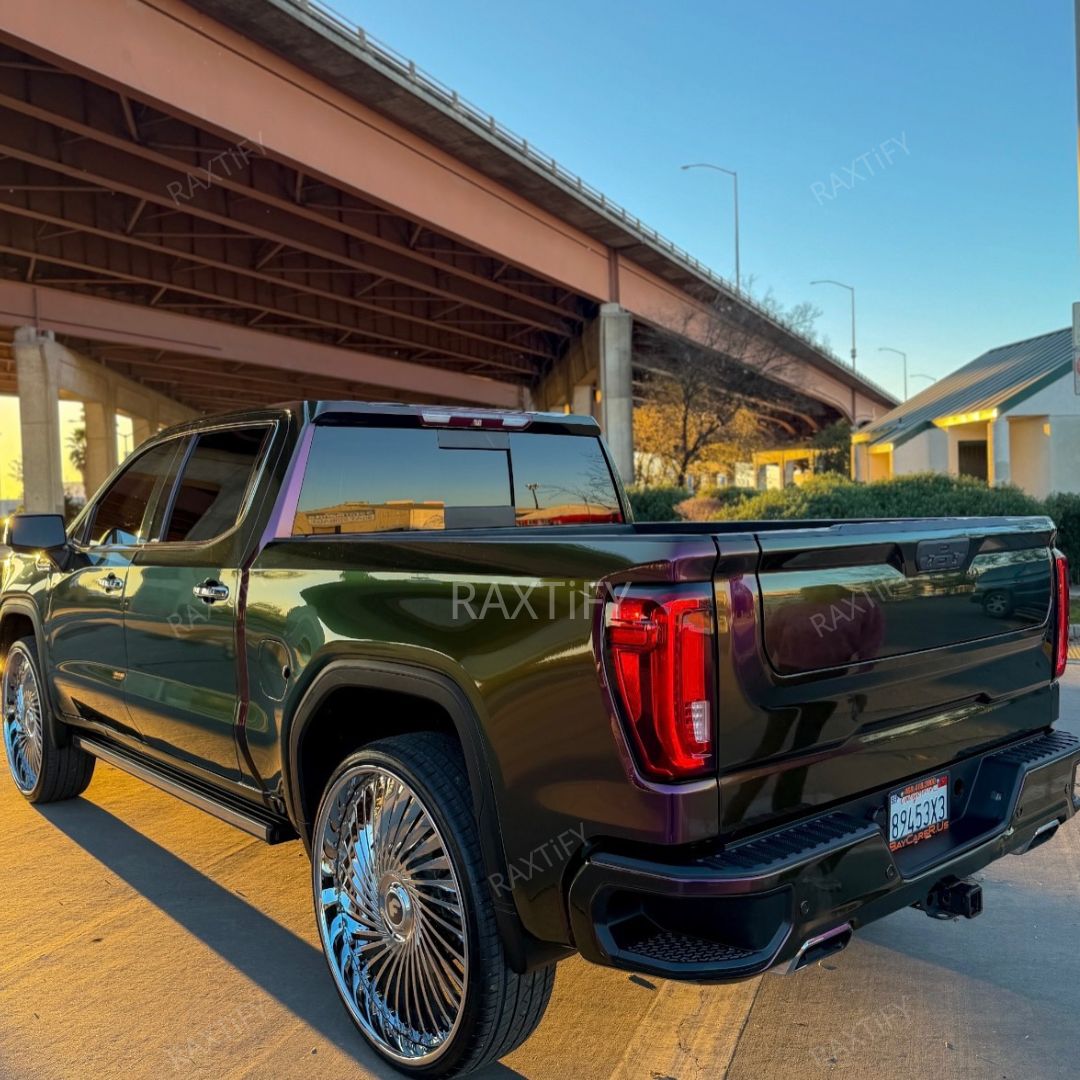

Real-World Look: Daylight, Shade, and Night Lighting
Under real-life circumstances, the change of color is felt instantly when you look at Spectrum Grape Gold Vinyl Wrap. The surface is tilted lighter in the direct daylight producing warm gold underglaze and overglaze on deep grape base. The finish is not flat as the sunlight passes through the panels.
The color is soothed in areas of shade or during cloudy days. You will find more grape colorings with less metallic reflections, which will make the car look less aggressive but more elegant. The wrap assumes a more deep, moody appearance at night, when it is illuminated by parking lots or the street, with the use of selective accent of gold that picks up the artificial light.
Material Structure of Spectrum Grape Gold Vinyl Wrap
The Spectrum Grape Gold Vinyl Wrap is constructed with a multi-layered construction, as opposed to a single decorative film. The different layers serve a certain purpose in the appearance of the color, the way the material is to work with in the course of installation, and the way it functions with time. Knowing this structure will make you have realistic expectations, in particular with color shift vinyl wrap where the behavior of the material has a direct impact on the end product.
Base Film Layer (PVC Foundation)
Fundamentally, this wrap has a high-quality PVC-based bottom film that aims at maintaining flexibility as well as structural stability. In cases where the shift finishes are color shift such as Color Shift Spectrum Grape Gold the base layer must be capable of stretching evenly without getting too soft. When the foundation film is too stiff, the film tends to shape itself around complicated curves with difficulty. In the case of color-shift effect visual distortion can be caused by overstretching when it is too soft.
This PVC base is designed to ensure a constant thickness when stretched and assists the color to be uniform in interior of all the large sized panels like doors, roofs, and rear quarters.
Color Shift Pigment Layer (Spectrum Effect Core)
The Spectrum Grape Gold is characterised by the colour change layer. The layer takes care of shift between grape-purple colour and warm gold when the viewing angle and conditions of the light vary.
Instead of the heavy use of sparkle or other random light reflection, the pigment is laid out to react predictably to the direction of light. This implies that the color transition is not disjointed. Due to this construction, installation method is important as too much stretch in tight places will distort how the color is read slightly due to the material used, most spectrum-style vinyl wraps.
Metallic Particle Distribution
The metal elements in this wrap are fine-grain as opposed to big flake. This selection assists in preserving the clarity and depth, particularly when one takes a closer look. The surface is not coarse or glittery; it bounces light off cleanly, and the shift in the color gets to be the center of focus; A finer particle distribution also enhances the wrap photographic quality, as it eliminates the harsh light glittering spots that overwhelm the underlying colour in daylight.
Surface Coating and Gloss Layer
The finish on the surface is inclined to a high-polished high-gloss as opposed to mirror finish. This design decision aids in making light transitions in between softer and this is particularly necessary in a color shift vinyl wrap where transitions can be disrupted at the color boundary.
The gloss layer provides the visual depth as well as the protective layer against the surface marks and environmental exposures. It is not too slippery to touch, and thus, it becomes easier to clean on a routine basis and minimizes the appearance of small dust spots or other prints.
Adhesive System and Air-Release Channels
The wrap has a pressure-sensitive adhesive on the back side with inbuilt air-release channels. These are very thin channels that are effective and the trapped air can escape during installation without any impact on the surface finish.
The adhesive allows initial tack to be controlled so that you have time to reposition panels before the full adhesion takes place. This is particularly advantageous in applications involving color shift films, in which alignment and tension control is more apparent compared to solid colors.
Protective Layer and UV Resistance
The upper layers entail simple UV protective features that aim to delay colour loss brought about by the continual sun exposure. Although there is no environmentally 100 percent safe vinyl wrap, this protective design enables the Spectrum Grape Gold Vinyl Wrap to be of longer color presentation under the average driving conditions.
Material Thickness and Handling Feel
This wrap is not designed to be thin in terms of numbers only but designed in such a way that it can be handled predictably. It is steady in the hand, yet firm enough to avoid accidental overstretching and yet flexible at the edges, recesses and compound curves.
Installation Difficulty and What First-Time Wrappers Should Know
When it comes to working with color shift vinyl wrap, this is your first time, you need to know that it is not easy, but it can be handled. Flat panels can normally be self-assembled particularly doors and quarter panels. The areas where beginners have problems are in the area of bumpers, sharp edges, holes and recessed edges, where stretching over can cause the color shift effect to bend. What you will need is patience, good heat management and realistic expectations. When you want to reach a perfect finish on some complicated body lines, professional installation can be considered as a safe option.
Who Spectrum Grape Gold Is Best For — and Who It’s Not
Spectrum Grape Gold will be welcome when you are creating a show car, a fashion-oriented project, or a post to be the focus of social media. Color shift effect is rewarding to the movement, changes in lights, and attentive presentation, which is why it suits the car models that must be visible and photographed. Nonetheless, this appearance does not suit everyone. In case you want to remain low profile, do not maintain much or just drive the car every day, a basic solid color can be more appropriate. It is a wrap of expression rather than assimilation.
Why Choose Spectrum Grape Gold Over Standard Metallic Colors
Comparing the typical metallic finishes with Spectrum Grape Gold does not have a question of which one is a better choice but rather what type of aesthetic experience you desire. Metallic colors were traditional, and they provide a constant appearance that does not change much when viewed in diverse lighting. Color Shift Spectrum Grape Gold, in turn, reacts to movement and light displaying slight shifts between grape purple and warm gold colors as one walks around the car.
Assuming that you appreciate depth, difference, and a finish that is not an inert, lifeless, one-dimensional job, this Color Shift Vinyl Wrap will have something that its typical metallic color offerings do not. It is either predictability or a never-ending look which makes your car exciting to the eye under the condition of the real world.
Color Shift Spectrum Grape Gold Vinyl Wrap Specifications:
- Defends against exterior scratches and wears spray defence for each fender
- Seamless application across entire vehicle.
- Adapts to any curve or shape.
- Resists acid rain, harmful gases.
- Removable without leaving any residue.
- Premium wrap with superior performance.
- Long-lasting, durable, and high-performance.
- Eco-friendly, non-toxic, high-grade polymeric vinyl.
- Water and weatherproof.
- Heat and UV resistant.
- Easy to apply and maintain.
- Pressure-sensitive, robust acrylic adhesive.
- Easy to reposition and slide.
- Equipped with air-release channels for bubble-free installation.
- Color: Spectrum Grape Gold
- Finish: Color Shift
- Lifespan: 2-3 years with proper installation and maintenance
- The uses: for cars, trucks boats, laptops, phones...
- Shipping Time: Standard shipping: 7-12 business days; Faster shipping: 3-5 business days
Final Thoughts: Is Color Shift Spectrum Grape Gold Right for You?
Color Shift Spectrum Grape Gold can be an excellent choice in case you are attracted to light-responsive finishes and like to make a visual impact. As of our practical experience with color shifting vinyl wraps, it is a style that needs to be installed carefully and well taken care of. But in case you are looking to be low profile or need the lowest maintenance, a solid color may be more appropriate. The decision that is right is based on the way you are driving, servicing and enjoying your car.
Structure
Our wrap films consist of 4 layers designed to ensure exceptional performance:
The first layer serves as a protective barrier for the underlying vinyl.
Directly beneath, you'll find high-grade polymeric vinyl fortified with pressure-sensitive acrylic adhesive.
Finally, a layer of 130um release plastic liner adds an extra level of quality to our wrap films. This plastic liner ensures a smoother, super glossy, and lustrous finish.
Item Specifications
| RAXTiFY VINYL | Specifications |
|---|---|
| Technology | High-grade polymeric calendered vinyl film with air-release channels |
| Top Protective Liner | PET |
| Thickness (Face only) | 3.7–4.1 mil, face film only |
| Thickness (Adhesive) | 1.6 mil removable pressure-sensitive adhesive with air-release channels |
| Glue | Solvent-based adhesive, low-to-medium tack for easier repositioning |
| Release Liner | PET/Plastic |
| Width (Standard) | 5ft / 60in 1.52m |
| Length (Standard) | 19.7yd / 59ft / 18m |
| Indoor Lifespan | 3 years depending on use and maintenance |
| Outdoor Lifespan | 2 years depending on climate, installation, and maintenance (Except Chrome Wraps) |
Wrap Testing
| RAXTiFY VINYL | Testing Result |
|---|---|
| Dimensional Stability | Shrinkage less than 4% |
| Tensile Strength | 22.7 N/10mm |
| Release Force (N/25mm) | 0.13 N/25mm, tested at 25°C and 50% RH |
| Initial Tack (g/25mm) | 1360 g/25mm, tested at 26°C and 64% RH, GB31125-2014 |
| Peel Strength (N/25mm) | 7.02 N/25mm, tested at 25°C and 42% RH, GB/T2792-1998 |
| Holding Power (h) | 75.09 (25℃ and 50%, GB/T4851-1998) |
| Chemical Resistance | Resistant to mild acids, mild alkalis, and salt. Avoid strong solvents and harsh cleaners. |
| Aging Testing | No adhesive residue after 7 days of heat exposure under 65°C |
| Aging Test 2 | No adhesive residue after 10 days under standard aging conditions |
| Storing Period | Up to 3 years when stored in the original packaging at +10°C to +20°C, 50% RH, away from direct sunlight, in a clean and dry environment |
Application
| RAXTiFY VINYL | Application Advices |
|---|---|
| Recommended Tools | Squeegee with felt edge, microfiber buffer, sharp knife, masking tape, magnets, gloves, heat gun, infrared thermometer |
| Application | Apply using standard dry-wrap techniques for calendered vinyl films. Avoid overstretching and overheating. Post-heating is required on edges, curves, recessed areas, and overlaps |
| Post-heating Temperature | 95°C–110°C for most areas and up to 120°C for curves and overlaps (Except Chrome Wraps) |
| Recommended Installation Area Temperature | 20°C–30°C (68°F–86°F) |
| Directional | All vinyl wraps are recommended to be installed directionally |
| Application Method | Dry Application (Except PPF) |
| Aftercare | Clean with pH-neutral car wash soap and a soft microfiber cloth. Avoid strong solvents, abrasive cleaners, and harsh chemicals |
Frequently Asked Questions
RAXTiFY vinyl wrap is designed with air release channels to help reduce bubbles during installation, making it suitable for both professional installers and experienced DIY users.
However, installation difficulty may vary depending on the vehicle shape, surface condition, film finish, and installer experience. Full vehicle wraps, deep curves, bumpers, mirrors, chrome finishes, carbon fiber films, and other specialty finishes may require professional installation for the best result.
Yes. We recommend ordering a Small Size Sample before purchasing a full roll, especially if you are comparing colors or finishes.
Vinyl wrap color can look different under sunlight, shade, indoor lighting, camera settings, screen display, and different vehicle body lines. A sample helps you check the real color, finish, and texture before starting your wrap project.
Most RAXTiFY vinyl wraps come with a 2-year limited warranty against confirmed product-related defects.
This warranty does not cover improper installation, overheating, overstretching, scratches, accidents, harsh chemicals, normal wear and tear, environmental damage, paint damage during removal, or issues caused by poor surface condition.
Some specialty finishes, including chrome and carbon fiber vinyl wraps, may not be eligible for the standard 2-year limited warranty.
For full details, please read our RAXTiFY Warranty Policy.
RAXTiFY vinyl wrap is designed to last approximately 2–3 years with proper installation and regular care.
Actual lifespan may vary depending on the film series, finish, climate, UV exposure, parking conditions, washing habits, and overall vehicle surface condition. Vehicles parked indoors or in shaded areas may help maintain the wrap’s appearance for longer.
For best results, hand wash the wrapped vehicle with clean water, pH-neutral soap, and a soft microfiber mitt or sponge. Dry the surface with a clean microfiber towel after washing.
Avoid harsh chemicals, abrasive cleaners, automatic car washes, polishing compounds, fuel spills, and high-pressure washing directly on film edges. Long-term exposure to intense sunlight, heat, rain, snow, dust, and pollution may affect the finish over time.
Yes. RAXTiFY vinyl wrap can be removed later when it is properly heated and removed with care.
Our vinyl wrap is designed to be removable without damaging factory OEM paint that is in good condition. For the safest result, we recommend professional removal, especially for full vehicle wraps, older installations, or vehicles with unknown paint history.
Please note that paint condition matters. Repainted surfaces, peeling clear coat, rust, dents, scratches, weak paint, or improper removal may increase the risk of paint damage.
Got your eyes on a color but not sure if it's the one? Get a FREE small sample first!
