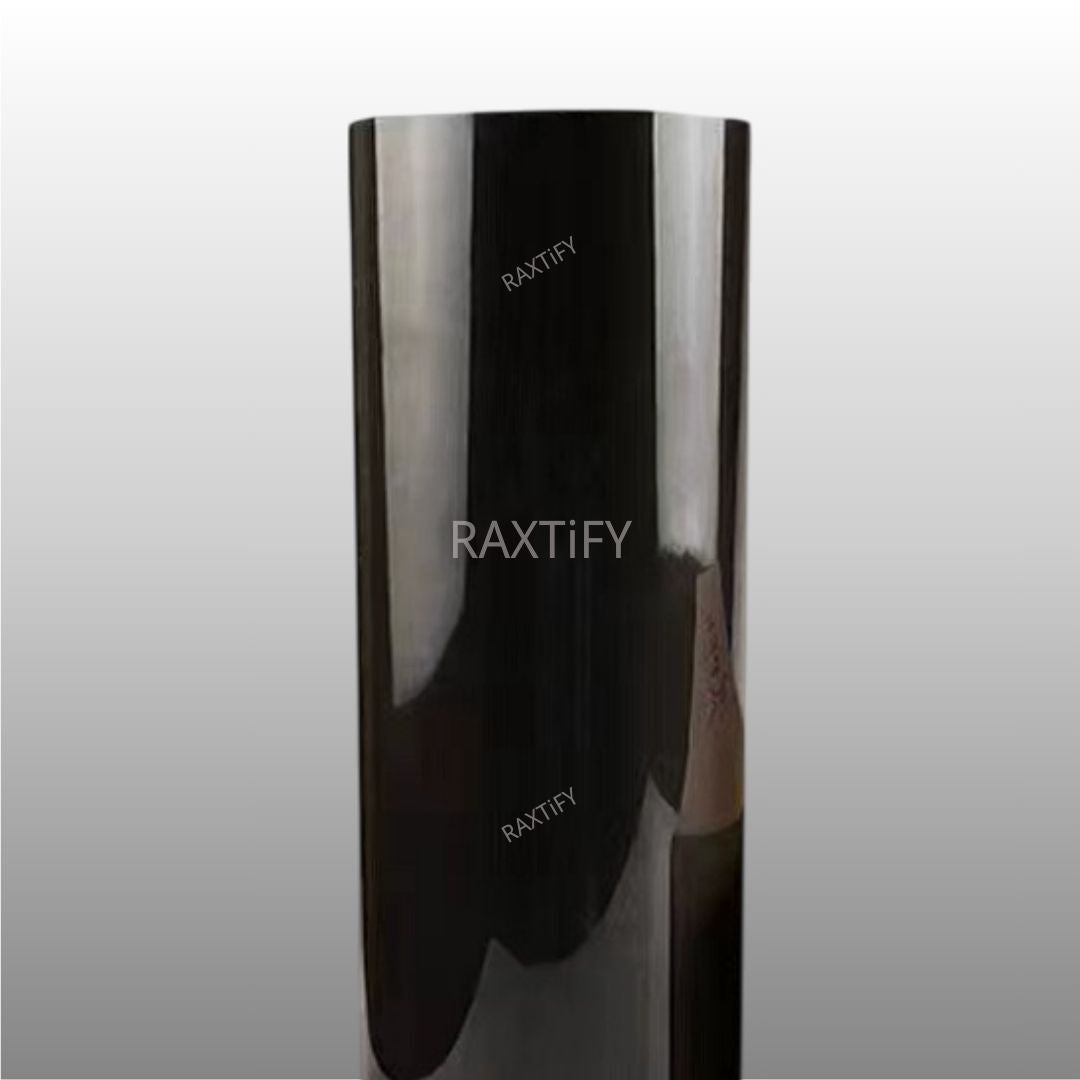

Deep Black Headlight Tint Film
- Sku: HT04-10M
Air-Release Channel
PET Backing Liner
Low Initial Tack
Quality Warranty
1. Top Protective film: Included only on full rolls (59ft) of gloss vinyls.
2. Shipping Time: 7-10 days (Free) | 3-5 days (Express).
For smaller, pre-cut pieces of glossy vinyl, the protective film is removed before shipping to ensure a smooth surface without air bubbles or creases. This does not affect the quality of the vinyl.
All matte/ Satin vinyl wraps do not have a protective film, as their surface is naturally resistant to minor scratches and does not require additional protection.
59ft = full roll
69ft = full roll + 10ft pre-cut
75ft = full roll + 16ft pre-cut
4. Products ordered separately may have slight color variations due to different color lots.
5. CAUTION! The images, colors, and finishes on the screen are approximate. For accuracy, refer to the color book or samples.
6. We prioritize sending films with PET backing liners. If unavailable, paper backing liners will be provided. Use a bubble remover/defoamer on the surface before applying for best results.
Size Chart
Motorcycles: 5ft * 16ft
Mini/ Small Cars: 5ft * 49 ft
Convertible: 5ft * 59 ft
Coupe: 5ft * 59 ft
Sedan: 5ft * 59 ft
Hatchback: 5ft * 59 ft
Sports Car: 5ft * 59 ft
Station Wagon: 5ft * 69 ft
Sport-utility Vehicle (SUV) : 5ft * 69 ft
Minivan: 5ft * 80 ft
Pickup Truck: 5ft * 92 ft
Deep Black Headlight Tint Film
Feature:

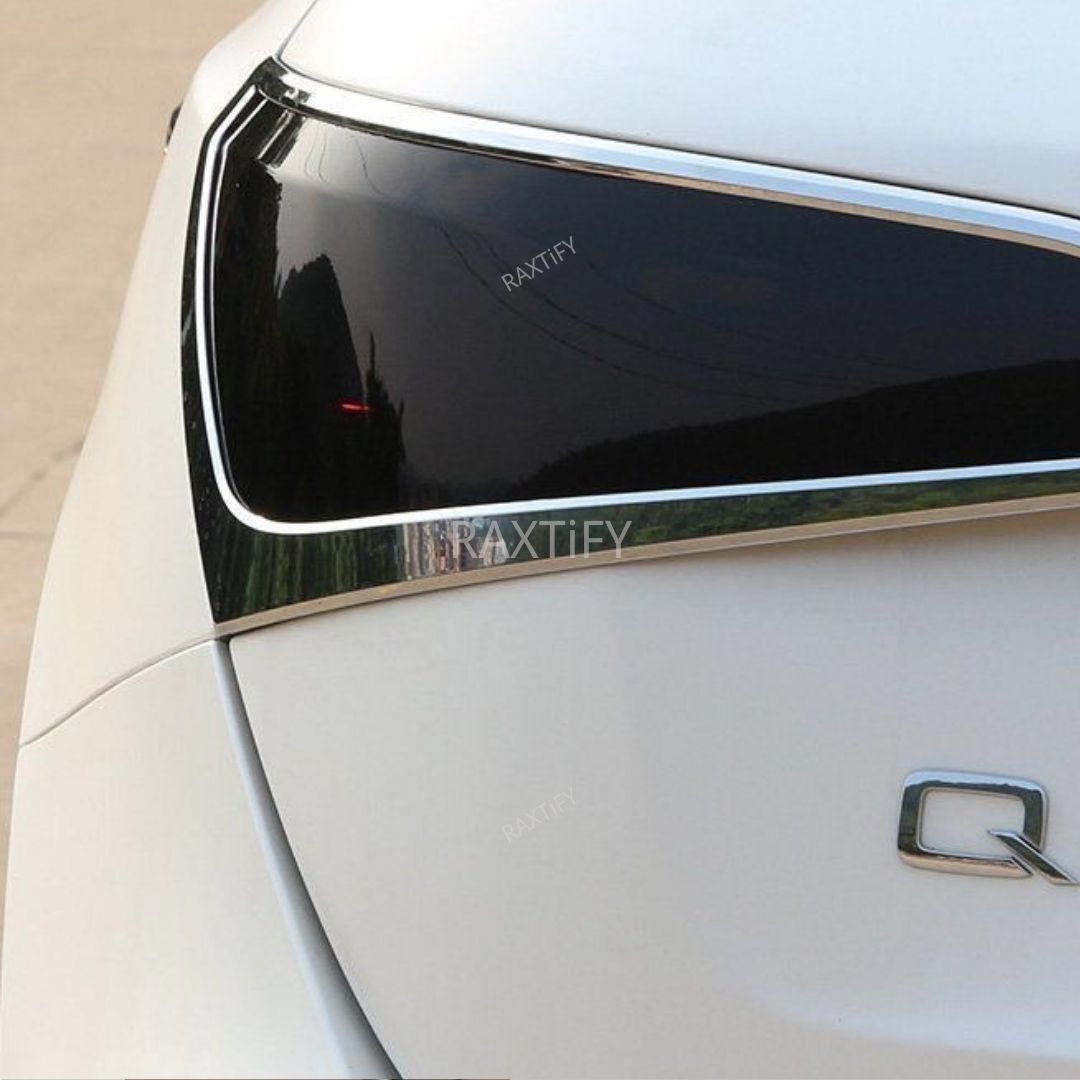

Your vehicle receives an instantly transformative appearance through the Deep Black Headlight Tint Film since it provides a luxurious dark finish to headlights and taillights. The dark black finish turns your vehicle into an elegant and mysterious appearance with its unique upscale style. This tint creates customized luxury look for all car colors on the market without requiring either headlight replacements or permanent changes.
Protection Beyond Just Looks
The issue of protection stands equally valuable with the factor of aesthetics. The protective shield function of this film will defend your headlights from accumulation of road damages such as stone chips and scratches in addition to UV ray exposure. Regular small elements from driving conditions gradually reduce the clarity of your headlights. The Deep Black Headlight Tint Film from RAXTiFY allows you to safeguard your clear headlights while providing a fashionable appearance.
Simple Maintenance
Caring for this headlight film consists of basic steps. A soft cleaning cloth can be used together with a gentle alcohol-free liquid to wipe away loose debris and contamination from the surface. Gentle periodic cleaning will support the finish retention and fresh appearance of the film. Chemicals which are too harsh or rough materials should be avoided because they will harm the material.
Easy Installation for DIY Enthusiasts
Any person lacking professional experience can apply this film to their lights without difficulty. This product installs with water to eliminate bubble formation or wrinkles during the process. This flexible film easily adapts to varied headlight shapes thus enabling beginners to obtain professional results if they exercise patience during installation.
Strong Adhesion and Long Lifespan
An acrylic-based adhesive on the Deep Black Headlight Tint Film maintains durable surface attachment no matter what weather conditions exist. The film maintains its performance in all types of driving conditions including highways under sunlight and wet roads. The longevity of this film amounts to about one-year but it depends on climatic conditions plus proper maintenance procedures.
Available in Multiple Sizes
We recognizes that all vehicles possess specialized headlight forms which differ in dimensions. RAXTiFY provides this film in various dimensions because customers need different options to match their vehicle’s specific requirements
More Feature:
1. Durable and Long-lasting.
2. Premium Eco-friendly Material.
3. Waterproof and All-weather Resistant.
4. Heat, UV, and Scratch Resistant.
5. Easy to Apply and Maintain.
6. Protective Liner Included
7. Ultra-clear Acrylic-based Adhesive
8. Repositionable & Slide-friendly
9. Multiple Shades & Styles Available
10. Self-healing tecknology
General Description
- Material: TPH
- Features: Scratch Resistance, Protective
- LinerType: Automotive, Architectural, Marketing Applications, Indoor
- OutdoorLifetime: 1 year (Based On Vertical Exposure)Adhesive
- Type: Acrylic-Based, Repositionable Ultra-Clear adhesive.
- Finish Color: Light Grey
- Application Method: Clean and dry surface
- Thickness: 6mil
- Standard Roll: 30cm*10m
- Size Available: 4ft, 10ft, 16ft, 33ft
- Application Method: Wet
Item Standard Size:
| Classification | Unit | Spec | Remark |
| Top Protected Film | um | 25±5% | PET |
| PET Face Film | um | 20±2 | / |
| Acrylic Adhesive | um | 100±2 | / |
| Release Liner | um | 180±2% | PET |
| Surface | - | Gloss | / |
| Width | cm | 30cm±1% | 1ft |
| Length | m | 10m±1% | 33ft |
Physical Properties:
| Test | Data | Test Conditions |
|---|---|---|
| Ageing Testing | No adhesive residue under 25 times wrapping | 65°C and 7 days |
| Durability | 1 Year | / |
| Light Transmission | 43% | >40% |
| Anti-Yellowing ΔΕ | ≤1.2 | Q-UV, 1000hrs |
| Gloss | ≥ 92.3% | 60% |
| Tensile strength | ≥21.6(mpa) | GB/T 1040.1 |
| Holding Power(gf/inch) | No peel off within 48 hours | GB/T279224h |
| Initial Tack(gf/inch) | 860g | GB/33125-2025 |
| Peel Strength | ≥15(N/25mm) | 180% |
| Tear Strength | 92.5KN/m | GB/T529 |
| Release Force(N/25mm) | 0.16N | paste on steel board, 90° 26'C and 60%, GB2792 |
| VLT | 87 | / |
| Adhesive residue | <3% | / |
| Face Film Elongation at Break | 309.5 | GB/T 1040.1 |
| 100% Modulus | 9.1(mpa) | GB/T 1040.1 |
| Application Temperature |
+20°C to +30°C | / |
Structure
Our wrap films consist of 4 layers designed to ensure exceptional performance:
The first layer serves as a protective barrier for the underlying vinyl.
Directly beneath, you'll find high-grade polymeric vinyl fortified with pressure-sensitive acrylic adhesive.
Finally, a layer of 130um release plastic liner adds an extra level of quality to our wrap films. This plastic liner ensures a smoother, super glossy, and lustrous finish.
Vinyl Specifications
| Specification | Details |
|---|---|
| Product Type | Automotive Vinyl Wrap |
| Film Type | Polymeric calendered vinyl film |
| Designed Use | Full vehicle wraps, partial wraps, and exterior accents |
| Film Construction | Polymeric vinyl with air-release adhesive channels |
| Face Film Thickness | 3.7–4.1 mil (approx. 0.094–0.104 mm) |
| Adhesive Type | Solvent-based pressure-sensitive acrylic adhesive |
| Adhesive Thickness | 1.6 mil (approx. 0.041 mm) |
| Initial Tack | Low Initial Tack, High Holding Power |
| Air-Release Channels | Yes |
| Release Liner | PET |
| Top Protective Film | PET, where supplied with the applicable finish or roll configuration |
| Directional Film | Yes — maintain a consistent film direction across adjacent panels |
| Application Method | Dry application |
| Recommended Installation Temperature | 20°C–30°C (68°F–86°F) |
| Service Temperature Range | −45°C to +45°C (−49°F to 113°F) |
| Roll Width | 60 in / 5 ft / 1.52 m |
| Full Roll Length | 59 ft / 19.7 yd / 18 m |
| Approx. Full Roll Weight | 28.7 lb / 13 kg |
| Expected Outdoor Service Life | Approx. 2 years, depending on climate, UV exposure, installation, parking conditions, and maintenance |
| Expected Indoor / Sheltered Service Life | 2-3 years, depending on use and maintenance |
| Installation Difficulty | Easy to Intermediate; DIY-friendly |
Technical Performance Data
| Test Item | Typical Result |
|---|---|
| Elongation at Break — MD | Approx. 200% |
| Elongation at Break — CD | Approx. 190% |
| Tensile Strength | 22.7 N/10 mm |
| Dimensional Stability | Shrinkage less than 4%* |
| Surface Tension | Approx. 34 dynes/cm |
| Release Force | 0.12 N/25 mm, tested at 25°C and 50% RH |
| Initial Tack | 1360 g/25 mm, tested at 26°C and 64% RH, GB31125-2014 |
| Peel Strength | 7.05 N/25 mm, tested at 25°C and 42% RH, GB/T2792-1998 |
| Holding Power | 72.09 h, tested at 25°C and 50% RH, GB/T4851-1998 |
| Aging Test 1 | 7 days at 65°C — no adhesive residue observed after removal with heat |
| Aging Test 2 | 10 days at 65°C — no adhesive residue observed after removal without heat |
Installation & Application
| Application Method | Dry application |
|---|---|
| Installation Temperature | 20°C–30°C (68°F–86°F) |
| Post-Heating | 95°C–110°C (203°F–230°F) |
| Curves & Recesses | Up to 120°C (248°F) |
| Directional Film | Yes — maintain consistent film direction across panels |
| Recommended Tools | Squeegee, knife, masking tape, magnets, gloves, heat gun, IR thermometer |
| Installation Notes | Avoid overstretching and overheating. Professional installation is recommended for complex curves and recesses. |
Care & Maintenance
| Washing | pH-neutral automotive shampoo; hand wash or touchless wash recommended |
|---|---|
| Pressure Washing | Below 2000 PSI; avoid spraying directly at exposed edges |
| Avoid | Brush car washes, abrasive cleaners, strong solvents, and harsh chemicals |
| Contaminants | Remove bird droppings, tree sap, fuel residue, and insects promptly |
| Wax & Sealant | Use vinyl-safe products only |
| Parking | Indoor, garage, or shaded parking recommended |
Lifespan & Warranty
| Outdoor Service Life | Approx. 2 years |
|---|---|
| Indoor / Sheltered Use | Up to 3 years |
| Warranty | 2-Year Limited Warranty for eligible material defects |
| Warranty Exclusions | Improper installation, overstretching, overheating, misuse, accidents, environmental damage, incompatible chemicals, and pre-existing paint defects |
Storage & Shelf Life
| Shelf Life | Up to 2 years |
|---|---|
| Storage Temperature | 10°C–20°C (50°F–68°F) |
| Relative Humidity | Approx. 50% |
| Storage Conditions | Keep in original packaging in a clean, dry place away from direct sunlight, heat, dust, and moisture |
Frequently Asked Questions
RAXTiFY vinyl wrap is designed with air release channels to help reduce bubbles during installation, making it suitable for both professional installers and experienced DIY users.
However, installation difficulty may vary depending on the vehicle shape, surface condition, film finish, and installer experience. Full vehicle wraps, deep curves, bumpers, mirrors, chrome finishes, carbon fiber films, and other specialty finishes may require professional installation for the best result.
Yes. We recommend ordering a Small Size Sample before purchasing a full roll, especially if you are comparing colors or finishes.
Vinyl wrap color can look different under sunlight, shade, indoor lighting, camera settings, screen display, and different vehicle body lines. A sample helps you check the real color, finish, and texture before starting your wrap project.
Most RAXTiFY vinyl wraps come with a 2-year limited warranty against confirmed product-related defects.
This warranty does not cover improper installation, overheating, overstretching, scratches, accidents, harsh chemicals, normal wear and tear, environmental damage, paint damage during removal, or issues caused by poor surface condition.
Some specialty finishes, including chrome and 3D/5D/6D carbon fiber vinyl wraps, may not be eligible for the standard 2-year limited warranty.
For full details, please read our RAXTiFY Warranty Policy.
RAXTiFY vinyl wrap is designed to last approximately 2–3 years with proper installation and regular care.
Actual lifespan may vary depending on the film series, finish, climate, UV exposure, parking conditions, washing habits, and overall vehicle surface condition. Vehicles parked indoors or in shaded areas may help maintain the wrap’s appearance for longer.
For best results, hand wash the wrapped vehicle with clean water, pH-neutral soap, and a soft microfiber mitt or sponge. Dry the surface with a clean microfiber towel after washing.
Avoid harsh chemicals, abrasive cleaners, automatic car washes, polishing compounds, fuel spills, and high-pressure washing directly on film edges. Long-term exposure to intense sunlight, heat, rain, snow, dust, and pollution may affect the finish over time.
Yes. RAXTiFY vinyl wrap can be removed later when it is properly heated and removed with care.
Our vinyl wrap is designed to be removable without damaging factory OEM paint that is in good condition. For the safest result, we recommend professional removal, especially for full vehicle wraps, older installations, or vehicles with unknown paint history.
Please note that paint condition matters. Repainted surfaces, peeling clear coat, rust, dents, scratches, weak paint, or improper removal may increase the risk of paint damage.
