- Sku: CF26

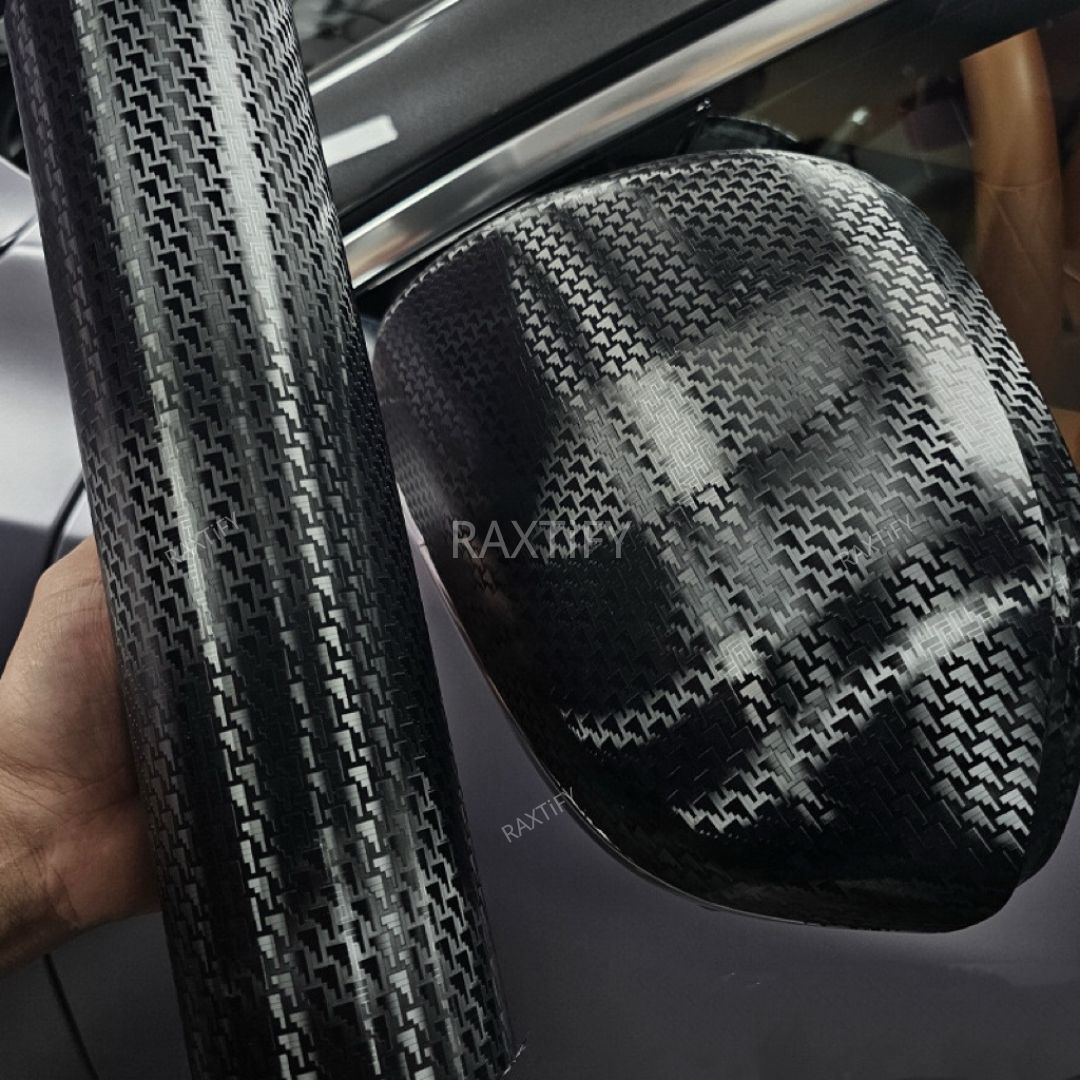

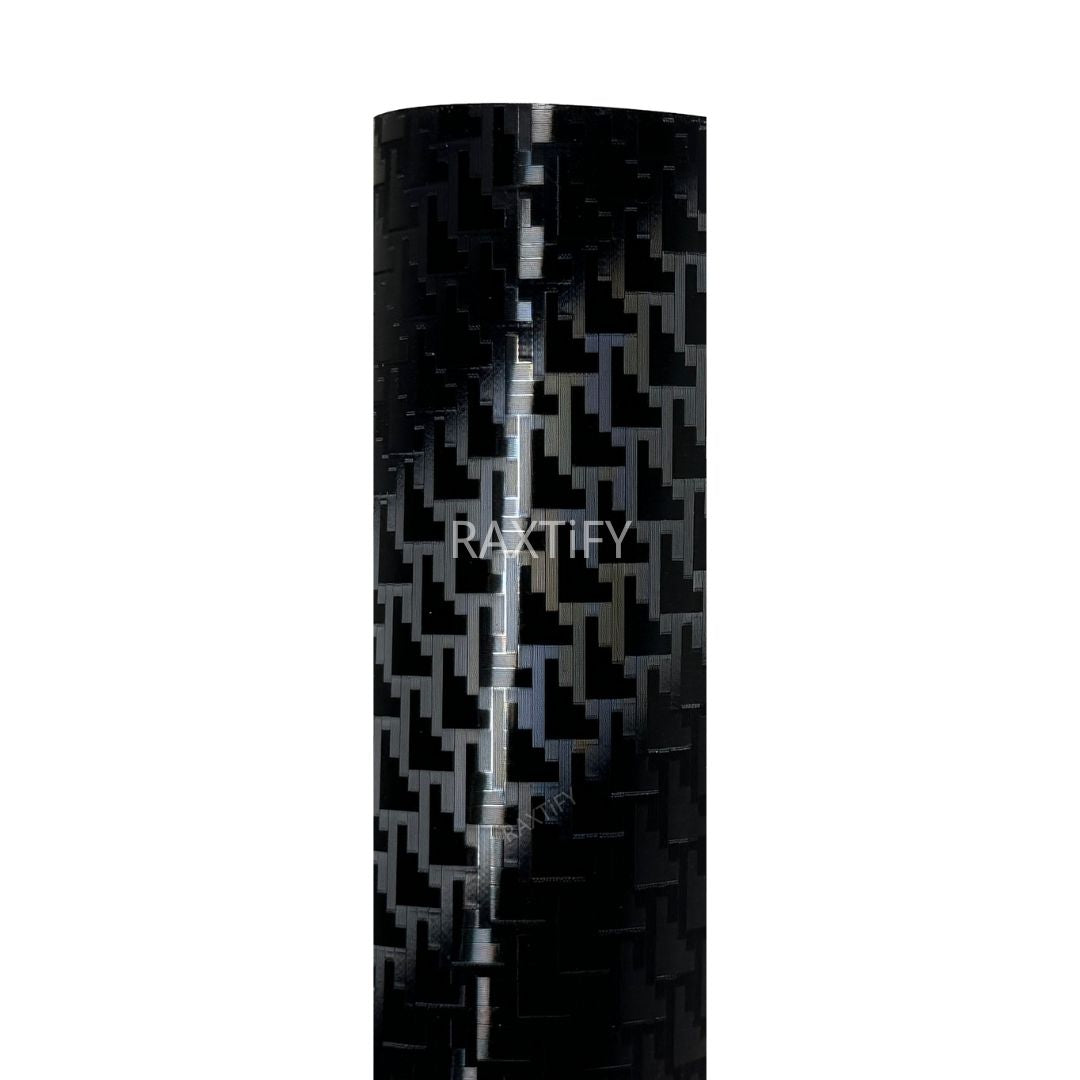

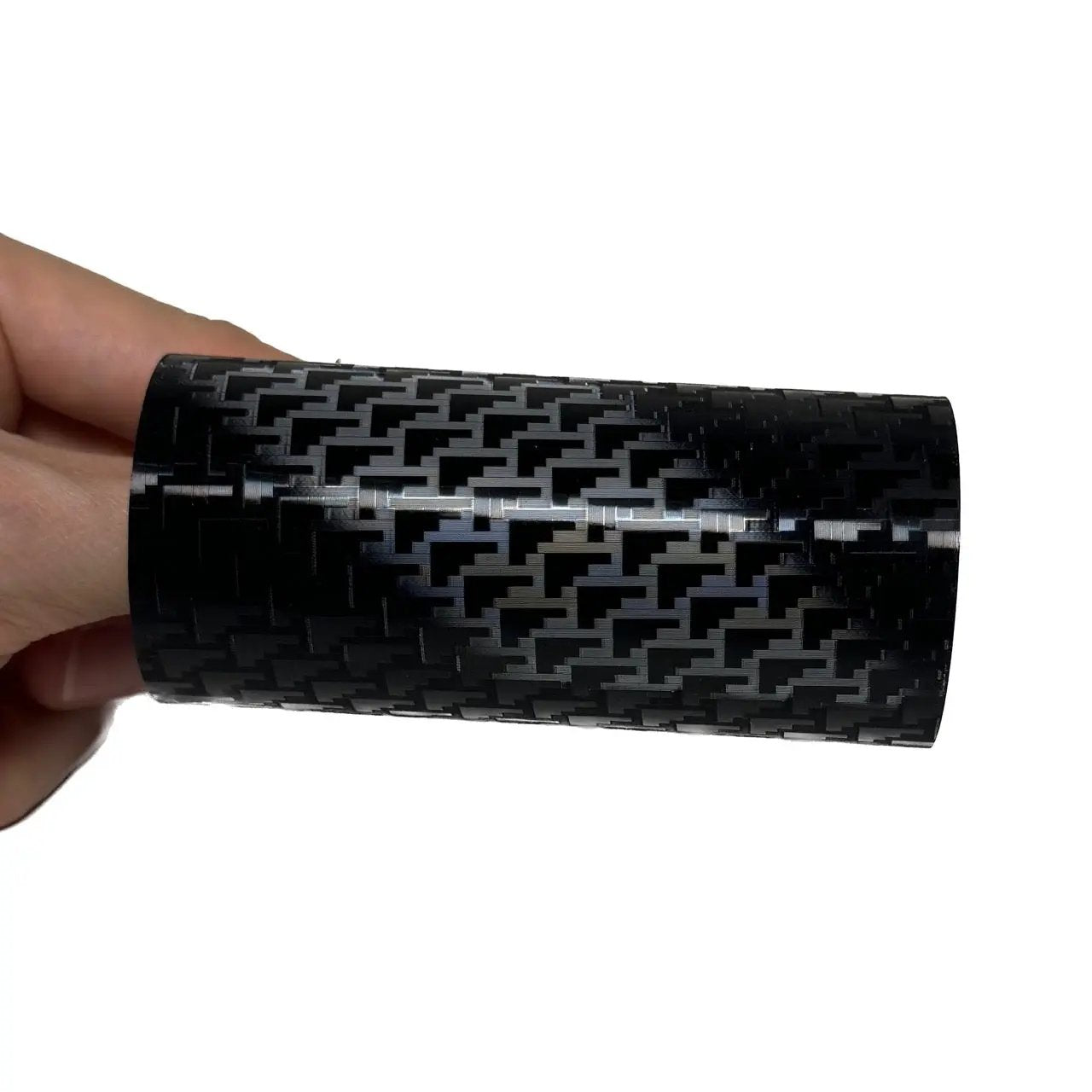

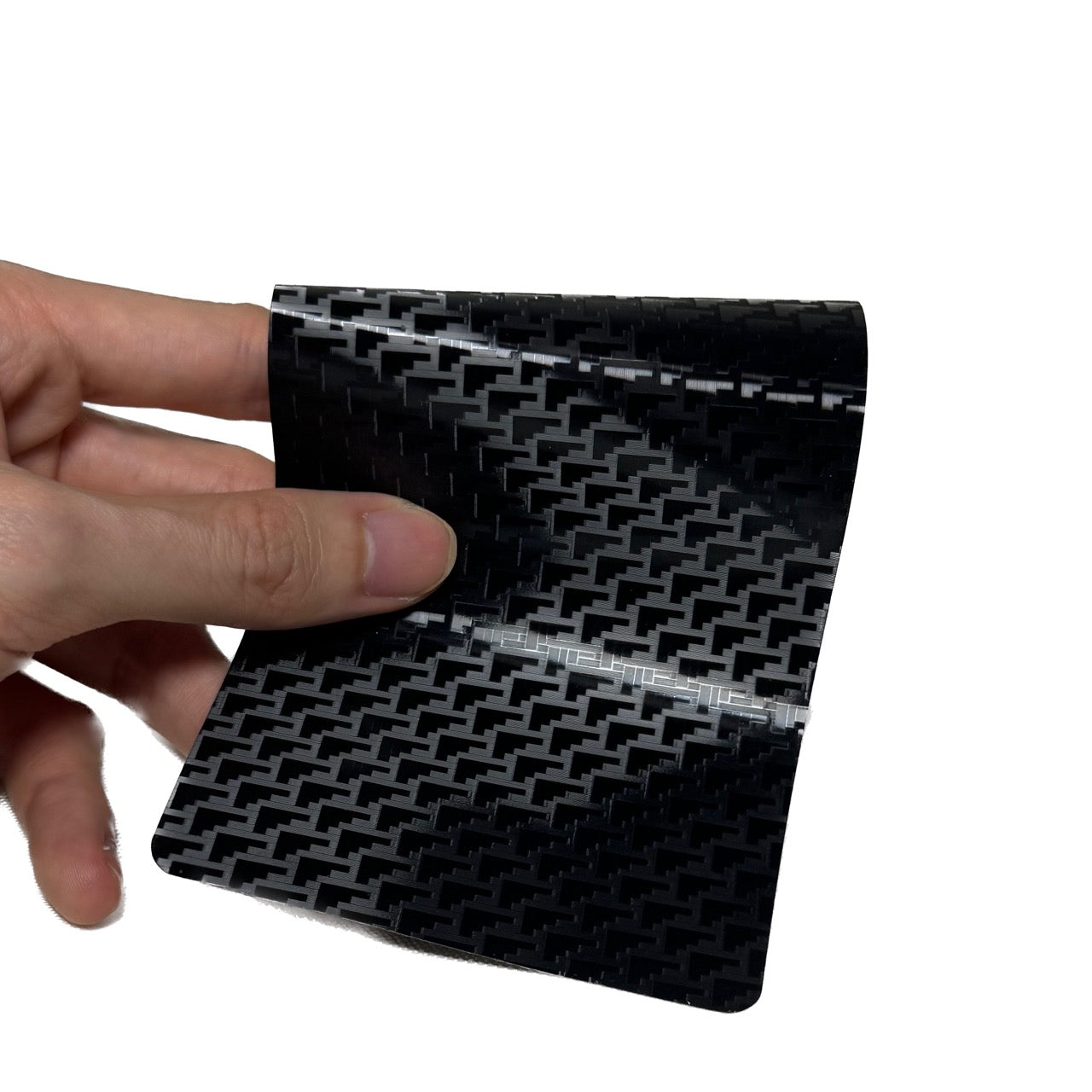

Designer Carbon Fiber Triangles Vinyl Wrap
1. We prioritize sending films with PET backing liners. If unavailable, paper backing liners will be provided. Use a bubble remover/defoamer on the surface before applying for best results.
2. Free shipping takes 7-12 business days. Faster Shipping takes 5-7 business days.
3. A full roll is 59 feet. Sizes of 49 feet or less are cut from a full roll, and we’ll remove the protective layer before shipment to ensure safe delivery. For example,
69ft = full roll + 10ft
75ft = full roll + 16ft
4. Products ordered separately may have slight color variations due to different color lots.
5. CAUTION! The images, colors, and finishes on the screen are approximate. For accuracy, refer to the color book or samples.
Size Chart
Motorcycles: 5ft * 16ft
Mini/ Small Cars: 5ft * 49 ft
Convertible: 5ft * 59 ft
Coupe: 5ft * 59 ft
Sedan: 5ft * 59 ft
Hatchback: 5ft * 59 ft
Sports Car: 5ft * 59 ft
Station Wagon: 5ft * 69 ft
Sport-utility Vehicle (SUV) : 5ft * 69 ft
Minivan: 5ft * 80 ft
Pickup Truck: 5ft * 92 ft
Have a question?
Designer Carbon Fiber Triangles Vinyl Wrap
4-Layer Strong Composition
Our wrap films consist of 4 layers designed to ensure exceptional performance.
The first layer serves as a protective barrier for the underlying vinyl. Directly beneath, you'll find high-grade polymeric vinyl fortified with pressure-sensitive acrylic adhesive. Finally, a layer of top-tier 130um plastic liner adds an extra level of quality to our wrap films. This plastic liner ensures a smoother, super glossy, and lustrous finish
Add a touch of sleek style to your car with our Designer Carbon Fiber Triangles Vinyl Wrap. This easy-to-install wrap is crafted from high-quality materials to give a unique, modern look to your vehicle. Transform your ride and stand out on the road with this eye-catching vinyl wrap.
Item Specifications
| RAXTiFY VINYL | Specifications |
|---|---|
| Technology | High-grade Polymeric Calendared Vinyl Film with Air-Release Channels |
| Top Protective Liner | PET |
| Thickness (Face only) | 3.7mil-4.1mil |
| Thickness (Adhesive) | 1.6 mil (Removable Adhesive with air-release channels) |
| Glue | Solvent based adhesive, (Low-Medium Tack - Easy to reposition) |
| Release Liner | PET/Plastic |
| Width (Standard) | 5ft/ 60in/ 1.52m |
| Length (Standard) | 59ft/ 65yard/ 18m |
| Indoor Lifespan | 3 years when following rules of application and use |
| Outdoor Lifespan | 2 years when following rules of application and use (Except Chrome Wraps) |
Wrap Testing
| RAXTiFY VINYL | Testing Result |
|---|---|
| Dimensional Stability | Shrinkage less than 4% |
| Breaking Strength | 22.7 N/10mm |
| Release Force (N/25mm) | 0.13 (25℃ and 50%) |
| Initial Tack (g/25mm) | 1360 (26℃ and 64%, GB31125-2014) |
| Peel Strength (N/25mm) | 7.02 (25℃and 42%, GB/T2792-1998) |
| Holding Power (h) | 75.09 (25℃ and 50%, GB/T4851-1998) |
| Chemical Resistance | Resists Most Mild Acids, Mild Alkalis, and Salt |
| Aging Testing | No adhesive residue with heat under 65°C after 7 days |
| Aging Test 2 | No adhesive residue without heat under 65°C after 10 days |
| Storing Period | 2 years if stored in +10°С to +20°С for optimal quality, relative humidity 50%, in original package, away from direct sunlight, clean and dry place |
Application
| RAXTiFY VINYL | Application Advices |
|---|---|
| Recommended Tools | Squeegee, buffer, knife, masking tape, heat gun, magnets, gloves, IRR thermometer, IRR heater |
| Application | Standard methods for calendared films. No overstretching and overheating and Post heating is necessary. |
| Post-heating Temperature | 110°C flat surfaces, 130°C curves, and overlaps (Except Chrome Wraps） |
| Recommended Installation Area Temperature | 70 F - 80 F (24 C - 26.5 C) |
| Directional | All vinyl wraps are recommended to be installed directionally |
| Application Method | Dry Application （Except PPF) |
| Aftercare | PH neutral, Avoid wax or solvents |
