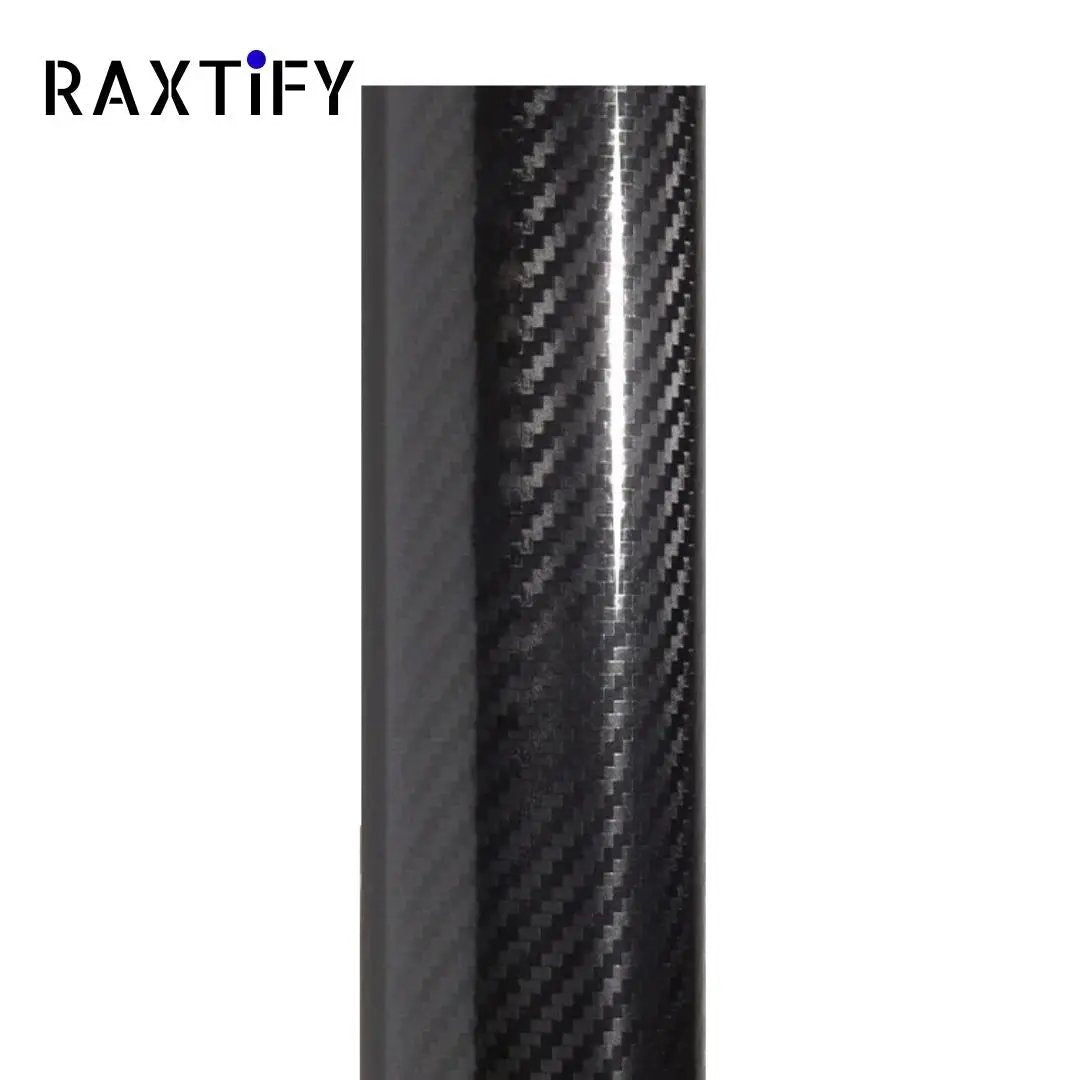

Gloss Ceramic Carbon Fiber Vinyl Wrap
- Sku: CF03
Air-Release Channel
PET Backing Liner
Low Initial Tack
2-Year Warranty
1. Top Protective film: Included only on full rolls (59ft) of gloss vinyls.
2. Shipping Time: 7–10 days (Free) | 5–7 days (Express).
For smaller, pre-cut pieces of glossy vinyl, the protective film is removed before shipping to ensure a smooth surface without air bubbles or creases. This does not affect the quality of the vinyl.
All matte/ Satin vinyl wraps do not have a protective film, as their surface is naturally resistant to minor scratches and does not require additional protection.
59ft = full roll
69ft = full roll + 10ft pre-cut
75ft = full roll + 16ft pre-cut
4. Products ordered separately may have slight color variations due to different color lots.
5. CAUTION! The images, colors, and finishes on the screen are approximate. For accuracy, refer to the color book or samples.
6. We prioritize sending films with PET backing liners. If unavailable, paper backing liners will be provided. Use a bubble remover/defoamer on the surface before applying for best results.
Film Material & Construction
- Film Type: Premium-grade polymeric calendered vinyl wrap
- Material Structure: Polymeric hybrid vinyl with integrated air-release channels
- Designed Use: Full vehicle wraps and smooth to moderately curved surfaces
- Directional Film: Yes (installation direction must be observed)
- Backing Liner: PET
Thickness
- Vinyl Film Thickness: approx. 0.13 mm
- Total Thickness (with release liner): approx. 0.28–0.30 mm
Adhesive System
Adhesive Type: Solvent-based acrylic adhesive
Adhesive Features:
- Pressure-sensitive
- Transparent appearance
- Designed for automotive exterior use
- Balanced initial tack and repositionability
Adhesive Layer Thickness: approx. 12 μm (dry)
Application & Installation Guidelines
Certain finishes (ultra-gloss, metallic, glitter series) may be firmer than standard vinyl due to surface coating structure. Professional installation is recommended
Recommended Application Temperature
- Installation Environment: +17°C to +25°C
- Service Temperature Range: −45°C to +45°C
Recommended Tools
- Squeegee with soft buffer
- Utility knife
- Masking tape
- Heat gun
- Magnets
- Gloves
- IR thermometer (strongly recommended for accurate post-heating)
Post-Heating Requirements (Critical)
Proper post-heating is essential to release internal film stress and ensure long-term adhesion.
- Flat Surfaces: 110°C
- Curves, Recesses & Overlaps: 130°C
Note: Failure to post-heat correctly may result in edge lifting or shrinkage over time.
Mechanical & Physical Properties (Typical Values)
Elongation at Break:
- MD: ~200%
- CD: ~190%
Tensile Strength:
- MD: ~29 N/mm²
- CD: ~25 N/mm²
Dimensional Stability: ≤ 2% (70°C / 10 min oven test)
Surface Tension: ~34 dynes/cm
Maintenance & Care
- Clean only with pH-neutral automotive shampoo
- Use soft microfiber cloth or touchless wash
- Pressure washing below 2000 PSI only
- Avoid brush-style car washes, abrasive tools, and solvent-based cleaners
- Remove bird droppings, sap, fuel residue, and contaminants promptly
- Vinyl-safe spray wax or sealant only
- Abrasive polish, cutting compounds, ceramic coatings, and overlamination are not recommended
Durability & Warranty
Service life varies by film series, installation quality, environment, and maintenance
Warranty (if applicable) covers material defects only
The following are not covered:
- Improper installation or insufficient post-heating
- Overstretching, overheating, or misuse
- Overlaminate or unapproved surface treatments
- Environmental damage, road debris, or accidents
- Surface imperfections originating from the vehicle’s original paint
Storage & Shelf Life
Indoor or shaded parking is strongly recommended
Shelf Life: Up to 3 years
Storage Conditions:
- Temperature: +10°C to +20°C
- Relative Humidity: approx. 50%
- Store in original packaging
- Keep away from direct sunlight, heat, dust, and moisture
Packaging Information
- Roll Width: 152 cm (60 inches)
- Roll Length: 18 m
- Approximate Roll Weight: 13 kg
Size Chart
Motorcycles: 5ft * 16ft
Mini/ Small Cars: 5ft * 49 ft
Convertible: 5ft * 59 ft
Coupe: 5ft * 59 ft
Sedan: 5ft * 59 ft
Hatchback: 5ft * 59 ft
Sports Car: 5ft * 59 ft
Station Wagon: 5ft * 69 ft
Sport-utility Vehicle (SUV) : 5ft * 69 ft
Minivan: 5ft * 80 ft
Pickup Truck: 5ft * 92 ft
Gloss Ceramic Carbon Fiber Vinyl Wrap
Why Gloss Ceramic Carbon Fiber Vinyl Wrap
Discover the ultimate blend of style and performance with our Gloss Ceramic Carbon Fiber Vinyl Wrap. This innovative wrap features a striking glossy ceramic carbon fiber pattern that captures attention with its stunning visual appeal. The glossy finish combined with an intricate texture creates a captivating aesthetic that transforms any vehicle into a head-turner.
Key Features
Premium-Grade Vinyl
Our Gloss Ceramic Carbon Fiber Vinyl Wrap is crafted from high-quality vinyl, ensuring both an enhanced appearance and superior protection. It shields your vehicle's paint from scratches, rock chips, and UV rays, keeping your car's finish pristine and glossy for years to come. Plus, its weatherproof properties make it suitable for all types of climates, offering versatility and durability in any environment.
Seamless Installation
Installing our Gloss Ceramic Carbon Fiber Vinyl Wrap is a breeze. The self-adhesive backing allows for easy application without the need for additional adhesives, and the air release technology ensures a bubble-free, smooth surface. Whether you're a professional installer or a DIY enthusiast, you'll appreciate the user-friendly nature of this wrap, making the application process efficient and hassle-free.
Versatile Sizing Options
Choose from our range of sizes to accommodate different wrapping projects. Whether you want to accentuate specific parts of your vehicle or go for a full transformation, our Gloss Ceramic Carbon Fiber Vinyl Wrap is designed to deliver outstanding results. Its adaptability allows you to customize and make a bold statement on the road, ensuring your vehicle stands out wherever you go.
More Features
- Striking glossy ceramic carbon fiber pattern for a captivating look
- Protects against scratches, rock chips, and UV rays
- Weatherproof and durable for long-lasting performance
- Easy installation with self-adhesive backing and air release technology
- Available in various sizes for versatile wrapping option
Let's Get It Now!
Elevate your vehicle’s look and protection with our Gloss Ceramic Carbon Fiber Vinyl Wrap. Experience the perfect combination of cutting-edge design, superior protection, and easy installation. Don’t wait to transform your car into a sleek and stylish masterpiece. Order now and drive with confidence, knowing that your vehicle is not only visually stunning but also well-protected.
Structure
Our wrap films consist of 4 layers designed to ensure exceptional performance:
The first layer serves as a protective barrier for the underlying vinyl.
Directly beneath, you'll find high-grade polymeric vinyl fortified with pressure-sensitive acrylic adhesive.
Finally, a layer of top-tier 130um plastic liner adds an extra level of quality to our wrap films. This plastic liner ensures a smoother, super glossy, and lustrous finish.
Item Specifications
| RAXTiFY VINYL | Specifications |
|---|---|
| Technology | High-grade Polymeric Calendared Vinyl Film with Air-Release Channels |
| Top Protective Liner | PET |
| Thickness (Face only) | 3.7mil-4.1mil |
| Thickness (Adhesive) | 1.6 mil (Removable Adhesive with air-release channels) |
| Glue | Solvent based adhesive, (Low-Medium Tack - Easy to reposition) |
| Release Liner | PET/Plastic |
| Width (Standard) | 5ft/ 60in/ 1.52m |
| Length (Standard) | 59ft/ 65yard/ 18m |
| Indoor Lifespan | 3 years when following rules of application and use |
| Outdoor Lifespan | 2 years when following rules of application and use (Except Chrome Wraps) |
Wrap Testing
| RAXTiFY VINYL | Testing Result |
|---|---|
| Dimensional Stability | Shrinkage less than 4% |
| Breaking Strength | 22.7 N/10mm |
| Release Force (N/25mm) | 0.13 (25℃ and 50%) |
| Initial Tack (g/25mm) | 1360 (26℃ and 64%, GB31125-2014) |
| Peel Strength (N/25mm) | 7.02 (25℃and 42%, GB/T2792-1998) |
| Holding Power (h) | 75.09 (25℃ and 50%, GB/T4851-1998) |
| Chemical Resistance | Resists Most Mild Acids, Mild Alkalis, and Salt |
| Aging Testing | No adhesive residue with heat under 65°C after 7 days |
| Aging Test 2 | No adhesive residue without heat under 65°C after 10 days |
| Storing Period | 2 years if stored in +10°С to +20°С for optimal quality, relative humidity 50%, in original package, away from direct sunlight, clean and dry place |
Application
| RAXTiFY VINYL | Application Advices |
|---|---|
| Recommended Tools | Squeegee, buffer, knife, masking tape, heat gun, magnets, gloves, IRR thermometer, IRR heater |
| Application | Standard methods for calendared films. No overstretching and overheating and Post heating is necessary. |
| Post-heating Temperature | 110°C flat surfaces, 130°C curves, and overlaps (Except Chrome Wraps） |
| Recommended Installation Area Temperature | 70 F - 80 F (24 C - 26.5 C) |
| Directional | All vinyl wraps are recommended to be installed directionally |
| Application Method | Dry Application （Except PPF) |
| Aftercare | PH neutral, Avoid wax or solvents |
Got your eyes on a color but not sure if it's the one? Get a FREE small sample first!
Frequently Asked Questions
Is RAXTiFY vinyl easy to install?
RAXTiFY vinyl wraps are made in line with professional uses.Others such as high-gloss, metallic, or glitter series are stiffer than the traditional wraps because of surface coating technology.Although the flat panels can be easily installed by the hands of skilled DIY users, it is highly advised that professional installation be done in complex curves and high visibility areas.
Can I apply overlaminate on RAXTiFY vinyl?
Overlamination should be avoided.Other coating layers can have an influence on surface transparency, bonding and durability.The original surface finish of RAXTiFY vinyl is developed to be the last visual coating.
How should I maintain RAXTiFY vinyl wraps?
- Wash using pH-neutral car shampoo
- Use a soft microfiber cloth or touchless wash
- Pressure washers should remain under 2000 PSI
Cleanse up the contaminants e.g. bird droppings, sap of trees or fuel residues as soon as possible to avoid staining.
Can I use wax or polish on RAXTiFY vinyl?
Vinyl specific spray waxes or sealants are only used; these are mostly used in gloss and metallic finishes.Abrasive polishes, cutting compounds or solvent based chemicals are to be avoided.Any product should always be tested on a small and inconspicuous part of the skin before it can be applied.
How long does RAXTiFY vinyl wrap last?
Wrap lifespan depends on multiple factors, including:
- Film series and finish
- Installation quality
- Environmental exposure
- Maintenance habits
Although RAXTiFY films are designed to give non-textured finishes to the vehicle, the end result could depend on the painted state of the vehicle in the first place.The scratches, dents, rust, bubbles or orange peel that may be present before installation may be left and are not regarded as film defect.
Will removing RAXTiFY vinyl damage my paint?
RAXTiFY vinyl wraps should not harm factory paint when used on OEM paint that is in fine condition and removed without causing damage to the paint.
Does storage affect wrap lifespan?
Parking in interior parts or shaded parking areas mean a lot of less exposure to UV and environmental pressure.In case of an indoor storage, a breathable car cover will be recommended, as it will be helpful to maintain the quality of the finish and increase the wrap lifespan.
