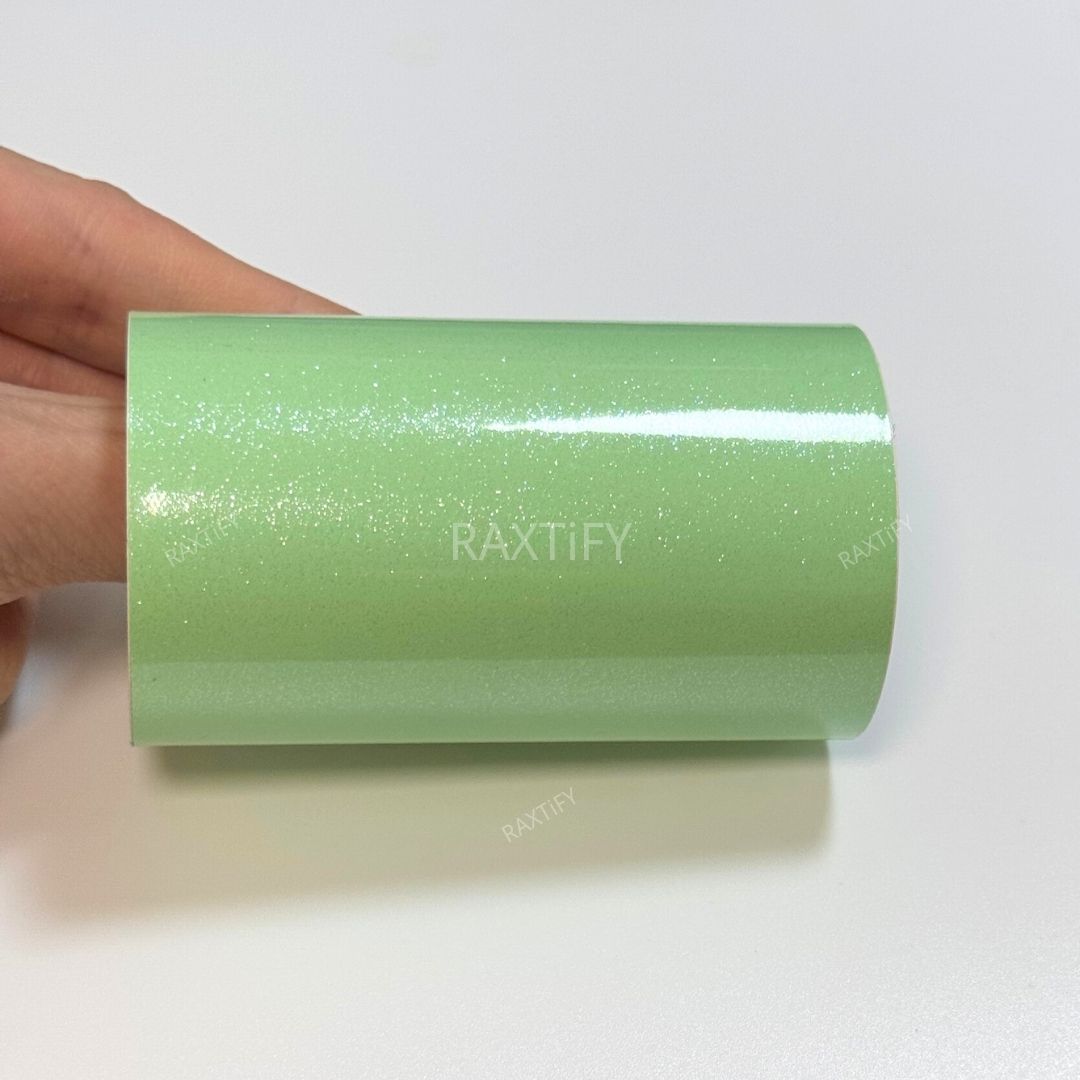

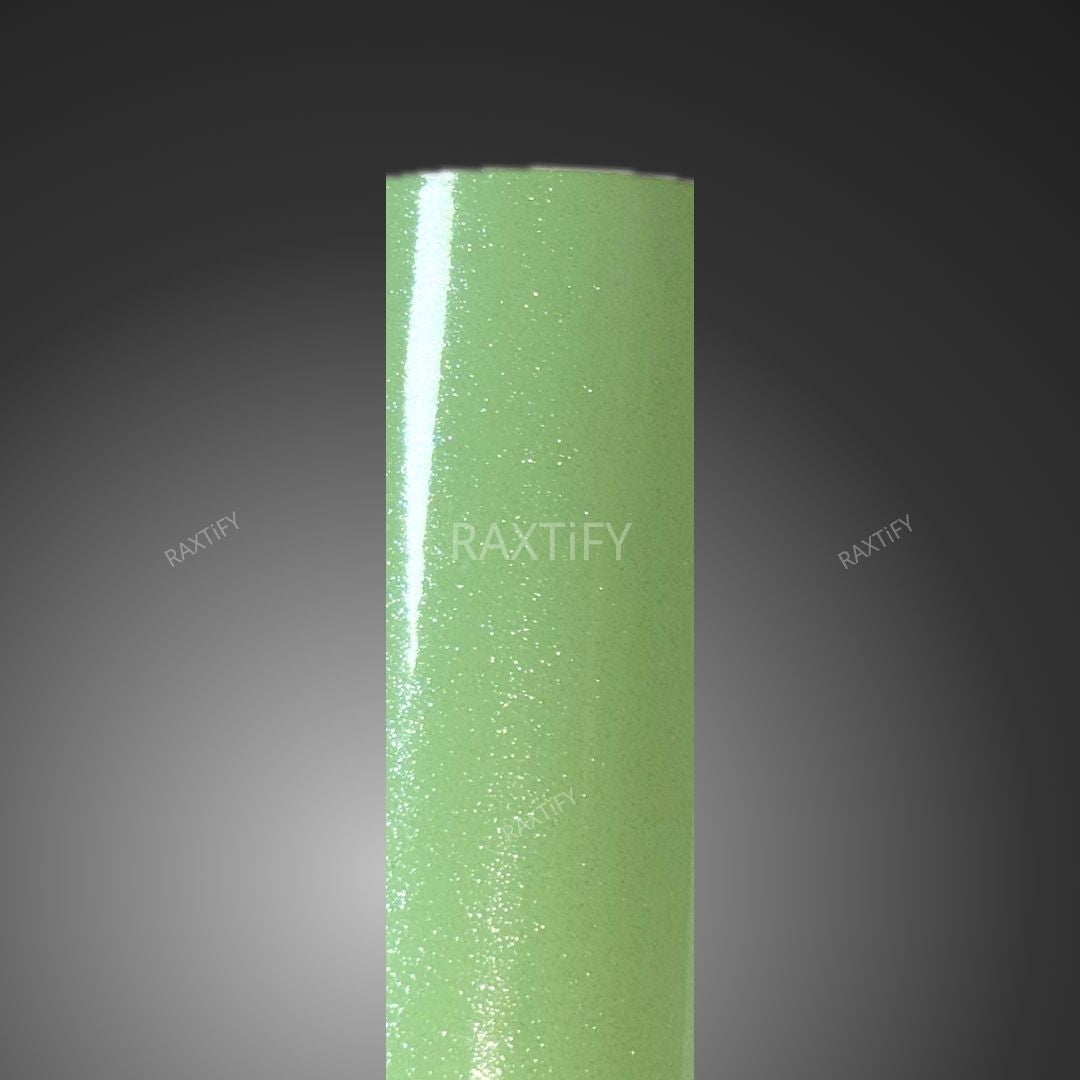

Gloss Diamond Pearl Sage Green Vinyl Wrap
- Sku: P16-3M
1.Top Protective film: Included only on full rolls (59ft) of gloss vinyls.
2. Shipping Time: 7-10 days (Free) | 3-5 days (Express).
For smaller, pre-cut pieces of glossy vinyl, the protective film is removed before shipping to ensure a smooth surface without air bubbles or creases. This does not affect the quality of the vinyl.
All matte/ Satin vinyl wraps do not have a protective film, as their surface is naturally resistant to minor scratches and does not require additional protection.
59ft = full roll
69ft = full roll + 10ft pre-cut
75ft = full roll + 16ft pre-cut
4. Products ordered separately may have slight color variations due to different color lots.
5. CAUTION! The images, colors, and finishes on the screen are approximate. For accuracy, refer to the color book or samples.
6. We prioritize sending films with PET backing liners. If unavailable, paper backing liners will be provided. Use a bubble remover/defoamer on the surface before applying for best results.
Size Chart
Motorcycles: 5ft * 16ft
Mini/ Small Cars: 5ft * 49 ft
Convertible: 5ft * 59 ft
Coupe: 5ft * 59 ft
Sedan: 5ft * 59 ft
Hatchback: 5ft * 59 ft
Sports Car: 5ft * 59 ft
Station Wagon: 5ft * 69 ft
Sport-utility Vehicle (SUV) : 5ft * 69 ft
Minivan: 5ft * 80 ft
Pickup Truck: 5ft * 92 ft
Have a question?
Gloss Diamond Pearl Sage Green Vinyl Wrap
Product Description
Gloss Diamond Pearl Sage Green Vinyl Wrap is a combination of soft sage green and ultra-fine particles of diamond pearl and is used to help provide a feel of modernity and sophistication on the surface.
Not a loud green, it is a soft quiet shade with slight shades of gray which make it deep and sophisticated. The diamond pearl reflects the sunlight softly creating a smooth light, which does not overwhelm the color. It appears uncomplicated and simple in shade, which fits well with buildings that are more focused on style than on opulence.
The gloss surface adds the pearl effect making your vehicle look like glass with the same soft sage nature.
It is made of high-quality multi-layered polymeric vinyl with a PET core and has the following:
- High-gloss pearl finish.
- Metallic particles of diamonds that are at an even distribution.
- Bubble-free installation with air-channeling.
- UV resistance, paint safe protection.
In need of a fresh, luxurious, hassle-free cool color, Sage Green is an elegant one.
Specifications
- Color: Sage Green
- Finish: Gloss Diamond Pearl
-
Material: High-grade polymetric calendered vinyl film
- Backing Liner: Paper
- Air-released channel: yes
- Lifespan: 2-3 years with proper installation and maintenance
- Recommended Uses: Automotive
- Shipping Time: Standard shipping: 7-12 days; Faster shipping: 3-5 days
- Sizes Available: 5ft x 3ft, 5ft x 10ft, 5ft x 16ft, 5ft x 33ft, 5ft x 49ft, 5ft x 59ft, 5ft x 69ft, 5ft x 75ft.
Structure
Our wrap films consist of 3 layers designed to ensure exceptional performance.
You'll find high-grade polymeric vinyl fortified with pressure-sensitive acrylic adhesive. Finally, a layer of 130um release papper liner adds an extra level of quality to our wrap films.
Item Specifications
| RAXTiFY VINYL | Specifications |
|---|---|
| Technology | High-grade polymeric calendered vinyl film with air-release channels |
| Top Protective Liner | PET |
| Thickness (Face only) | 3.7–4.1 mil, face film only |
| Thickness (Adhesive) | 1.6 mil removable pressure-sensitive adhesive with air-release channels |
| Glue | Solvent-based adhesive, low-to-medium tack for easier repositioning |
| Release Liner | PET/Plastic |
| Width (Standard) | 5ft / 60in 1.52m |
| Length (Standard) | 19.7yd / 59ft / 18m |
| Indoor Lifespan | 3 years depending on use and maintenance |
| Outdoor Lifespan | 2 years depending on climate, installation, and maintenance (Except Chrome Wraps) |
Wrap Testing
| RAXTiFY VINYL | Testing Result |
|---|---|
| Dimensional Stability | Shrinkage less than 4% |
| Tensile Strength | 22.7 N/10mm |
| Release Force (N/25mm) | 0.13 N/25mm, tested at 25°C and 50% RH |
| Initial Tack (g/25mm) | 1360 g/25mm, tested at 26°C and 64% RH, GB31125-2014 |
| Peel Strength (N/25mm) | 7.02 N/25mm, tested at 25°C and 42% RH, GB/T2792-1998 |
| Holding Power (h) | 75.09 (25℃ and 50%, GB/T4851-1998) |
| Chemical Resistance | Resistant to mild acids, mild alkalis, and salt. Avoid strong solvents and harsh cleaners. |
| Aging Testing | No adhesive residue after 7 days of heat exposure under 65°C |
| Aging Test 2 | No adhesive residue after 10 days under standard aging conditions |
| Storing Period | Up to 3 years when stored in the original packaging at +10°C to +20°C, 50% RH, away from direct sunlight, in a clean and dry environment |
Application
| RAXTiFY VINYL | Application Advices |
|---|---|
| Recommended Tools | Squeegee with felt edge, microfiber buffer, sharp knife, masking tape, magnets, gloves, heat gun, infrared thermometer |
| Application | Apply using standard dry-wrap techniques for calendered vinyl films. Avoid overstretching and overheating. Post-heating is required on edges, curves, recessed areas, and overlaps |
| Post-heating Temperature | 95°C–110°C for most areas and up to 120°C for curves and overlaps (Except Chrome Wraps） |
| Recommended Installation Area Temperature | 20°C–30°C (68°F–86°F) |
| Directional | All vinyl wraps are recommended to be installed directionally |
| Application Method | Dry Application （Except PPF) |
| Aftercare | Clean with pH-neutral car wash soap and a soft microfiber cloth. Avoid strong solvents, abrasive cleaners, and harsh chemicals |
Got your eyes on a color but not sure if it's the one? Get a FREE small sample first!
