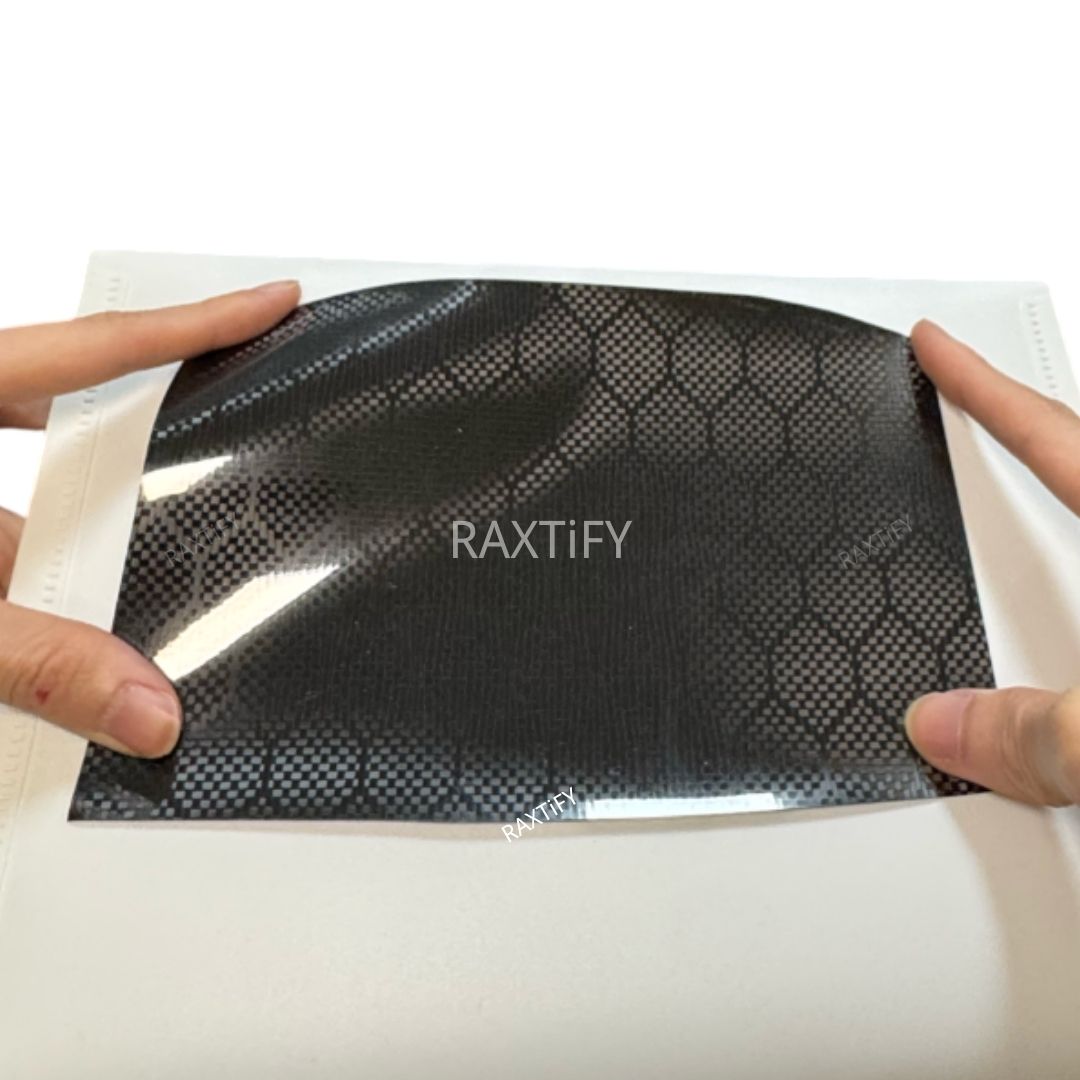

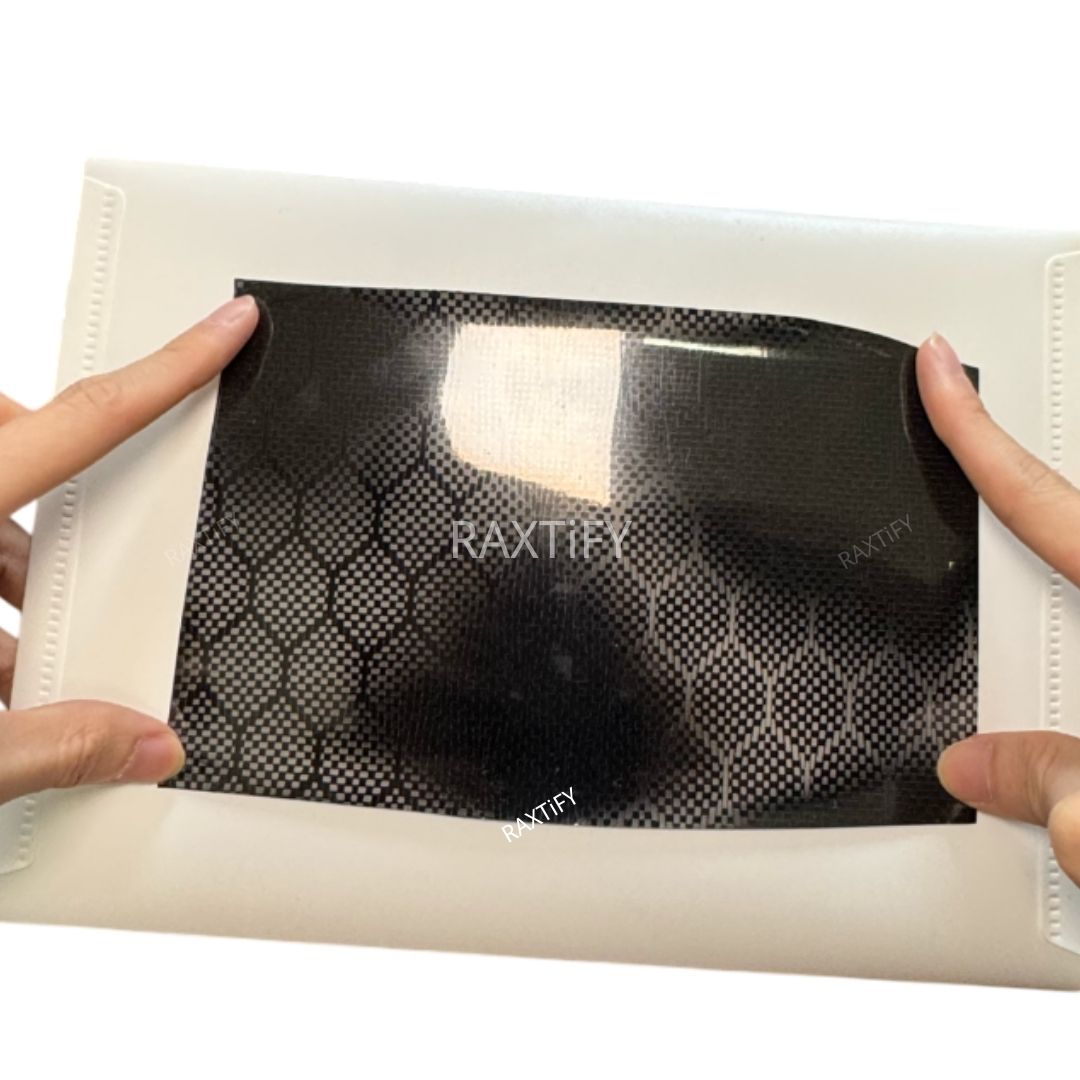

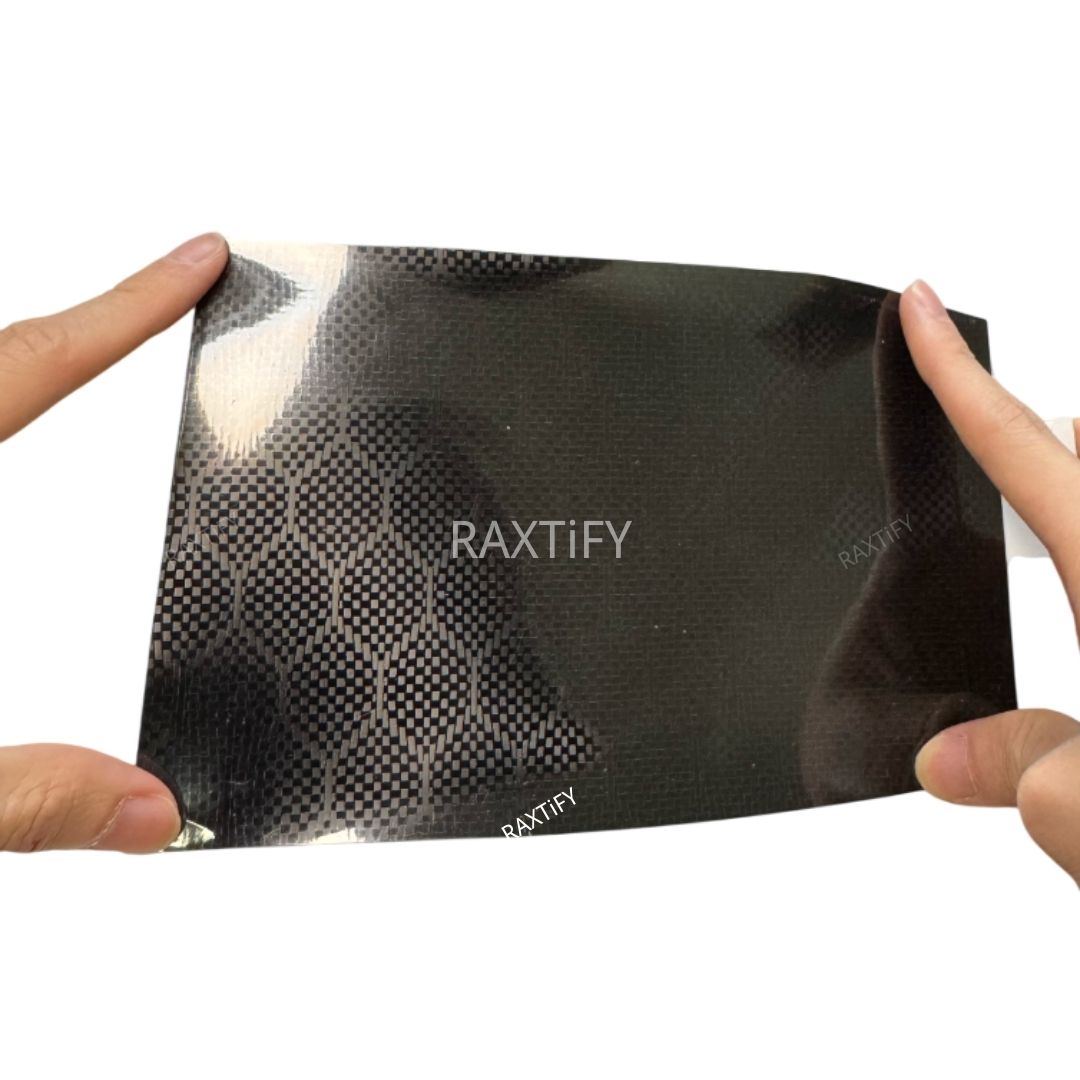

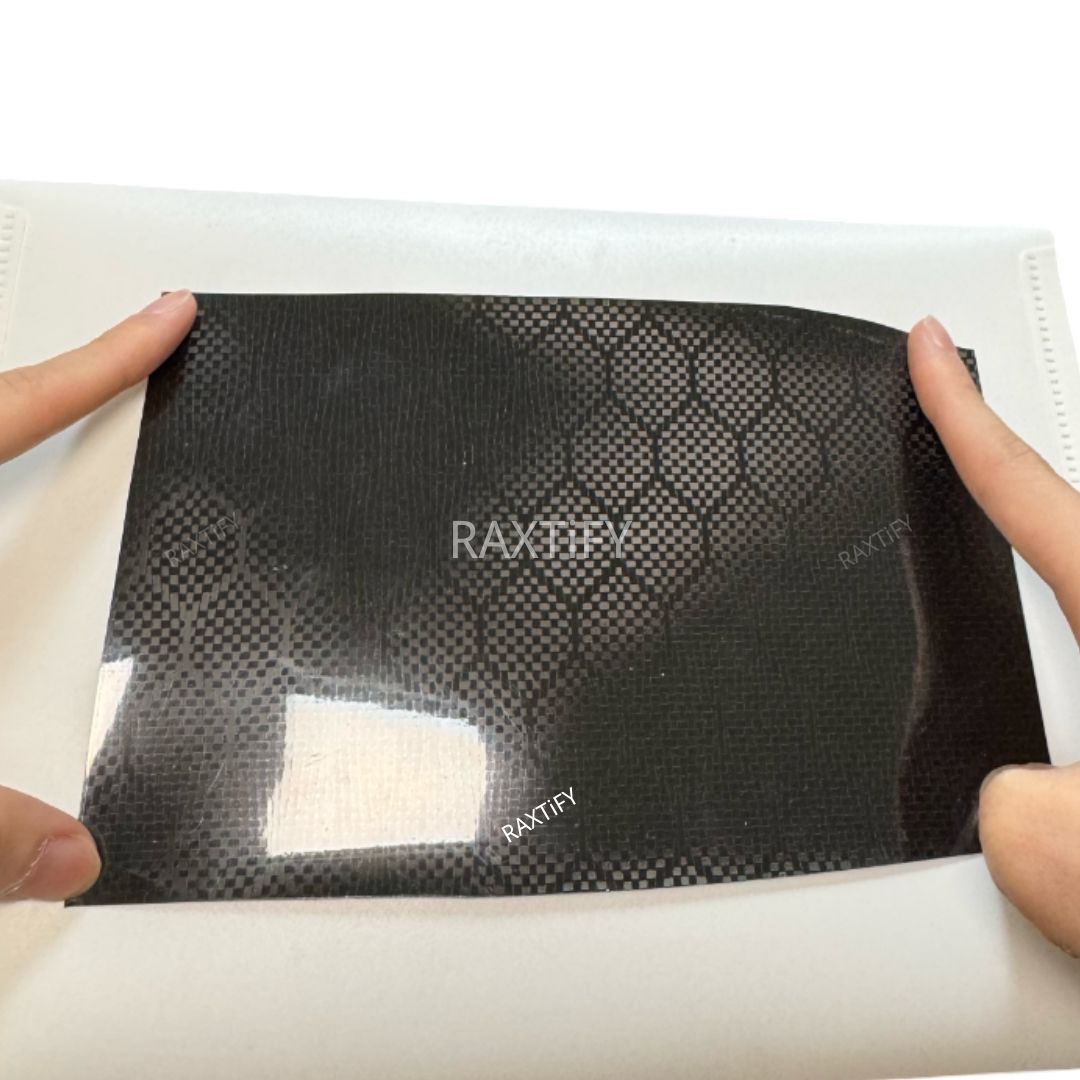

Upgrade your vehicle and add some sparkle with our Gloss Honeycomb Carbon Fiber Black Vinyl Wrap. This stylish thin yet strong product has a honeycomb pattern that lends a sporty edge to virtually any automobile. It is now possible to have all the beneficial gains associated with carbon fiber without necessarily having to go through the normal costly procedures!
Our wrap films consist of 4 layers designed to ensure exceptional performance.
The first layer serves as a protective barrier for the underlying vinyl. Directly beneath, you'll find high-grade polymeric vinyl fortified with pressure-sensitive acrylic adhesive. Finally, a layer of top-tier 130um plastic liner adds an extra level of quality to our wrap films. This plastic liner ensures a smoother, super glossy, and lustrous finish
RAXTiFY VINYL | Specifications |
---|---|
Technology | High-grade Polymeric Calendared Vinyl Film with Air-Release Channels |
Top Protective Liner | PET |
Thickness (Face only) | 3.7mil-4.1mil |
Thickness (Adhesive) | 1.6 mil (Removable Adhesive with air-release channels) |
Glue | Solvent based adhesive, (Low-Medium Tack - Easy to reposition) |
Release Liner | PET/Plastic |
Width (Standard) | 5ft/ 60in/ 1.52m |
Length (Standard) | 59ft/ 65yard/ 18m |
Indoor Lifespan | 3 years when following rules of application and use |
Outdoor Lifespan | 2 years when following rules of application and use (Except Chrome Wraps) |
RAXTiFY VINYL | Testing Result |
---|---|
Dimensional Stability | Shrinkage less than 4% |
Breaking Strength | 22.7 N/10mm |
Release Force (N/25mm) | 0.13 (25℃ and 50%) |
Initial Tack (g/25mm) | 1360 (26℃ and 64%, GB31125-2014) |
Peel Strength (N/25mm) | 7.02 (25℃and 42%, GB/T2792-1998) |
Holding Power (h) | 75.09 (25℃ and 50%, GB/T4851-1998) |
Chemical Resistance | Resists Most Mild Acids, Mild Alkalis, and Salt |
Aging Testing | No adhesive residue with heat under 65°C after 7 days |
Aging Test 2 | No adhesive residue without heat under 65°C after 10 days |
Storing Period | 2 years if stored in +10°С to +20°С for optimal quality, relative humidity 50%, in original package, away from direct sunlight, clean and dry place |
RAXTiFY VINYL | Application Advices |
---|---|
Recommended Tools | Squeegee, buffer, knife, masking tape, heat gun, magnets, gloves, IRR thermometer, IRR heater |
Application | Standard methods for calendared films. No overstretching and overheating and Post heating is necessary. |
Post-heating Temperature | 110°C flat surfaces, 130°C curves, and overlaps (Except Chrome Wraps) |
Recommended Installation Area Temperature | 70 F - 80 F (24 C - 26.5 C) |
Directional | All vinyl wraps are recommended to be installed directionally |
Application Method | Dry Application (Except PPF) |
Aftercare | PH neutral, Avoid wax or solvents |
Got your eyes on a color but not sure if it's the one? Get a FREE small sample first!
!
