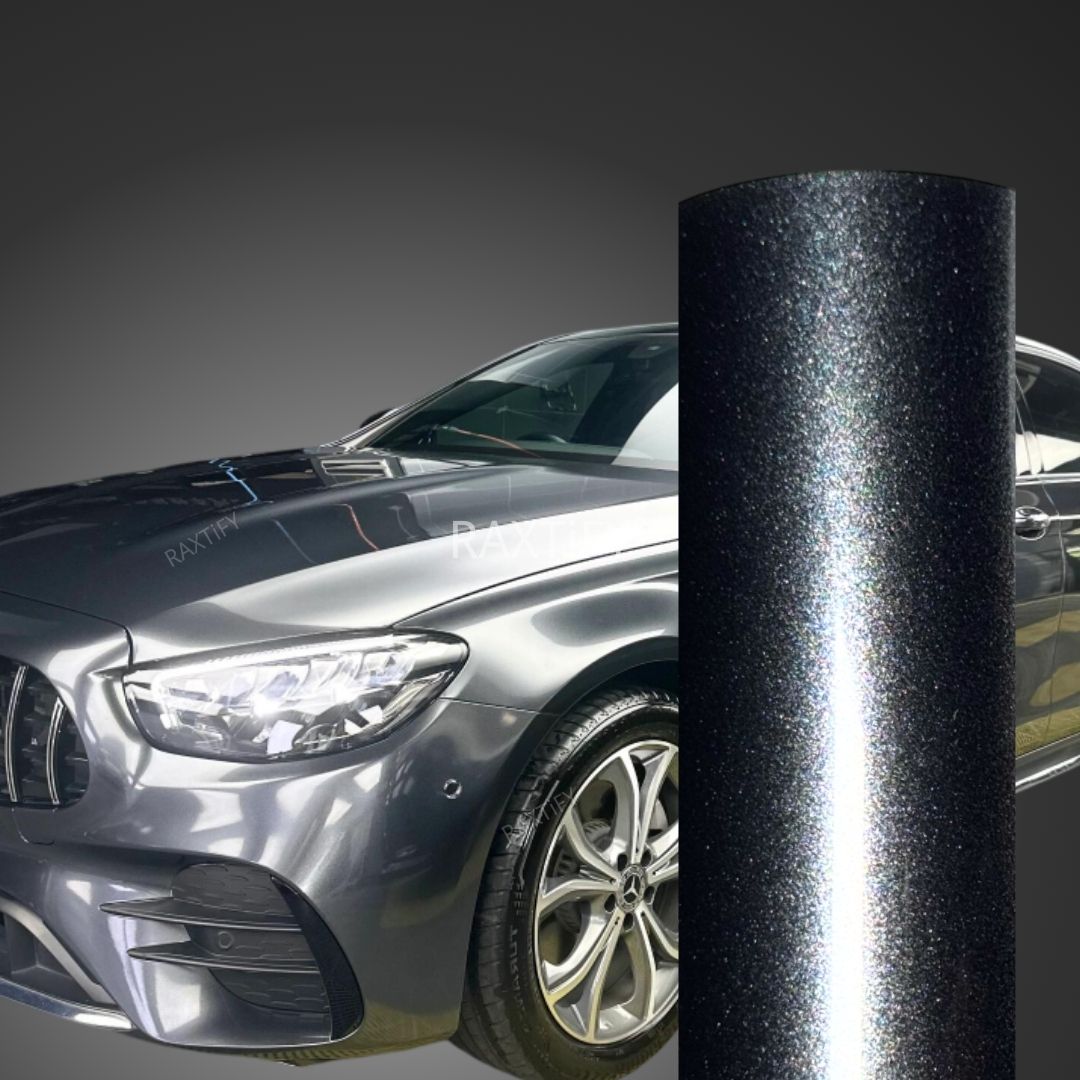

Gloss Metallic Charcoal Grey Car Wrap
- Sku: GM71-3M
Air-Release Channel
PET Backing Liner
Low Initial Tack
2-Year Warranty
1. Top Protective film: Included only on full rolls (59ft) of gloss vinyls.
2. Shipping Time: 7–10 days (Free) | 5–7 days (Express).
For smaller, pre-cut pieces of glossy vinyl, the protective film is removed before shipping to ensure a smooth surface without air bubbles or creases. This does not affect the quality of the vinyl.
All matte/ Satin vinyl wraps do not have a protective film, as their surface is naturally resistant to minor scratches and does not require additional protection.
59ft = full roll
69ft = full roll + 10ft pre-cut
75ft = full roll + 16ft pre-cut
4. Products ordered separately may have slight color variations due to different color lots.
5. CAUTION! The images, colors, and finishes on the screen are approximate. For accuracy, refer to the color book or samples.
6. We prioritize sending films with PET backing liners. If unavailable, paper backing liners will be provided. Use a bubble remover/defoamer on the surface before applying for best results.
Film Material & Construction
- Film Type: Premium-grade polymeric calendered vinyl wrap
- Material Structure: Polymeric hybrid vinyl with integrated air-release channels
- Designed Use: Full vehicle wraps and smooth to moderately curved surfaces
- Directional Film: Yes (installation direction must be observed)
- Backing Liner: PET
Thickness
- Vinyl Film Thickness: approx. 0.13 mm
- Total Thickness (with release liner): approx. 0.28–0.30 mm
Adhesive System
Adhesive Type: Solvent-based acrylic adhesive
Adhesive Features:
- Pressure-sensitive
- Transparent appearance
- Designed for automotive exterior use
- Balanced initial tack and repositionability
Adhesive Layer Thickness: approx. 12 μm (dry)
Application & Installation Guidelines
Certain finishes (ultra-gloss, metallic, glitter series) may be firmer than standard vinyl due to surface coating structure. Professional installation is recommended
Recommended Application Temperature
- Installation Environment: +17°C to +25°C
- Service Temperature Range: −45°C to +45°C
Recommended Tools
- Squeegee with soft buffer
- Utility knife
- Masking tape
- Heat gun
- Magnets
- Gloves
- IR thermometer (strongly recommended for accurate post-heating)
Post-Heating Requirements (Critical)
Proper post-heating is essential to release internal film stress and ensure long-term adhesion.
- Flat Surfaces: 110°C
- Curves, Recesses & Overlaps: 130°C
Note: Failure to post-heat correctly may result in edge lifting or shrinkage over time.
Mechanical & Physical Properties (Typical Values)
Elongation at Break:
- MD: ~200%
- CD: ~190%
Tensile Strength:
- MD: ~29 N/mm²
- CD: ~25 N/mm²
Dimensional Stability: ≤ 2% (70°C / 10 min oven test)
Surface Tension: ~34 dynes/cm
Maintenance & Care
- Clean only with pH-neutral automotive shampoo
- Use soft microfiber cloth or touchless wash
- Pressure washing below 2000 PSI only
- Avoid brush-style car washes, abrasive tools, and solvent-based cleaners
- Remove bird droppings, sap, fuel residue, and contaminants promptly
- Vinyl-safe spray wax or sealant only
- Abrasive polish, cutting compounds, ceramic coatings, and overlamination are not recommended
Durability & Warranty
Service life varies by film series, installation quality, environment, and maintenance
Warranty (if applicable) covers material defects only
The following are not covered:
- Improper installation or insufficient post-heating
- Overstretching, overheating, or misuse
- Overlaminate or unapproved surface treatments
- Environmental damage, road debris, or accidents
- Surface imperfections originating from the vehicle’s original paint
Storage & Shelf Life
Indoor or shaded parking is strongly recommended
Shelf Life: Up to 3 years
Storage Conditions:
- Temperature: +10°C to +20°C
- Relative Humidity: approx. 50%
- Store in original packaging
- Keep away from direct sunlight, heat, dust, and moisture
Packaging Information
- Roll Width: 152 cm (60 inches)
- Roll Length: 18 m
- Approximate Roll Weight: 13 kg
Size Chart
Motorcycles: 5ft * 16ft
Mini/ Small Cars: 5ft * 49 ft
Convertible: 5ft * 59 ft
Coupe: 5ft * 59 ft
Sedan: 5ft * 59 ft
Hatchback: 5ft * 59 ft
Sports Car: 5ft * 59 ft
Station Wagon: 5ft * 69 ft
Sport-utility Vehicle (SUV) : 5ft * 69 ft
Minivan: 5ft * 80 ft
Pickup Truck: 5ft * 92 ft

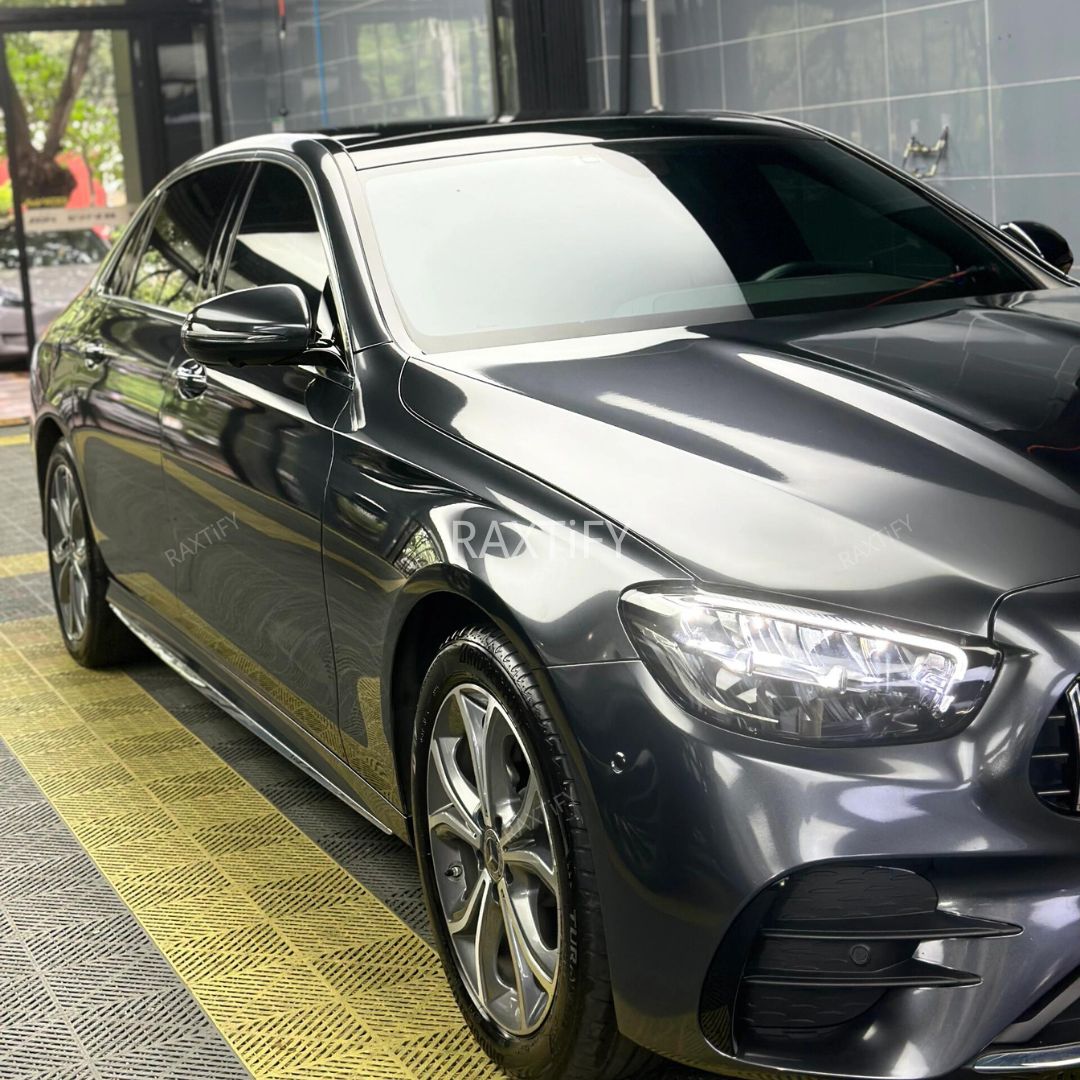

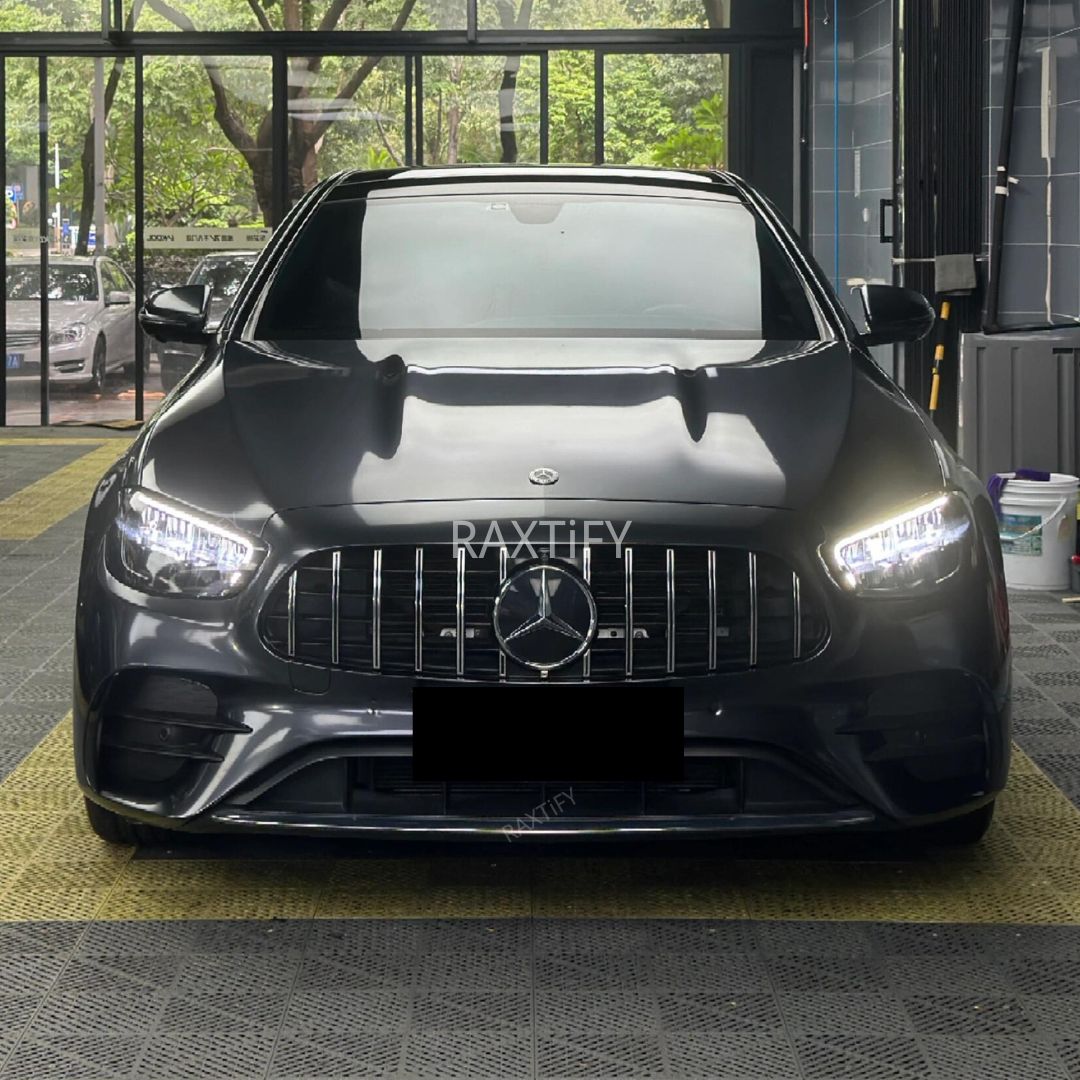

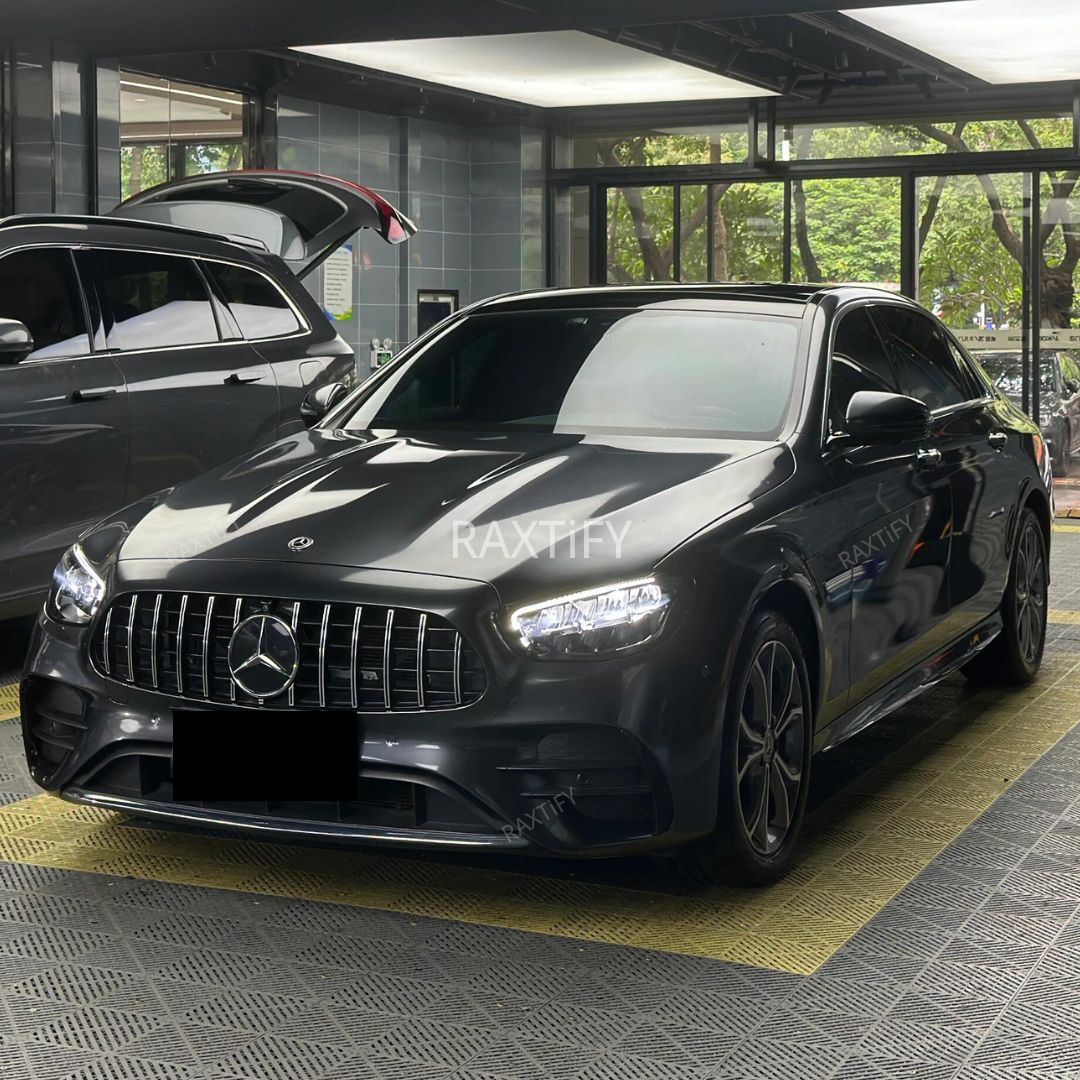

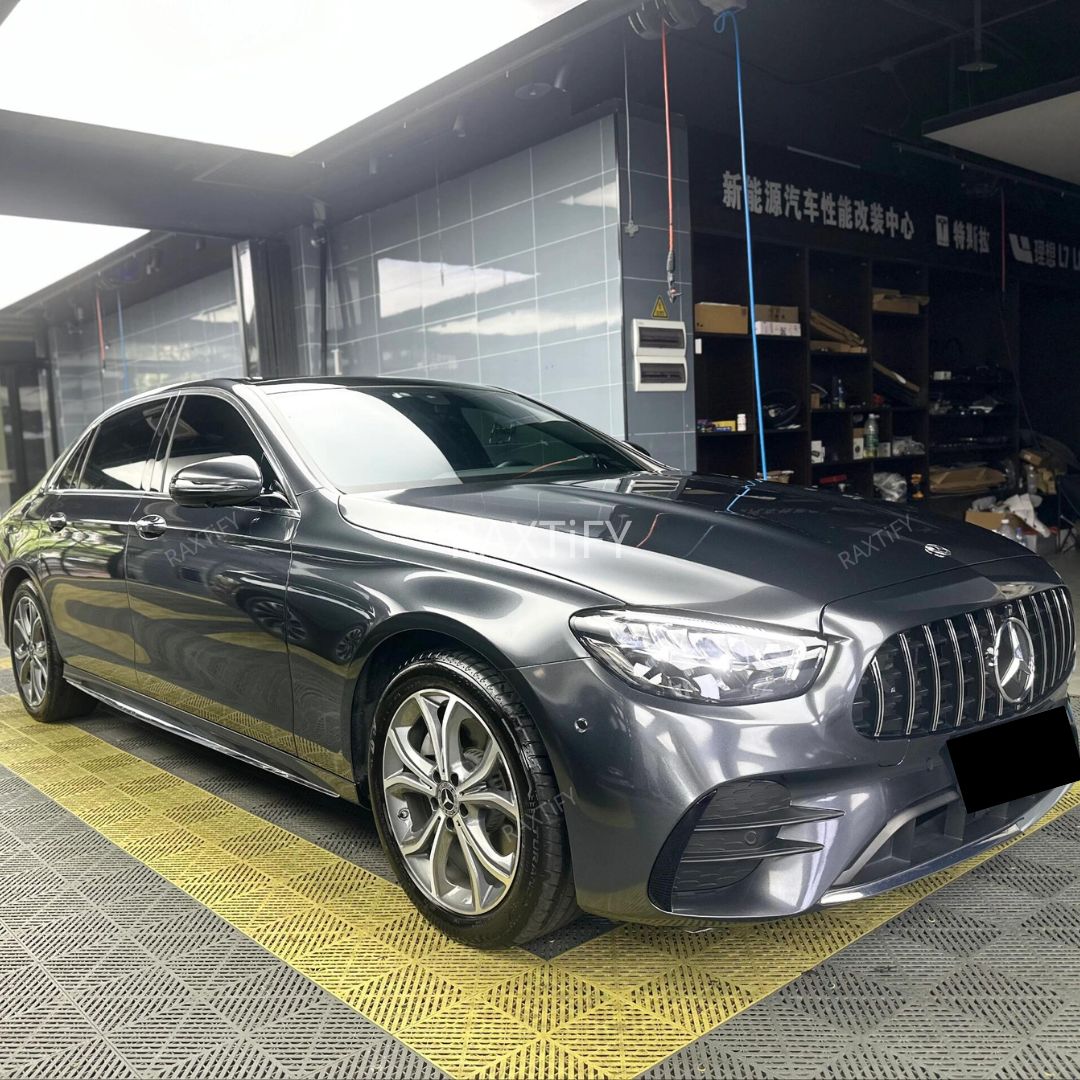

Gloss Metallic Charcoal Grey Car Wrap
Transform the look of your car with our Gloss Metallic Charcoal Grey Car Wrap. Made with premium materials, this wrap offers a sleek, modern finish that is sure to turn heads. Its glossy surface provides a stunning shine while also protecting your car from scratches and UV rays. Upgrade your ride today.
Why Choose Gloss Metallic Charcoal Grey?
Elevating your vehicle's aesthetics with the Gloss Metallic Charcoal Grey Vinyl Wrap comes with a multitude of benefits. Here's why car enthusiasts and those seeking a stylish transformation opt for this exceptional wrap:
Timeless Elegance
The Charcoal Grey hue is a timeless choice that transcends trends. It adds a touch of sophistication to your vehicle, ensuring that it stands out for all the right reasons.
Low Maintenance, High Impact
Maintaining the Gloss Metallic Charcoal Grey Car Wrap is a breeze. Its smooth surface is easy to clean, allowing you to keep your vehicle looking sleek and stylish with minimal effort.
Customization at Its Best
Express your individuality through customization. The Gloss Metallic Charcoal Grey Wrap provides a canvas for your creativity, allowing you to create a one-of-a-kind look that reflects your personality.
Enhanced Resale Value
Investing in the Gloss Metallic Charcoal Grey Vinyl Wrap not only transforms your vehicle but also enhances its resale value. Potential buyers appreciate the unique aesthetics and protective features it brings.
Key Features:
Charismatic Charcoal Grey Hue
Immerse your vehicle in a timeless Charcoal Grey hue that speaks volumes about your taste. The Gloss Metallic finish enhances the depth of the color, creating a mesmerizing visual effect. Whether you're cruising during the day or turning heads at night, the Charcoal Grey stands out with its understated allure.

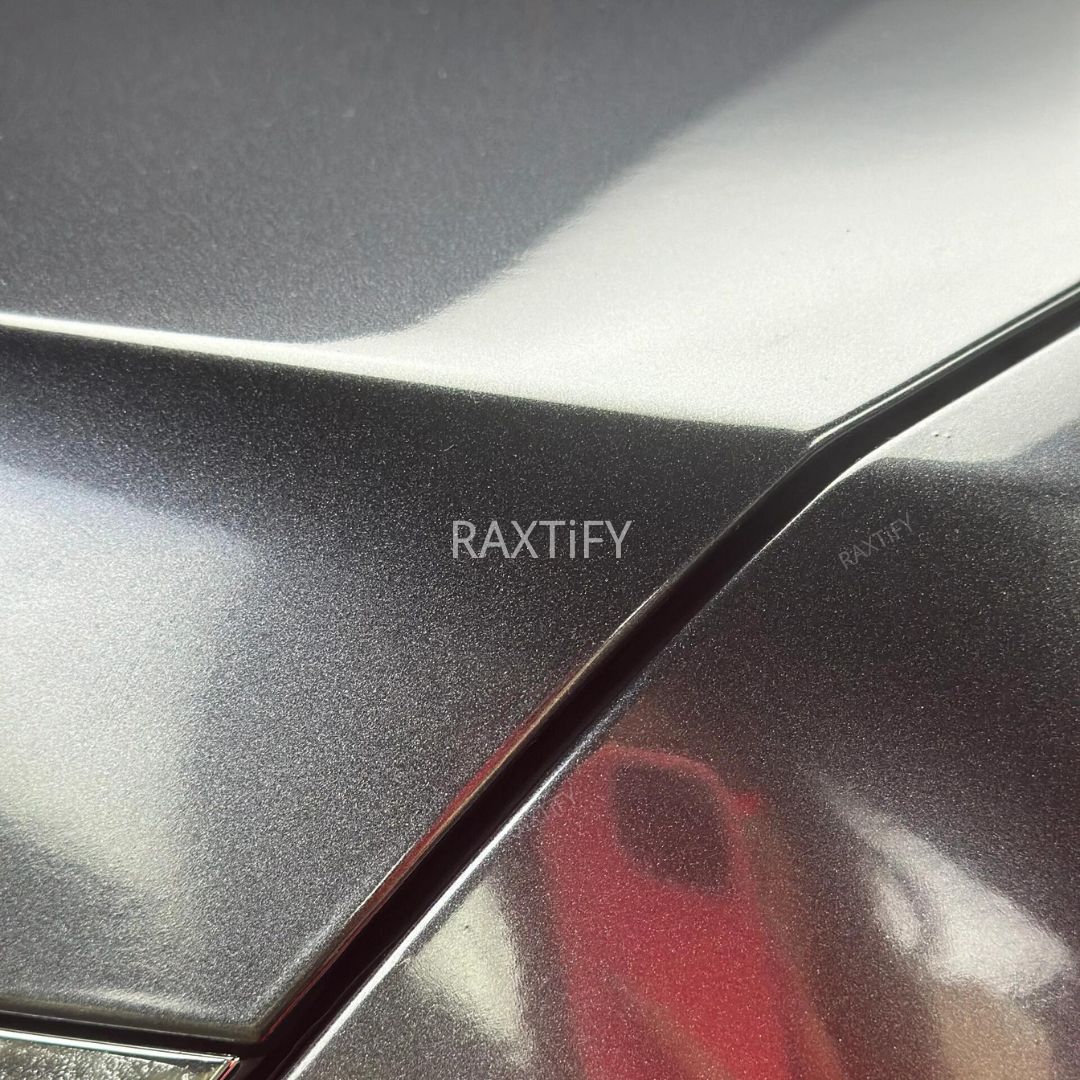

Gloss Metallic Finish
The Gloss Metallic Charcoal Grey Vinyl Wrap boasts a sleek and polished finish that adds a touch of luxury to your vehicle. The metallic sheen not only catches the eye but also provides an extra layer of protection to your car's exterior. It's a fusion of style and durability that elevates your car's aesthetics to new heights.
Versatility in Application
Tailored for various vehicle types, from compact cars to SUVs, this Charcoal Grey wrap adapts seamlessly to different models. Its versatility allows you to personalize your vehicle, making a statement that aligns with your unique style. Whether you're upgrading a sports car or adding a touch of sophistication to your daily driver, this wrap is the perfect choice.
Durability and Protective Shield
Beyond its visual appeal, the Gloss Metallic Charcoal Grey Car Wrap serves as a protective shield for your vehicle. It guards against minor scratches, stone chips, and environmental elements, preserving the original paintwork underneath. The durable material ensures that your car maintains its sleek appearance for years to come.
Experience Gloss Metallic Charcoal Grey Today
In conclusion, the Gloss Metallic Charcoal Grey Car Wrap is the ultimate choice for those who seek to redefine their vehicle's appearance. With its charismatic Charcoal Grey hue, Gloss Metallic finish, and versatile application, this vinyl wrap offers a simple yet impactful way to elevate your car's style and protection.
Structure
Our wrap films consist of 4 layers designed to ensure exceptional performance:
The first layer serves as a protective barrier for the underlying vinyl.
Directly beneath, you'll find high-grade polymeric vinyl fortified with pressure-sensitive acrylic adhesive.
Finally, a layer of top-tier 130um plastic liner adds an extra level of quality to our wrap films. This plastic liner ensures a smoother, super glossy, and lustrous finish.
Item Specifications
| RAXTiFY VINYL | Specifications |
|---|---|
| Technology | High-grade polymeric calendered vinyl film with air-release channels |
| Top Protective Liner | PET |
| Thickness (Face only) | 3.7–4.1 mil, face film only |
| Thickness (Adhesive) | 1.6 mil removable pressure-sensitive adhesive with air-release channels |
| Glue | Solvent-based adhesive, low-to-medium tack for easier repositioning |
| Release Liner | PET/Plastic |
| Width (Standard) | 5ft / 60in 1.52m |
| Length (Standard) | 19.7yd / 59ft / 18m |
| Indoor Lifespan | 3 years depending on use and maintenance |
| Outdoor Lifespan | 2 years depending on climate, installation, and maintenance (Except Chrome Wraps) |
Wrap Testing
| RAXTiFY VINYL | Testing Result |
|---|---|
| Dimensional Stability | Shrinkage less than 4% |
| Tensile Strength | 22.7 N/10mm |
| Release Force (N/25mm) | 0.13 N/25mm, tested at 25°C and 50% RH |
| Initial Tack (g/25mm) | 1360 g/25mm, tested at 26°C and 64% RH, GB31125-2014 |
| Peel Strength (N/25mm) | 7.02 N/25mm, tested at 25°C and 42% RH, GB/T2792-1998 |
| Holding Power (h) | 75.09 (25℃ and 50%, GB/T4851-1998) |
| Chemical Resistance | Resistant to mild acids, mild alkalis, and salt. Avoid strong solvents and harsh cleaners. |
| Aging Testing | No adhesive residue after 7 days of heat exposure under 65°C |
| Aging Test 2 | No adhesive residue after 10 days under standard aging conditions |
| Storing Period | 2 years when stored in the original packaging at +10°C to +20°C, 50% RH, away from direct sunlight, in a clean and dry environment |
Application
| RAXTiFY VINYL | Application Advices |
|---|---|
| Recommended Tools | Squeegee with felt edge, microfiber buffer, sharp knife, masking tape, magnets, gloves, heat gun, infrared thermometer |
| Application | Apply using standard dry-wrap techniques for calendered vinyl films. Avoid overstretching and overheating. Post-heating is required on edges, curves, recessed areas, and overlaps |
| Post-heating Temperature | 95°C–110°C for most areas and up to 120°C for curves and overlaps (Except Chrome Wraps） |
| Recommended Installation Area Temperature | 70°F–80°F / 21°C–27°C |
| Directional | All vinyl wraps are recommended to be installed directionally |
| Application Method | Dry Application （Except PPF) |
| Aftercare | Clean with pH-neutral car wash soap and a soft microfiber cloth. Avoid strong solvents, abrasive cleaners, and harsh chemicals |

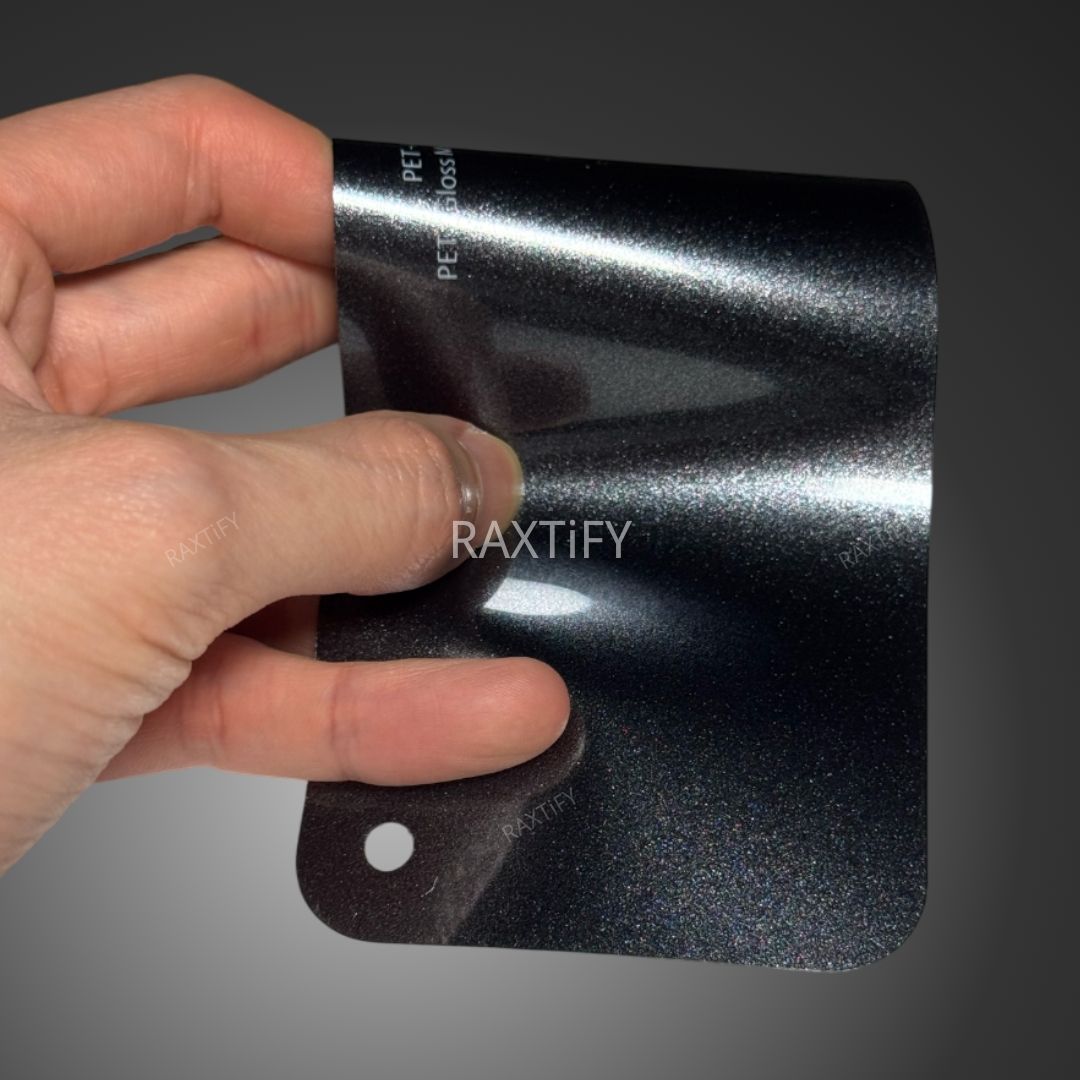

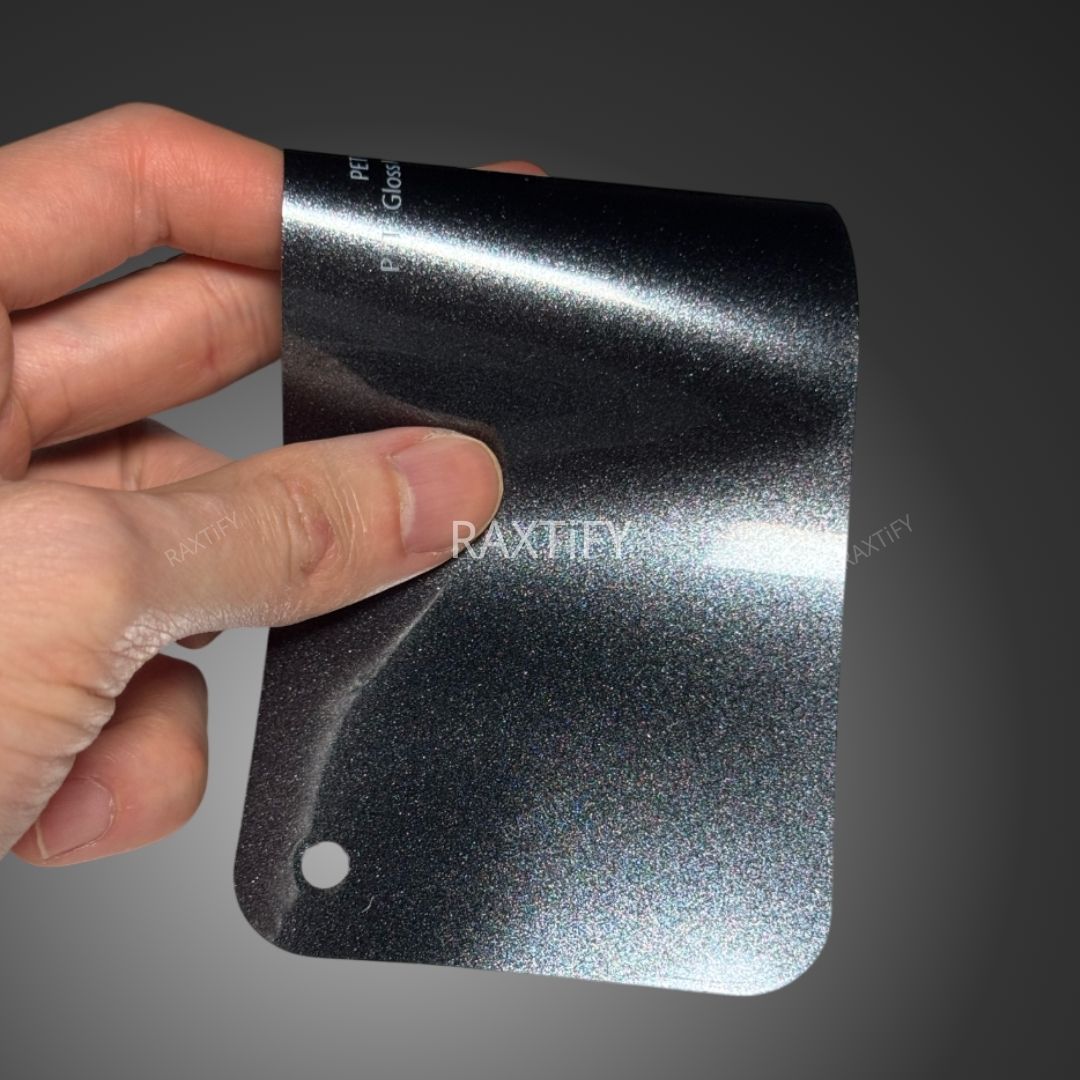

Got your eyes on a color but not sure if it's the one? Get a FREE small sample first!
Frequently Asked Questions
Is RAXTiFY vinyl easy to install?
RAXTiFY vinyl wraps are made in line with professional uses.Others such as high-gloss, metallic, or glitter series are stiffer than the traditional wraps because of surface coating technology.Although the flat panels can be easily installed by the hands of skilled DIY users, it is highly advised that professional installation be done in complex curves and high visibility areas.
Can I apply overlaminate on RAXTiFY vinyl?
Overlamination should be avoided.Other coating layers can have an influence on surface transparency, bonding and durability.The original surface finish of RAXTiFY vinyl is developed to be the last visual coating.
How should I maintain RAXTiFY vinyl wraps?
- Wash using pH-neutral car shampoo
- Use a soft microfiber cloth or touchless wash
- Pressure washers should remain under 2000 PSI
Cleanse up the contaminants e.g. bird droppings, sap of trees or fuel residues as soon as possible to avoid staining.
Can I use wax or polish on RAXTiFY vinyl?
Vinyl specific spray waxes or sealants are only used; these are mostly used in gloss and metallic finishes.Abrasive polishes, cutting compounds or solvent based chemicals are to be avoided.Any product should always be tested on a small and inconspicuous part of the skin before it can be applied.
How long does RAXTiFY vinyl wrap last?
Wrap lifespan depends on multiple factors, including:
- Film series and finish
- Installation quality
- Environmental exposure
- Maintenance habits
Although RAXTiFY films are designed to give non-textured finishes to the vehicle, the end result could depend on the painted state of the vehicle in the first place.The scratches, dents, rust, bubbles or orange peel that may be present before installation may be left and are not regarded as film defect.
Will removing RAXTiFY vinyl damage my paint?
RAXTiFY vinyl wraps should not harm factory paint when used on OEM paint that is in fine condition and removed without causing damage to the paint.
Does storage affect wrap lifespan?
Parking in interior parts or shaded parking areas mean a lot of less exposure to UV and environmental pressure.In case of an indoor storage, a breathable car cover will be recommended, as it will be helpful to maintain the quality of the finish and increase the wrap lifespan.
