- Sku: GM77-3M
Gloss Metallic Dragon Fire Red Vinyl Wrap
1. We will prioritize sending films with PET backing liner. (If unavailable, films with paper backing liner will be provided.) Before applying the film, using a proper bubble remover/ defoamer on the surface can achieve better results.
2. Our standard shipping time is 5-8 business days, with an additional 1-2 business days for order processing. This timeframe excludes weekends and holidays.
3. For orders of 49 feet or smaller, we will peel off the protective layer before shipment to ensure the vinyl is suitable for shipping.
4. Products ordered separately may come from different color lots, which could result in slight color variations compared to previous orders.
5. Please be aware that the color representation in the images may vary depending on your screen settings or device. For an accurate representation of the product, always refer to the color swatch.
Size Chart
Motorcycles: 5ft * 16ft
Mini/ Small Cars: 5ft * 49 ft
Convertible: 5ft * 59 ft
Coupe: 5ft * 59 ft
Sedan: 5ft * 59 ft
Hatchback: 5ft * 59 ft
Sports Car: 5ft * 59 ft
Station Wagon: 5ft * 69 ft
Sport-utility Vehicle (SUV) : 5ft * 69 ft
Minivan: 5ft * 80 ft
Pickup Truck: 5ft * 92 ft
Have a question?
Gloss Metallic Dragon Fire Red Vinyl Wrap
Our wrap films consist of 4 layers designed to ensure exceptional performance.
The first layer serves as a protective barrier for the underlying vinyl. Directly beneath, you'll find high-grade polymeric vinyl fortified with pressure-sensitive acrylic adhesive. Finally, a layer of top-tier 130um plastic liner adds an extra level of quality to our wrap films. This plastic liner ensures a smoother, super glossy, and lustrous finish
High Grade Calendered Vinyl Film
Our car wraps meet the highest industry standards for quality. You can trust that our vinyl are manufactured to deliver top-ntch results, making them ideal for enhancing your vehicle..
Easy to Wrap with Air Release Channel
Our vinyl wraps are designed with cutting-edge technology to offer vibrant colors, long-lasting durability, effortless installation with air release, and remove without leave any residue.

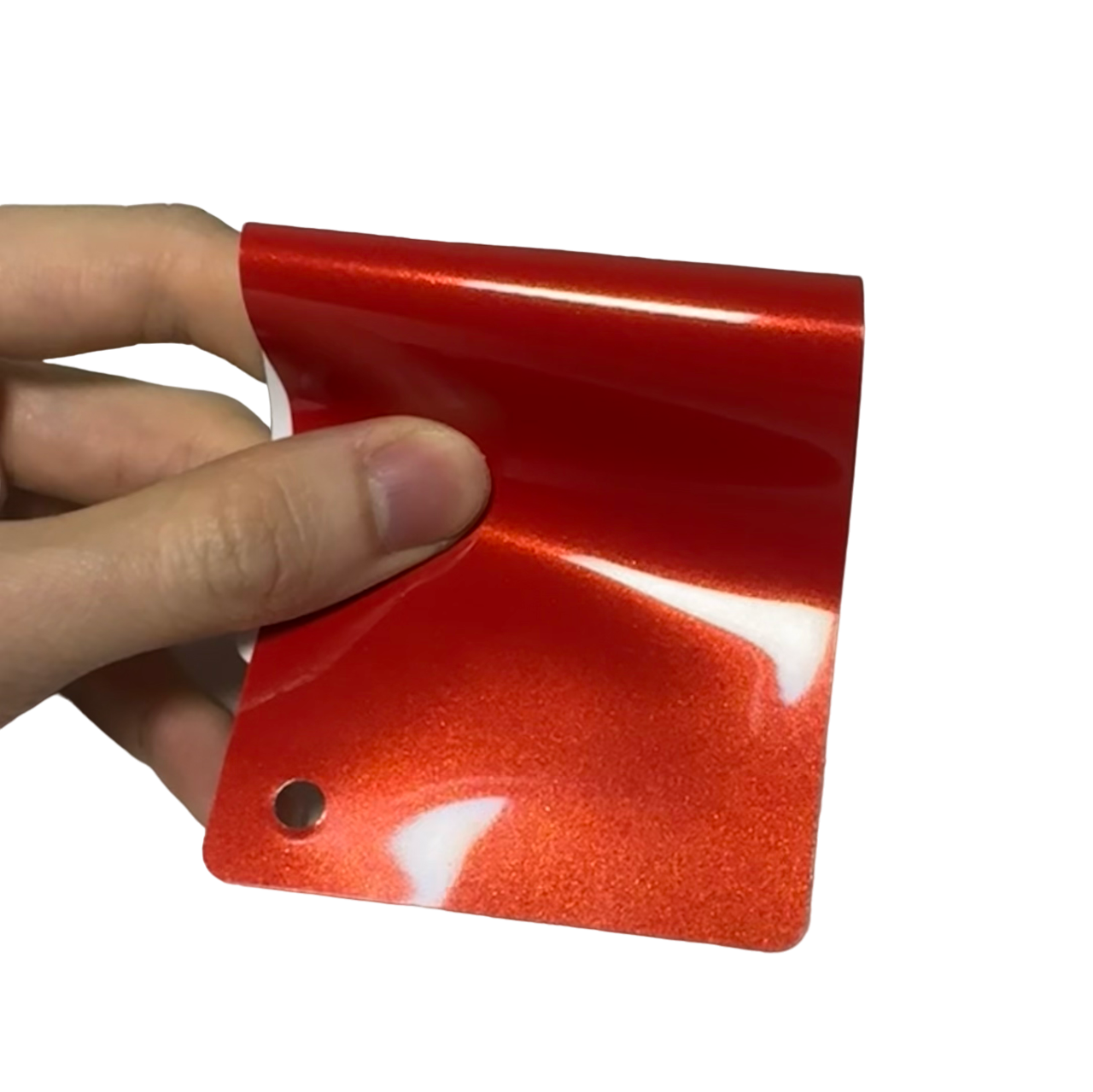

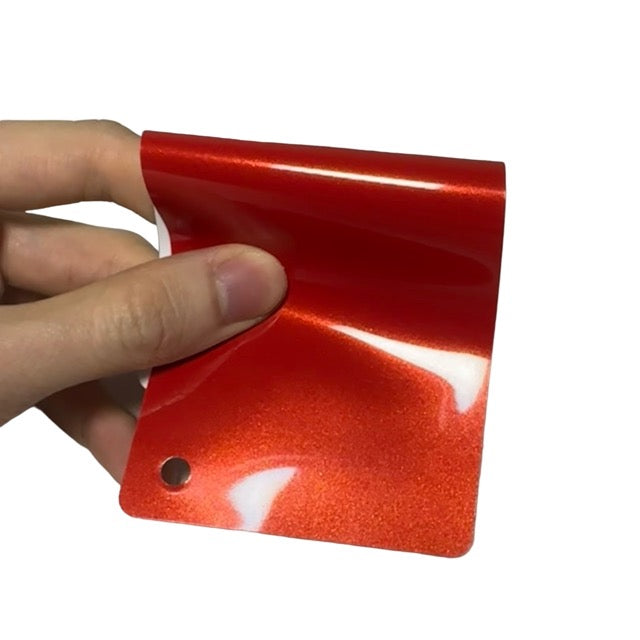

Got your eyes on a color but not sure if it's the one?Ā Get a FREE small sample first!Ā
Every customer is entitled to our exclusive 1-on-1 Personal VIP Customer Service for free!
Your car wrap experts near you. Transform your ride with our professional services
Item Specifications
| RAXTiFY VINYL | Specifications |
|---|---|
| Technology | High-grade Polymeric Calendared Vinyl Film with Air-Release Channels |
| Top Protective Liner | PET |
| Thickness (Face only) | 3.7mil-4.1mil |
| Thickness (Adhesive) | 1.6 mil (Removable Adhesive with air-release channels) |
| Glue | Solvent based adhesive, (Low-Medium Tack - Easy to reposition) |
| Release Liner | PET/Plastic |
| Width (Standard) | 5ft/ 60in/ 1.52m |
| Length (Standard) | 59ft/ 65yard/ 18m |
| Indoor Lifespan | 3 years when following rules of application and use |
| Outdoor Lifespan | 2 years when following rules of application and use (Except Chrome Wraps) |
Wrap Testing
| RAXTiFY VINYL | Testing Result |
|---|---|
| Dimensional Stability | Shrinkage less than 4% |
| Breaking Strength | 22.7 N/10mm |
| Release Force (N/25mm) | 0.13 (25ā and 50%) |
| Initial Tack (g/25mm) | 1360 (26ā and 64%, GB31125-2014) |
| Peel Strength (N/25mm) | 7.02 (25āand 42%, GB/T2792-1998) |
| Holding Power (h) | 75.09 (25ā and 50%, GB/T4851-1998) |
| Chemical Resistance | Resists Most Mild Acids, Mild Alkalis, and Salt |
| Aging Testing | No adhesive residue with heat under 65Ā°C after 7 days |
| Aging Test 2 | No adhesive residue without heat under 65Ā°C after 10 days |
| Storing Period | 2 years if stored in +10Ā°Š” to +20Ā°Š” for optimal quality, relative humidity 50%, in original package, away from direct sunlight, clean and dry place |
Application
| RAXTiFY VINYL | Application Advices |
|---|---|
| Recommended Tools | Squeegee, buffer, knife, masking tape, heat gun, magnets, gloves, IRR thermometer, IRR heater |
| Application | Standard methods for calendared films. No overstretching and overheating and Post heating is necessary. |
| Post-heating Temperature | 110Ā°C flat surfaces, 130Ā°C curves, and overlaps (Except Chrome Wrapsļ¼ |
| Recommended Installation Area Temperature | 70 F - 80 F (24 C - 26.5 C) |
| Directional | All vinyl wraps are recommended to be installed directionally |
| Application Method | Dry Application ļ¼Except PPF) |
| Aftercare | PH neutral, Avoid wax or solvents |
WHY RAXTiFY?
Reliable
Affordable
eXtensive
How Does RAXTiFY Make The Vinyl Wraps?
How Does RAXTiFY Make The Vinyl Wraps?
Discover the craftsmanship behind our vinyl wraps. We employ cutting-edge technology and top-quality materials to produce wraps that stand out.
Here's a blog post where you can learn more.
How Does RAXTiFY Test The Vinyl Wrap?
How Does RAXTiFY Test The Vinyl Wrap?
Ensuring top-notch quality is our priority. Rigorous testing procedures guarantee our vinyl wraps meet the highest industry standards.
