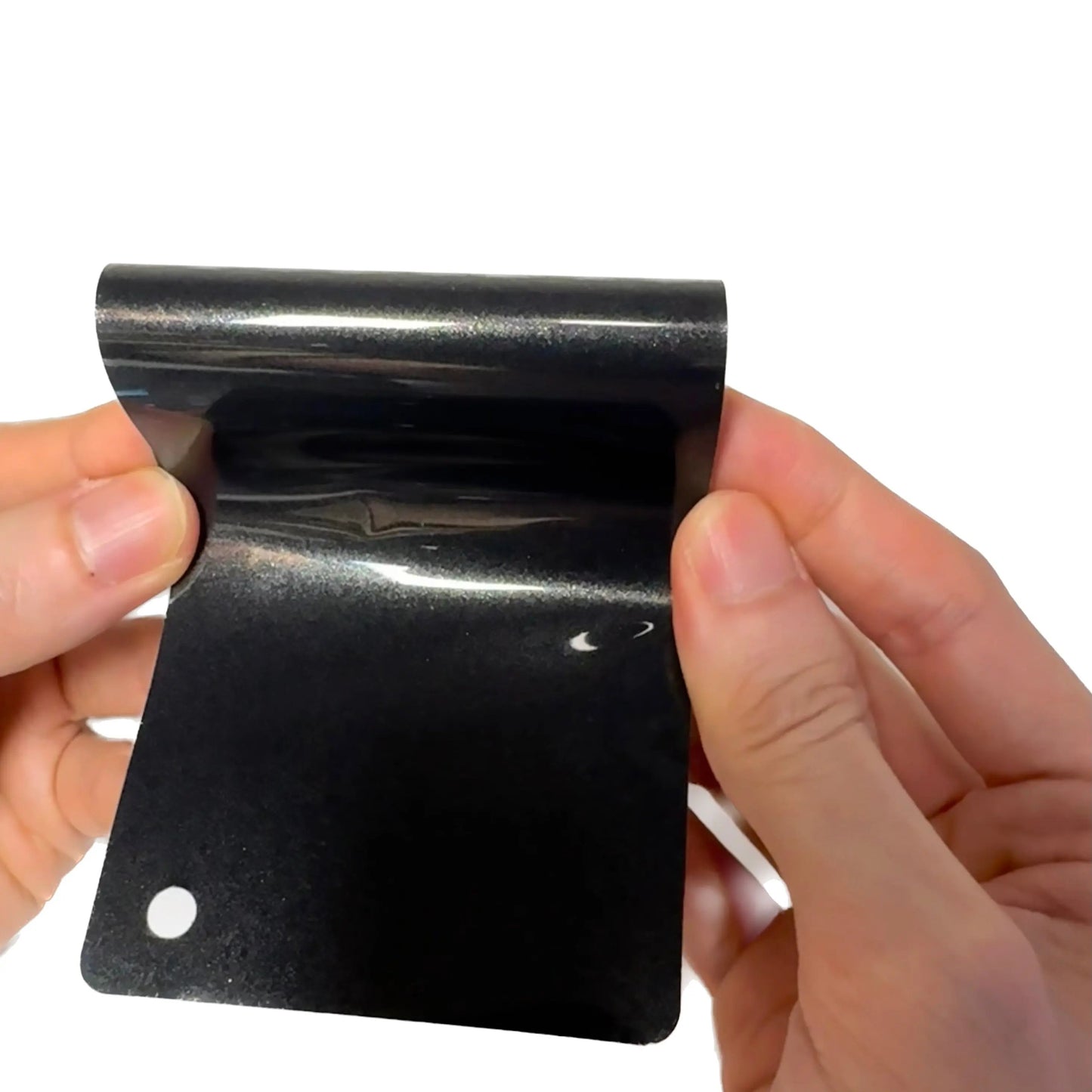

Gloss Metallic Graphite Gray Car Wrap

  • Sku: GM72-3M
$199.00 USD
 per
Shipping calculated at checkout.
In stock!
Size: 5ft * 10ft (Hood)

Air-Release Channel

PET Backing Liner

Low Initial Tack

Quality Warranty

NOTE:

1. Top Protective film is included only on full rolls (59ft) of gloss vinyls.

For smaller, pre-cut pieces of glossy vinyl, the protective film is removed before shipping to ensure a smooth surface without air bubbles or creases. This does not affect the quality of the vinyl.

All matte/ satin vinyl wraps do not have a protective film, as their surface is naturally resistant to minor scratches and does not require additional protection.

59ft = full roll
69ft = full roll + 10ft pre-cut
75ft = full roll + 16ft pre-cut

2. Products ordered separately may have slight color variations due to different color lots.

3. Use a bubble remover/defoamer on the surface before applying for best results.

4. CAUTION! The images, colors, and finishes on the screen are approximate. For accuracy, refer to the color book or samples.

View full details

Gloss Metallic Graphite Gray Car Wrap

Video

Description

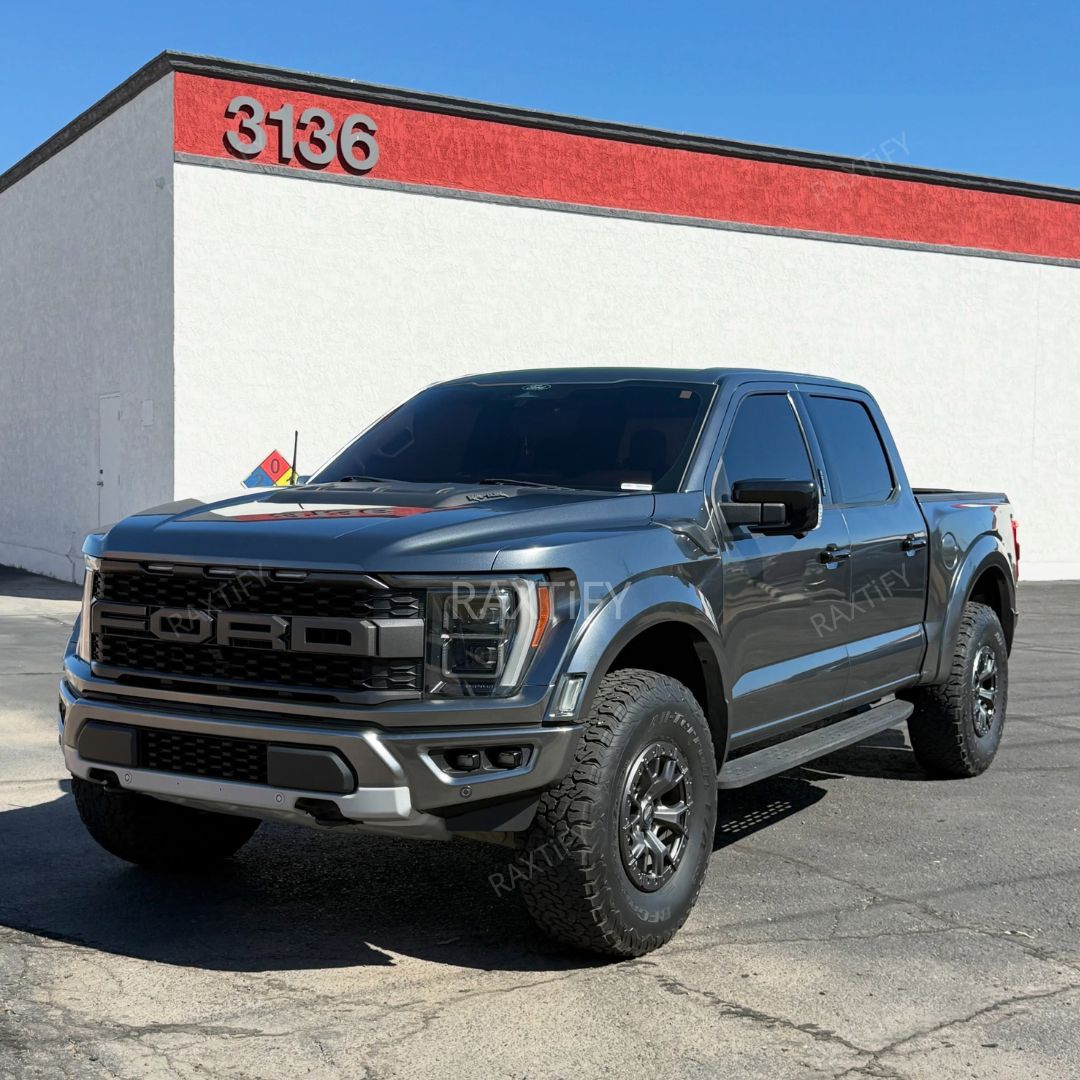

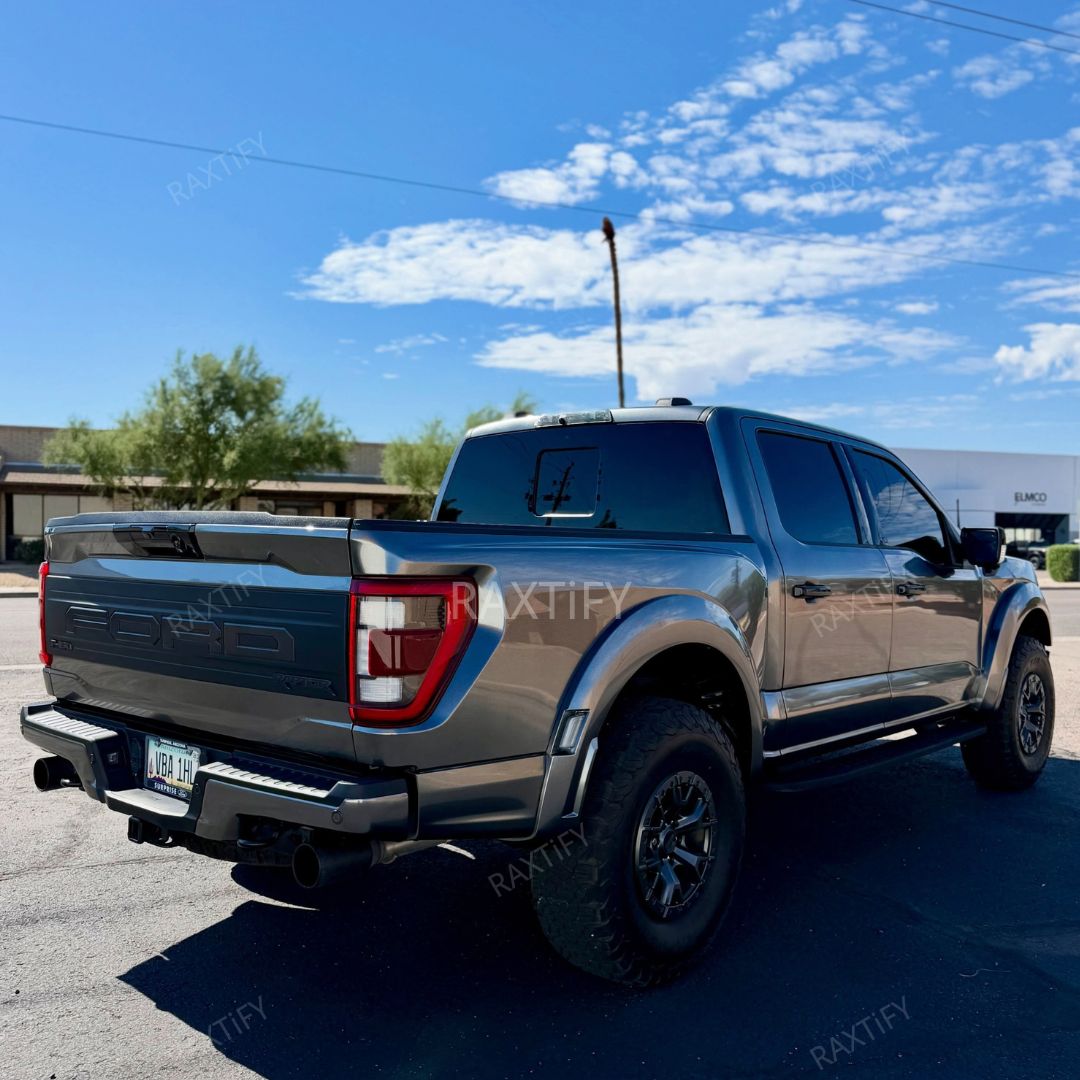

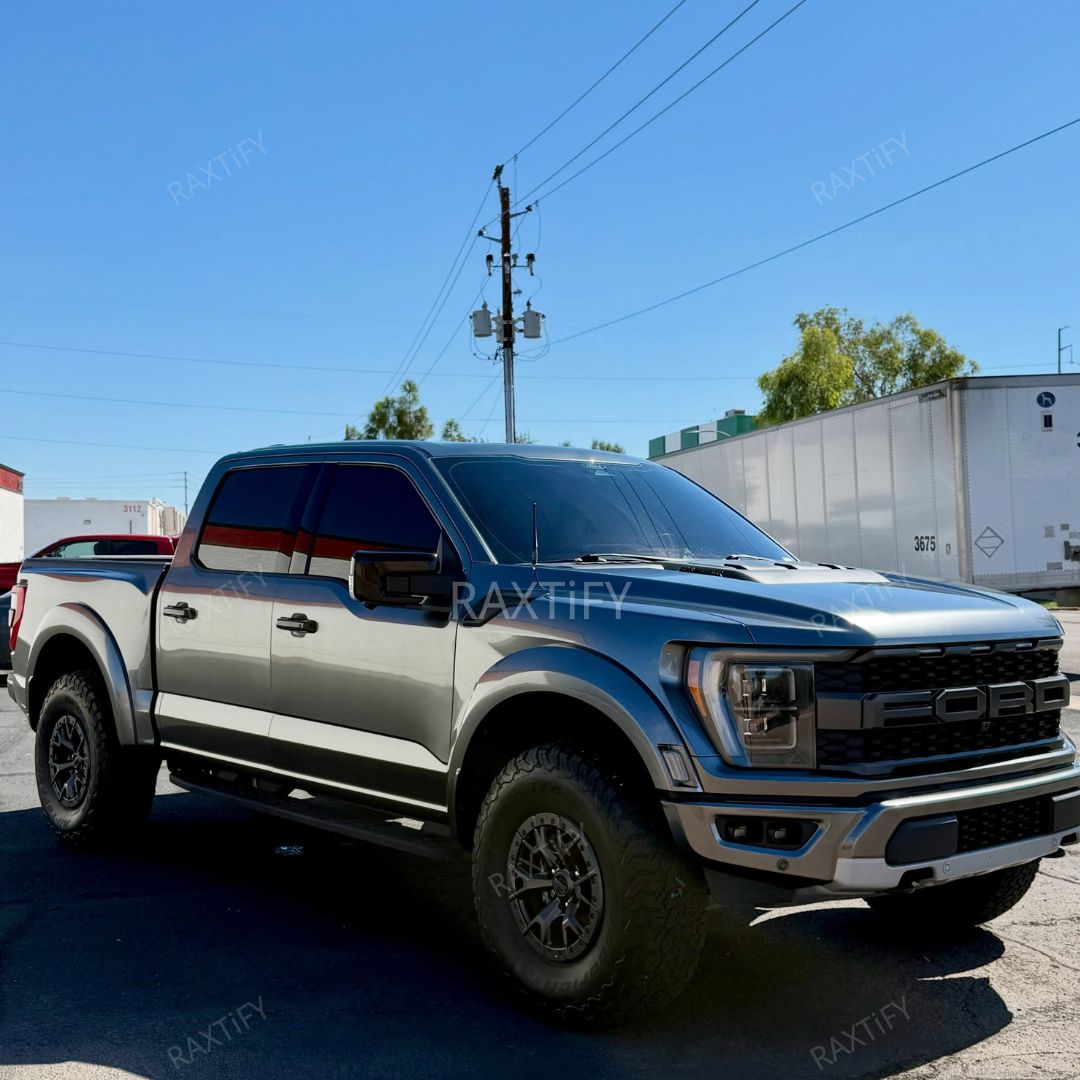

Gloss Metallic Graphite Gray Car Wrap features a dense, shiny metallic finish over a medium-to-dark graphite base. The color does not have the flat, cement-like look typical of many solid gray wraps. As the metallic flakes become visible, the base looks more like graphite, steel and charcoal, and less like a neutral light gray.

This colour stands out because of the contrast between shaded and illuminated areas. The wrap deepens in shade and may appear smoky charcoal gray. The metallic particles are still visible, but they sit within the graphite base rather than overpowering it.

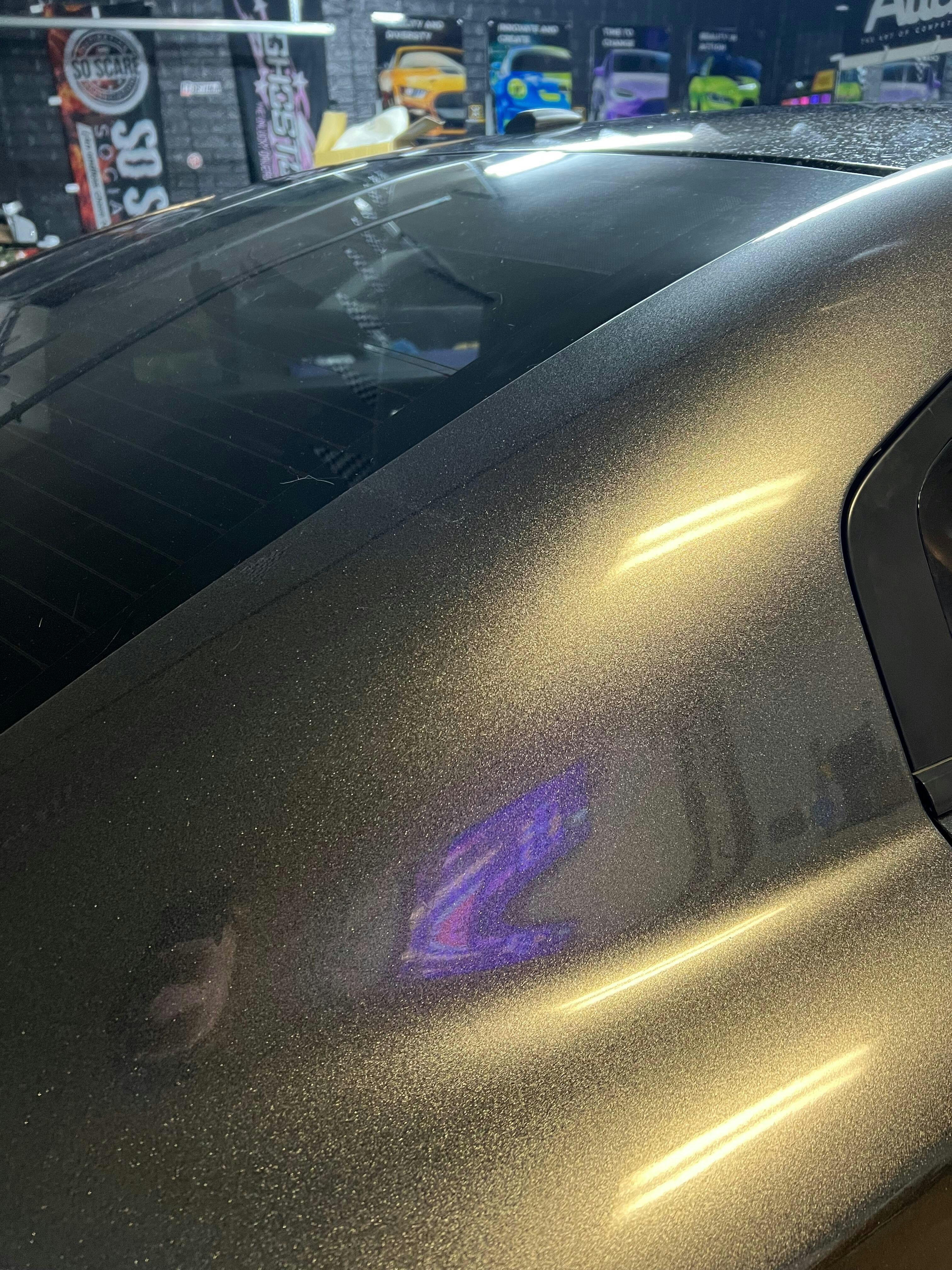

Place the same panel in direct sunlight or under bright workshop lights and the surface changes noticeably. The metallic particles reflect more light, revealing more of the graphite base colour. Some areas may move toward steel gray, especially on outward-facing panels and raised body lines.

As a result, Gloss Metallic Graphite Gray can appear much darker from one angle and much brighter from another without actually changing color. The variation is primarily due to changes in brightness and metallic reflection rather than a shift to another color.

What Kind of Gray Is It?

It is still a gray, but it is not a flat or “cement gray.” The predominant colour is graphite, a dark metallic steel gray. Its color is closer to charcoal in less intense light. In brighter light, the metallic content pushes the surface toward polished steel.

The overall look is therefore brighter and more metallic than a flat Nardo-style gray, while still remaining darker than silver and more reflective under direct light than many solid gray finishes. The car can appear to be a dark gray metal from afar. When seen up close or when the sun shines across the body, the fine metallic particles become apparent.

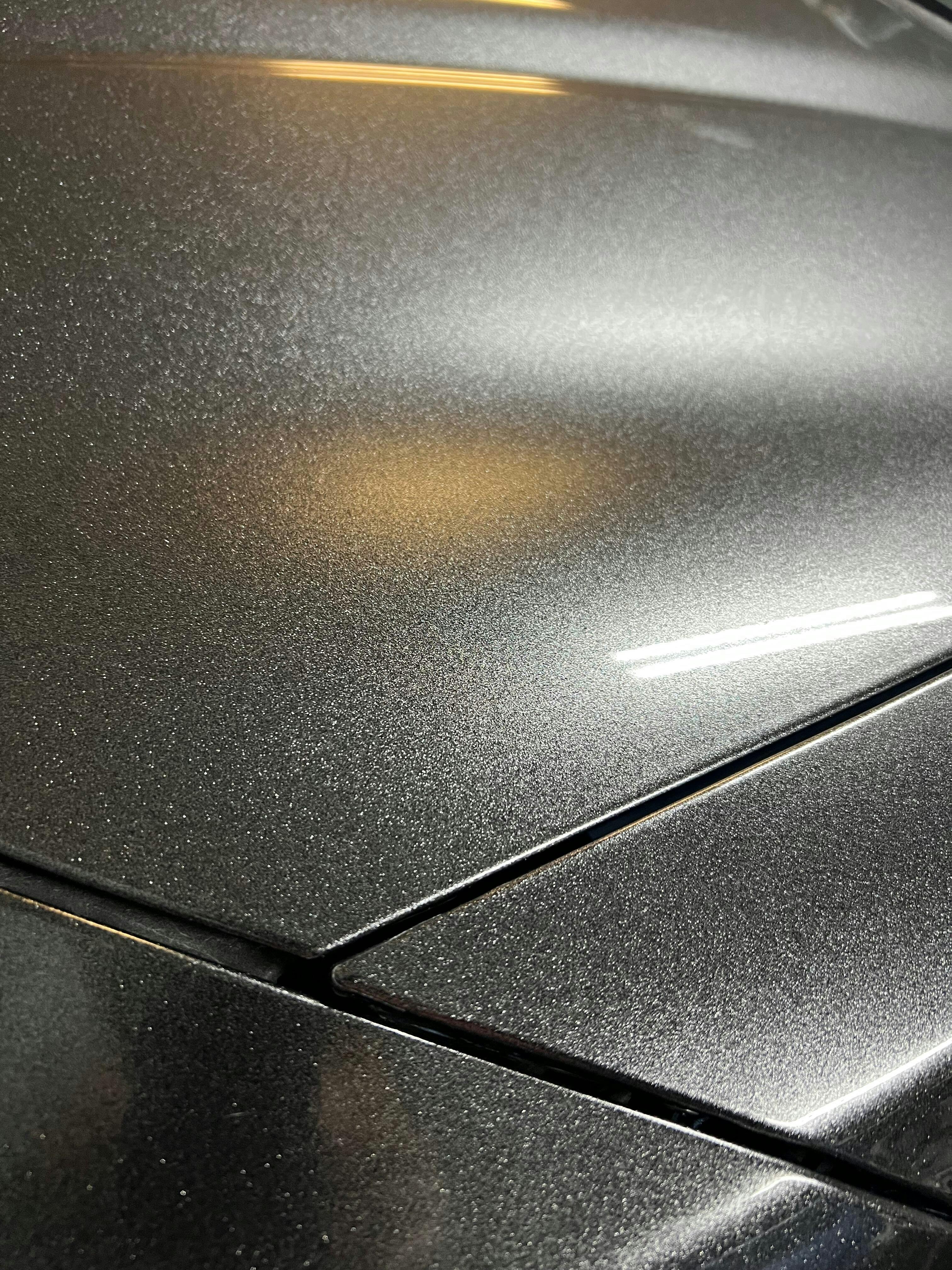

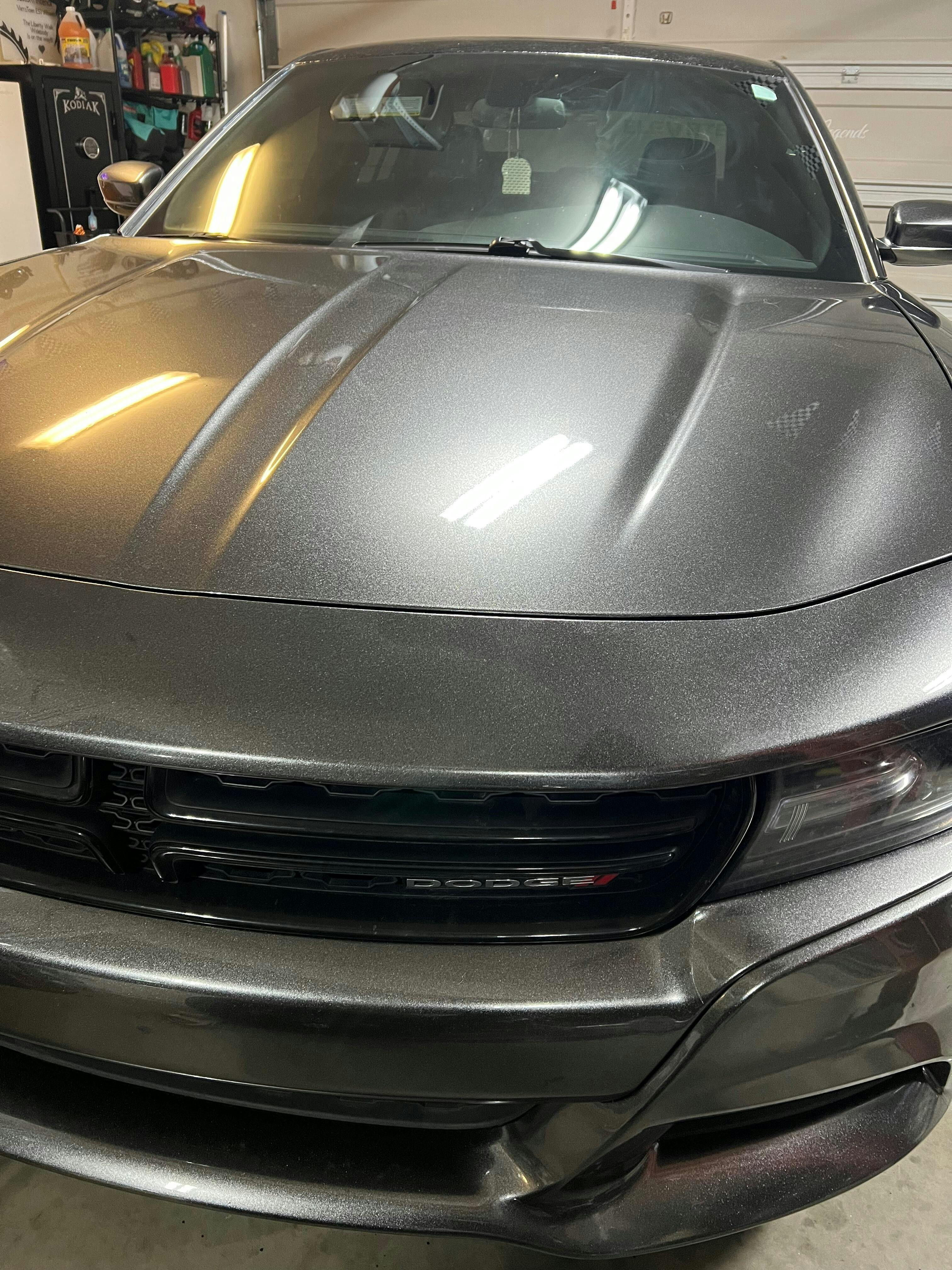

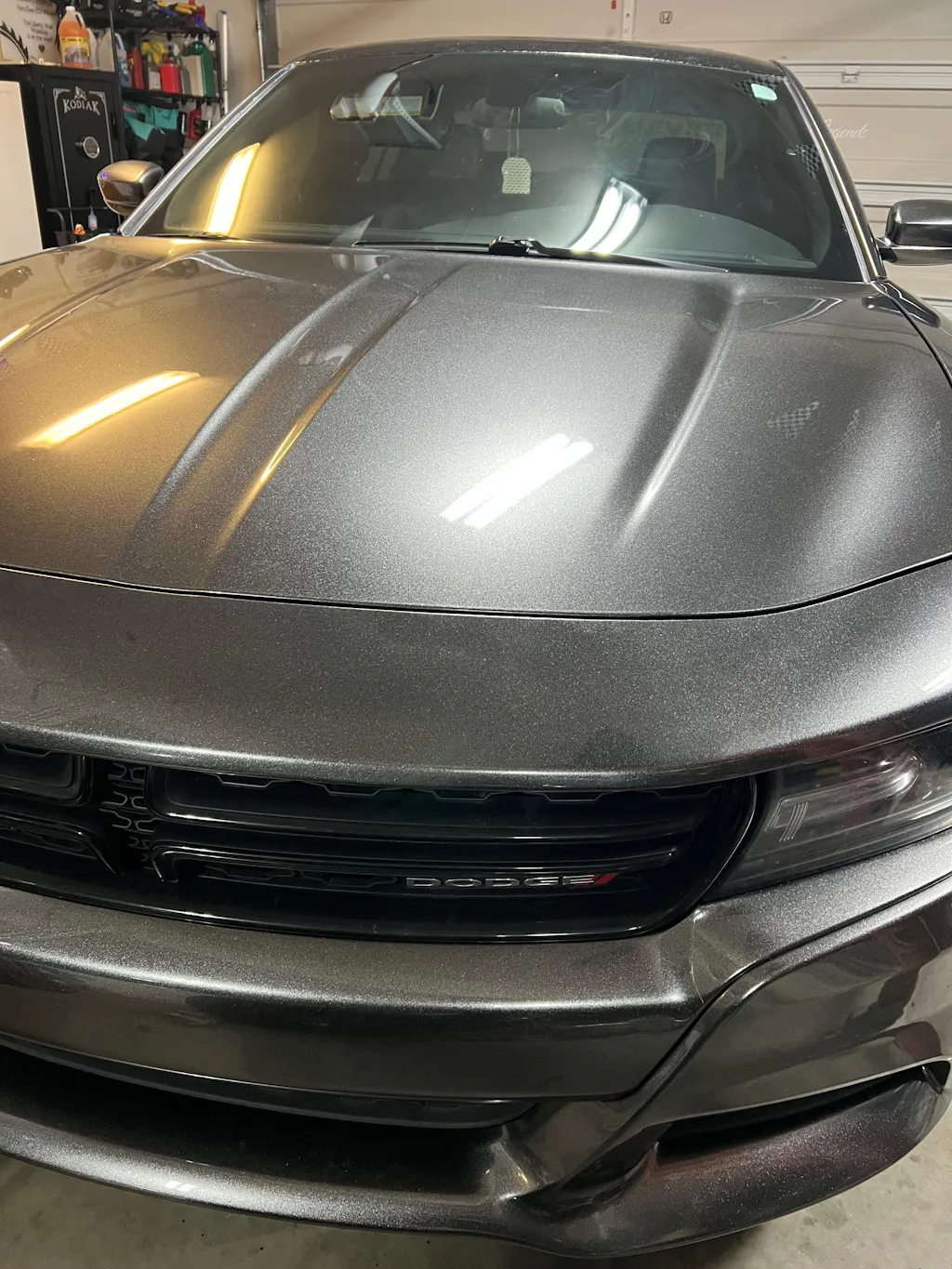

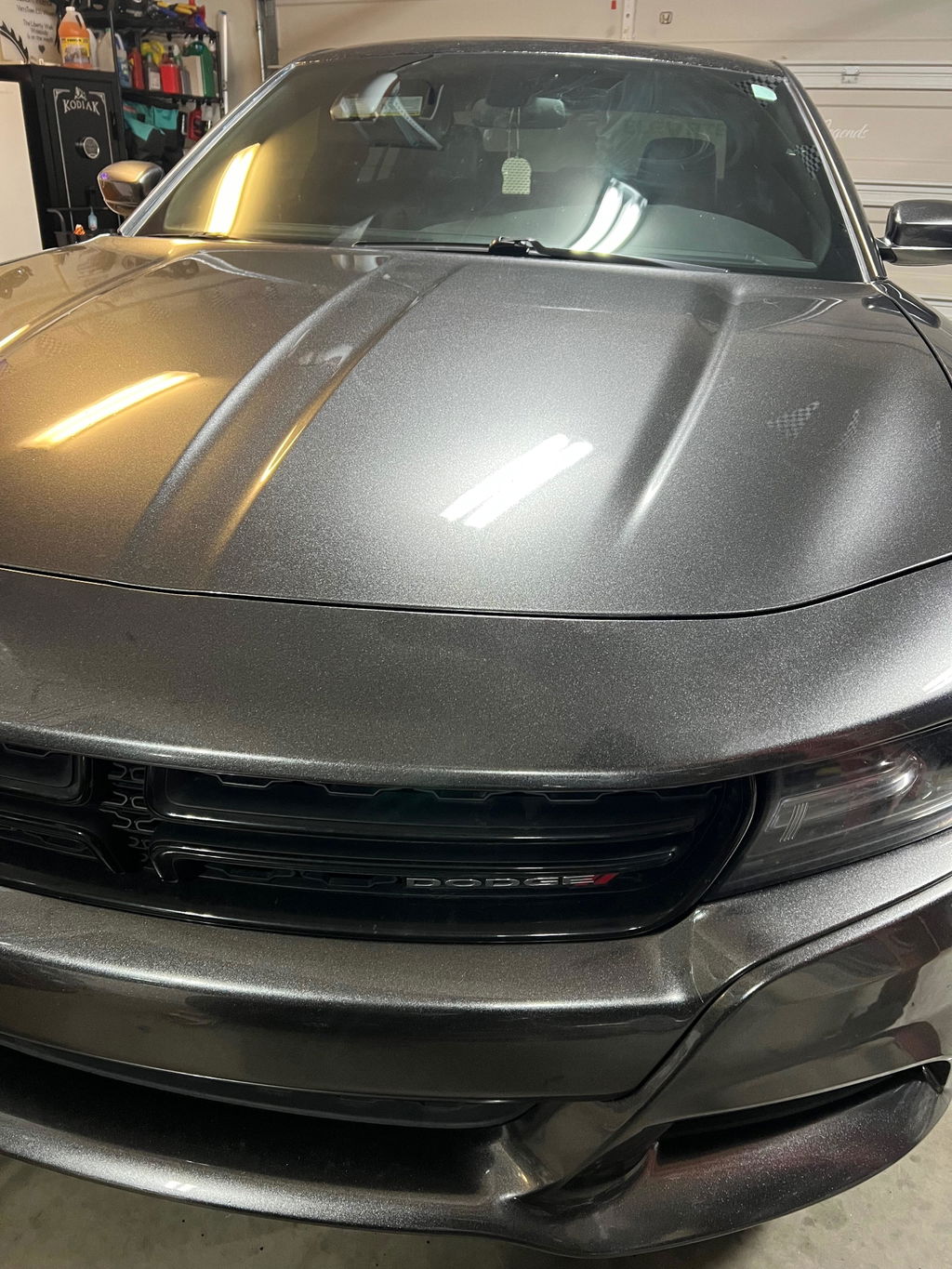

The heavy metallic effect is most apparent on body surfaces that face toward the light. Raised creases on a hood may appear brighter, while broad flat areas may remain relatively uniform in graphite.

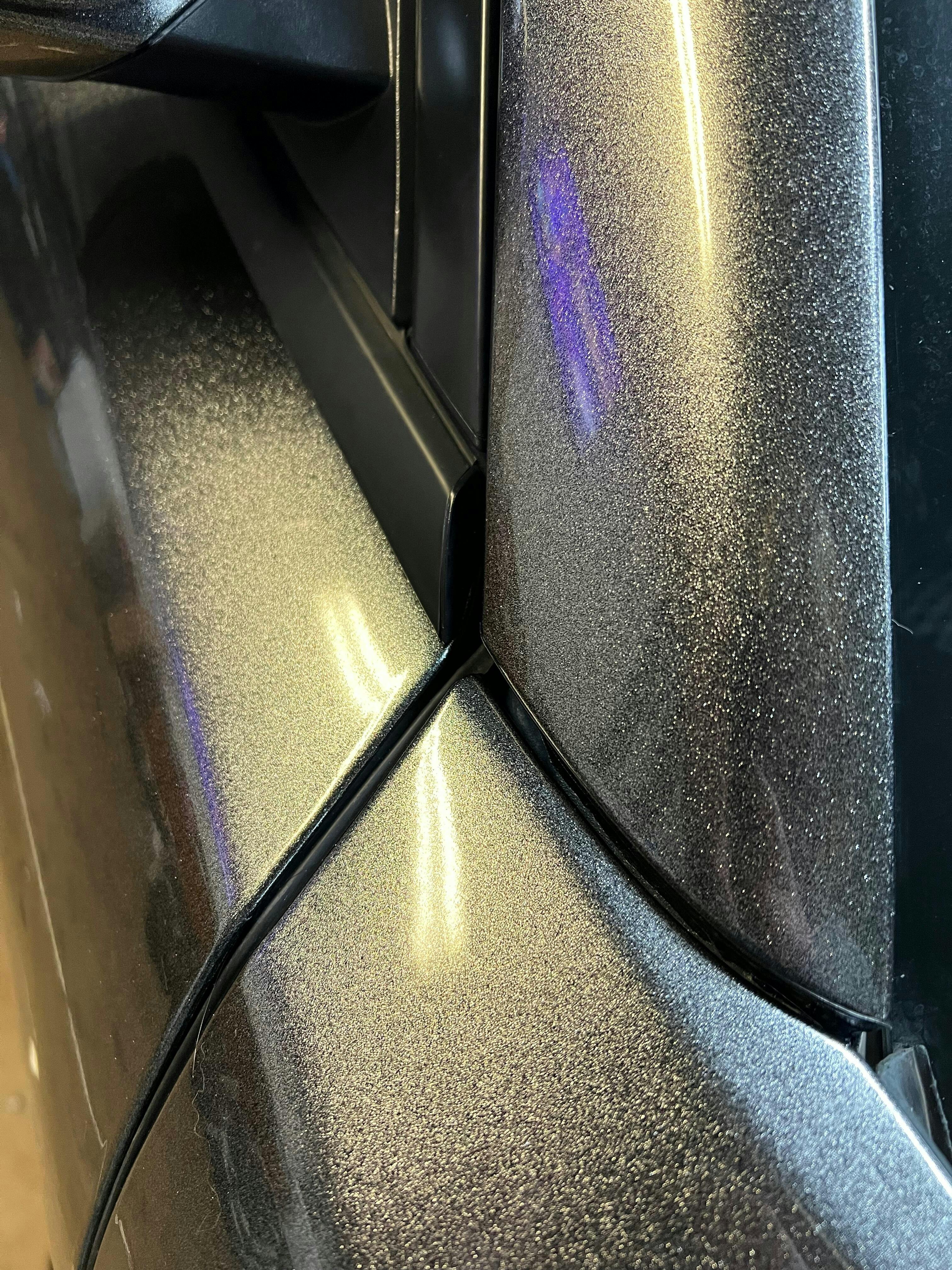

The outer wheel arch above a front or rear fender may appear darker charcoal, while the surrounding bodywork can look more steel gray. This difference is particularly noticeable on a rear panel that curves in several directions at once. One area might appear nearly silver under a direct reflection while an adjacent section still appears dark graphite. This contrast is not a fault or color inconsistency. It is an important part of how the finish responds to light.

Gloss Surface vs. Metallic Texture

The surface is definitely shiny. Window reflections, workshop lights and the sky remain fairly crisp. The metallic particles, though, provide a second layer of visual texture beneath those reflections. When the light is intense enough, very fine bright metallic points can be seen coming through the graphite base rather than appearing as a smooth block of gray.

Much of that brightness is gone at night or in the dim light of a garage, making the car look much darker.

Who This Color Suits

Gloss Metallic Graphite Gray suits drivers who want a gray finish without the flat, uniform appearance of a solid gray wrap.

It maintains a fairly subdued graphite look in shade, with more metallic movement in sunlight than the name alone might suggest.

This color sits somewhere between a solid gray and a gunmetal gray and is more reflective than a flat gray, but not as blacked out as many gunmetal colors: darker than silver, more reflective than a flat gray, and less blackened than many gunmetal colors.

However, if matching an exact OEM gray, it is recommended to view a physical sample because the brightness can vary significantly with the light source.

Material and Protection

The wrap is made from automotive-grade polymeric calendered vinyl and is designed for exterior vehicle wrapping.

In addition to changing the vehicle's appearance, the film provides a protective layer over the original paint against minor scratches, road debris, and everyday environmental exposure.

Air-Release Adhesive

The adhesive uses integrated air-release channels to help trapped air escape during installation. This makes positioning and smoothing the vinyl easier during dry application and helps reduce bubbles while the film is being applied.

Because this is a metallic directional film, adjacent panels should be installed in the same material direction. Reversing the film direction can cause neighboring panels to reflect light differently and create an unwanted shade mismatch.

Color-Specific FAQ

Q1. Is Gloss Metallic Graphite Gray nearly silver in the sun?

A: Under strong direct light, sections of the vehicle may lighten significantly and can move toward steel gray or silver gray, particularly on curved panels. The overall base is still graphite gray, but the metallic content can noticeably increase the brightness of exposed areas.

Q2. Is this more like Nardo Gray or Gunmetal Gray?

A: This wrap is darker than a typical Nardo-style gray and much more metallic than a solid gray finish. Compared with a very dark gunmetal gray, it generally has a lighter graphite base and a brighter metallic steel tone under strong light.

Q3. Does it appear black in low-light conditions?

A: It typically appears dark graphite or charcoal rather than black. The overall vehicle can look much darker than it does outdoors because the metallic effect fades further into the background under low light.

Q4. Why does the same car appear dark gray in one image and bright gray in another?

A: This finish has a relatively wide brightness range. The metallic layer can reflect strongly under direct sun, overhead LEDs, different camera exposure or changing panel angles, causing a dark graphite area to appear much brighter steel gray.

Q5. Are the metallic particles easily visible?

A: From a distance, the car appears primarily graphite gray. The metallic particles become more noticeable as you move closer or as stronger light hits the surface. In shade, they are more restrained; under direct light, the metallic texture becomes much easier to see.

Structure

Our wrap films consist of 4 layers designed to ensure exceptional performance:

The first layer serves as a protective barrier for the underlying vinyl.

Directly beneath, you'll find high-grade polymeric vinyl fortified with pressure-sensitive acrylic adhesive.

Finally, a layer of 130um release plastic liner adds an extra level of quality to our wrap films. This plastic liner ensures a smoother, super glossy, and lustrous finish.

Vinyl Specifications

Specification Details
Product Type Automotive Vinyl Wrap
Film Type Polymeric calendered vinyl film
Designed Use Full vehicle wraps, partial wraps, and exterior accents
Film Construction Polymeric vinyl with air-release adhesive channels
Face Film Thickness 3.7–4.1 mil (approx. 0.094–0.104 mm)
Adhesive Type Solvent-based pressure-sensitive acrylic adhesive
Adhesive Thickness 1.6 mil (approx. 0.041 mm)
Initial Tack Low Initial Tack, High Holding Power
Air-Release Channels Yes
Release Liner PET
Top Protective Film PET, where supplied with the applicable finish or roll configuration
Directional Film Yes — maintain a consistent film direction across adjacent panels
Application Method Dry application
Recommended Installation Temperature 20°C–30°C (68°F–86°F)
Service Temperature Range −45°C to +45°C (−49°F to 113°F)
Roll Width 60 in / 5 ft / 1.52 m
Full Roll Length 59 ft / 19.7 yd / 18 m
Approx. Full Roll Weight 28.7 lb / 13 kg
Expected Outdoor Service Life 2-3 years, depending on climate, UV exposure, installation, parking conditions, and maintenance
Expected Indoor / Sheltered Service Life 2-3 years, depending on use and maintenance
Installation Difficulty Easy to Intermediate; DIY-friendly

Technical Performance Data

Test Item Typical Result
Elongation at Break — MD Approx. 200%
Elongation at Break — CD Approx. 190%
Tensile Strength 22.7 N/10 mm
Dimensional Stability Shrinkage less than 4%*
Surface Tension Approx. 34 dynes/cm
Release Force 0.12 N/25 mm, tested at 25°C and 50% RH
Initial Tack 1360 g/25 mm, tested at 26°C and 64% RH, GB31125-2014
Peel Strength 7.05 N/25 mm, tested at 25°C and 42% RH, GB/T2792-1998
Holding Power 72.09 h, tested at 25°C and 50% RH, GB/T4851-1998
Aging Test 1 7 days at 65°C — no adhesive residue observed after removal with heat
Aging Test 2 10 days at 65°C — no adhesive residue observed after removal without heat

Installation & Application

Application Method Dry application
Installation Temperature 20°C–30°C (68°F–86°F)
Post-Heating 95°C–110°C (203°F–230°F)
Curves & Recesses Up to 120°C (248°F)
Directional Film Yes — maintain consistent film direction across panels
Recommended Tools Squeegee, knife, masking tape, magnets, gloves, heat gun, IR thermometer
Installation Notes Avoid overstretching and overheating. Professional installation is recommended for complex curves and recesses.

Care & Maintenance

Washing pH-neutral automotive shampoo; hand wash or touchless wash recommended
Pressure Washing Below 2000 PSI; avoid spraying directly at exposed edges
Avoid Brush car washes, abrasive cleaners, strong solvents, and harsh chemicals
Contaminants Remove bird droppings, tree sap, fuel residue, and insects promptly
Wax & Sealant Use vinyl-safe products only
Parking Indoor, garage, or shaded parking recommended

Lifespan & Warranty

Outdoor Service Life 2-3 years
Indoor / Sheltered Use 2-3 years
Warranty 2-Year Limited Warranty for eligible material defects
Warranty Exclusions Improper installation, overstretching, overheating, misuse, accidents, environmental damage, incompatible chemicals, and pre-existing paint defects

Storage & Shelf Life

Shelf Life Up to 2 years
Storage Temperature 10°C–20°C (50°F–68°F)
Relative Humidity Approx. 50%
Storage Conditions Keep in original packaging in a clean, dry place away from direct sunlight, heat, dust, and moisture

Frequently Asked Questions

Is RAXTiFY vinyl easy to install?

RAXTiFY vinyl wrap is designed with air release channels to help reduce bubbles during installation, making it suitable for both professional installers and experienced DIY users.

However, installation difficulty may vary depending on the vehicle shape, surface condition, film finish, and installer experience. Full vehicle wraps, deep curves, bumpers, mirrors, chrome finishes, carbon fiber films, and other specialty finishes may require professional installation for the best result.

Can I order a sample before buying a full roll?

Yes. We recommend ordering a Small Size Sample before purchasing a full roll, especially if you are comparing colors or finishes.

Vinyl wrap color can look different under sunlight, shade, indoor lighting, camera settings, screen display, and different vehicle body lines. A sample helps you check the real color, finish, and texture before starting your wrap project.

Does this vinyl wrap come with a warranty?

Most RAXTiFY vinyl wraps come with a 2-year limited warranty against confirmed product-related defects. For full details, please read our RAXTiFY Warranty Policy.

How long does this vinyl wrap last?

RAXTiFY vinyl wrap is designed to last 2–3 years with proper installation and regular care.

Actual lifespan may vary depending on the film series, finish, climate, UV exposure, parking conditions, washing habits, and overall vehicle surface condition. Vehicles parked indoors or in shaded areas may help maintain the wrap’s appearance for longer.

How do I care for this vinyl wrap?

For best results, hand wash the wrapped vehicle with clean water, pH-neutral soap, and a soft microfiber mitt or sponge. Dry the surface with a clean microfiber towel after washing.

Avoid harsh chemicals, abrasive cleaners, automatic car washes, polishing compounds, fuel spills, and high-pressure washing directly on film edges. Long-term exposure to intense sunlight, heat, rain, snow, dust, and pollution may affect the finish over time.

Can I remove this vinyl wrap later?

Yes. RAXTiFY vinyl wrap can be removed later when it is properly heated and removed with care.

Our vinyl wrap is designed to be removable without damaging factory OEM paint that is in good condition. For the safest result, we recommend professional removal, especially for full vehicle wraps, older installations, or vehicles with unknown paint history.

Please note that paint condition matters. Repainted surfaces, peeling clear coat, rust, dents, scratches, weak paint, or improper removal may increase the risk of paint damage.
