Light Black Headlight Tint Film
- Sku: HT05-10M
Air-Release Channel
PET Backing Liner
Low Initial Tack
2-Year Warranty
1. Top Protective film: Included only on full rolls (59ft) of gloss vinyls.
2. Shipping Time: 7–10 days (Free) | 5–7 days (Express).
For smaller, pre-cut pieces of glossy vinyl, the protective film is removed before shipping to ensure a smooth surface without air bubbles or creases. This does not affect the quality of the vinyl.
All matte/ Satin vinyl wraps do not have a protective film, as their surface is naturally resistant to minor scratches and does not require additional protection.
59ft = full roll
69ft = full roll + 10ft pre-cut
75ft = full roll + 16ft pre-cut
4. Products ordered separately may have slight color variations due to different color lots.
5. CAUTION! The images, colors, and finishes on the screen are approximate. For accuracy, refer to the color book or samples.
6. We prioritize sending films with PET backing liners. If unavailable, paper backing liners will be provided. Use a bubble remover/defoamer on the surface before applying for best results.
Film Material & Construction
- Film Type: Premium-grade polymeric calendered vinyl wrap
- Material Structure: Polymeric hybrid vinyl with integrated air-release channels
- Designed Use: Full vehicle wraps and smooth to moderately curved surfaces
- Directional Film: Yes (installation direction must be observed)
- Backing Liner: PET
Thickness
- Vinyl Film Thickness: approx. 0.13 mm
- Total Thickness (with release liner): approx. 0.28–0.30 mm
Adhesive System
Adhesive Type: Solvent-based acrylic adhesive
Adhesive Features:
- Pressure-sensitive
- Transparent appearance
- Designed for automotive exterior use
- Balanced initial tack and repositionability
Adhesive Layer Thickness: approx. 12 μm (dry)
Application & Installation Guidelines
Certain finishes (ultra-gloss, metallic, glitter series) may be firmer than standard vinyl due to surface coating structure. Professional installation is recommended
Recommended Application Temperature
- Installation Environment: +17°C to +25°C
- Service Temperature Range: −45°C to +45°C
Recommended Tools
- Squeegee with soft buffer
- Utility knife
- Masking tape
- Heat gun
- Magnets
- Gloves
- IR thermometer (strongly recommended for accurate post-heating)
Post-Heating Requirements (Critical)
Proper post-heating is essential to release internal film stress and ensure long-term adhesion.
- Flat Surfaces: 110°C
- Curves, Recesses & Overlaps: 130°C
Note: Failure to post-heat correctly may result in edge lifting or shrinkage over time.
Mechanical & Physical Properties (Typical Values)
Elongation at Break:
- MD: ~200%
- CD: ~190%
Tensile Strength:
- MD: ~29 N/mm²
- CD: ~25 N/mm²
Dimensional Stability: ≤ 2% (70°C / 10 min oven test)
Surface Tension: ~34 dynes/cm
Maintenance & Care
- Clean only with pH-neutral automotive shampoo
- Use soft microfiber cloth or touchless wash
- Pressure washing below 2000 PSI only
- Avoid brush-style car washes, abrasive tools, and solvent-based cleaners
- Remove bird droppings, sap, fuel residue, and contaminants promptly
- Vinyl-safe spray wax or sealant only
- Abrasive polish, cutting compounds, ceramic coatings, and overlamination are not recommended
Durability & Warranty
Service life varies by film series, installation quality, environment, and maintenance
Warranty (if applicable) covers material defects only
The following are not covered:
- Improper installation or insufficient post-heating
- Overstretching, overheating, or misuse
- Overlaminate or unapproved surface treatments
- Environmental damage, road debris, or accidents
- Surface imperfections originating from the vehicle’s original paint
Storage & Shelf Life
Indoor or shaded parking is strongly recommended
Shelf Life: Up to 3 years
Storage Conditions:
- Temperature: +10°C to +20°C
- Relative Humidity: approx. 50%
- Store in original packaging
- Keep away from direct sunlight, heat, dust, and moisture
Packaging Information
- Roll Width: 152 cm (60 inches)
- Roll Length: 18 m
- Approximate Roll Weight: 13 kg
Size Chart
Motorcycles: 5ft * 16ft
Mini/ Small Cars: 5ft * 49 ft
Convertible: 5ft * 59 ft
Coupe: 5ft * 59 ft
Sedan: 5ft * 59 ft
Hatchback: 5ft * 59 ft
Sports Car: 5ft * 59 ft
Station Wagon: 5ft * 69 ft
Sport-utility Vehicle (SUV) : 5ft * 69 ft
Minivan: 5ft * 80 ft
Pickup Truck: 5ft * 92 ft

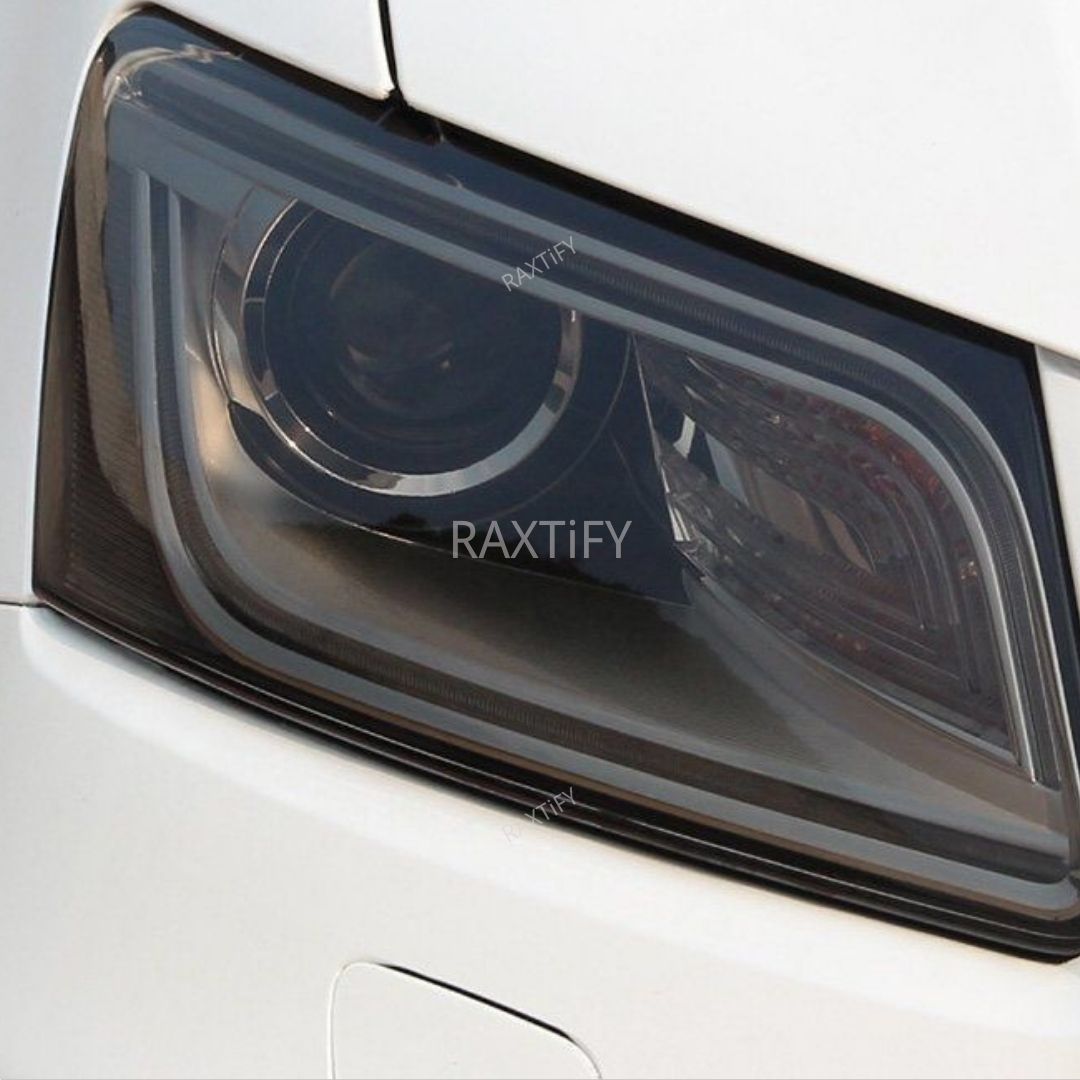

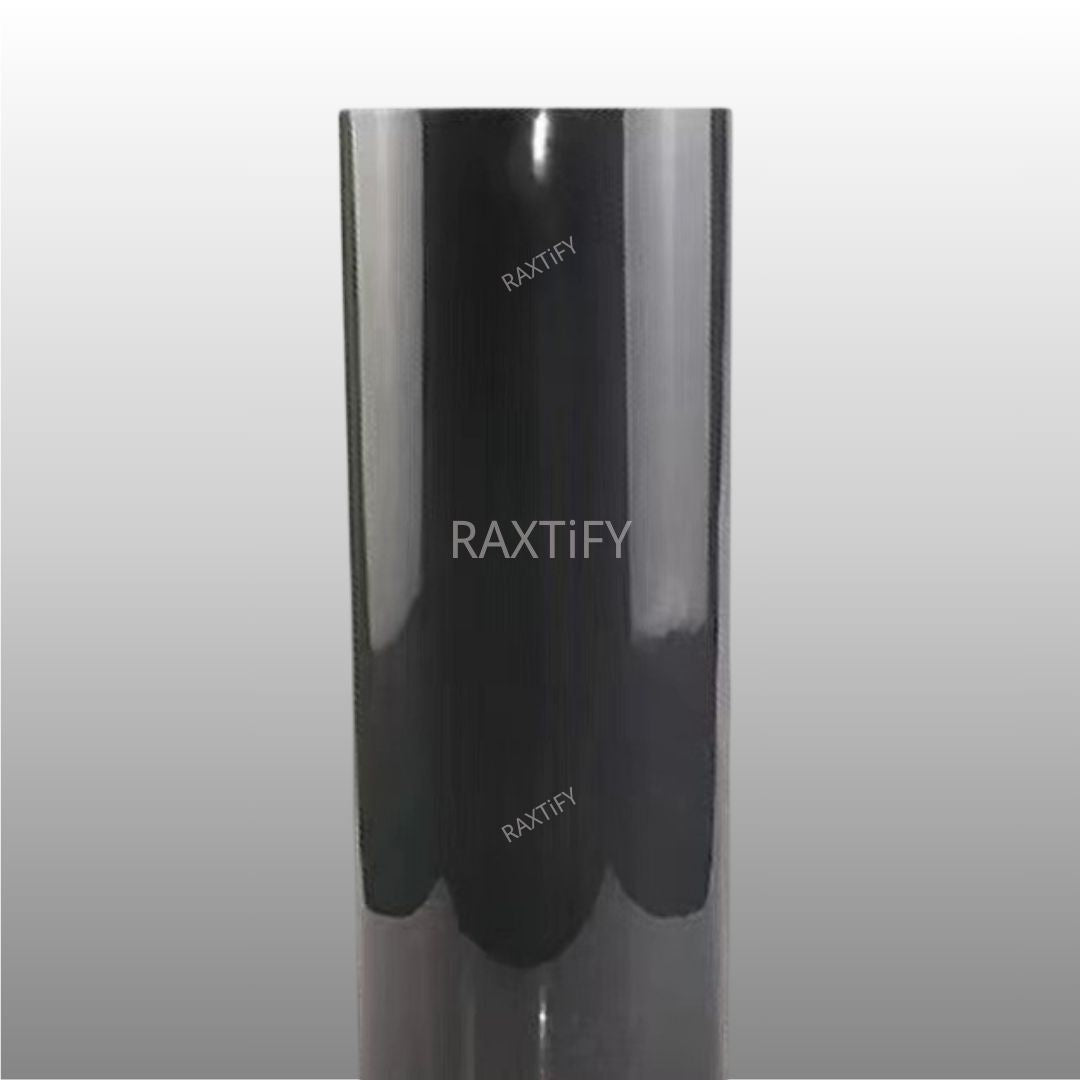

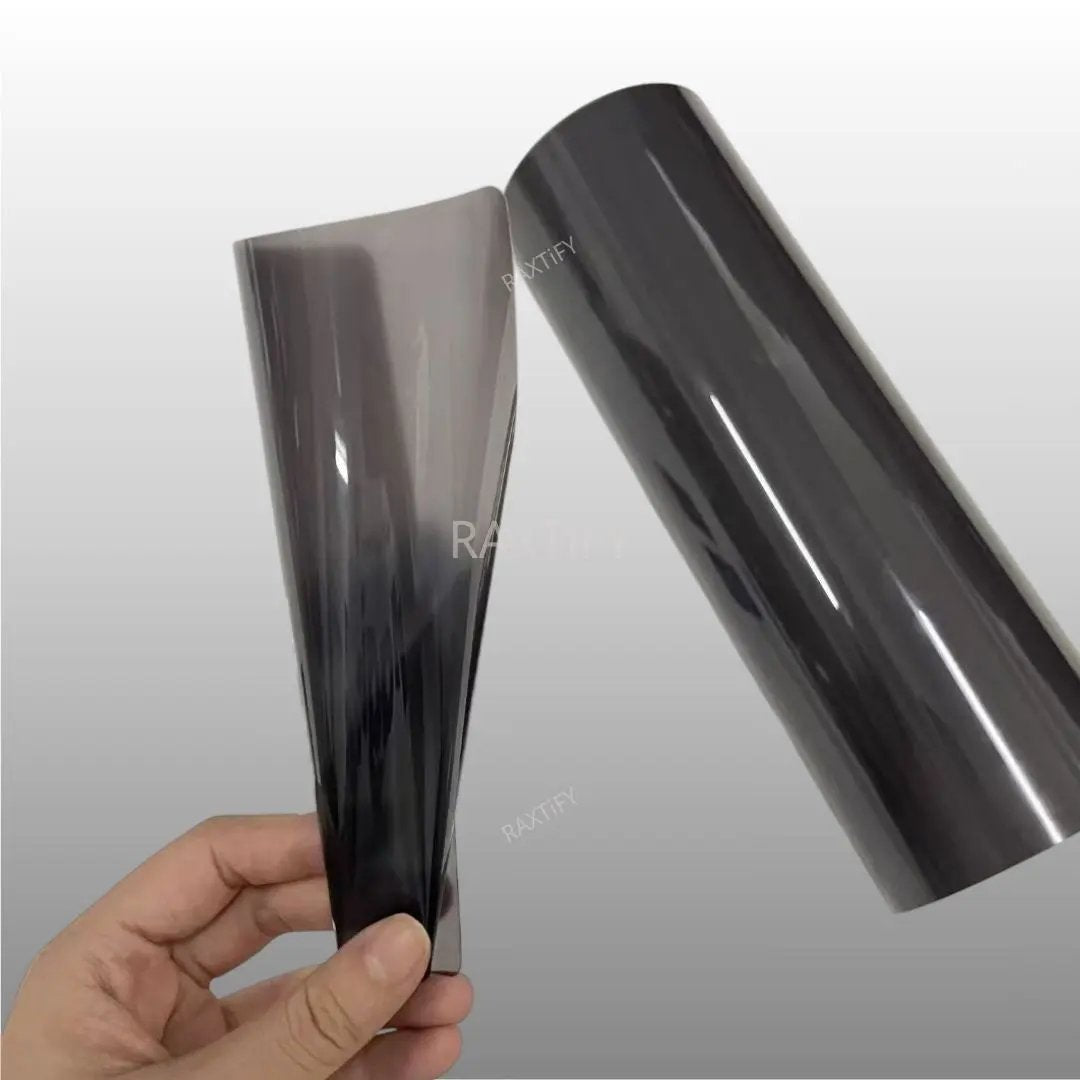

Light Black Headlight Tint Film
Feature:
The Light Black Headlight Tint Film is a top option for you seeking better function and style for your vehicles. This headlight tint offers car enthusiasts numerous practical benefits and aesthetic value since it provides attention-grabbing style, protective enhancements, and better driving capabilities.
Stylish and Cost-Effective Customization
Through the installation of RAXTiFY’s Light Black Headlight Tint Film your car can obtain a racier appearance and sleek framework at a lower cost than regular headlight replacement or customization. A tint film application provides you with a refined visual transformation which people will both recognize and appreciate. This film lets you decide between modern aggressive looks and refined appearance while maintaining the ability to remove it whenever needed.
Durable Material for Long-Lasting Performance
This high-end TPH material forms the base of the Light Black Headlight Tint Film which demonstrates excellent longevity. The film acts both as an appearance enhancer and a protective shield for your headlights. The thin protective film provides a shield against regular everyday light impacts including rocks and scratches which would normally harm your headlights.
Protection from UV Rays and Oxidation
The Light Black Headlight Tint Film makes a compelling UV ray and heat-resistant product choice among users. Stains from sun exposure cause both yellow discolouration and fogging degradation and diminished visibility in headlight illumination. This shielding film protects headlights against UV rays as well as oxidation through its ability to maintain clear and bright lighting. The prolonged application of this film decreases the need for both new purchases and professional restoration services.
Improved Visibility and Safety
The application of the film improves both aesthetics and protects your car from harm. This headlight tint enables better beam focus by reducing reflection and glare thus proving critical during rainy and foggy situations. The combination of improved contrast together with enhanced lighting provides drivers better visibility of obstacles along with pedestrians and road hazards allowing them to navigate during the night with additional safety.
Clearer Vision in Low Light
The Light Black Headlight Tint Film enhances contrast detection by transforming light/dark road area distinctions. The film allows you to see objects clearly during low light conditions which extends your reaction time and makes your driving safer.
More Feature:
1. Durable and Long-lasting.
2. Premium Eco-friendly Material.
3. Waterproof and All-weather Resistant.
4. Heat, UV, and Scratch Resistant.
5. Easy to Apply and Maintain.
6. Protective Liner Included
7. Ultra-clear Acrylic-based Adhesive
8. Repositionable & Slide-friendly
9. Multiple Shades & Styles Available
10. Self-healing tecknology
General Description
- Material: TPH
- Features: Scratch Resistance, Protective
- LinerType: Automotive, Architectural, Marketing Applications, Indoor
- OutdoorLifetime: 1 year (Based On Vertical Exposure)Adhesive
- Type: Acrylic-Based, Repositionable Ultra-Clear adhesive.
- Finish Color: Light Black
- Application Method: Clean and dry surface
- Thickness: 6mil
- Standard Roll: 30cm*10m
- Size Available: 4ft, 10ft, 16ft, 33ft
- Application Method: Wet
Item Standard Size:
| Classification | Unit | Spec | Remark |
| Top Protected Film | um | 25±5% | PET |
| PET Face Film | um | 20±2 | / |
| Acrylic Adhesive | um | 100±2 | / |
| Release Liner | um | 180±2% | PET |
| Surface | - | Gloss | / |
| Width | cm | 30cm±1% | 1ft |
| Length | m | 10m±1% | 33ft |
Physical Properties:
| Test | Data | Test Conditions |
|---|---|---|
| Ageing Testing | No adhesive residue under 25 times wrapping | 65°C and 7 days |
| Durability | 1 Year | / |
| Light Transmission | 43% | >40% |
| Anti-Yellowing ΔΕ | ≤1.2 | Q-UV, 1000hrs |
| Gloss | ≥ 92.3% | 60% |
| Tensile strength | ≥21.6(mpa) | GB/T 1040.1 |
| Holding Power(gf/inch) | No peel off within 48 hours | GB/T279224h |
| Initial Tack(gf/inch) | 860g | GB/33125-2025 |
| Peel Strength | ≥15(N/25mm) | 180% |
| Tear Strength | 92.5KN/m | GB/T529 |
| Release Force(N/25mm) | 0.16N | paste on steel board, 90° 26'C and 60%, GB2792 |
| VLT | 87 | / |
| Adhesive residue | <3% | / |
| Face Film Elongation at Break | 309.5 | GB/T 1040.1 |
| 100% Modulus | 9.1(mpa) | GB/T 1040.1 |
| Application Temperature |
+20°C to +30°C | / |
Structure
Our wrap films consist of 4 layers designed to ensure exceptional performance:
The first layer serves as a protective barrier for the underlying vinyl.
Directly beneath, you'll find high-grade polymeric vinyl fortified with pressure-sensitive acrylic adhesive.
Finally, a layer of top-tier 130um plastic liner adds an extra level of quality to our wrap films. This plastic liner ensures a smoother, super glossy, and lustrous finish.
Item Specifications
| RAXTiFY VINYL | Specifications |
|---|---|
| Technology | High-grade Polymeric Calendared Vinyl Film with Air-Release Channels |
| Top Protective Liner | PET |
| Thickness (Face only) | 3.7mil-4.1mil |
| Thickness (Adhesive) | 1.6 mil (Removable Adhesive with air-release channels) |
| Glue | Solvent based adhesive, (Low-Medium Tack - Easy to reposition) |
| Release Liner | PET/Plastic |
| Width (Standard) | 5ft/ 60in/ 1.52m |
| Length (Standard) | 59ft/ 65yard/ 18m |
| Indoor Lifespan | 3 years when following rules of application and use |
| Outdoor Lifespan | 2 years when following rules of application and use (Except Chrome Wraps) |
Wrap Testing
| RAXTiFY VINYL | Testing Result |
|---|---|
| Dimensional Stability | Shrinkage less than 4% |
| Breaking Strength | 22.7 N/10mm |
| Release Force (N/25mm) | 0.13 (25℃ and 50%) |
| Initial Tack (g/25mm) | 1360 (26℃ and 64%, GB31125-2014) |
| Peel Strength (N/25mm) | 7.02 (25℃and 42%, GB/T2792-1998) |
| Holding Power (h) | 75.09 (25℃ and 50%, GB/T4851-1998) |
| Chemical Resistance | Resists Most Mild Acids, Mild Alkalis, and Salt |
| Aging Testing | No adhesive residue with heat under 65°C after 7 days |
| Aging Test 2 | No adhesive residue without heat under 65°C after 10 days |
| Storing Period | 2 years if stored in +10°С to +20°С for optimal quality, relative humidity 50%, in original package, away from direct sunlight, clean and dry place |
Application
| RAXTiFY VINYL | Application Advices |
|---|---|
| Recommended Tools | Squeegee, buffer, knife, masking tape, heat gun, magnets, gloves, IRR thermometer, IRR heater |
| Application | Standard methods for calendared films. No overstretching and overheating and Post heating is necessary. |
| Post-heating Temperature | 110°C flat surfaces, 130°C curves, and overlaps (Except Chrome Wraps） |
| Recommended Installation Area Temperature | 70 F - 80 F (24 C - 26.5 C) |
| Directional | All vinyl wraps are recommended to be installed directionally |
| Application Method | Dry Application （Except PPF) |
| Aftercare | PH neutral, Avoid wax or solvents |
Got your eyes on a color but not sure if it's the one? Get a FREE small sample first!
Frequently Asked Questions
Is RAXTiFY vinyl easy to install?
RAXTiFY vinyl wraps are made in line with professional uses.Others such as high-gloss, metallic, or glitter series are stiffer than the traditional wraps because of surface coating technology.Although the flat panels can be easily installed by the hands of skilled DIY users, it is highly advised that professional installation be done in complex curves and high visibility areas.
Can I apply overlaminate on RAXTiFY vinyl?
Overlamination should be avoided.Other coating layers can have an influence on surface transparency, bonding and durability.The original surface finish of RAXTiFY vinyl is developed to be the last visual coating.
How should I maintain RAXTiFY vinyl wraps?
- Wash using pH-neutral car shampoo
- Use a soft microfiber cloth or touchless wash
- Pressure washers should remain under 2000 PSI
Cleanse up the contaminants e.g. bird droppings, sap of trees or fuel residues as soon as possible to avoid staining.
Can I use wax or polish on RAXTiFY vinyl?
Vinyl specific spray waxes or sealants are only used; these are mostly used in gloss and metallic finishes.Abrasive polishes, cutting compounds or solvent based chemicals are to be avoided.Any product should always be tested on a small and inconspicuous part of the skin before it can be applied.
How long does RAXTiFY vinyl wrap last?
Wrap lifespan depends on multiple factors, including:
- Film series and finish
- Installation quality
- Environmental exposure
- Maintenance habits
Although RAXTiFY films are designed to give non-textured finishes to the vehicle, the end result could depend on the painted state of the vehicle in the first place.The scratches, dents, rust, bubbles or orange peel that may be present before installation may be left and are not regarded as film defect.
Will removing RAXTiFY vinyl damage my paint?
RAXTiFY vinyl wraps should not harm factory paint when used on OEM paint that is in fine condition and removed without causing damage to the paint.
Does storage affect wrap lifespan?
Parking in interior parts or shaded parking areas mean a lot of less exposure to UV and environmental pressure.In case of an indoor storage, a breathable car cover will be recommended, as it will be helpful to maintain the quality of the finish and increase the wrap lifespan.
