- Sku: HT03-15M

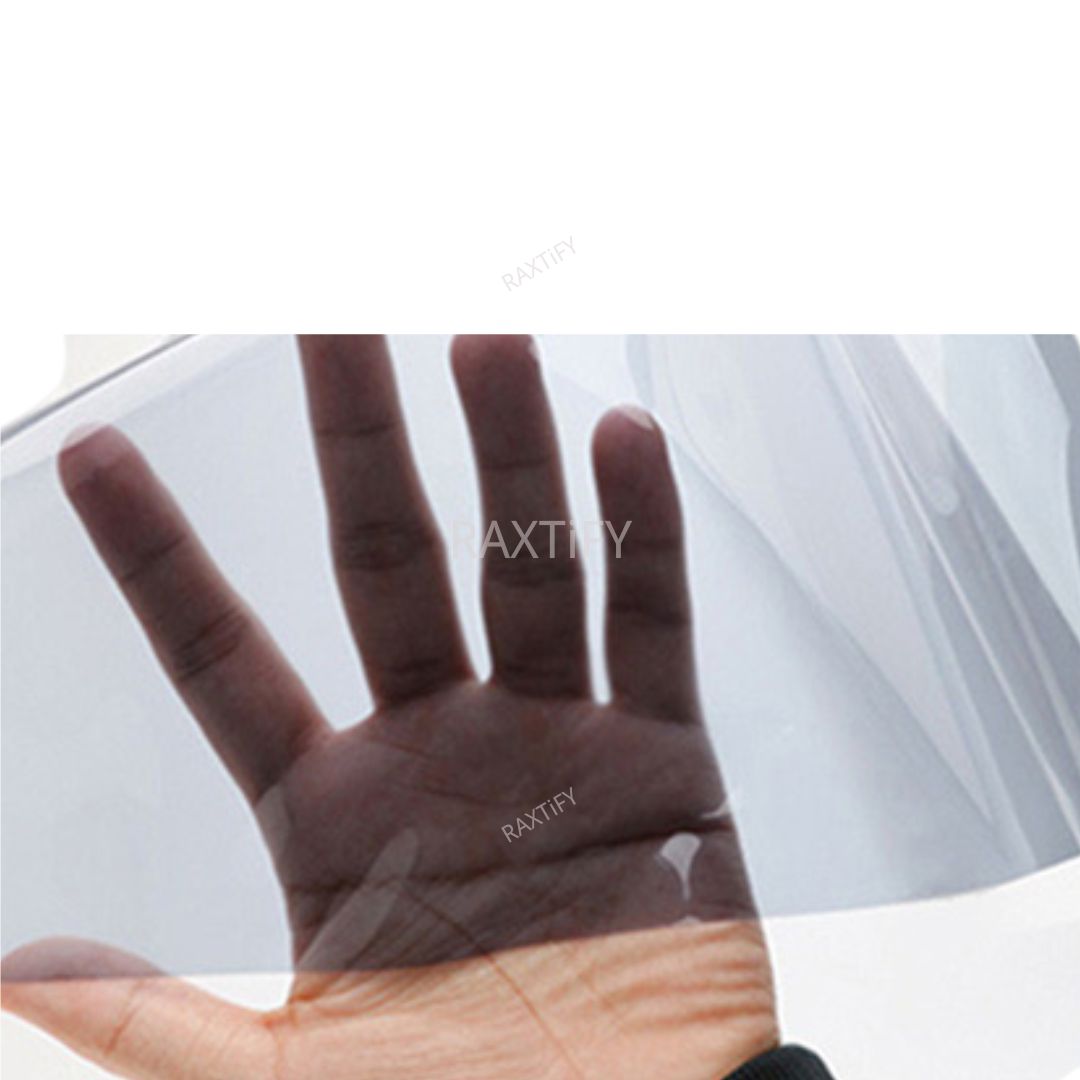

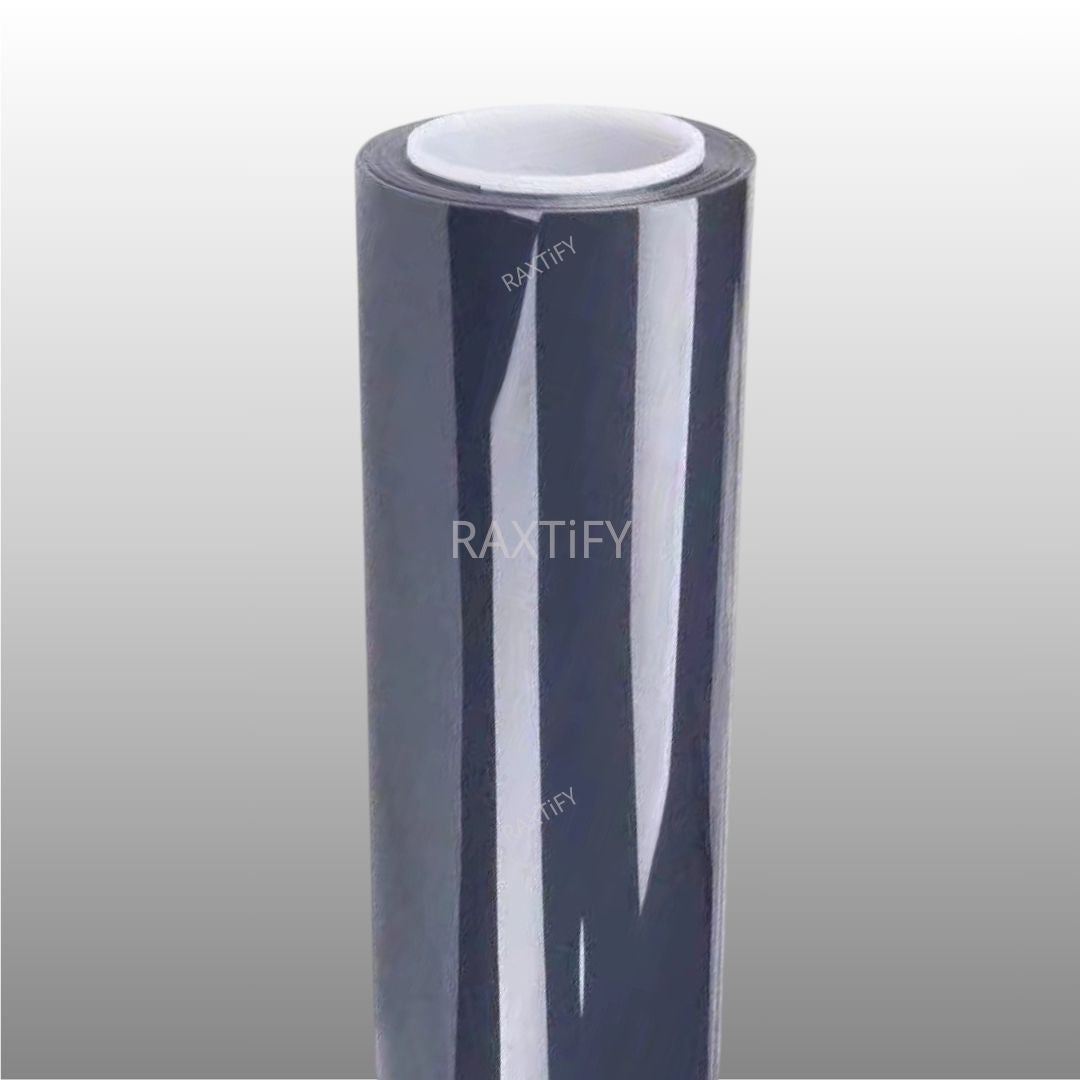

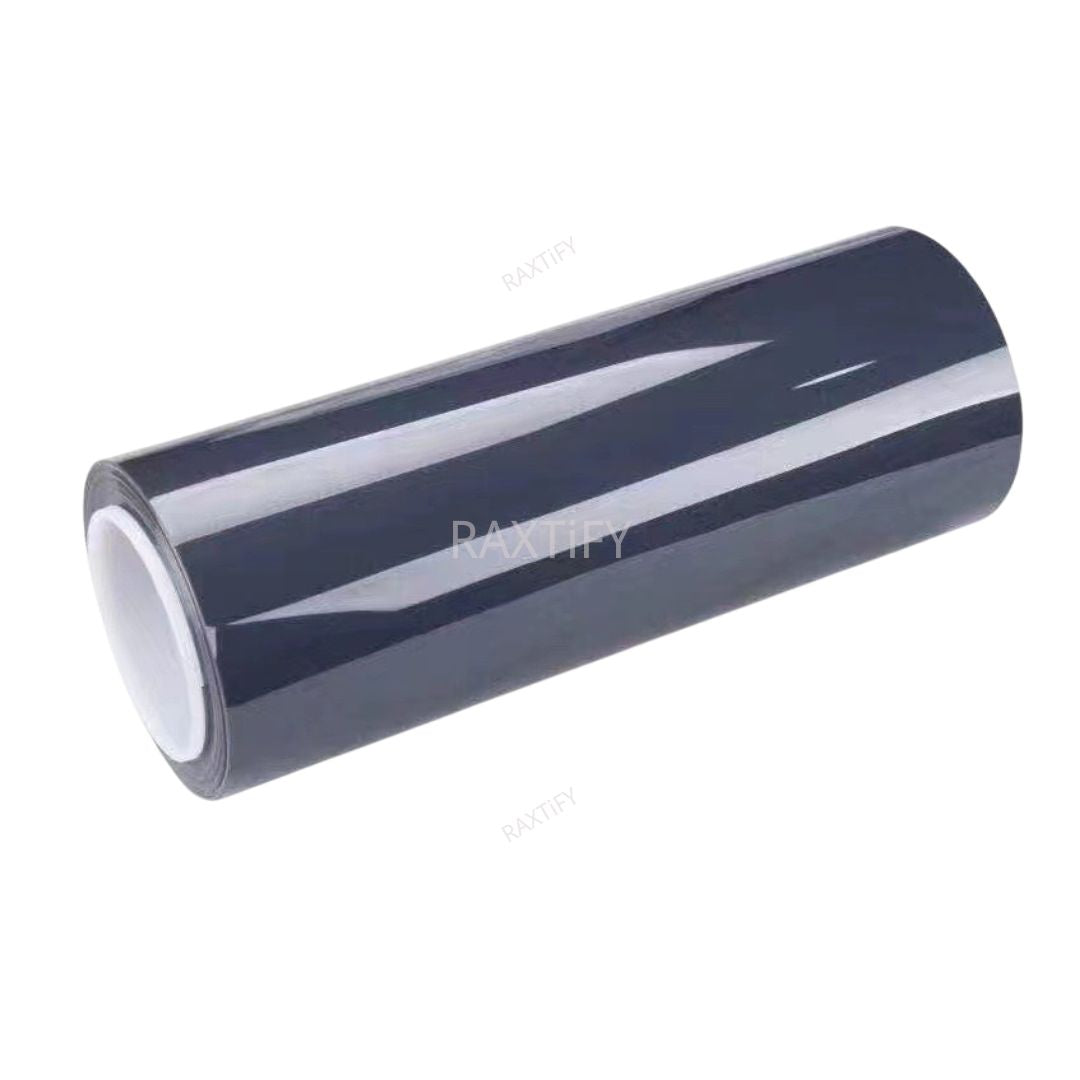

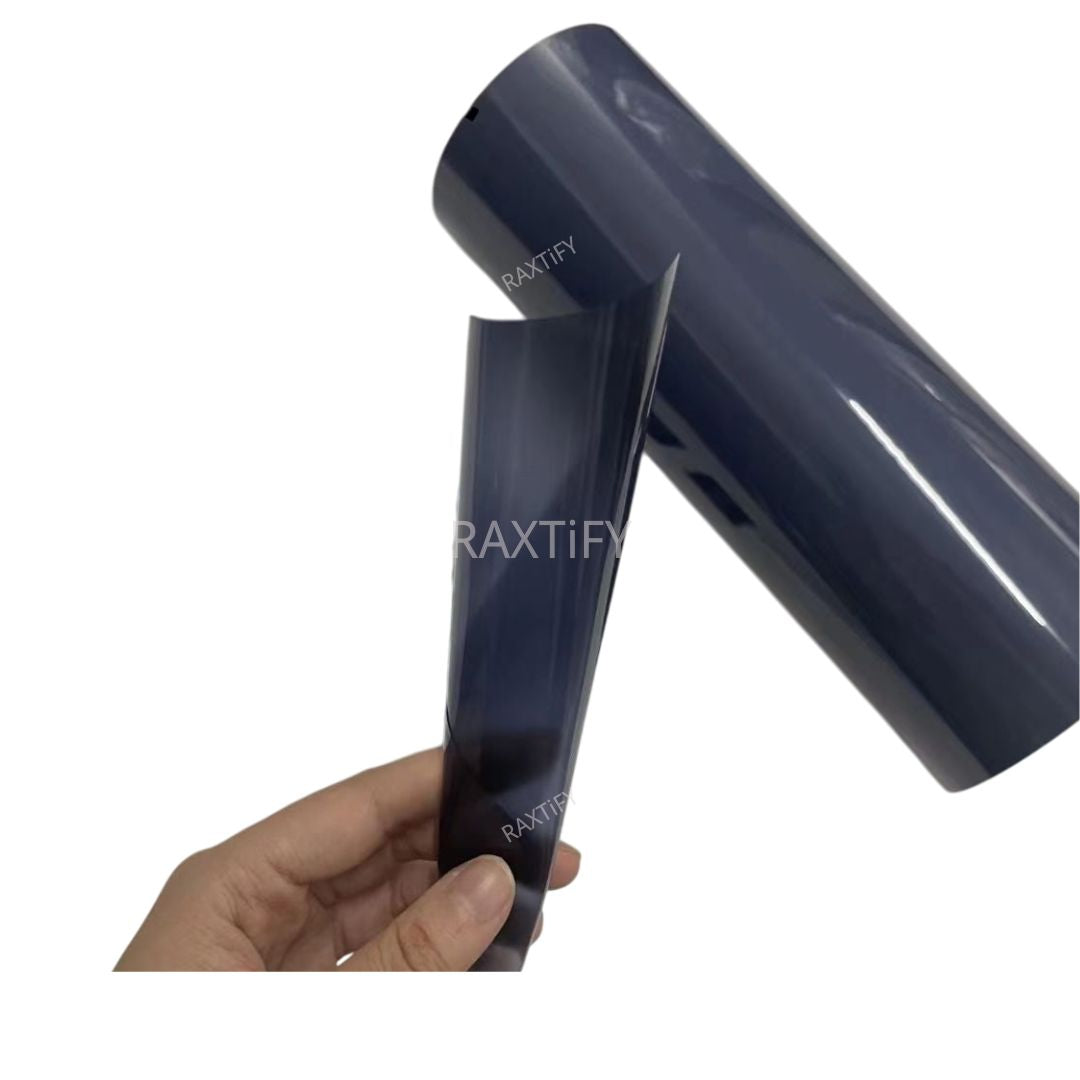

Self-healing Light Gray Headlight Tint Film
1. Standard shipping takes 5-8 business days, with an additional 1-2 days for processing (excluding weekends and holidays).
2. For orders of 33 feet or less, we’ll remove the protective layer before shipment to ensure safe delivery.
3. Products ordered separately may have slight color variations due to different color lots.
4. Color may vary based on your screen settings. For accuracy, refer to the color swatch.
Size Chart
Motorcycles: 5ft * 16ft
Mini/ Small Cars: 5ft * 49 ft
Convertible: 5ft * 59 ft
Coupe: 5ft * 59 ft
Sedan: 5ft * 59 ft
Hatchback: 5ft * 59 ft
Sports Car: 5ft * 59 ft
Station Wagon: 5ft * 69 ft
Sport-utility Vehicle (SUV) : 5ft * 69 ft
Minivan: 5ft * 80 ft
Pickup Truck: 5ft * 92 ft
Have a question?
Self-healing Light Gray Headlight Tint Film
RAXTiFY Clear PPF
Structure
Why RAXTiFY Clear PPF?
More Feature:
1. Durable and Long-lasting.
2. Premium Eco-friendly Material.
3. Waterproof and All-weather Resistant.
4. Heat, UV, and Scratch Resistant.
5. Easy to Apply and Maintain.
6. Protective Liner Included
7. Ultra-clear Acrylic-based Adhesive
8. Repositionable & Slide-friendly
9. Multiple Shades & Styles Available
10. Self-healing function
General Description
- Material: Thermoplastic Polyurethane (TPU)
- Features: Scratch Resistance, Protective
- LinerType: Automotive, Architectural, Marketing Applications, Indoor
- OutdoorLifetime: 3 years (Based On Vertical Exposure)Adhesive
- Type: Acrylic-Based, Repositionable Ultra-Clear adhesive.
- Finish Color: Light Gray
- Application Method: Clean and dry surface
- Thickness: 7mil
- Standard Roll: 30cm*15m
- Size Available: 4ft, 10ft, 16ft, 33ft, 49ft
- Application Method: Wet
Item Standard Size:
| Classification | Unit | Spec | Remark |
| Top Protected Film | um | 25±5% | PET |
| Topcoat | um | 12um | |
| Surface material | um | 128um | Thermoplastic Polyurethane |
| Adhesive | um | 25um | Solvent-based |
| Release Liner | um | 50um | PET |
| Surface | - | Gloss | / |
| Width | cm | 30cm±1% | 1ft |
| Length | m | 15m±1% | 49ft |
Physical Properties:
| Test | Data | Test Conditions |
|---|---|---|
| Gloss | 60° | / |
| Self-Healing | 70 °C | Heat Gun |
| Anti-Permeation | Best | Permanent Marker |
| Anti-Yellowing ΔΕ | ≤2.5 | Q-UV, 1000hrs |
| Anti-Chipping | Best | SAE J400 |
| Tensile strength | ≥19(mpa) | GB/T 1040.1 |
| Holding Power(gf/inch) | 2275 | GB/T279224h |
| Initial Tack(gf/inch) | 850g | GB/T2792 |
| Peel Adhesion | 14(N/25mm) | GB/T 2792 |
| Hardness | ≥90 | ISO0868/ASTM D-2240 |
| Tear Strength | 91.5KN/m | GB/T529 |
| Release Force(N/25mm) | 0.15 | paste on steel board, 90° 26'C and 60%, GB2792 |
| Elongation at Break | 340 | GB/T1040.1 |
| Coating Elongation at Break | 109 | GB/T1040 |
| Chemical Resistance | No Detrimental Effect | 1-hour diesel oil immersion, 4 hours antifreeze immersion |
| UV Resistance | 98% | / |
| Water Resistance | No Detrimental Effect | 120 hours immersion |
| Mud Resistance | No Detrimental Effect | 120 hours exposure |
| Salt Resistance | No Detrimental Effect | 120 hours exposure |
| Alkali Resistance (168H) | No abnormalities | 20% sodium hydroxide solution |
| Light Transmission | 43% | / |
| Aging Testing | 90°C and 7 days | No adhesive residue without heat |
| Application Temperature | +20°C to +30°C | / |
| Durability | 3-5years | / |
Item Specifications
| Clear PPF | Specifications |
|---|---|
| Technology | High-grade TPU (Thermoplastic Polyurethane) |
| Total Thickness | 7.63mil |
| Top Coat Thickness | 0.31 mil |
| TPU Layer Thickness | 4.80 mil |
| Base Layer Thickness | 1.5 mil |
| Adhesive Thickness | 1.02 mil |
| Release Liner | PET |
| Top Coat | Ultra Gloss/Matte & Self-Healing |
| Adhesive Type | Removable & Reposition Acrylic |
| Width (Standard) | 5ft/ 60in/ 1.52m |
| Length (Standard) | 49ft/15m |
| Application | Wet Apply |
Techniocal Details
| Test | Data | Test Conditions |
|---|---|---|
| Hydrophobic | 40° | Angle contact |
| Self-Healing | 70 °C | Heat Gun |
| Anti-Permeation | Best | Permanent Marker |
| Anti-Yellowing ΔΕ | ≤2.5 | Q-UV, 1000hrs |
| Anti-Chipping | Best | SAE J400 |
| Tensile strength | ≥19(mpa) | GB/T 1040.1 |
| Holding Power(gf/inch) | 2275 | GB/T279224h |
| Initial Tack(gf/inch) | 1500 | GB/T2792 |
| Peel Adhesion | ≥16(N/25mm) | GB/T 2792 |
| Hardness | ≥90 | ISO0868/ASTM D-2240 |
| Tear Strength | 91.5KN/m | GB/T529 |
| Release Force(N/25mm) | 0.25 | paste on steel board, 90° 26'C and 60%, GB2792 |
| Elongation at Break | 340 | GB/T1040.1 |
| Coating Elongation at Break | 109 | GB/T1040 |
| Chemical Resistance | No Detrimental Effect | 1-hour diesel oil immersion, 4 hours antifreeze immersion |
| UV Resistance | 98% | / |
| Water Resistance | No Detrimental Effect | 120 hours immersion |
| Mud Resistance | No Detrimental Effect | 120 hours exposure |
| Salt Resistance | No Detrimental Effect | 120 hours exposure |
| Alkali Resistance (168H) | No abnormalities | 20% sodium hydroxide solution |
| Light Transmission | 89% | / |
| Aging Testing | 90°C and 7 days | No adhesive residue without heat |
| Application Temperature | +20°C to +30°C | / |
| Durability | 8-10years | / |
| Application Method | Wet Application | / |
| Gloss | ≥ 91% | 60° |
