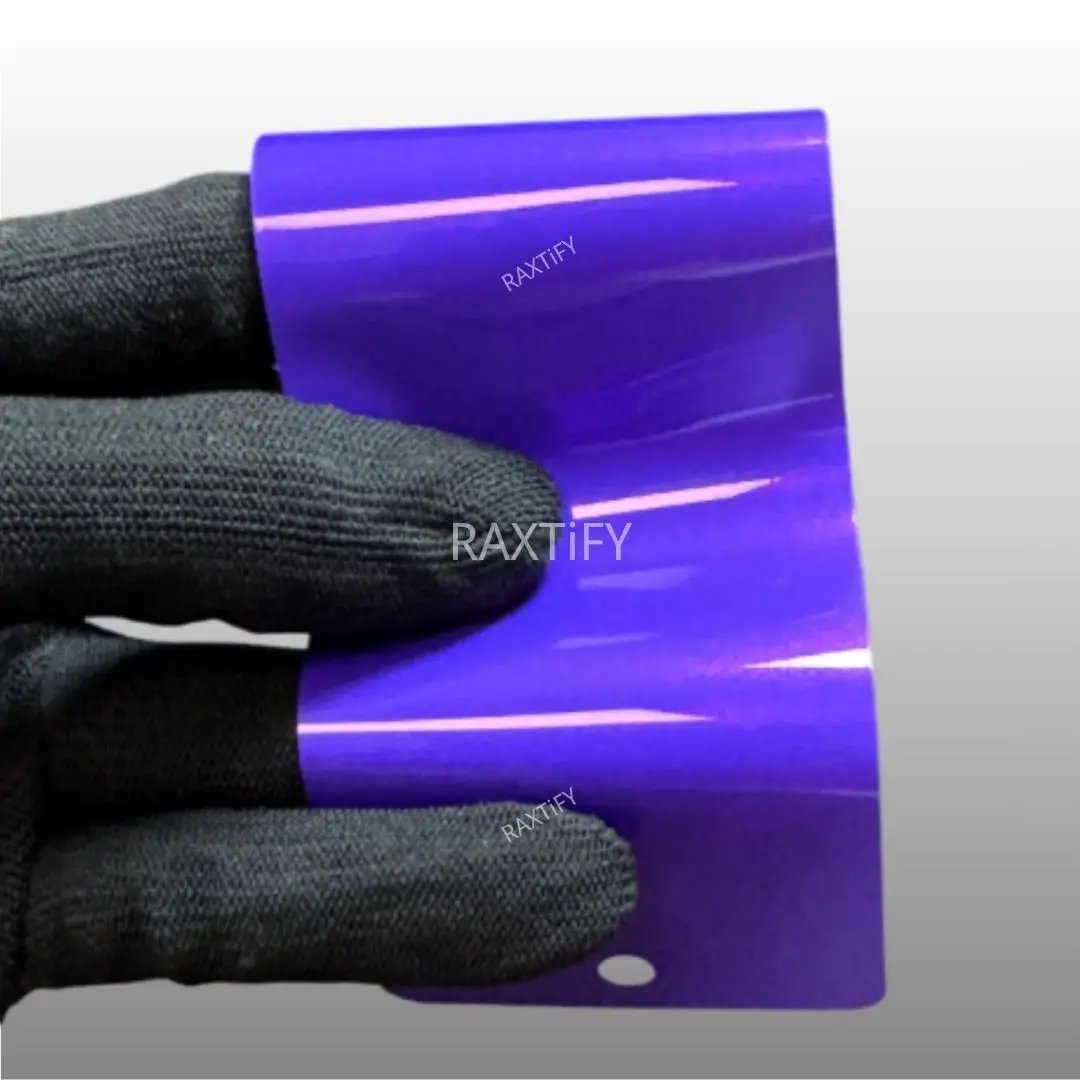

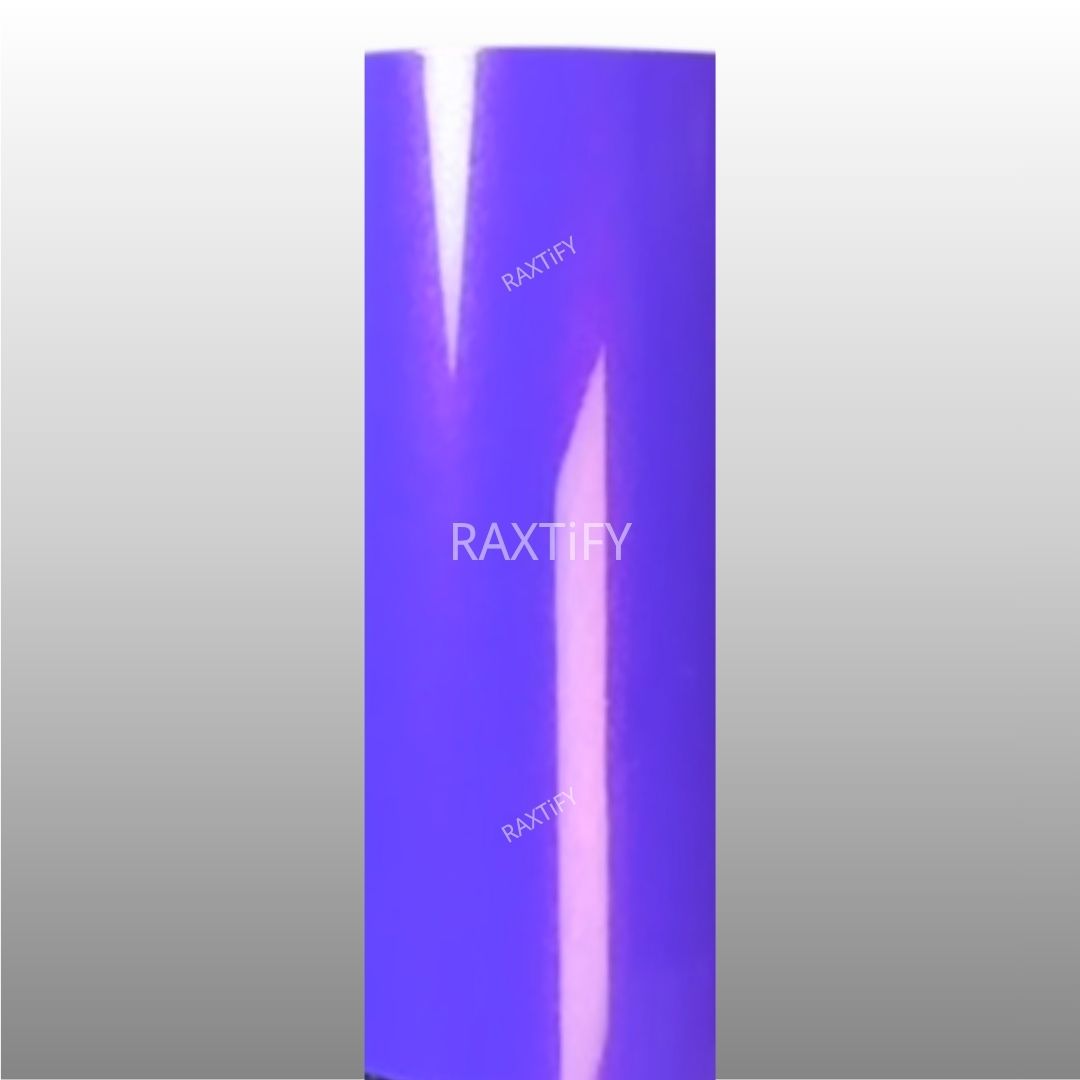

Ultra Gloss Metallic Magenta Purple Paint Protection Film
Ultra Gloss Metallic Magenta Purple Paint Protection Film
Product type
PPF
Price
Price
From $119.00
Availability
In stock
Screen size
Screen resolution
RAM
Storage
CPU
Connectivity
Megapixels
Operation system
Product dimensions
Weight
Сountry of origin
RAXTiFY Color PPF
Structure
Why Choose RAXTiFY Color PPF?
Product Specifications
| Clear PPF | Specifications |
|---|---|
| Technology | High-grade TPU (Thermoplastic Polyurethane) |
| Total Thickness | 7.63mil |
| Top Coat Thickness | 0.31 mil |
| TPU Layer Thickness | 4.80 mil |
| Base Layer Thickness | 1.5 mil |
| Adhesive Thickness | 1.02 mil |
| Release Liner | PET |
| Top Coat | Ultra Gloss/Matte & Self-Healing |
| Adhesive Type | Removable & Reposition Acrylic |
| Width (Standard) | 5ft/ 60in/ 1.52m |
| Length (Standard) | 49ft/15m |
| Application | Wet Apply |
Techniocal Details
| Test | Data | Test Conditions |
|---|---|---|
| Hydrophobic | 40° | Angle contact |
| Self-Healing | 70 °C | Heat Gun |
| Anti-Permeation | Best | Permanent Marker |
| Anti-Yellowing ΔΕ | ≤2.5 | Q-UV, 1000hrs |
| Anti-Chipping | Best | SAE J400 |
| Tensile strength | ≥19(mpa) | GB/T 1040.1 |
| Holding Power(gf/inch) | 2275 | GB/T279224h |
| Initial Tack(gf/inch) | 1500 | GB/T2792 |
| Peel Adhesion | ≥16(N/25mm) | GB/T 2792 |
| Hardness | ≥90 | ISO0868/ASTM D-2240 |
| Tear Strength | 91.5KN/m | GB/T529 |
| Release Force(N/25mm) | 0.25 | paste on steel board, 90° 26'C and 60%, GB2792 |
| Elongation at Break | 340 | GB/T1040.1 |
| Coating Elongation at Break | 109 | GB/T1040 |
| Chemical Resistance | No Detrimental Effect | 1-hour diesel oil immersion, 4 hours antifreeze immersion |
| UV Resistance | 98% | / |
| Water Resistance | No Detrimental Effect | 120 hours immersion |
| Mud Resistance | No Detrimental Effect | 120 hours exposure |
| Salt Resistance | No Detrimental Effect | 120 hours exposure |
| Alkali Resistance (168H) | No abnormalities | 20% sodium hydroxide solution |
| Light Transmission | 89% | / |
| Aging Testing | 90°C and 7 days | No adhesive residue without heat |
| Application Temperature | +20°C to +30°C | / |
| Durability | 8-10years | / |
| Application Method | Wet Application | / |
| Gloss | ≥ 91% | 60° |
