RAXTiFY Color PPF

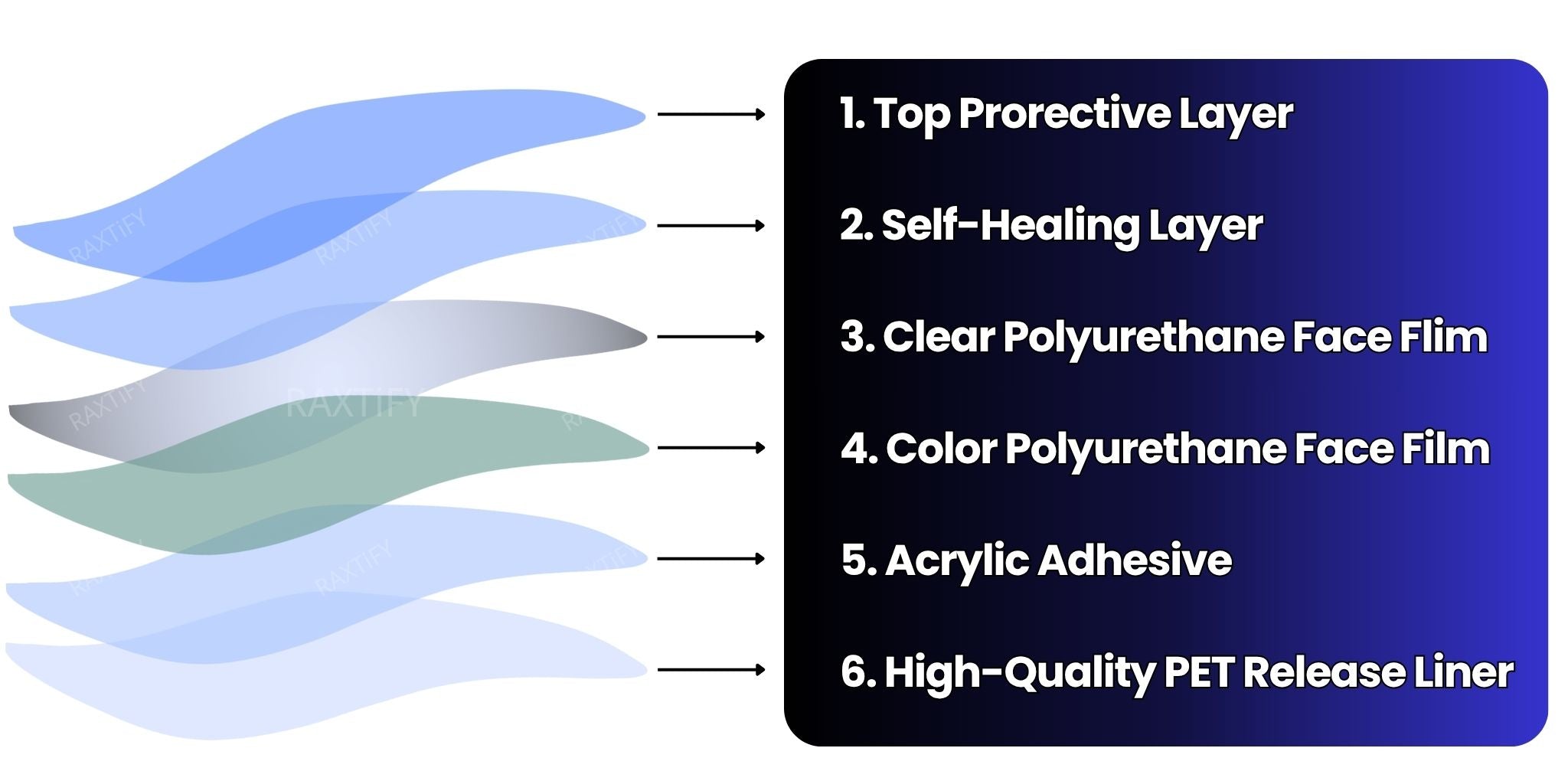

Structure
Why Choose RAXTiFY Color PPF?
Description

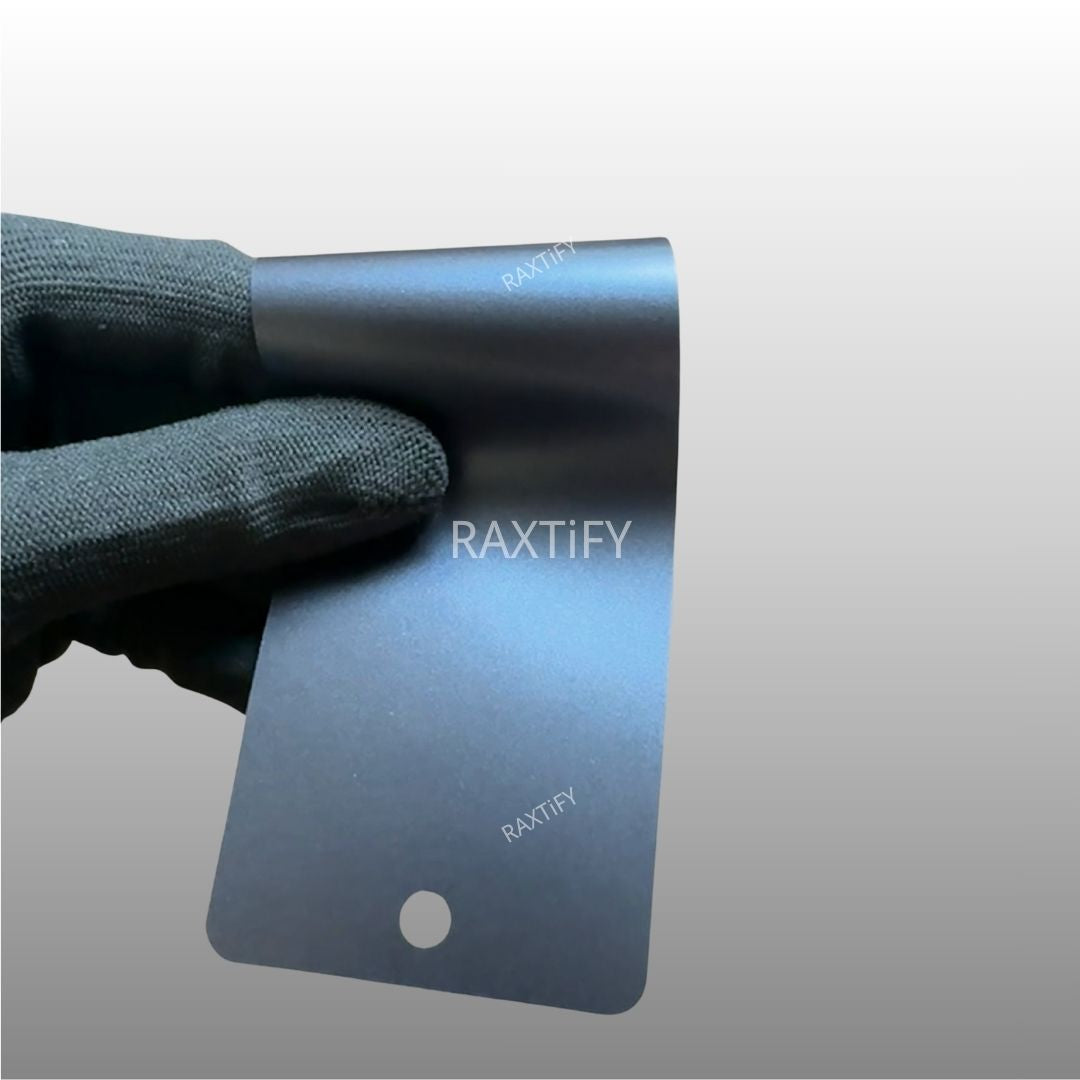

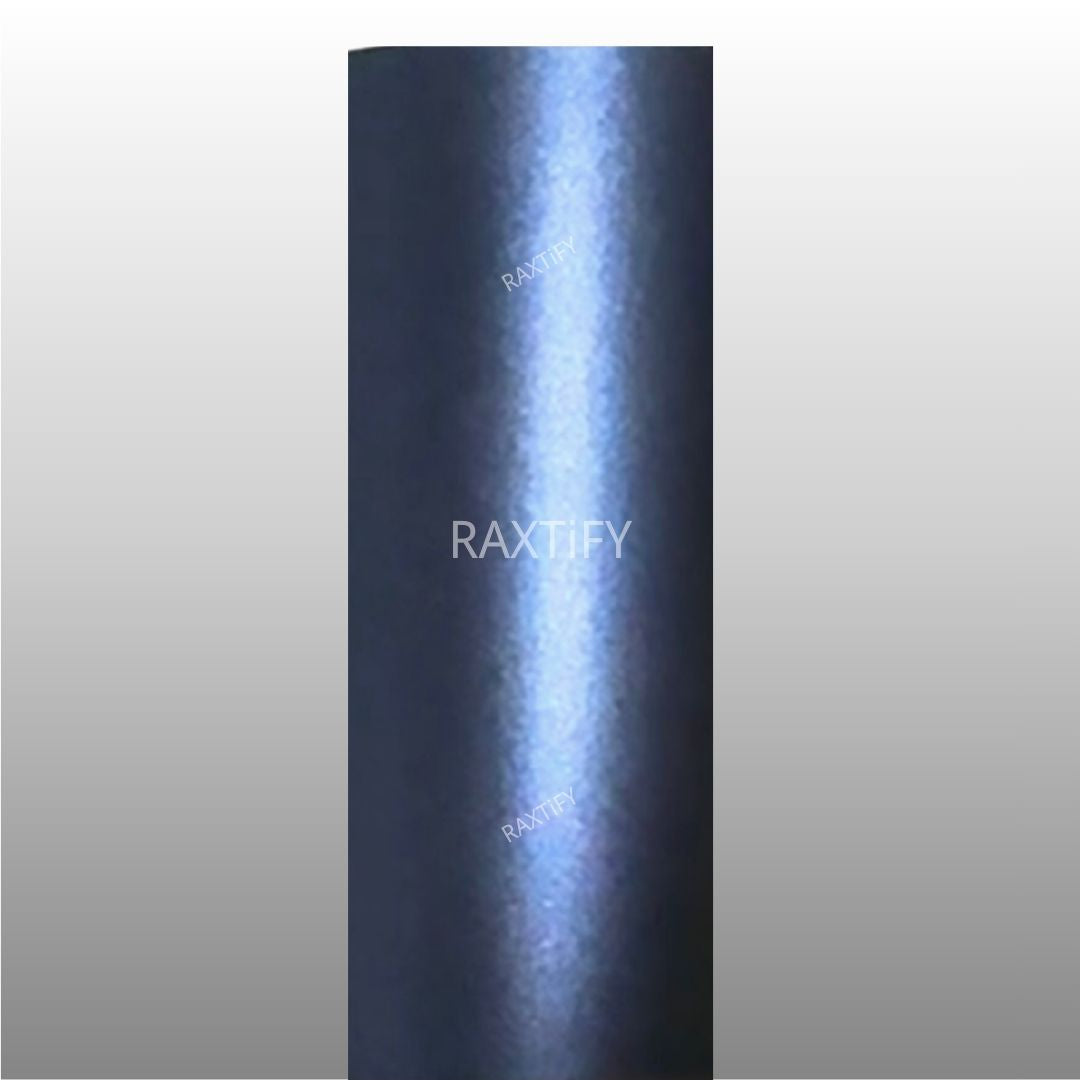

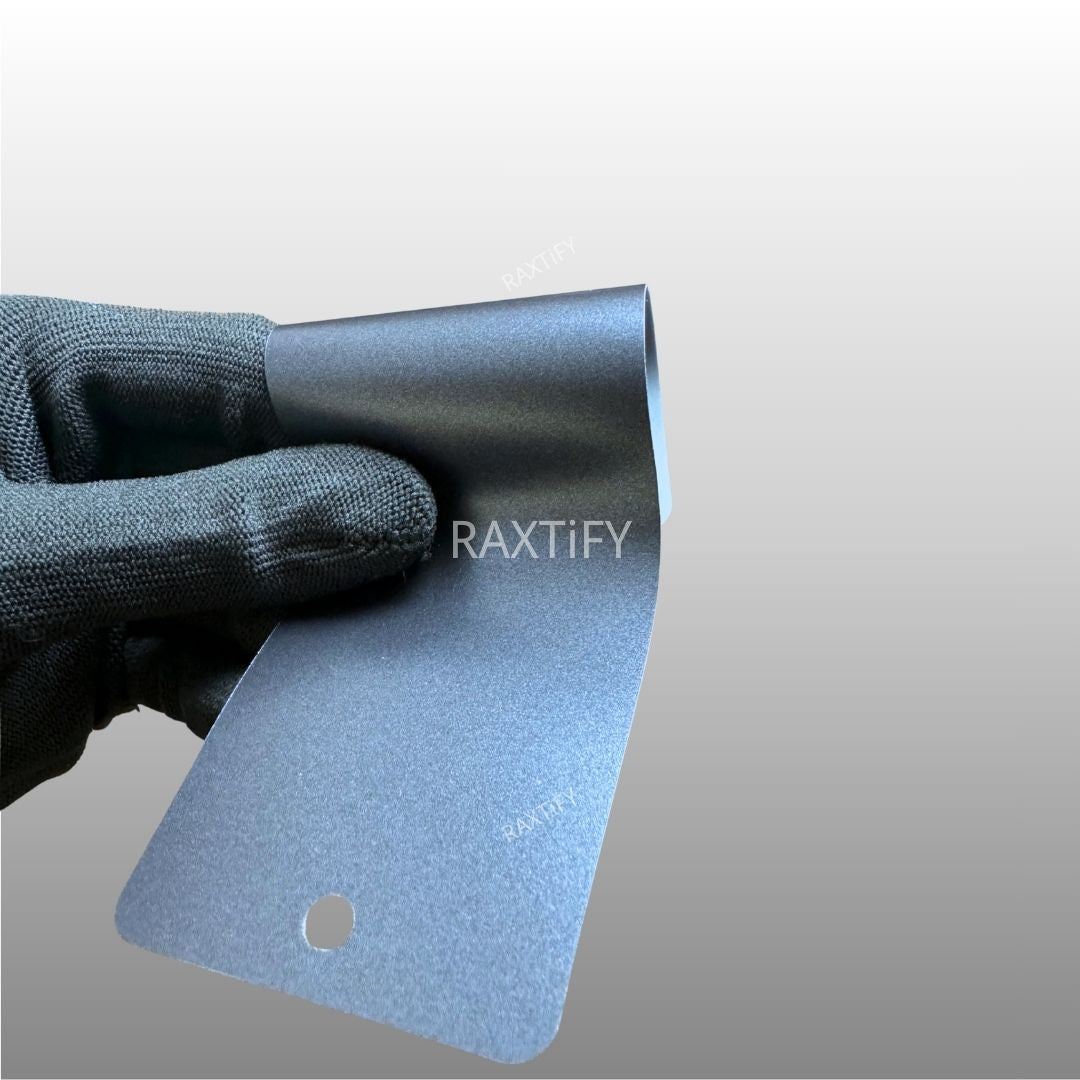

The Ultra Satin Chrome Race Blue Paint Protection Film combines expert-level durability with a striking satin chrome race blue finish. Designed to safeguard your vehicle’s paint from scratches, chips, and environmental damage, this film maintains your car’s crisp appearance while adding a bold, dynamic edge. Its advanced construction ensures long-lasting protection and a smooth, professional application, making it an ideal choice for those demanding both performance and style in their paint protection solutions.
Key Features:
- Finish: Ultra Satin Chrome
- Color: Race Blue
- Material: High-quality TPU (Thermoplastic Polyurethane)
- Thickness: 7.5mil (with adhesive)

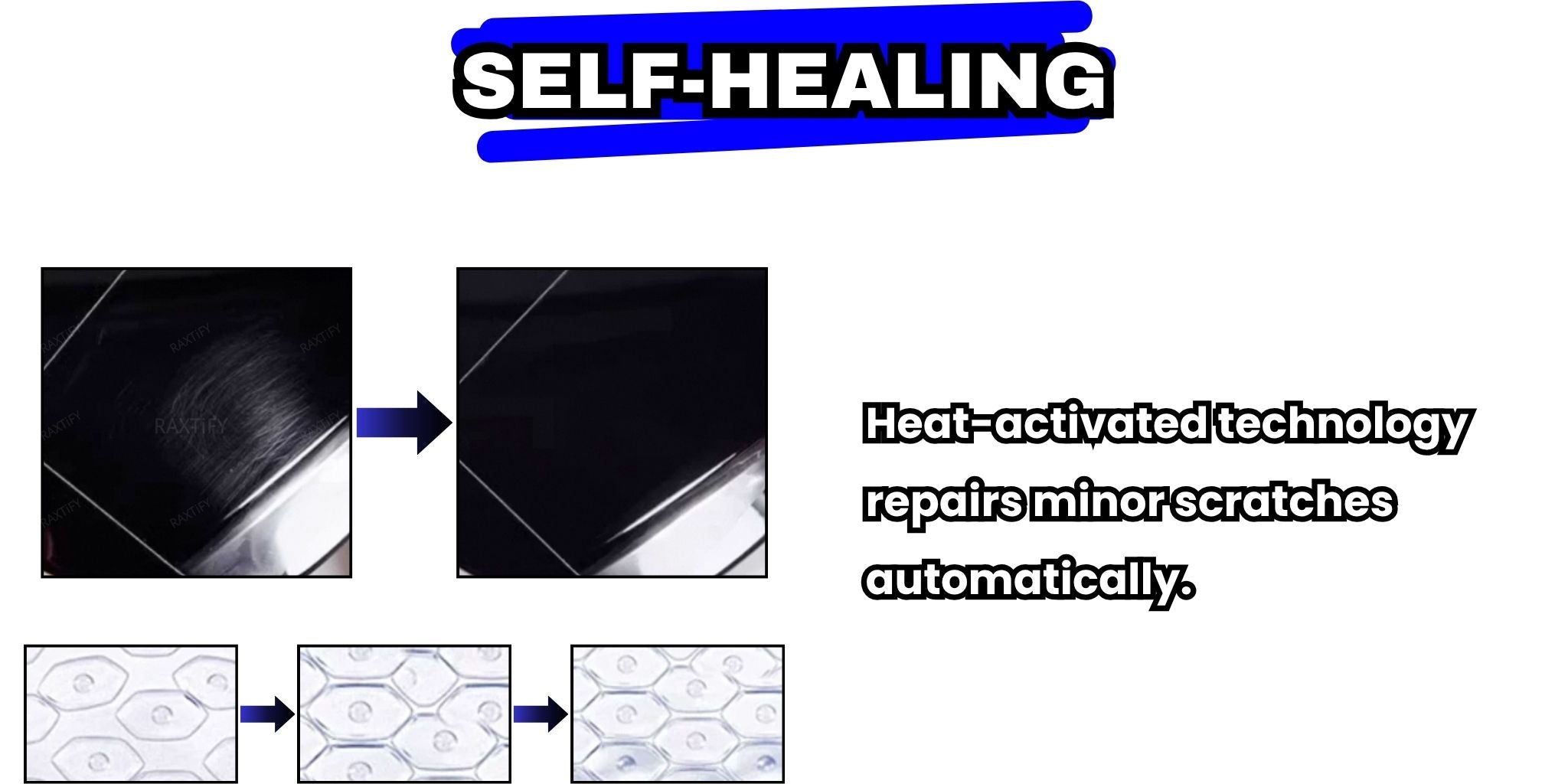

- Self-Healing: Yes (with heat)
- UV & Weather Resistance: Yes
- Hydrophobic Coating: Yes (water and stain repellent)
- Installation Method: Wet Install
- Lifespan: Up to 8-10 years (with proper care)
Product Specifications
| Clear PPF | Specifications |
|---|---|
| Technology | High-grade TPU (Thermoplastic Polyurethane) |
| Total Thickness | 7.63mil |
| Top Coat Thickness | 0.31 mil |
| TPU Layer Thickness | 4.80 mil |
| Base Layer Thickness | 1.5 mil |
| Adhesive Thickness | 1.02 mil |
| Release Liner | PET |
| Top Coat | Ultra Gloss/Matte & Self-Healing |
| Adhesive Type | Removable & Reposition Acrylic |
| Width (Standard) | 5ft/ 60in/ 1.52m |
| Length (Standard) | 49ft/15m |
| Application | Wet Apply |
Techniocal Details
| Test | Data | Test Conditions |
|---|---|---|
| Hydrophobic | 40° | Angle contact |
| Self-Healing | 70 °C | Heat Gun |
| Anti-Permeation | Best | Permanent Marker |
| Anti-Yellowing ΔΕ | ≤2.5 | Q-UV, 1000hrs |
| Anti-Chipping | Best | SAE J400 |
| Tensile strength | ≥19(mpa) | GB/T 1040.1 |
| Holding Power(gf/inch) | 2275 | GB/T279224h |
| Initial Tack(gf/inch) | 1500 | GB/T2792 |
| Peel Adhesion | ≥16(N/25mm) | GB/T 2792 |
| Hardness | ≥90 | ISO0868/ASTM D-2240 |
| Tear Strength | 91.5KN/m | GB/T529 |
| Release Force(N/25mm) | 0.25 | paste on steel board, 90° 26'C and 60%, GB2792 |
| Elongation at Break | 340 | GB/T1040.1 |
| Coating Elongation at Break | 109 | GB/T1040 |
| Chemical Resistance | No Detrimental Effect | 1-hour diesel oil immersion, 4 hours antifreeze immersion |
| UV Resistance | 98% | / |
| Water Resistance | No Detrimental Effect | 120 hours immersion |
| Mud Resistance | No Detrimental Effect | 120 hours exposure |
| Salt Resistance | No Detrimental Effect | 120 hours exposure |
| Alkali Resistance (168H) | No abnormalities | 20% sodium hydroxide solution |
| Light Transmission | 89% | / |
| Aging Testing | 90°C and 7 days | No adhesive residue without heat |
| Application Temperature | +20°C to +30°C | / |
| Durability | 8-10years | / |
| Application Method | Wet Application | / |
| Gloss | ≥ 91% | 60° |
