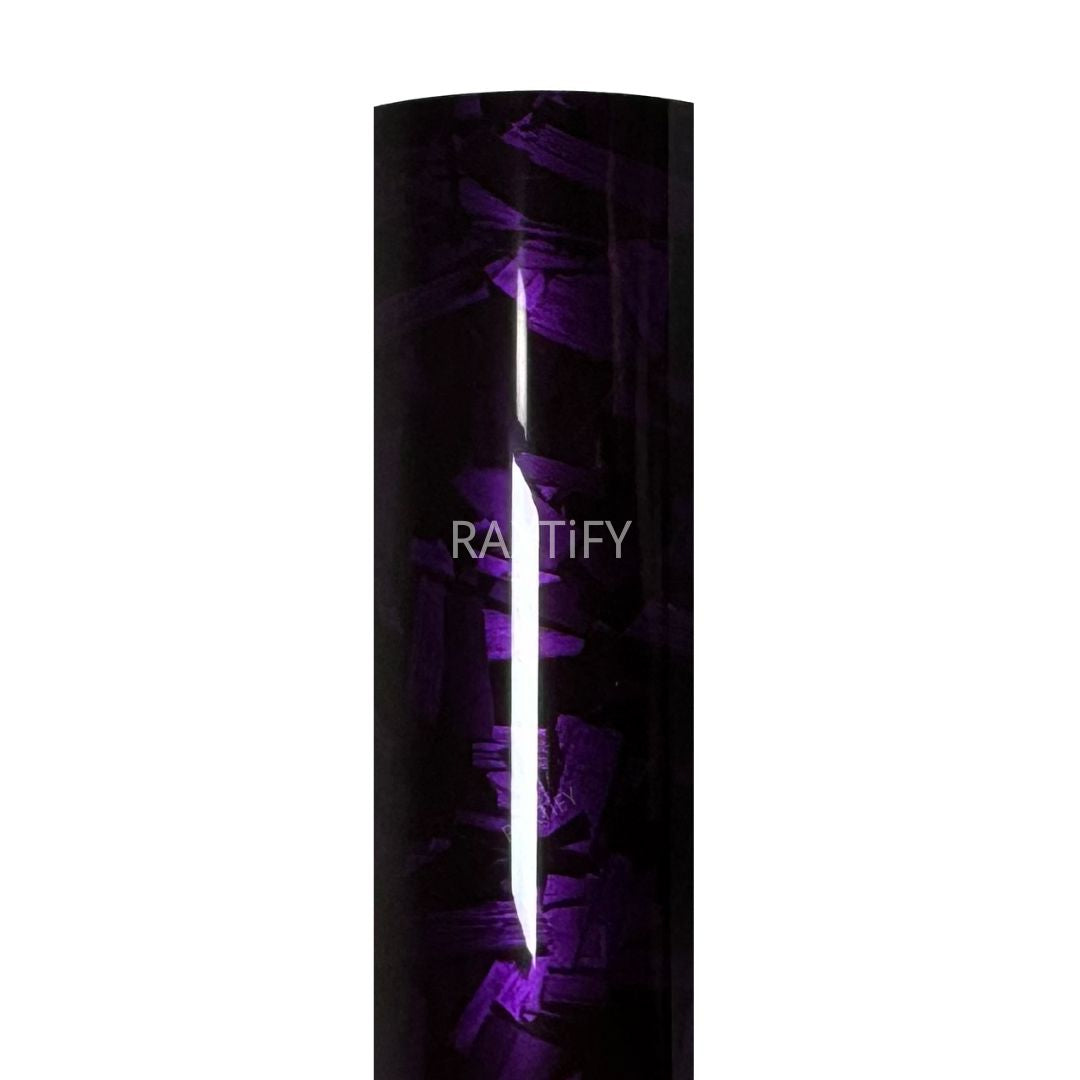

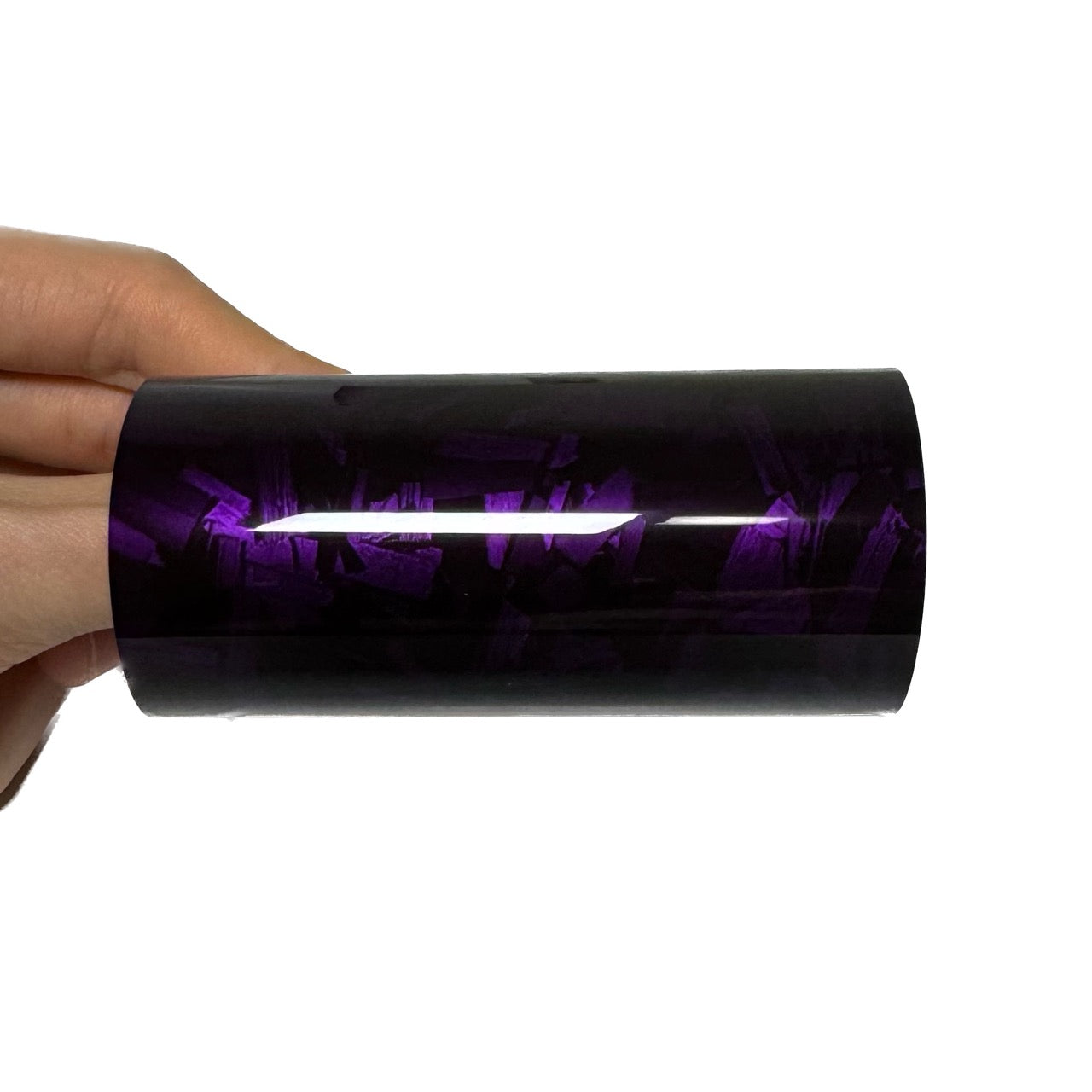

Gloss Camouflage Black Purple Forged Carbon Vinyl Wrap
- Sku: CF16
Air-Release Channel
PET Backing Liner
Low Initial Tack
2-Year Warranty
1. Top Protective film: Included only on full rolls (59ft) of gloss vinyls.
2. Shipping Time: 7–10 days (Free) | 5–7 days (Express).
For smaller, pre-cut pieces of glossy vinyl, the protective film is removed before shipping to ensure a smooth surface without air bubbles or creases. This does not affect the quality of the vinyl.
All matte/ Satin vinyl wraps do not have a protective film, as their surface is naturally resistant to minor scratches and does not require additional protection.
59ft = full roll
69ft = full roll + 10ft pre-cut
75ft = full roll + 16ft pre-cut
4. Products ordered separately may have slight color variations due to different color lots.
5. CAUTION! The images, colors, and finishes on the screen are approximate. For accuracy, refer to the color book or samples.
6. We prioritize sending films with PET backing liners. If unavailable, paper backing liners will be provided. Use a bubble remover/defoamer on the surface before applying for best results.
Film Material & Construction
- Film Type: Premium-grade polymeric calendered vinyl wrap
- Material Structure: Polymeric hybrid vinyl with integrated air-release channels
- Designed Use: Full vehicle wraps and smooth to moderately curved surfaces
- Directional Film: Yes (installation direction must be observed)
- Backing Liner: PET
Thickness
- Vinyl Film Thickness: approx. 0.13 mm
- Total Thickness (with release liner): approx. 0.28–0.30 mm
Adhesive System
Adhesive Type: Solvent-based acrylic adhesive
Adhesive Features:
- Pressure-sensitive
- Transparent appearance
- Designed for automotive exterior use
- Balanced initial tack and repositionability
Adhesive Layer Thickness: approx. 12 μm (dry)
Application & Installation Guidelines
Certain finishes (ultra-gloss, metallic, glitter series) may be firmer than standard vinyl due to surface coating structure. Professional installation is recommended
Recommended Application Temperature
- Installation Environment: +17°C to +25°C
- Service Temperature Range: −45°C to +45°C
Recommended Tools
- Squeegee with soft buffer
- Utility knife
- Masking tape
- Heat gun
- Magnets
- Gloves
- IR thermometer (strongly recommended for accurate post-heating)
Post-Heating Requirements (Critical)
Proper post-heating is essential to release internal film stress and ensure long-term adhesion.
- Flat Surfaces: 110°C
- Curves, Recesses & Overlaps: 130°C
Note: Failure to post-heat correctly may result in edge lifting or shrinkage over time.
Mechanical & Physical Properties (Typical Values)
Elongation at Break:
- MD: ~200%
- CD: ~190%
Tensile Strength:
- MD: ~29 N/mm²
- CD: ~25 N/mm²
Dimensional Stability: ≤ 2% (70°C / 10 min oven test)
Surface Tension: ~34 dynes/cm
Maintenance & Care
- Clean only with pH-neutral automotive shampoo
- Use soft microfiber cloth or touchless wash
- Pressure washing below 2000 PSI only
- Avoid brush-style car washes, abrasive tools, and solvent-based cleaners
- Remove bird droppings, sap, fuel residue, and contaminants promptly
- Vinyl-safe spray wax or sealant only
- Abrasive polish, cutting compounds, ceramic coatings, and overlamination are not recommended
Durability & Warranty
Service life varies by film series, installation quality, environment, and maintenance
Warranty (if applicable) covers material defects only
The following are not covered:
- Improper installation or insufficient post-heating
- Overstretching, overheating, or misuse
- Overlaminate or unapproved surface treatments
- Environmental damage, road debris, or accidents
- Surface imperfections originating from the vehicle’s original paint
Storage & Shelf Life
Indoor or shaded parking is strongly recommended
Shelf Life: Up to 3 years
Storage Conditions:
- Temperature: +10°C to +20°C
- Relative Humidity: approx. 50%
- Store in original packaging
- Keep away from direct sunlight, heat, dust, and moisture
Packaging Information
- Roll Width: 152 cm (60 inches)
- Roll Length: 18 m
- Approximate Roll Weight: 13 kg
Size Chart
Motorcycles: 5ft * 16ft
Mini/ Small Cars: 5ft * 49 ft
Convertible: 5ft * 59 ft
Coupe: 5ft * 59 ft
Sedan: 5ft * 59 ft
Hatchback: 5ft * 59 ft
Sports Car: 5ft * 59 ft
Station Wagon: 5ft * 69 ft
Sport-utility Vehicle (SUV) : 5ft * 69 ft
Minivan: 5ft * 80 ft
Pickup Truck: 5ft * 92 ft
Gloss Camouflage Black Purple Forged Carbon Vinyl Wrap
Description Gloss Camouflage Black Purple Forged Carbon Vinyl Wrap
Give your ride a meaning of modern sophistication with our Gloss Camouflage Black Purple Forged Carbon Vinyl Wrap. The design incorporates a rugged forged carbon texture and subtly captures purple flakes. Make either a statement of the latest in high-tech style or go bold and adventurous-just about everything to make your ride different with this wrap.
Unmatched Design and Aesthetic Appeal
The unique blend of purple forged carbon creates a visual effect that is simply breathtaking. The intricate camouflage pattern adds depth and texture, further enhanced by the gloss finish giving it reflective qualities that really make your vehicle pop with a sleek, polished appeal. Ideal for those wanting a design that's bold yet elegant, this is the purple forged carbon fiber wrap to make your car truly unforgettable.
Premium Quality and Durability
The high-grade polymeric calendared film used in the wrap ensures high performance and durability. The purple forged carbon fiber material gives not only a luxury look but also great durability. Advanced construction protects your vehicle's surface from scratches, road debris, and harsh UV rays while keeping it looking stunning for years to come.
Easy Installation for All Surfaces
This carbon purple vinyl wrap is designed to be easy to apply, with a pressure-sensitive adhesive that is repositionable and bubble-free. From the hood to the roof, over curves, its 30% stretchability makes even difficult installations a snap. The wrap will form a secure bond with your car's surface when applied with heat, creating a flawless finish.
Excellent Protection
The good thing about this purple forged carbon fiber wrap is that, besides making your vehicle look pretty, it protects your vehicle's original paint from road debris and environmental factors such as tar and rock chips. It's UV-resistant to prevent fading, which means your forged carbon with purple flakes is going to keep looking as good as it has when it was applied for some time.
Flexible Options and Affordable Pricing
Whether you are looking for a completely changed look or just a little piece of wrapping, this versatile product has got your back. You can get 59 feet of purple forged carbon fiber wrap for less than $600 which will make your car look astonishingly different without breaking your wallet. You can buy smaller rolls if you have smaller projects to wrap your hood, mirrors, etc.
Gloss Camouflage Black Purple Forged Carbon Vinyl Wrap Specifications：
- High-quality and durable carbon fiber vinyl wrap
- Seamless application across the entire vehicle.
- Long-lasting, durable, and high-performance.
- Water and weatherproof.
- Heat and UV resistant.
- Pressure-sensitive, robust acrylic adhesive.
- Equipped with air-release channels for bubble-free application
- Easy to use: peel and stick
- UV resistant, ensuring years of fade-free use
- Durable, waterproof, and resistant to fading and wrinkling
- Leaves no marks when removed
- Eco-friendly and non-toxic
- Suitable for cars, motorcycles, boats, bikes, and more.
- Customizable for Interior and Exterior
- Forged Carbon Fiber Variants Available
- The depth and weave pattern of authentic carbon fiber
- Lightweight Yet Visually Impactful
- Color: Gloss Camouflage Black Purple
- Finish: Forged Carbon Fiber
- Lifespan: 2-3 years with proper installation and maintenance
- Shipping Time: Standard shipping: 7-12 business days; Faster shipping: 3-5 business days
Structure
Our wrap films consist of 4 layers designed to ensure exceptional performance:
The first layer serves as a protective barrier for the underlying vinyl.
Directly beneath, you'll find high-grade polymeric vinyl fortified with pressure-sensitive acrylic adhesive.
Finally, a layer of top-tier 130um plastic liner adds an extra level of quality to our wrap films. This plastic liner ensures a smoother, super glossy, and lustrous finish.
Item Specifications
| RAXTiFY VINYL | Specifications |
|---|---|
| Technology | High-grade Polymeric Calendared Vinyl Film with Air-Release Channels |
| Top Protective Liner | PET |
| Thickness (Face only) | 3.7mil-4.1mil |
| Thickness (Adhesive) | 1.6 mil (Removable Adhesive with air-release channels) |
| Glue | Solvent based adhesive, (Low-Medium Tack - Easy to reposition) |
| Release Liner | PET/Plastic |
| Width (Standard) | 5ft/ 60in/ 1.52m |
| Length (Standard) | 59ft/ 65yard/ 18m |
| Indoor Lifespan | 3 years when following rules of application and use |
| Outdoor Lifespan | 2 years when following rules of application and use (Except Chrome Wraps) |
Wrap Testing
| RAXTiFY VINYL | Testing Result |
|---|---|
| Dimensional Stability | Shrinkage less than 4% |
| Breaking Strength | 22.7 N/10mm |
| Release Force (N/25mm) | 0.13 (25℃ and 50%) |
| Initial Tack (g/25mm) | 1360 (26℃ and 64%, GB31125-2014) |
| Peel Strength (N/25mm) | 7.02 (25℃and 42%, GB/T2792-1998) |
| Holding Power (h) | 75.09 (25℃ and 50%, GB/T4851-1998) |
| Chemical Resistance | Resists Most Mild Acids, Mild Alkalis, and Salt |
| Aging Testing | No adhesive residue with heat under 65°C after 7 days |
| Aging Test 2 | No adhesive residue without heat under 65°C after 10 days |
| Storing Period | 2 years if stored in +10°С to +20°С for optimal quality, relative humidity 50%, in original package, away from direct sunlight, clean and dry place |
Application
| RAXTiFY VINYL | Application Advices |
|---|---|
| Recommended Tools | Squeegee, buffer, knife, masking tape, heat gun, magnets, gloves, IRR thermometer, IRR heater |
| Application | Standard methods for calendared films. No overstretching and overheating and Post heating is necessary. |
| Post-heating Temperature | 110°C flat surfaces, 130°C curves, and overlaps (Except Chrome Wraps） |
| Recommended Installation Area Temperature | 70 F - 80 F (24 C - 26.5 C) |
| Directional | All vinyl wraps are recommended to be installed directionally |
| Application Method | Dry Application （Except PPF) |
| Aftercare | PH neutral, Avoid wax or solvents |
Got your eyes on a color but not sure if it's the one? Get a FREE small sample first!
Frequently Asked Questions
Is RAXTiFY vinyl easy to install?
RAXTiFY vinyl wraps are made in line with professional uses.Others such as high-gloss, metallic, or glitter series are stiffer than the traditional wraps because of surface coating technology.Although the flat panels can be easily installed by the hands of skilled DIY users, it is highly advised that professional installation be done in complex curves and high visibility areas.
Can I apply overlaminate on RAXTiFY vinyl?
Overlamination should be avoided.Other coating layers can have an influence on surface transparency, bonding and durability.The original surface finish of RAXTiFY vinyl is developed to be the last visual coating.
How should I maintain RAXTiFY vinyl wraps?
- Wash using pH-neutral car shampoo
- Use a soft microfiber cloth or touchless wash
- Pressure washers should remain under 2000 PSI
Cleanse up the contaminants e.g. bird droppings, sap of trees or fuel residues as soon as possible to avoid staining.
Can I use wax or polish on RAXTiFY vinyl?
Vinyl specific spray waxes or sealants are only used; these are mostly used in gloss and metallic finishes.Abrasive polishes, cutting compounds or solvent based chemicals are to be avoided.Any product should always be tested on a small and inconspicuous part of the skin before it can be applied.
How long does RAXTiFY vinyl wrap last?
Wrap lifespan depends on multiple factors, including:
- Film series and finish
- Installation quality
- Environmental exposure
- Maintenance habits
Although RAXTiFY films are designed to give non-textured finishes to the vehicle, the end result could depend on the painted state of the vehicle in the first place.The scratches, dents, rust, bubbles or orange peel that may be present before installation may be left and are not regarded as film defect.
Will removing RAXTiFY vinyl damage my paint?
RAXTiFY vinyl wraps should not harm factory paint when used on OEM paint that is in fine condition and removed without causing damage to the paint.
Does storage affect wrap lifespan?
Parking in interior parts or shaded parking areas mean a lot of less exposure to UV and environmental pressure.In case of an indoor storage, a breathable car cover will be recommended, as it will be helpful to maintain the quality of the finish and increase the wrap lifespan.
