Gloss Ruby Star Vinyl Wrap
- Sku: G22-3M
Air-Release Channel
PET Backing Liner
Low Initial Tack
2-Year Warranty
1. Top Protective film: Included only on full rolls (59ft) of gloss vinyls.
2. Shipping Time: 7–10 days (Free) | 5–7 days (Express).
For smaller, pre-cut pieces of glossy vinyl, the protective film is removed before shipping to ensure a smooth surface without air bubbles or creases. This does not affect the quality of the vinyl.
All matte/ Satin vinyl wraps do not have a protective film, as their surface is naturally resistant to minor scratches and does not require additional protection.
59ft = full roll
69ft = full roll + 10ft pre-cut
75ft = full roll + 16ft pre-cut
4. Products ordered separately may have slight color variations due to different color lots.
5. CAUTION! The images, colors, and finishes on the screen are approximate. For accuracy, refer to the color book or samples.
6. We prioritize sending films with PET backing liners. If unavailable, paper backing liners will be provided. Use a bubble remover/defoamer on the surface before applying for best results.
Film Material & Construction
- Film Type: Premium-grade polymeric calendered vinyl wrap
- Material Structure: Polymeric hybrid vinyl with integrated air-release channels
- Designed Use: Full vehicle wraps and smooth to moderately curved surfaces
- Directional Film: Yes (installation direction must be observed)
- Backing Liner: PET
Thickness
- Vinyl Film Thickness: approx. 0.13 mm
- Total Thickness (with release liner): approx. 0.28–0.30 mm
Adhesive System
Adhesive Type: Solvent-based acrylic adhesive
Adhesive Features:
- Pressure-sensitive
- Transparent appearance
- Designed for automotive exterior use
- Balanced initial tack and repositionability
Adhesive Layer Thickness: approx. 12 μm (dry)
Application & Installation Guidelines
Certain finishes (ultra-gloss, metallic, glitter series) may be firmer than standard vinyl due to surface coating structure. Professional installation is recommended
Recommended Application Temperature
- Installation Environment: +17°C to +25°C
- Service Temperature Range: −45°C to +45°C
Recommended Tools
- Squeegee with soft buffer
- Utility knife
- Masking tape
- Heat gun
- Magnets
- Gloves
- IR thermometer (strongly recommended for accurate post-heating)
Post-Heating Requirements (Critical)
Proper post-heating is essential to release internal film stress and ensure long-term adhesion.
- Flat Surfaces: 110°C
- Curves, Recesses & Overlaps: 130°C
Note: Failure to post-heat correctly may result in edge lifting or shrinkage over time.
Mechanical & Physical Properties (Typical Values)
Elongation at Break:
- MD: ~200%
- CD: ~190%
Tensile Strength:
- MD: ~29 N/mm²
- CD: ~25 N/mm²
Dimensional Stability: ≤ 2% (70°C / 10 min oven test)
Surface Tension: ~34 dynes/cm
Maintenance & Care
- Clean only with pH-neutral automotive shampoo
- Use soft microfiber cloth or touchless wash
- Pressure washing below 2000 PSI only
- Avoid brush-style car washes, abrasive tools, and solvent-based cleaners
- Remove bird droppings, sap, fuel residue, and contaminants promptly
- Vinyl-safe spray wax or sealant only
- Abrasive polish, cutting compounds, ceramic coatings, and overlamination are not recommended
Durability & Warranty
Service life varies by film series, installation quality, environment, and maintenance
Warranty (if applicable) covers material defects only
The following are not covered:
- Improper installation or insufficient post-heating
- Overstretching, overheating, or misuse
- Overlaminate or unapproved surface treatments
- Environmental damage, road debris, or accidents
- Surface imperfections originating from the vehicle’s original paint
Storage & Shelf Life
Indoor or shaded parking is strongly recommended
Shelf Life: Up to 3 years
Storage Conditions:
- Temperature: +10°C to +20°C
- Relative Humidity: approx. 50%
- Store in original packaging
- Keep away from direct sunlight, heat, dust, and moisture
Packaging Information
- Roll Width: 152 cm (60 inches)
- Roll Length: 18 m
- Approximate Roll Weight: 13 kg
Size Chart
Motorcycles: 5ft * 16ft
Mini/ Small Cars: 5ft * 49 ft
Convertible: 5ft * 59 ft
Coupe: 5ft * 59 ft
Sedan: 5ft * 59 ft
Hatchback: 5ft * 59 ft
Sports Car: 5ft * 59 ft
Station Wagon: 5ft * 69 ft
Sport-utility Vehicle (SUV) : 5ft * 69 ft
Minivan: 5ft * 80 ft
Pickup Truck: 5ft * 92 ft
Gloss Ruby Star Vinyl Wrap
Video | Gloss Ruby Star Vinyl Wrap
Gloss Ruby Star Vinyl Wrap on Different Vehicles

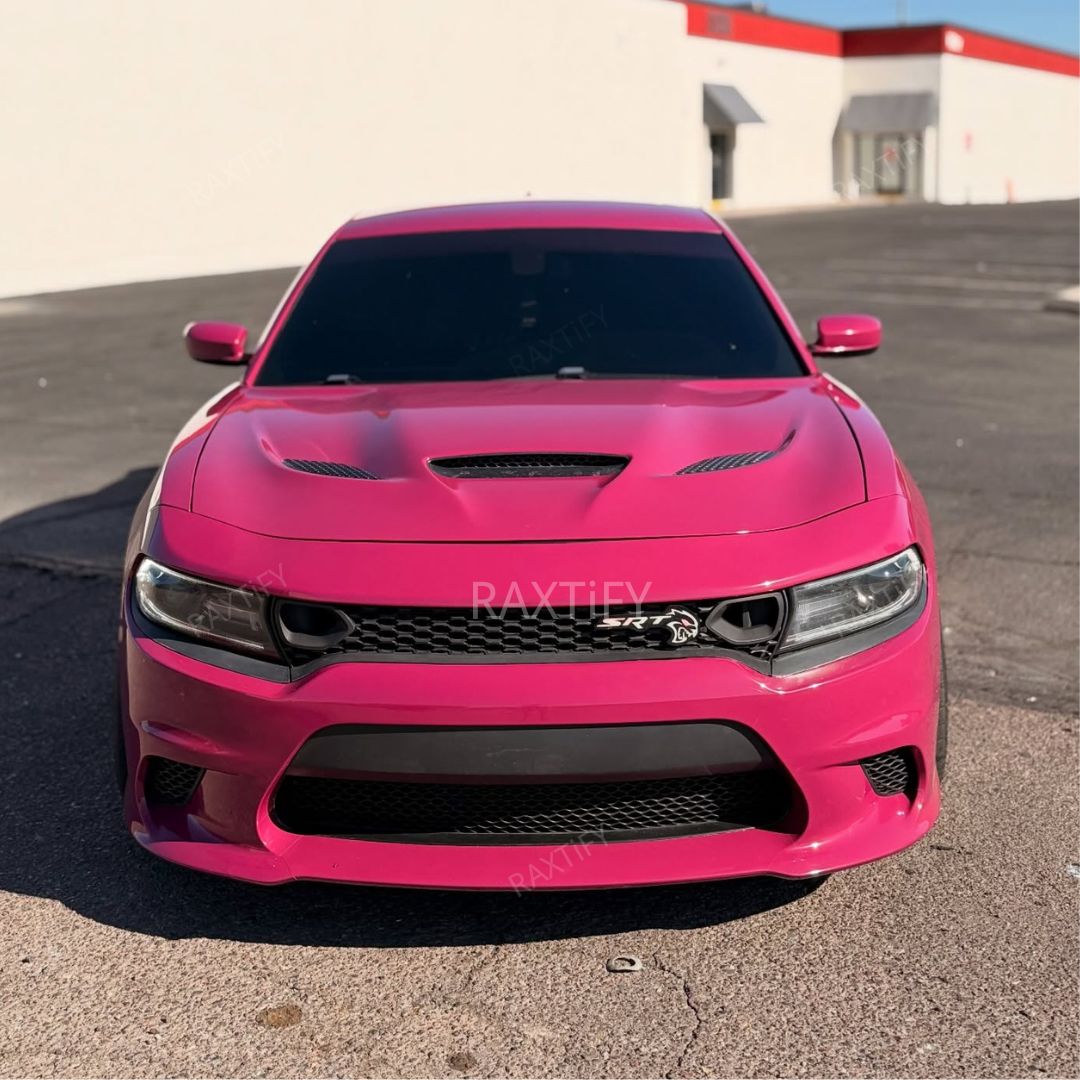

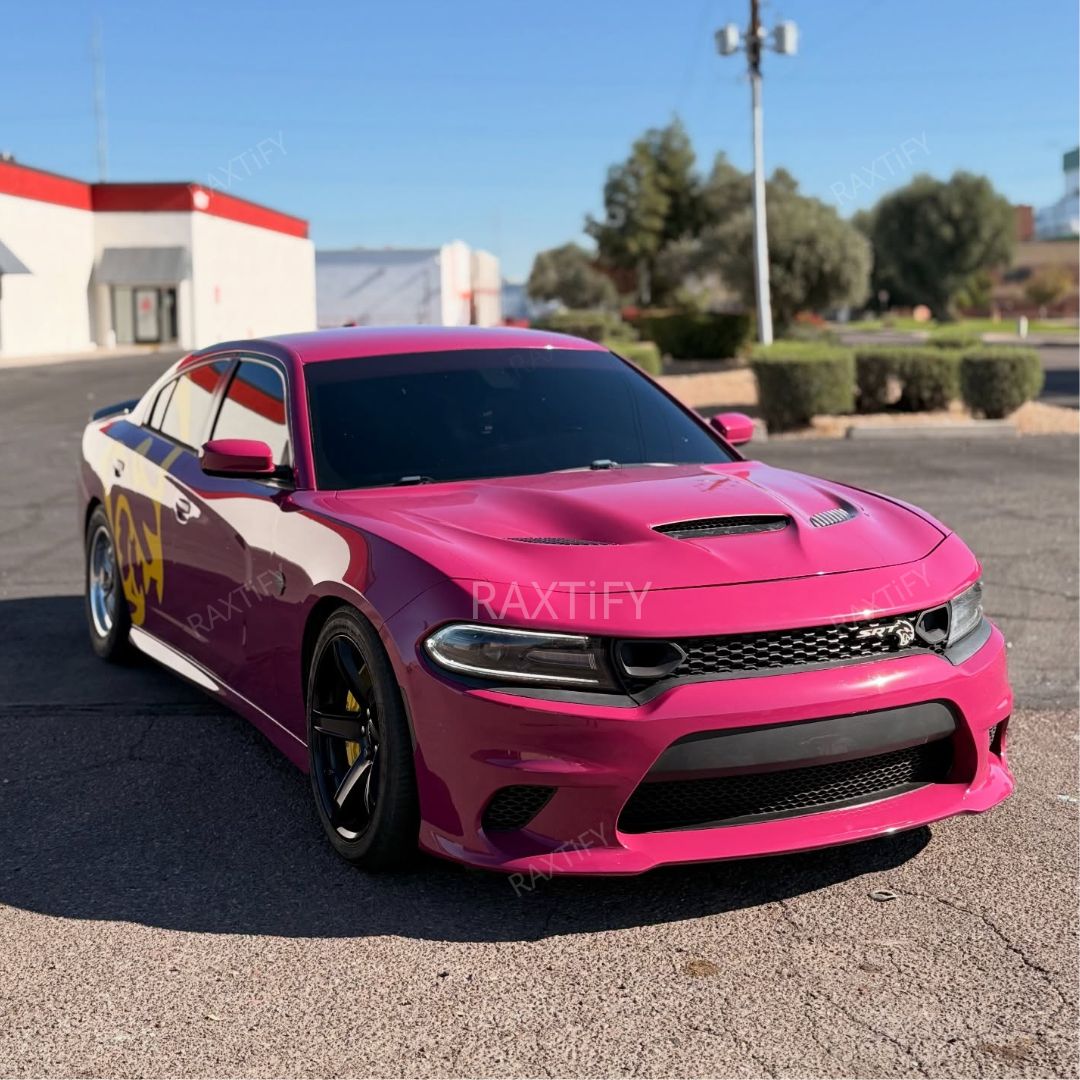

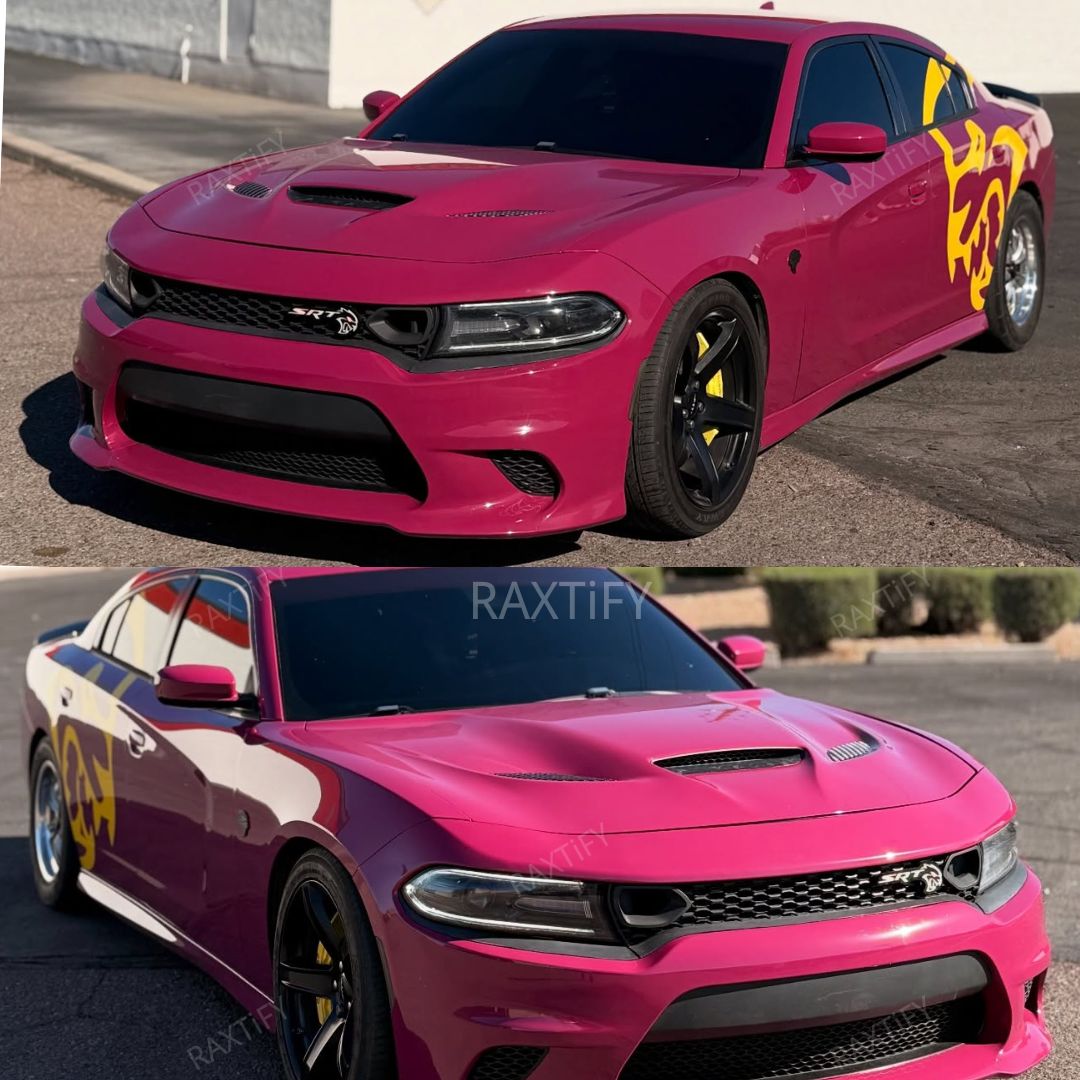

Gloss Ruby Star Vinyl Wrap on Charger
Gloss Ruby Star Vinyl Wrap on Mustang
Gloss Ruby Star Vinyl Wrap on Infiniti
Gloss Ruby Star Vinyl Wrap on Challenger
Gloss Ruby Star Vinyl Wrap on Toyota
Gloss Ruby Star Vinyl Wrap on BMW
Why Should You Select Gloss Ruby Star Vinyl Wrap?
The Meaning Behind Ruby Star Color
Ruby Star represents more than just a colour; it is one interpretation. The red and light purple combination again creates an attractive, sophisticated addition to one's wardrobe!
A Stunning Choice
Gloss Ruby Star vinyl wrap presents itself as an attention-grabbing selection which stands apart from typical options. This purple color exists between red and purple with its unique combination that creates an attractive visual effect for you.
Cost-effective and Easy to Apply
Gloss Ruby Star vinyl wrap functions as an effortless paint replacement because it offers economical affordability together with simple installation. The air-release channels in Gloss Ruby Star vinyl wrap ensure smooth bubble-free installments while extending the protection against small scratches during their years of service since removal leaves no traces behind to maintain pristine automotive condition.
Affordable Luxury
Ruby star red wrap produces high-end gloss finishes along with premium quality that professional paint jobs lack yet it costs a smaller amount thus making it even more appealing. The Gloss Ruby Star Vinyl Wrap delivers both superior form and functionality for everyday enjoyment and future profit gain in your vehicle.
Features of Gloss Ruby Star Vinyl Wrap
Give a great combo of style and sparkle to your car with the next-level upgrade using Class Gloss Ruby Star Vinyl Wrap. This outstanding Ruby Star wrap exhibits a deep ruby-red color tone, and is well-glossy, reflecting light with an awesome view. It is not just a wrap; rather, it is a pass for your vehicle to be transformed into a luxurious head-turner. It is a wrap to any car, truck, SUV, even motorcycles-adding a timelessly alluring feel to whatever your style is.
Easy to Apply for Any Skill Level
Gloss Ruby Star Vinyl Wraps are made to be installed easily by both beginners and professionals through quick installation processes. Application is bubble-free because of its air-release technology while its repositionable adhesive lets users make easy modifications. Bumpers and side mirrors become simple targets for wrapping because the material extends smoothly while maintaining its toughness. When the time comes to alter your vehicle the Gloss Ruby Star Vinyl Wrap can be removed while causing no damage to your car's paint or leaving behind any adhesive residue.
Safe Removal
Finally, be rest assured that our premium Gloss Ruby Star Vinyl Wrap will not leave any damage on the underlying surface it is being removed from. No residue is left, just a pristine finish.
Multi-Purpose and Easy to Clean
Open to Flexibility and easy to maintain because of its heat-stretchable qualities allowing a perfect finish on all vehicle parts with Gloss Ruby Star Vinyl Wrap! Waterproof, fade-resistant and makes your car immaculate with little effort.
Better Protection
Ruby Red Vinyl Wrap is designed not only to be beautiful but also very durable for everyday wear and tear. High-performance material keeps your car safe from ultraviolet rays, minor scratches, and road debris; hence, your vehicle stays great-looking and well-protected. Tough, weather-resistant construction is suitable for long usage regardless of the weather.
Premium Quality Wrap
Gloss Ruby Star Vinyl Wrap is one of the best in the market, It is Designed with the Best Material Performance on cars, motorcycles, and boats And Bikes from high-quality material for the best performance in each corner, which you can use for daily use.
More Features
- Premium, long-lasting vinyl wrap
- Suitable for cars, motorcycles, boats, bikes, and more
- UV-resistant for fade-free longevity
- Simple peel-and-stick application
- No residue upon removal
- Equipped with air-release channels for bubble-free application
- Eco-friendly and non-toxic
- Waterproof and resistant to fading and wrinkling.
Gloss Ruby Star Vinyl Specifications:
- Colour: Ruby Star
- Finish: Gloss
- Material: High-grade polymetric calendered vinyl film
- Lifespan: 2-3 years with proper installation and maintenance
- Recommended Uses: Automotive
- Shipping Time: Standard shipping: 7-12 days; Faster shipping: 3-5 days
- Sizes Available: 5ft x 3ft, 5ft x 10ft, 5ft x 16ft, 5ft x 33ft, 5ft x 49ft, 5ft x 59ft, 5ft x 69ft, 5ft x 75ft
Things You Should Know:
Structure
Our wrap films consist of 4 layers designed to ensure exceptional performance:
The first layer serves as a protective barrier for the underlying vinyl.
Directly beneath, you'll find high-grade polymeric vinyl fortified with pressure-sensitive acrylic adhesive.
Finally, a layer of top-tier 130um plastic liner adds an extra level of quality to our wrap films. This plastic liner ensures a smoother, super glossy, and lustrous finish.
Item Specifications
| RAXTiFY VINYL | Specifications |
|---|---|
| Technology | High-grade Polymeric Calendared Vinyl Film with Air-Release Channels |
| Top Protective Liner | PET |
| Thickness (Face only) | 3.7mil-4.1mil |
| Thickness (Adhesive) | 1.6 mil (Removable Adhesive with air-release channels) |
| Glue | Solvent based adhesive, (Low-Medium Tack - Easy to reposition) |
| Release Liner | PET/Plastic |
| Width (Standard) | 5ft/ 60in/ 1.52m |
| Length (Standard) | 59ft/ 65yard/ 18m |
| Indoor Lifespan | 3 years when following rules of application and use |
| Outdoor Lifespan | 2 years when following rules of application and use (Except Chrome Wraps) |
Wrap Testing
| RAXTiFY VINYL | Testing Result |
|---|---|
| Dimensional Stability | Shrinkage less than 4% |
| Breaking Strength | 22.7 N/10mm |
| Release Force (N/25mm) | 0.13 (25℃ and 50%) |
| Initial Tack (g/25mm) | 1360 (26℃ and 64%, GB31125-2014) |
| Peel Strength (N/25mm) | 7.02 (25℃and 42%, GB/T2792-1998) |
| Holding Power (h) | 75.09 (25℃ and 50%, GB/T4851-1998) |
| Chemical Resistance | Resists Most Mild Acids, Mild Alkalis, and Salt |
| Aging Testing | No adhesive residue with heat under 65°C after 7 days |
| Aging Test 2 | No adhesive residue without heat under 65°C after 10 days |
| Storing Period | 2 years if stored in +10°С to +20°С for optimal quality, relative humidity 50%, in original package, away from direct sunlight, clean and dry place |
Application
| RAXTiFY VINYL | Application Advices |
|---|---|
| Recommended Tools | Squeegee, buffer, knife, masking tape, heat gun, magnets, gloves, IRR thermometer, IRR heater |
| Application | Standard methods for calendared films. No overstretching and overheating and Post heating is necessary. |
| Post-heating Temperature | 110°C flat surfaces, 130°C curves, and overlaps (Except Chrome Wraps） |
| Recommended Installation Area Temperature | 70 F - 80 F (24 C - 26.5 C) |
| Directional | All vinyl wraps are recommended to be installed directionally |
| Application Method | Dry Application （Except PPF) |
| Aftercare | PH neutral, Avoid wax or solvents |
Got your eyes on a color but not sure if it's the one? Get a FREE small sample first!
Frequently Asked Questions
Is RAXTiFY vinyl easy to install?
RAXTiFY vinyl wraps are made in line with professional uses.Others such as high-gloss, metallic, or glitter series are stiffer than the traditional wraps because of surface coating technology.Although the flat panels can be easily installed by the hands of skilled DIY users, it is highly advised that professional installation be done in complex curves and high visibility areas.
Can I apply overlaminate on RAXTiFY vinyl?
Overlamination should be avoided.Other coating layers can have an influence on surface transparency, bonding and durability.The original surface finish of RAXTiFY vinyl is developed to be the last visual coating.
How should I maintain RAXTiFY vinyl wraps?
- Wash using pH-neutral car shampoo
- Use a soft microfiber cloth or touchless wash
- Pressure washers should remain under 2000 PSI
Cleanse up the contaminants e.g. bird droppings, sap of trees or fuel residues as soon as possible to avoid staining.
Can I use wax or polish on RAXTiFY vinyl?
Vinyl specific spray waxes or sealants are only used; these are mostly used in gloss and metallic finishes.Abrasive polishes, cutting compounds or solvent based chemicals are to be avoided.Any product should always be tested on a small and inconspicuous part of the skin before it can be applied.
How long does RAXTiFY vinyl wrap last?
Wrap lifespan depends on multiple factors, including:
- Film series and finish
- Installation quality
- Environmental exposure
- Maintenance habits
Although RAXTiFY films are designed to give non-textured finishes to the vehicle, the end result could depend on the painted state of the vehicle in the first place.The scratches, dents, rust, bubbles or orange peel that may be present before installation may be left and are not regarded as film defect.
Will removing RAXTiFY vinyl damage my paint?
RAXTiFY vinyl wraps should not harm factory paint when used on OEM paint that is in fine condition and removed without causing damage to the paint.
Does storage affect wrap lifespan?
Parking in interior parts or shaded parking areas mean a lot of less exposure to UV and environmental pressure.In case of an indoor storage, a breathable car cover will be recommended, as it will be helpful to maintain the quality of the finish and increase the wrap lifespan.
