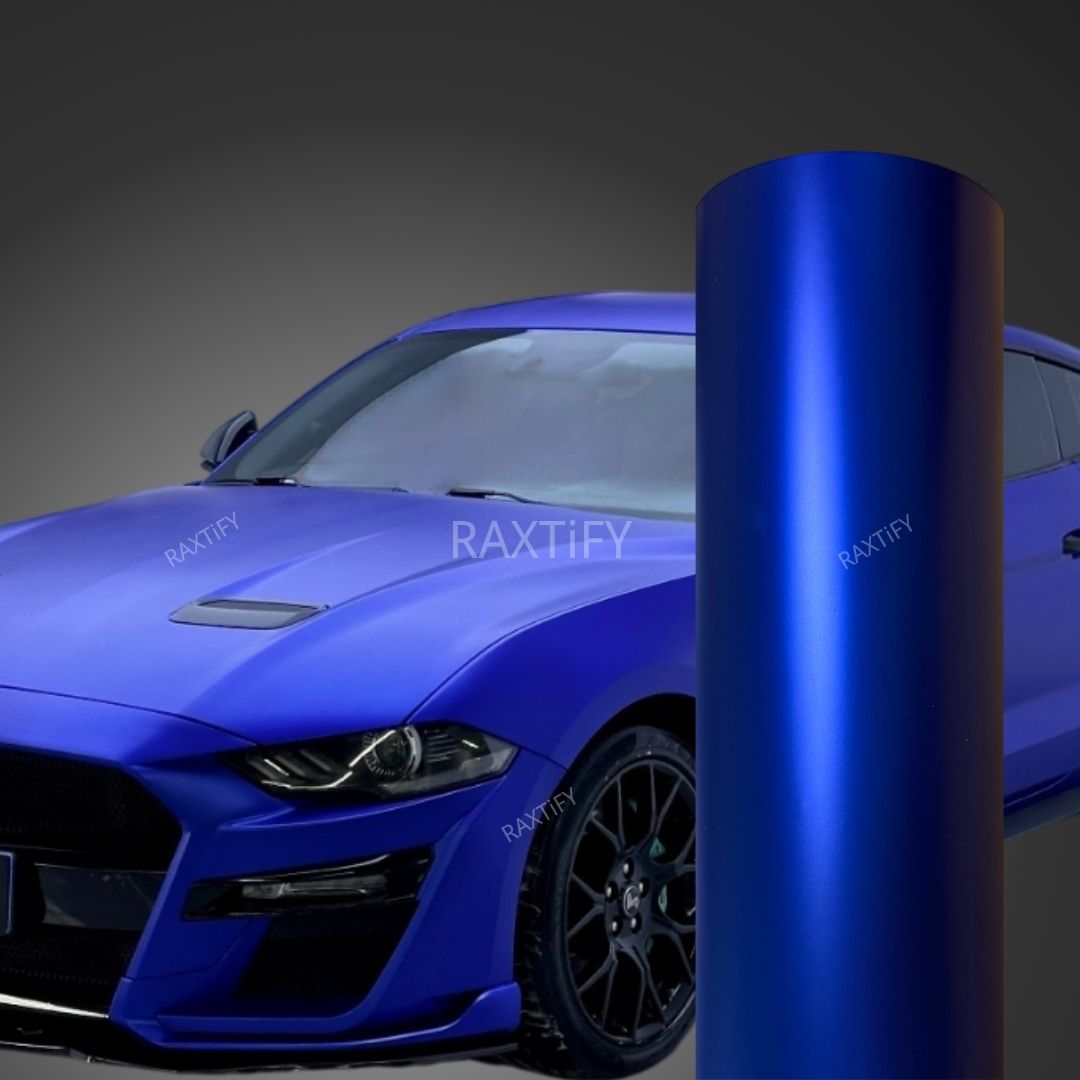

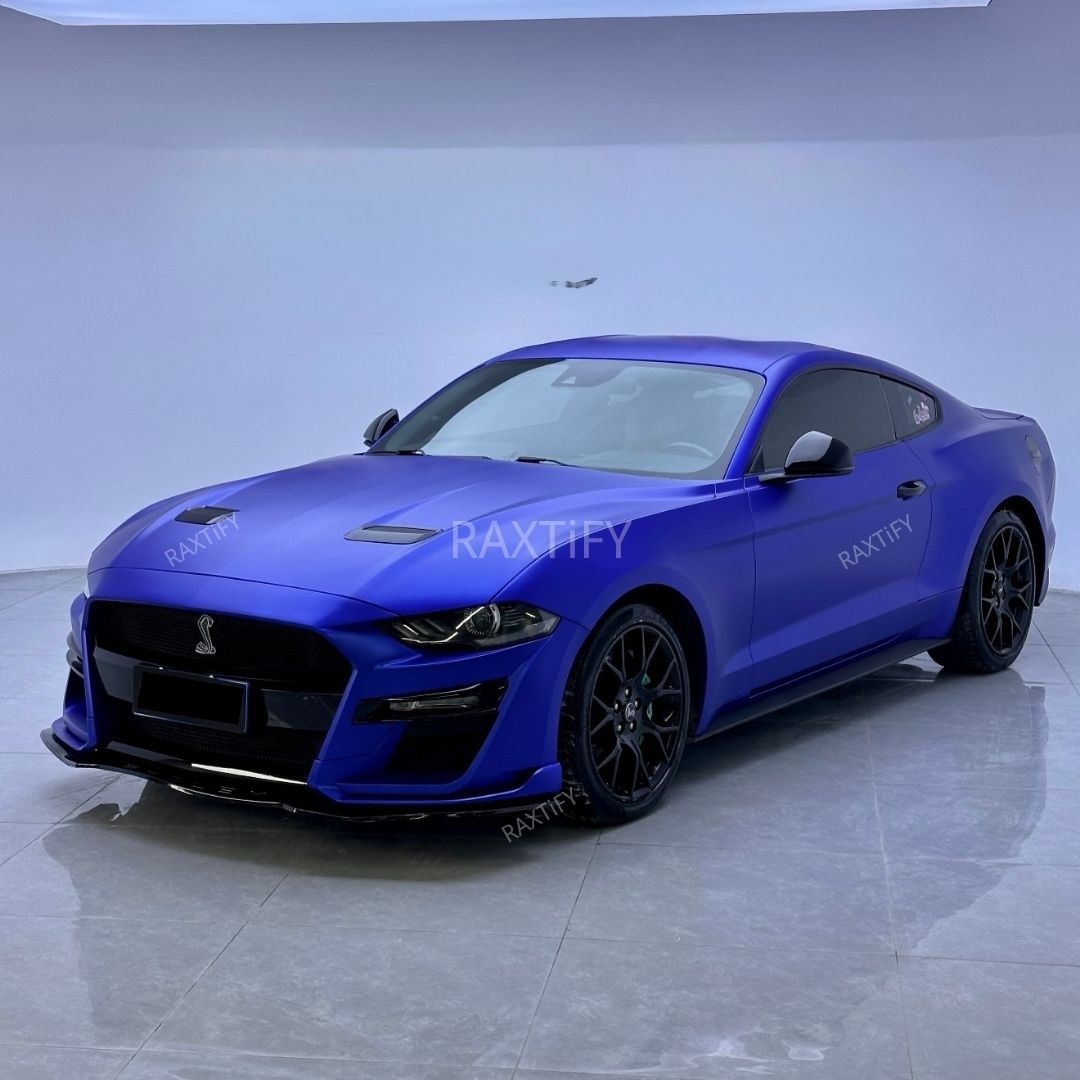

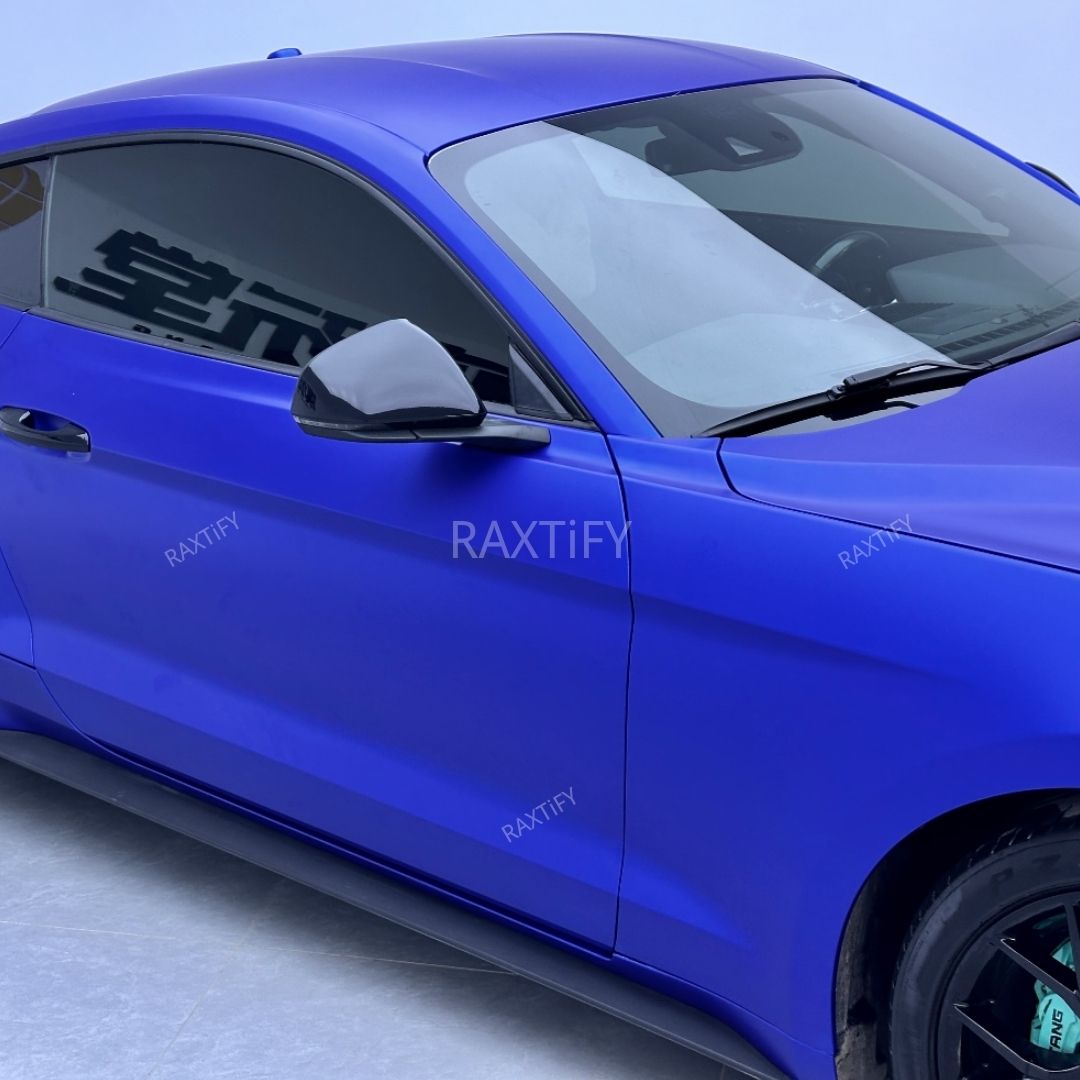

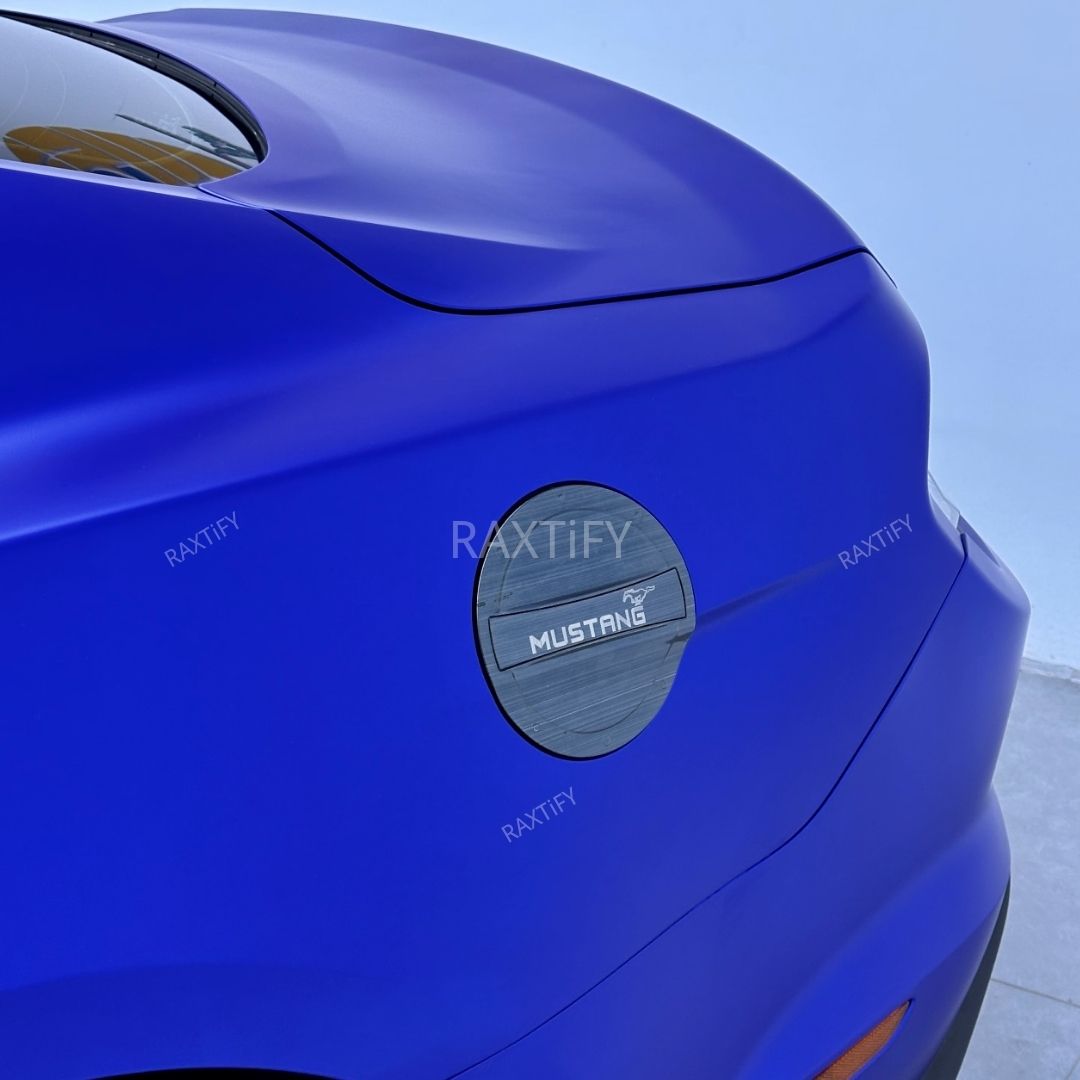

Matte Chrome Royal Blue Vinyl Wrap
- Sku: CH7-3M
Air-Release Channel
PET Backing Liner
Low Initial Tack
Quality Warranty
1. Top Protective film: Included only on full rolls (59ft) of gloss vinyls.
2. Shipping Time: 7-10 days (Free) | 3-5 days (Express).
For smaller, pre-cut pieces of glossy vinyl, the protective film is removed before shipping to ensure a smooth surface without air bubbles or creases. This does not affect the quality of the vinyl.
All matte/ Satin vinyl wraps do not have a protective film, as their surface is naturally resistant to minor scratches and does not require additional protection.
59ft = full roll
69ft = full roll + 10ft pre-cut
75ft = full roll + 16ft pre-cut
4. Products ordered separately may have slight color variations due to different color lots.
5. CAUTION! The images, colors, and finishes on the screen are approximate. For accuracy, refer to the color book or samples.
6. We prioritize sending films with PET backing liners. If unavailable, paper backing liners will be provided. Use a bubble remover/defoamer on the surface before applying for best results.
Film Material & Construction
- Film Type: Premium-grade polymeric calendered vinyl wrap
- Material Structure: Polymeric hybrid vinyl with integrated air-release channels
- Designed Use: Full vehicle wraps and smooth to moderately curved surfaces
- Directional Film: Yes (installation direction must be observed)
- Backing Liner: PET
Thickness
- Vinyl Film Thickness: 3.7–4.1 mil
Adhesive System
Adhesive Type: Solvent-based acrylic adhesive
Adhesive Features:
- Pressure-sensitive
- Transparent appearance
- Designed for automotive exterior use
- Balanced initial tack and repositionability
Adhesive Layer Thickness: approx. 12 μm (dry)
Application & Installation Guidelines
Certain finishes (ultra-gloss, metallic, glitter series) may be firmer than standard vinyl due to surface coating structure. Professional installation is recommended
Recommended Application Temperature
- Installation Environment: 20°C–30°C (68°F–86°F)
- Service Temperature Range: −45°C to +45°C
Recommended Tools
- Squeegee with soft buffer
- Utility knife
- Masking tape
- Heat gun
- Magnets
- Gloves
- IR thermometer (strongly recommended for accurate post-heating)
Post-Heating Requirements (Critical)
Proper post-heating is essential to release internal film stress and ensure long-term adhesion.
- Flat Surfaces: 95°C–110°C
- Curves, Recesses & Overlaps: up to 120°C
Note: Failure to post-heat correctly may result in edge lifting or shrinkage over time.
Mechanical & Physical Properties (Typical Values)
Elongation at Break:
- MD: ~200%
- CD: ~190%
Tensile Strength: 22.7 N/10mm
Dimensional Stability: ≤ 2% (70°C / 10 min oven test)
Surface Tension: ~34 dynes/cm
Maintenance & Care
- Clean only with pH-neutral automotive shampoo
- Use soft microfiber cloth or touchless wash
- Pressure washing below 2000 PSI only
- Avoid brush-style car washes, abrasive tools, and solvent-based cleaners
- Remove bird droppings, sap, fuel residue, and contaminants promptly
- Vinyl-safe spray wax or sealant only
- Abrasive polish, cutting compounds, ceramic coatings, and overlamination are not recommended
Durability & Warranty
Service life varies by film series, installation quality, environment, and maintenance
Warranty (if applicable) covers material defects only
The following are not covered:
- Improper installation or insufficient post-heating
- Overstretching, overheating, or misuse
- Overlaminate or unapproved surface treatments
- Environmental damage, road debris, or accidents
- Surface imperfections originating from the vehicle’s original paint
Storage & Shelf Life
Indoor or shaded parking is strongly recommended
Shelf Life: Up to 3 years
Storage Conditions:
- Temperature: +10°C to +20°C
- Relative Humidity: approx. 50%
- Store in original packaging
- Keep away from direct sunlight, heat, dust, and moisture
Packaging Information
- Roll Width: 152 cm (60 inches)
- Roll Length: 18 m
- Approximate Roll Weight: 13 kg
Size Chart
Motorcycles: 5ft * 16ft
Mini/ Small Cars: 5ft * 49 ft
Convertible: 5ft * 59 ft
Coupe: 5ft * 59 ft
Sedan: 5ft * 59 ft
Hatchback: 5ft * 59 ft
Sports Car: 5ft * 59 ft
Station Wagon: 5ft * 69 ft
Sport-utility Vehicle (SUV) : 5ft * 69 ft
Minivan: 5ft * 80 ft
Pickup Truck: 5ft * 92 ft
Matte Chrome Royal Blue Vinyl Wrap
Trying to install Matte Chrome Car Wrap would be more precise than the standard gloss or matte vinyl. Since chrome based films contain a metallic layer and less stretch tolerance, it is less forgiving during installation. This material is usually prescribed to the more experienced installers, however with due care, the skilled DIYers can also deliver good results.
Is It Suitable for DIY Installation?
- Novice level: Not advisable.
- Intermediate level: This may be possible on flat or simple panels.
- Professional level: Best fits full vehicle wraps.
Matte chrome wraps are more prone to overstretching, creasing and contamination of the surface. Unless this is your first wrap, it is generally easier to start with non-chrome vinyl.
Tools You Will Need
To have a clean and efficient installation, prepare the following:
- Heat gun (exact control of temperature is very important)
- Felt-edge squeegee (so as not to scratch the chrome surface)
- Utility knife or precision cutter with sharp edges.
- Cleaner on surface (isopropyl alcohol is recommended)
- Microfiber cloths (lint-free)
- Masking tape (to position)
- Gloves (to minimize fingerprint and enhance handling)
Key Installation Steps
-
Surface Preparation
Wash the car. Clean dust, grease, and wax. Any contamination will be very noticeable in the presence of a chrome finish.
-
Panel Planning
Measure and cut the vinyl in advance and prepare installation in panel-by-panel. Do not over reposition since chrome films have the ability to leave a trace.
-
Careful Application
Place the film slowly with light even pressure. Do not overstretch - the conformability of chrome vinyl is limited in comparison to typical wraps.
-
Controlled Heating
Heat a heat gun at moderate temperatures to aid the film in conforming. Excessive heating can cause damage to the metallic layer or change the finish.
-
Edge Sealing
Make sure that all edges are well sealed to avoid lifting. It is advisable to post-heat it to ensure its durability. Noticeable Tips & Precautions.
Important Tips and Precautions
- The Do Not Overstretch: Once this has been done permanently, then it can permanently distort the chrome effect.
- Minimize repositioning: Re-lifting the film can either leave any marks or diminish the adhesion.
- Labor under regulated conditions: Optimal temperature is 18-25o C (64-77o F)
- Apply adequate lighting: Assists in the early detection of bubbles, wrinkles or defects.
- Test on small sections first: This is particularly true when it comes to being new in chrome wraps.
Professional Recommendation
Given the exceptional makeup of matte chrome vinyl, numerous installers choose professional application when doing full wraps. Matte chrome films are typically more technique and patience-intensive than standard materials.
Why Choose RAXTiFY
The right matte chrome candy red car wrap is not only about color, but about conformity, longevity, and performance in installing the car wrap. The following is how RAXTiFY would position itself as a trusted supplier in the U.S. market.
Built on Manufacturing Experience
RAXTiFY has a production-based background as opposed to a pure reseller focus. This will provide a closer control over:
- Film formulation (adhesive, PVC layers)
- Uniformity of finish (uniformity matte chrome uniformity)
- Stability between orders in batches.
This helps to minimize the frequent problem of color variation between rolls, compared with most market sellers.
Consistent Quality Control Standards
The production of each batch is done with controlled parameters to guarantee:
- Consistent matte chrome appearance (there are no gloss spots that are uneven)
- Sturdy air-release channels to install the bubbles free.
- Balanced tack adhesive (strong hold, not damaging OEM paint)
This is especially crucial to chrome-based films, where the inconsistency is more noticeable than a normal gloss or matte wrap.
Focused on the U.S. Market
The RAXTiFY products are designed based on the installers in the U.S and conditions:
- Interoperability with popular installation tools and methods.
- Adequacy in different climatic conditions (heat, UV exposure, humidity)
- Packaging and sizing were in line with the common U.S. vehicle wrap requirements.
This saves friction to both professional stores and DIYers.
Differentiation vs. Other Wrap Brands
Whereas brands such as Teckwrap and Inozetek boast a large catalog, RAXTiFY focuses on refinement of materials and accuracy of finish, particularly in niche markets such as matte chrome and candy.
Key differences:
- Better controlled consistency in chrome film (a typical area of weakness in the market)
- Emphasis on installer-friendly adhesive balance
- Less over-expansion of SKUs in order to ensure quality stability over quantity.
Practical Value for Installers and End Users
In the case of a color such as Matte Chrome Candy Red, performance is as important as the appearance. RAXTiFY films are developed with the aim of:
- Stretch predictably around curves
- Maintain color depth after installation
- Remove cleanly when needed
This has the effect of reducing the number of installation errors and providing a more uniform final finish.
Specifications:
- Colour: Royal Blue
- Finish: Matte Chrome
- Material: High-grade polymetric calendered vinyl film
- Lifespan: 2-3 years with proper installation and maintenance
- Recommended Uses: Automotive
- Shipping Time: Standard shipping: 7-12 business days; Faster shipping: 3-5 business days
- Sizes Available: 5ft x 3ft, 5ft x 10ft, 5ft x 16ft, 5ft x 33ft, 5ft x 49ft, 5ft x 59ft, 5ft x 69ft, 5ft x 75ft
Related Articles on Matte Chrome Candy Red Car Wrap
Structure
Our wrap films consist of 4 layers designed to ensure exceptional performance:
The first layer serves as a protective barrier for the underlying vinyl.
Directly beneath, you'll find high-grade polymeric vinyl fortified with pressure-sensitive acrylic adhesive.
Finally, a layer of top-tier 130um plastic liner adds an extra level of quality to our wrap films. This plastic liner ensures a smoother, super glossy, and lustrous finish.
Item Specifications
| RAXTiFY VINYL | Specifications |
|---|---|
| Technology | High-grade polymeric calendered vinyl film with air-release channels |
| Top Protective Liner | PET |
| Thickness (Face only) | 3.7–4.1 mil, face film only |
| Thickness (Adhesive) | 1.6 mil removable pressure-sensitive adhesive with air-release channels |
| Glue | Solvent-based adhesive, low-to-medium tack for easier repositioning |
| Release Liner | PET/Plastic |
| Width (Standard) | 5ft / 60in 1.52m |
| Length (Standard) | 19.7yd / 59ft / 18m |
| Indoor Lifespan | 3 years depending on use and maintenance |
| Outdoor Lifespan | 2 years depending on climate, installation, and maintenance (Except Chrome Wraps) |
Wrap Testing
| RAXTiFY VINYL | Testing Result |
|---|---|
| Dimensional Stability | Shrinkage less than 4% |
| Tensile Strength | 22.7 N/10mm |
| Release Force (N/25mm) | 0.13 N/25mm, tested at 25°C and 50% RH |
| Initial Tack (g/25mm) | 1360 g/25mm, tested at 26°C and 64% RH, GB31125-2014 |
| Peel Strength (N/25mm) | 7.02 N/25mm, tested at 25°C and 42% RH, GB/T2792-1998 |
| Holding Power (h) | 75.09 (25℃ and 50%, GB/T4851-1998) |
| Chemical Resistance | Resistant to mild acids, mild alkalis, and salt. Avoid strong solvents and harsh cleaners. |
| Aging Testing | No adhesive residue after 7 days of heat exposure under 65°C |
| Aging Test 2 | No adhesive residue after 10 days under standard aging conditions |
| Storing Period | Up to 3 years when stored in the original packaging at +10°C to +20°C, 50% RH, away from direct sunlight, in a clean and dry environment |
Application
| RAXTiFY VINYL | Application Advices |
|---|---|
| Recommended Tools | Squeegee with felt edge, microfiber buffer, sharp knife, masking tape, magnets, gloves, heat gun, infrared thermometer |
| Application | Apply using standard dry-wrap techniques for calendered vinyl films. Avoid overstretching and overheating. Post-heating is required on edges, curves, recessed areas, and overlaps |
| Post-heating Temperature | 95°C–110°C for most areas and up to 120°C for curves and overlaps (Except Chrome Wraps） |
| Recommended Installation Area Temperature | 20°C–30°C (68°F–86°F) |
| Directional | All vinyl wraps are recommended to be installed directionally |
| Application Method | Dry Application （Except PPF) |
| Aftercare | Clean with pH-neutral car wash soap and a soft microfiber cloth. Avoid strong solvents, abrasive cleaners, and harsh chemicals |

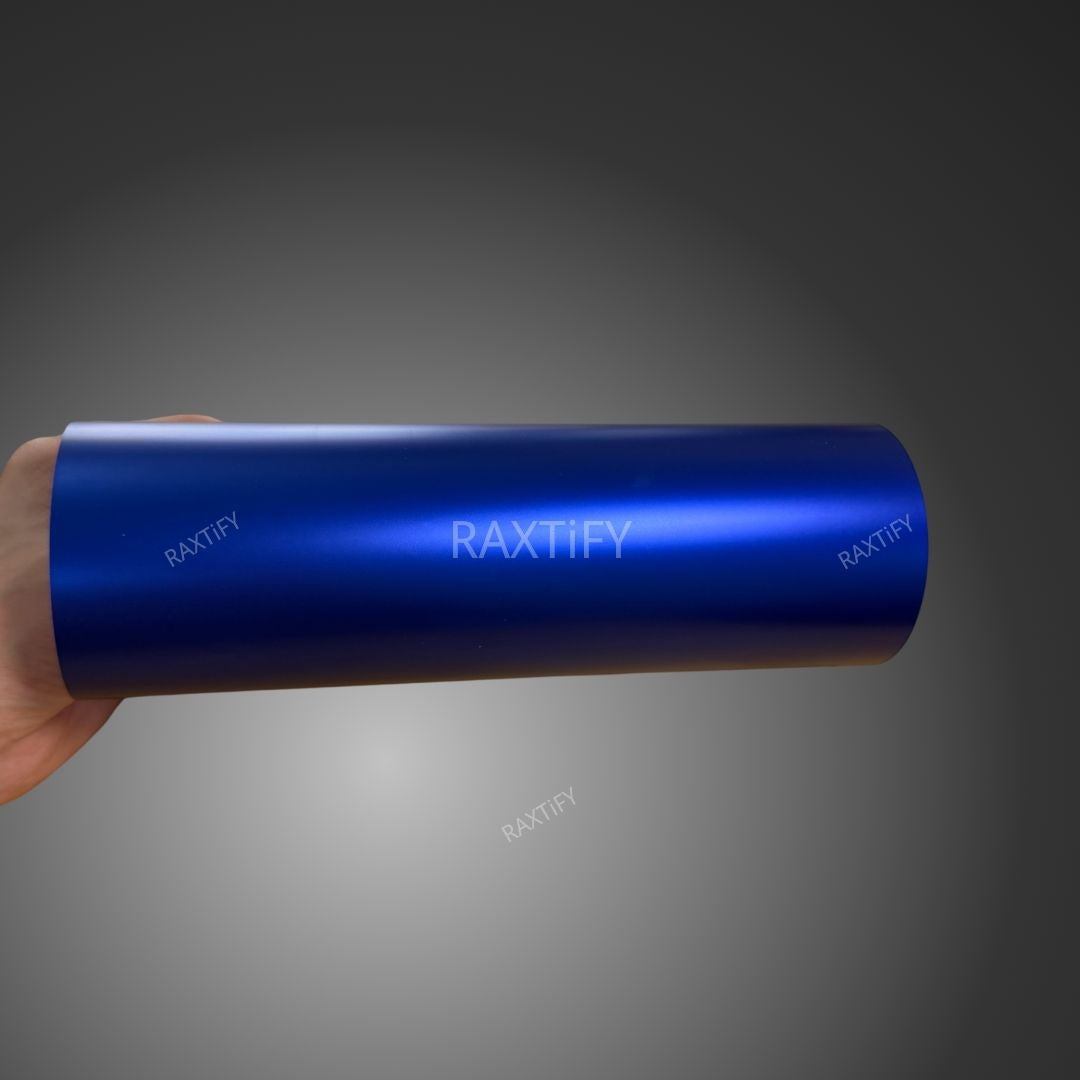

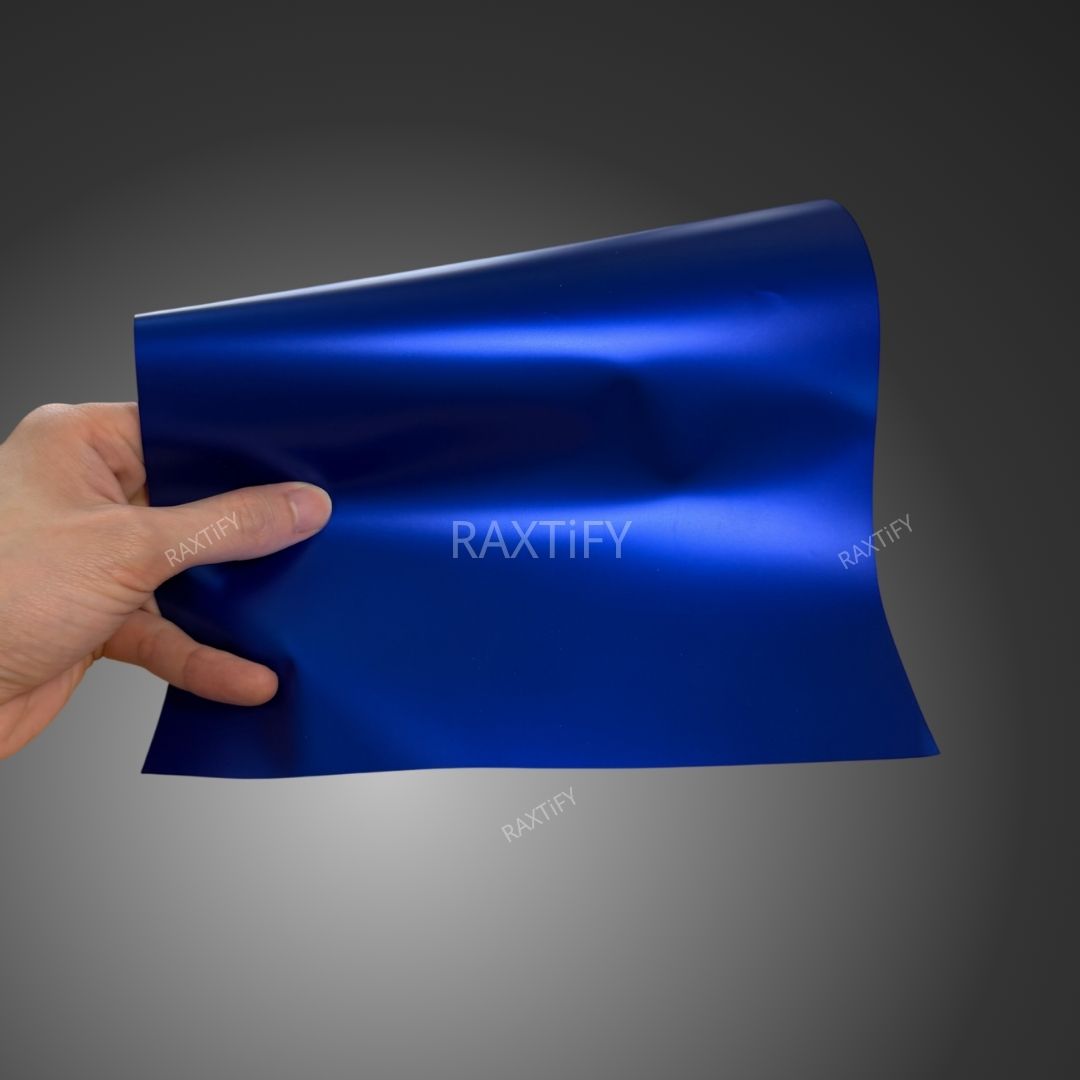

Got your eyes on a color but not sure if it's the one? Get a FREE small sample first!
Frequently Asked Questions
Is RAXTiFY vinyl easy to install?
RAXTiFY vinyl wraps are made in line with professional uses.Others such as high-gloss, metallic, or glitter series are stiffer than the traditional wraps because of surface coating technology.Although the flat panels can be easily installed by the hands of skilled DIY users, it is highly advised that professional installation be done in complex curves and high visibility areas.
Can I apply overlaminate on RAXTiFY vinyl?
Overlamination should be avoided.Other coating layers can have an influence on surface transparency, bonding and durability.The original surface finish of RAXTiFY vinyl is developed to be the last visual coating.
How should I maintain RAXTiFY vinyl wraps?
- Wash using pH-neutral car shampoo
- Use a soft microfiber cloth or touchless wash
- Pressure washers should remain under 2000 PSI
Cleanse up the contaminants e.g. bird droppings, sap of trees or fuel residues as soon as possible to avoid staining.
Can I use wax or polish on RAXTiFY vinyl?
Vinyl specific spray waxes or sealants are only used; these are mostly used in gloss and metallic finishes.Abrasive polishes, cutting compounds or solvent based chemicals are to be avoided.Any product should always be tested on a small and inconspicuous part of the skin before it can be applied.
How long does RAXTiFY vinyl wrap last?
Wrap lifespan depends on multiple factors, including:
- Film series and finish
- Installation quality
- Environmental exposure
- Maintenance habits
Although RAXTiFY films are designed to give non-textured finishes to the vehicle, the end result could depend on the painted state of the vehicle in the first place.The scratches, dents, rust, bubbles or orange peel that may be present before installation may be left and are not regarded as film defect.
Will removing RAXTiFY vinyl damage my paint?
RAXTiFY vinyl wraps should not harm factory paint when used on OEM paint that is in fine condition and removed without causing damage to the paint.
Does storage affect wrap lifespan?
Parking in interior parts or shaded parking areas mean a lot of less exposure to UV and environmental pressure.In case of an indoor storage, a breathable car cover will be recommended, as it will be helpful to maintain the quality of the finish and increase the wrap lifespan.
